LED Luminaires
ABV4 series
LED High Bay Lighting
Owner’s Manual

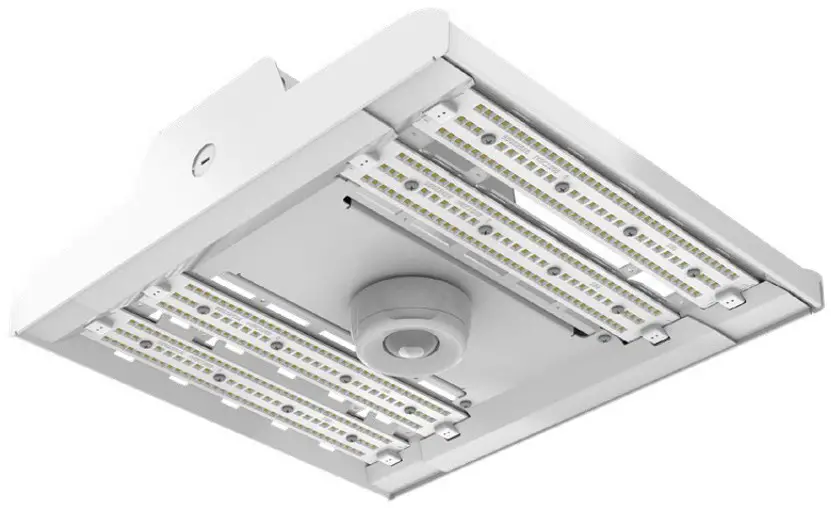

ABV4 Series LED Luminaire
CUSTOMER NAME …………
Project Name ………………………….
Date …………………. Type ……………
Catalog Number ………………………
The Albeo® ABV4 LED luminaire is an exceptional mixture of value and performance. Ideal for high bay and low bay applications in industrial and commercial buildings. Designed to replace 150W–1500W HID and four-to-eight lamp T5/T8 fixtures with unmatched reliability and quality. Now with integral Daintree® sensors and controls. See optic N1 for aisle distribution!
CONSTRUCTION
| Housing: | Combination steel and aluminum |
| Lens: | Polycarbonate diffused, acrylic clear |
| Paint: | Powder coat painted housing No glass in housing or lenses |
| Weight: | 10 –11 lbs (4.55 – 4.99 kg) per module (see dimensional drawings) |
| Optical Assembly: | Polycarbonate reflective optics with optional lens |
OPTICAL SYSTEM
| Distribution: | Wide, Wide Diffused (reduce Glare), Medium and Narrow |
| Lumens: | 9,000 – 90,000 |
| Efficacy: | 167 – 197 LPW typical |
| CCT: | 3000K, 3500K, 4000K, 5000K |
| CRI: | 70, 80, & 90 |
ELECTRICAL
| Input Voltage: | 120V –277V, 347V, & 480V |
| Input Frequency: | 50/60Hz |
| LED Driver Type: | Designed to exceed 100,000 hrs of operation at worst possible rated conditions |
| Power Factor (PF)*: | >0.9* |
| Total Harmonic Distortion (THD)*: | <20%* |
| Surge Protection: | Tested per ANSI C136.2-2015 • 6kV surge protection, standard for Lumen Output ’24’ and higher • 3kV surge protection, Lumen Output ’18’ and lower |
| EMI: | FCC CFR Title 47 Part 15, Class A |
* PF and THD may vary with options
CONTROLS
| Dimming: | Standard 0 –10VDC,10% |
| Controls: | High-end trim, occupancy and ambient light detection with dimming available. Wireless Daintree® options available. |
LUMEN AMBIENT TEMPERATURE
| TYPE | TEMPERATURE RATE |
| OPERATING TEMPERATURE | −30°C to +55°C (−22°F to 131°F) |
| STORAGE TEMPERATURE | −40°C to +70°C (−40°F to 158°F) |
LUMEN MAINTENANCE
| ESTIMATED LXX(10K) @ HRS 250,000 HR AT 25°C | REPORTED LXX(10K) @ HRS 65,000 HR AT 25°C |
| L70 | L90 |
MOUNTING & ACCESSORIES
- Typical Mounting:
- Standard Chain/Cable mount ready
- Threaded rod kit & Surface mount optional
- Pendant mount kit optional
- Standard: Knockout access (no cord, no plug)
- Cord & Plugs:
- 6 ft, 12 ft, 15 ft, 20 ft cord options
- 5A, 20A, Straight or twist lock plug
- Reloc OCS Cord-Plug FS or GS
- Plug-N-Go Cord-Plug MF or HF
- Wire Guard Option Available
- Integral and Accessory EMBB Options Available
DESIGN LIFE & WARRANTY
- Reliability Testing: Fixture components designed to exceed 100,000 hrs of operation at the worst possible rated conditions. Complete system evaluated at extreme conditions and monitored during production. Please refer to the DLC QPL website for the latest and most complete information: http://www.designlights.org/QPL
- Certification: UL/cUL Listed
- Packaging: Standard job pack contain 7–21 fixtures.
Orders of <14 are typically single pack. 90T & 90H are bulk pack only. - Current’s Limited 5-year Warranty: Please refer to IND599 in Product Downloads section at: https://products.gecurrent.com
Ordering Information:
ABV4
_ _ _ _ _ _ _ _ _
| PRODUCT ID | VOLTAGE | LUMEN OUTPUT | CCT/CRI | OPTICS/LENS | CONTROLS | MOUNTING | CORD1 | PLUG2 | FINISH | OPTIONS |
| ABV4 = Albeo® Highbay ABV 4th Gen | 0 = 120 –277 1 = 120 4 = 277 D = 347 5 = 480 | 09 = 9,000lm 12 = 12,000lm 15 = 15,000lm 18 = 18,000lm 24 = 24,000lm 30 = 30,000lm 36 = 36,000lm 48 = 48,000lm 60 = 60,000lm 72 = 72,000lm 90 = 90,000lm | 70 Plus CRI 47 = 4000k 57 = 5000k 80 Plus CRI 38 = 3000k C8 = 3500k 48 = 4000k 58 = 5000k 90 Plus CRI C9 = 3500k 49 = 4000k | W1= 120° No Lens WD = 120° Diffused M1 = 55° Diffused N1 = 30° Diffused | QQ = Dimming leads not externally accessible QV = 0 –10V Dimming Daintree® Networked: NA = Occupancy & Ambient Light Sensor, w/ Continuous Dimming (full feature) TQ3 = Wireless Daintree® Enabled (no sensor) Daintree® EZ Connect : DF= Occupancy & Ambient light sensor w/ Continuous Dimming Daintree® One: FB = Occupancy & Ambient Light Sensor with Continuous Dimming Daintree® One Custom Options : FF = Occupancy w/ Continuous Dimming FH = Occupancy On/Off FK = Ambient Light Sensor w/ Continuous Dimming 3rd Party Options4: QA = Occupancy Sensor On/Off 360° LSXR, No External Wiring QB = Occupancy Sensor Continuous Dimming 360 ° LSXR QP = Daylight Sensor w/occupancy On/Off LSXR, No External Wiring, Full Featured | ST = Standard SM = Surface Mount 23 = 3/4″ Pendant Mount Kit 41 = Y-Cable/ Hook 5ft. 42 = Y-Cable/ Hook 10ft. 43 = Y-Cable/ Hook 15ft. 44 = Y-Cable/ Hook 20ft. | K = Knockout A = 6ft. 18ga cord B = 12ft. 18ga cord C = 15ft. 18ga cord D = 20ft. 18ga cord | Q = None A = 15A Straight Plug B = 20A Straight Plug C = 15A Twist Lock Plug D = 20A Twist Lock Plug | W = White Powder Coat K = Matte Black | Blank = No Special Options 1PK = Single Pack for distributor stocking. Default is Job Pack (7–21). E205,6= Emergency Unit 20W GTD7 = Generator Transfer Device WC = White Cord |
| Specialty Modular Cord Sets2,8: | ||||||||||
| FS = Relos – 10ft. GS = Relos – 15ft. | ||||||||||
| MF = Plug-N-Go – 3ft. 18ga Black Cord HF = Plug-N-Go – 10ft. 18ga Black Cord | ||||||||||
| LE9 = ACS – MC Flex3+ 10ft 2EA 10-LW 277/480 #16AWG | ||||||||||
| NE9 = ACS – MC Flex3+ 12ft 2EA 12-LW 277/480 #16AWG | ||||||||||
- 3-conductor cords. Dimming leads separate if controls option QV is selected.
Contact factory if 5-conductor cord is needed. - Must Specify discrete voltage.
- TQ not available with 72/90 Lumen and D/5 Volatge.
- QA, QB, QP not available with 72/90 Lumen.
- Emergency unit and 347/480VAC version not available with mounting SM and 23.
- Contact manufacturer for specialty and regular cord feasibility.
- GTD only available with 120/277.
- Contact Factory for lead-time.
- Available with Voltage 4 or 5 only.
NOTE:
See WHS20 spec sheet for default program parameters and occupancy detection patterns.
- Daintree Wireless Controls can be upgraded over time for greater functionality.
- WHR1 Remote PN: 93131632
- Daintree EZ Connect App can be downloaded on the Apple® App Store.
- 40ft (12m) mounting height.
Ordering Information
| 70 CRI @ 4000K OR 5000K CCT | |||||||
| LUMEN PACKAGE | TYPICAL DELIVERED LUMENS | TYPICAL POWER | TYPICAL LPW 120 –277V | TYPICAL LPW 347V | MODULE BODY | TYPICAL LUMEN IN EMERGENCY MODE | |
| 120 –277V | 347/480V | ||||||
| 09 | 9,000 | 46 | 48 | 197 | 188 | 1S | 3755 |
| 12 | 12,000 | 61 | 63 | 196 | 190 | 1S | 3794 |
| 15 | 15,000 | 78 | 79 | 192 | 189 | 1S | 3789 |
| 18 | 18,000 | 97 | 95 | 187 | 190 | 1S | 3800 |
| 24 | 24,000 | 135 | 133 | 178 | 181 | 1S | 3614 |
| 30 | 29,000 | 173 | 171 | 167 | 170 | 1S | 3401 |
| 36 | 36,000 | 196 | 192 | 184 | 187 | 2S | 3747 |
| 48 | 48,000 | 271 | 266 | 177 | 180 | 2S | 3603 |
| 60 | 60,000 | 319 | 314 | 188 | 191 | 2D | 3822 |
| 72 | 72,000 | 370 | 364 | 195 | 198 | 3D | 3959 |
| 90 | 90,000 | 477 | 470 | 189 | 192 | 3D | 3832 |
LPW/LUMEN SPECS BASED ON WIDE DISTRIBUTION
De-rate 5°C for “SM” Surface Mount Option
Add 7W for “E20” option and 10W for “E20” with 347/480V input. (Charging Load)
| NEMA PLUG TYPE | ||||
| VOLTAGE | A (15A STRAIGHT) | B (15A TWIST LOCK) | C (20A STRAIGHT) | 20D (1 A TWIST LOCK) |
| 120 | 5-15P | L5-15P | 5-20P | L5-20P |
| 277 | 7-15P | L7-15P | 7-20P | L7-20P |
| 347 | 24-15P | N/A | 24-20P | L24-20P |
| 480 | N/A | N/A | N/A | L8-20P |
| OPTIC CODE | OPTIC DESCRIPTION | OUTPUT |
| W1 | 120° No Lens | 100% |
| WD | 120° Diffused Lens | 93% |
| M1 | 55° Textured Diffused Lens | 94% |
| N1 | 30° Textured Diffused Lens | 95% |
| CRI | LUMENS | CCT | LUMEN PACKAGE OUTPUT |
| 70 | All Lumen | 4000 | 100% |
| 5000 | 100% | ||
| 80 | 3000 | 92% | |
| 3500 | 92% | ||
| 4000 | 90% | ||
| 5000 | 87% | ||
| 90 | 3500 | 81% | |
| 4000 | 83% |
Accessory & Renewal Parts
REPLACEMENT LENSES & OPTICS:
| ORDERING SKU | ORDERING CAT# LOGIC | FIXTURE CAT# LOGIC | DESCRIPTION |
| 93075866 | Wide Diffused Lens Kit | Optics = WD | Diffused Lens Only (2 Lenses) *does not change beam angle |
| 93075989 | Reflector Optic Kit | Optics = WD | 120 Degree Optic (2 White Reflectors) |
| 93117671 | M1 Optic Kit | Optics = M1 | Textured Diffused 55 degree Optic (2 Refractors) |
| 93117672 | N1 Optic Kit | Optics = N1 | Textured Diffused 30 Degree Optic (2 Refractors) |
Check fixture images on pg. 1 to determine how many optics are needed based on housing type.
Example: 60T lumen code = ‘2D’ housing = 8 lenses and/or optics needed = 4 kits
WIRE GUARDS:
| ORDERING SKU | DESCRIPTION |
| 93077600 | 1S Wire Guard White Painted – 5pk |
| 93077602 | 2S Wire Guard White Painted – 5pk |
| 93077604 | 3S Wire Guard White Painted – 5pk |
| 93077668 | 2D Wire Guard White Painted – 5pk |
FIELD SWAPPABLE WHS20 SENSOR ACCESSORIES:
| ORDERING SKU | ORDERING CAT# LOGIC | DESCRIPTION |
| 93134999 | WHS20_LOW_LENS_KIT_10 | Low Lens: 2.5m (8ft) – 10pk |
| 93135001 | WHS20_MED_LENS_KIT_10 | Med Lens: 6m (20ft) – 10pk |
| 93135003 | WHS20_HIGH_LENS_KIT_10 | High Lens: 12m (40ft) – 10pk |
| 93134985 | WHS20_SNAP_AISLE_MASK_KIT_10 | Snap on Aisle Mask |
NOTE: See WHS20 spec sheet for Occupancy Detection Patterns
Product Dimensions
1S MODULE – 9K, 12K, 15K, 18K, 24K, 30K LUMENS
2S MODULE – 36K, 48K LUMENS
2D MODULE – 60K LUMENS
3D MODULE – 72K, 90K LUMENS
PHOTOMETRIC DATA
Daintree® Wireless Controls
WIRELESS NETWORKING AND SENSING DEVICE OPTIONS*
- Daintree® One: Wireless fixture integrated sensor that is perfect for single fixtures or small area applications. Standalone wireless lighting controls that work independently. Comes preset from the factory, yet can be upgraded to Daintree EZ Connect and/ or Daintree Enterprise in the future. Factory preset to shut off 20 minutes after the space is vacated of occupants. Daylight harvesting preset enabled on.
- Daintree® EZ Connect: Wireless fixture integrated sensor that is designed for room based controls where a group of fixtures communicate to each other and communicate wirelessly in chorus as a system. The advantage is simple, minimal field based commissioning. Factory preset to shut off 20 minutes after the space is vacated of occupants. No daylight harvesting set in initial preset. EZ Connect wireless lighting controls are set up and/or can be changed by the Daintree EZ Connect application that can be downloaded via a smart device.
- Daintree® Enterprise: Wireless fixture integrated sensor technology that is ideal for multisite lighting system management. System requires software and commissioning. Monitor multiple controls, lighting, energy, HVAC with unlimited potential for other (3rd party) sensor integration. “Open on the bottom” means that ZigBee communication protocol is an industry standard with countless wireless hardware sensing options. “Open on the top” means that the data from the sensors can be used by any 3rd party software supplier/developer, be it part of a complete BMS system or simple API (Application Programming Interface or “App”). Daintree Enterprise offers a complete future proof solution from any Daintree enabled installed base of fixtures.
*Contact Factory for specific option availability
WHR1 IR REMOTE
ABV4 WITH OPTIONAL DAINTREE WIRELESS WHS20 CONTROL MODULE
gecurrent.com/albeo
© 2022 Current Lighting Solutions, LLC.
All rights reserved. Information and specifications subject to change without notice.
All values are design or typical values when measured under laboratory conditions.
(Rev 07/11/22)
ALB061
