ABV4 Series LED High Bay Luminaire
Owner’s Manual

ABV4 Series LED High Bay Luminaire

CUSTOMER NAME —————-
Project Name —————-
Date —————- Type —————-
Catalog Number —————-
ABV4 Series
LED High Bay Lighting
The Albeo® ABV4 LED luminaire is an exceptional mixture of value and performance. Ideal for high bay and low bay applications in industrial and commercial buildings.
Designed to replace 150W–1500W HID and four-to-eight lamp T5/T8 fixtures with unmatched reliability and quality.
Now with integral Daintree® sensors and controls.
See optic N1 for aisle distribution!

CONSTRUCTION

Housing: Combination steel and aluminum
Lens: Polycarbonate diffused, acrylic clear
Paint: Powder coat painted housing, No glass in housing or lenses

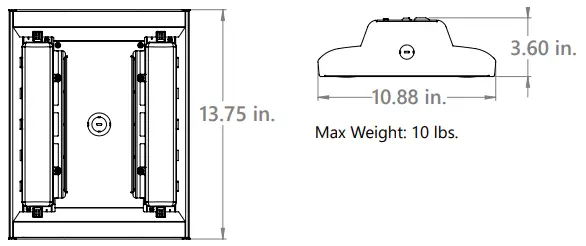

Weight: 10 –11 lbs (4.55 – 4.99 kg) per module (see dimensional drawings)
Optical Assembly: Polycarbonate reflective optics with optional lens

OPTICAL SYSTEM

Distribution: Wide, Wide Diffused (reduce Glare), Medium and Narrow
Lumens: 9,000 – 90,000
Efficacy: 167 – 197 LPW typical
CCT: 3000K, 3500K, 4000K, 5000K
CRI: 70, 80, & 90

ELECTRICAL

* PF and THD may vary with options
CONTROLS
Dimming: Standard 0 –10VDC,10%
Controls: High-end trim, occupancy and ambient light detection with dimming available. Wireless Daintree® options available.
LUMEN AMBIENT TEMPERATURE

MOUNTING & ACCESSORIES

• Typical Mounting:
  • Standard Chain/Cable mount ready
  • Threaded rod kit & Surface mount optional
  • Pendant mount kit optional
• Standard: Knockout access (no cord, no plug)
• Cord & Plugs:
  • 6 ft, 12 ft, 15 ft, 20 ft cord options
  • 5A, 20A, Straight or twist lock plug
  • Relock OCS Cord-Plug FS or GS
  • Plug-N-Go Cord-Plug MF or HF
• Wire Guard Option Available
• Integral and Accessory EMBB Options Available

DESIGN LIFE & WARRANTY

• Reliability Testing: Fixture components designed to exceed 100,000 hrs of operation at the worst possible rated conditions. Complete system evaluated at extreme conditions and monitored during production. Please refer to the DLC QPL website for the latest and most complete information: http://www.designlights.org/QPL
• Certification: UL/cUL Listed
• Packaging: Standard job pack contain 7–21 fixtures.
  Orders of <14 are typically single pack. 90T & 90H are bulk pack only.
• Current’s Limited 5-year Warranty: Please refer to IND599 in Product Downloads section at: https://products.gecurrent.com

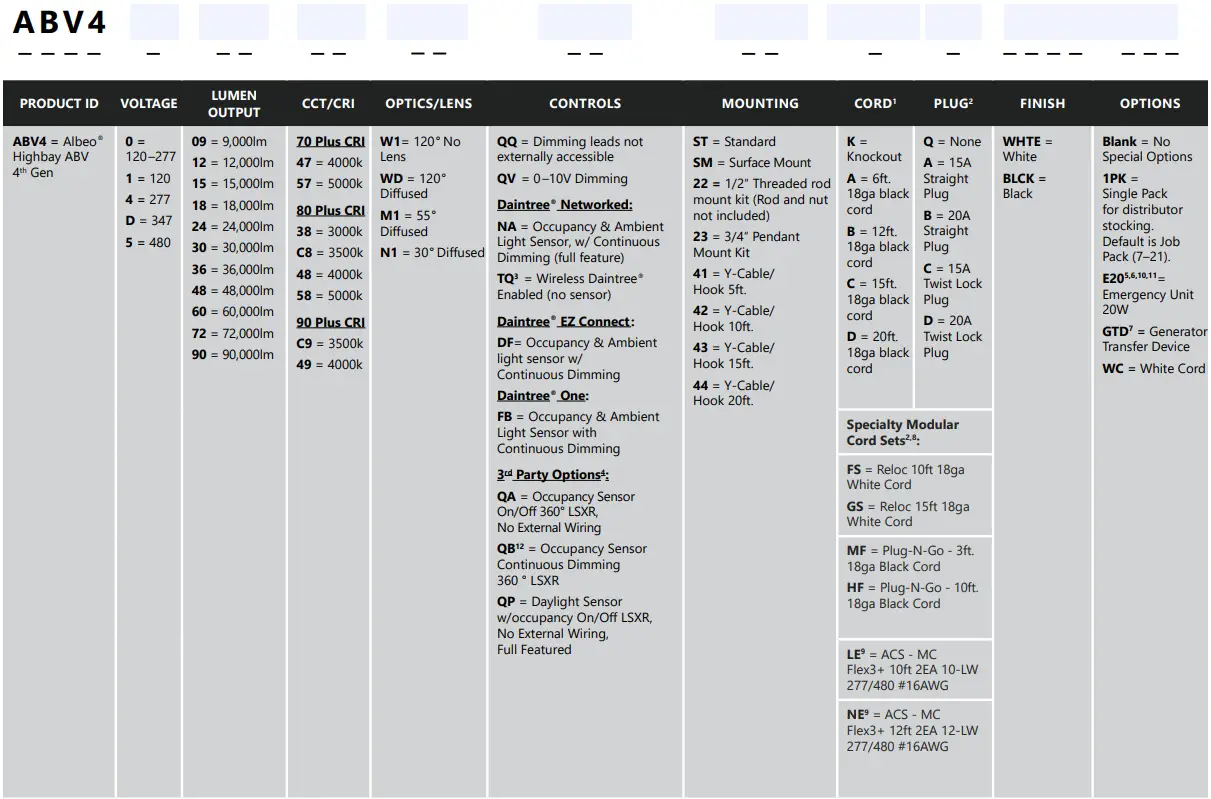

Ordering Information

1. 3-conductor cords. Dimming leads separate if controls option QV is selected.
   Contact factory if 5-conductor cord is needed.
2. Must specify discrete voltage. See NEMA Plug Type Table.
3. TQ not available with 72/90 Lumen or D/5 Voltage.
4. QA, QB, QP not available with 72/90 Lumen.
5. Emergency unit and 347/480VAC version not available with mounting SM and 23.
6. Contact manufacturer for specialty and regular cord feasibility
7. GTD only available with 120/277
8. Contact factory for lead-time.
9. Available with Voltage 4 or 5 only
10. Not available with GTD
11. Only available with Single Pack
12. QB not available with 480V

NOTE:
See WHS20 spec sheet for default program parameters and occupancy detection patterns.

• Daintree Wireless Controls can be upgraded over time for greater functionality.
• WHR1 Remote PN: 93131632
• Daintree EZ Connect App can be downloaded on the Apple® App Store.
• 40ft (12m) mounting height.

LPW/LUMEN SPECS BASED ON WIDE DISTRIBUTION
De-rate 5°C for “SM” Surface Mount Option
Add 7W for “E20” option and 10W for “E20” with 347/480V input. (Charging Load)

Mounting & Accessory Options

MOUNTING AND ACCESSORIES:

MOUNTING OPTIONS	IMAGE	ORDER LOGIC CODE	AFTERMARKET ORDER LOGIC

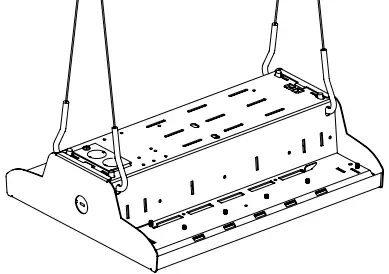

Standard Chain/ Cable Mount Available on all fixture configurations (chain not included). Y-Cable w/hook can be ordered as an accessory.		ST = Standard (No chain or mounting hardware included)	Aftermarket: NA

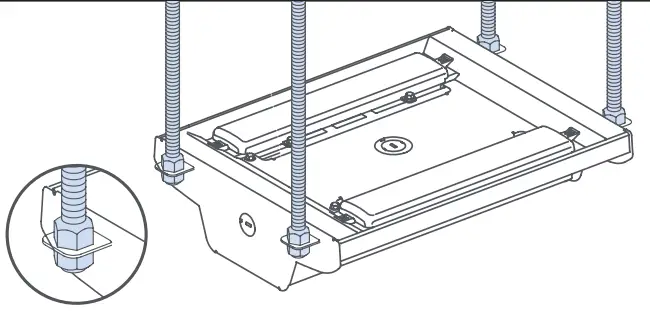

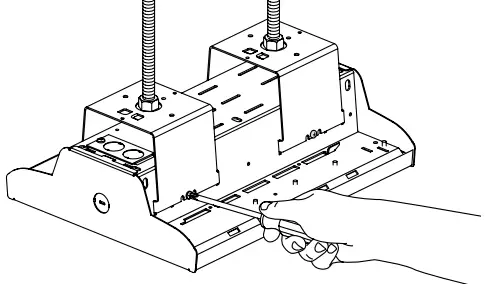

Rod Mount (optional) Available on all fixture configurations. Attaches to 1/2″ threaded rod (rod and nuts not included). Surface Mount (optional) Available on all fixture configurations. Attaches to structural member in ceiling. (Hardware not included.)		22 = 1/2″ Threaded Rod Kit	SKU: 93120346 Description: 1/2″ Surface Mounting Kit NOTE: Kit included two (2) brackets.

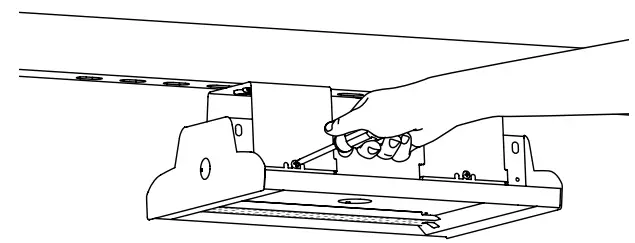

		SM = Surface Mount

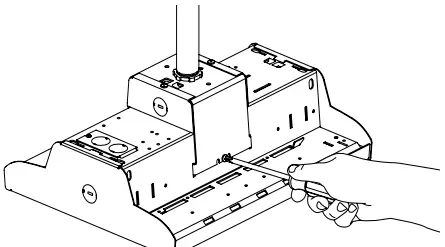

Pendant Mount (optional) Available on all fixture configurations. Attaches to 3/4″ threaded conduit. (conduit not included).		23 = 3/4″ Pendant Mount Kit	SKU: 93120347 Description: 3/4″ Pendant Mounting Kit

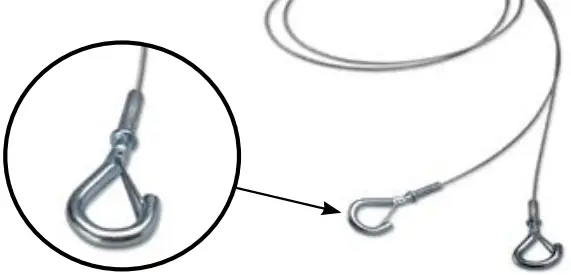

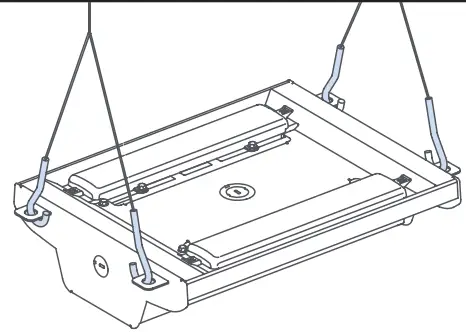

Y-Cable w/hook (optional) Use with Standard Mounting Option only. Order separately. Price adder per pair. 5 ft., 10 ft., 15 ft., 20 ft. lengths available.			(41) Y-Cable/Hook 5ft: 93075756 (42) Y-Cable/Hook 10ft: 93075552 (43) Y-Cable/Hook 15ft: 93075553 (44) Y-Cable/Hook 20ft: 93075554
Standard Inverted Mount Available on all fixture configurations Attaches to 3/8″ threaded rod (rod not included)		UP = Standard Inverted Mount	Aftermarket: NA NOTE: Dimensions center hole to center hole of inverted mount are: Single-Wide (1S, 2S, 3S housings): Width 7.4″ Double-Wide (1D, 2D, 3D housings): Width 12.06″ Lengths: 14.87″ (1S/1D), 28.42″ (2S, 2D), 41.97″ (3S, 3D)
Inverted Y- Cable Mount		61 = Inverted Mount Y-Cable/ Hook 5ft 62 = Inverted Mount Y-Cable/ Hook 10ft 63 = Inverted Mount Y-Cable/ Hook 15ft 64 = Inverted Mount Y-Cable/ Hook 20ft	Aftermarket: NA NOTE: Dimensions center hole to center hole of inverted mount are: Single-Wide (1S, 2S, 3S housings): Width 7.4″ Double-Wide (1D, 2D, 3D housings): Width 12.06″ Lengths: 14.87″ (1S/1D), 28.42″ (2S, 2D), 41.97″ (3S, 3D)

Accessory & Renewal Parts

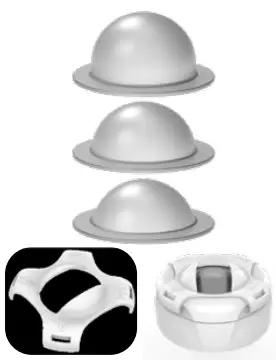

REPLACEMENT LENSES & OPTICS:

WIRE GUARDS:

FIELD SWAPPABLE WHS20 SENSOR ACCESSORIES:

NOTE: See WHS20 spec sheet for Occupancy Detection Patterns
1S MODULE – 9K, 12K, 15K, 18K, 24K, 30K LUMENS

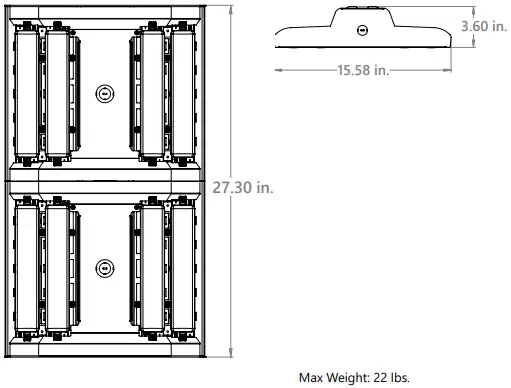

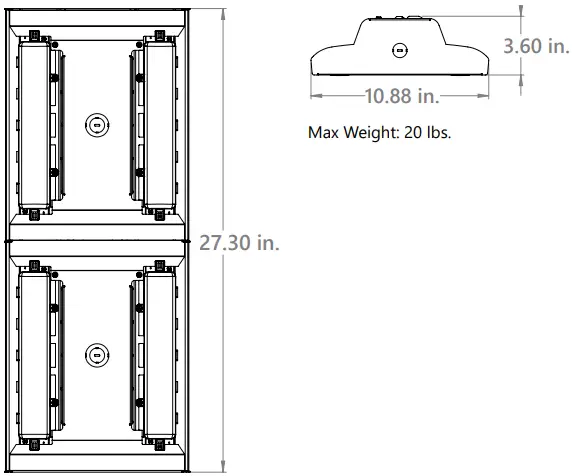

2S MODULE – 36K, 48K LUMENS2D MODULE – 60K LUMENS

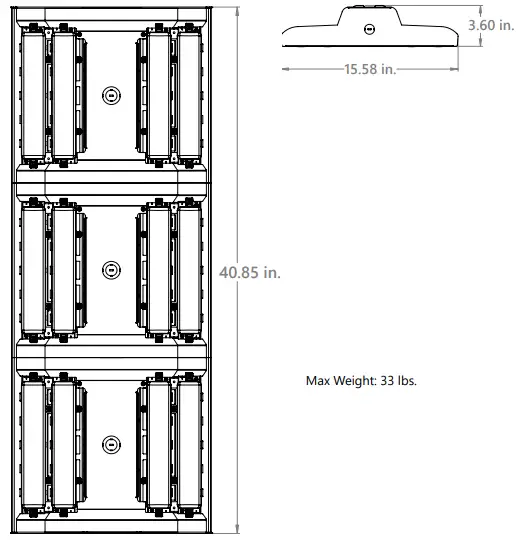

3D MODULE – 72K, 90K LUMENS

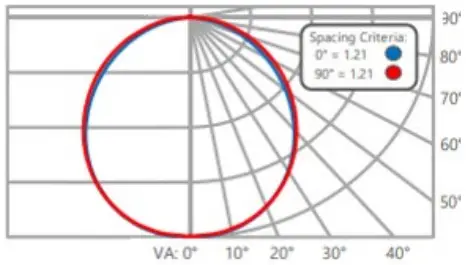

PHOTOMETRIC DATA

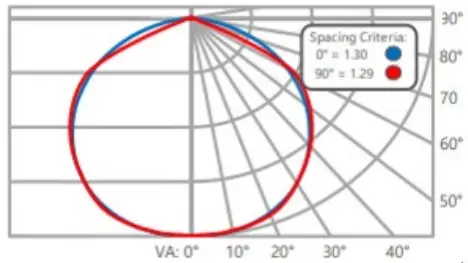

W1 = WIDE	WD = WIDE DIFFUSED

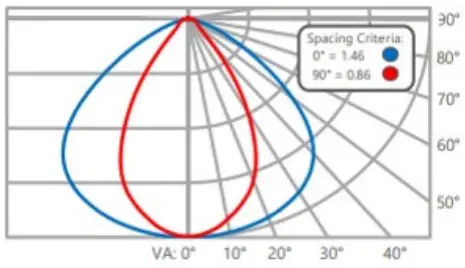

M1 = MEDIUM	N1 = NARROW

WIRELESS NETWORKING AND SENSING DEVICE OPTIONS*

• Daintree® One: Wireless fixture integrated sensor that is perfect for single fixtures or small area applications. Standalone wireless lighting controls that work independently. Comes preset from the factory, yet can be upgraded to Daintree EZ Connect and/ or Daintree Enterprise in the future. Factory preset to shut off 20 minutes after the space is vacated of occupants. Daylight harvesting preset enabled on.
• Daintree® EZ Connect: Wireless fixture integrated sensor that is designed for room based controls where a group of fixtures communicate to each other and communicate wirelessly in chorus as a system. The advantage is simple, minimal field based commissioning. Factory preset to shut off 20 minutes after the space is vacated of occupants.  No daylight harvesting set in initial preset. EZ Connect wireless lighting controls are set up and/or can be changed by the Daintree EZ Connect application that can be downloaded via a smart device.
• Daintree® Enterprise: Wireless fixture integrated sensor technology that is ideal for multisite lighting system management. System requires software and commissioning. Monitor multiple controls, lighting, energy, HVAC with unlimited potential for other (3rd party) sensor integration. “Open on the bottom” means that ZigBee  communication protocol is an industry standard with countless wireless hardware sensing options. “Open on the top” means that the data from the sensors can be used by  any 3rd party software supplier/developer, be it part of a complete BMS system or simple API (Application Programming Interface or “App”). Daintree Enterprise offers a complete future proof solution from any Daintree enabled installed base of fixtures.

* Contact Factory for specific option availability

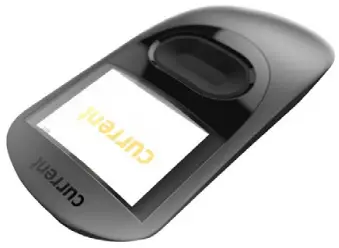

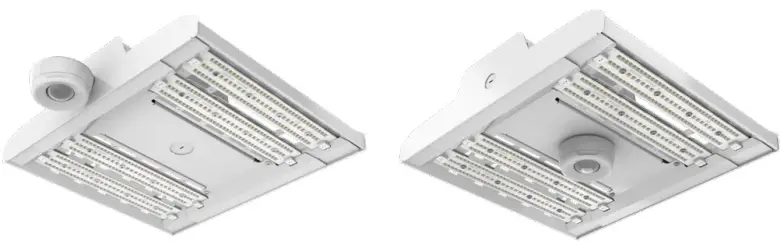

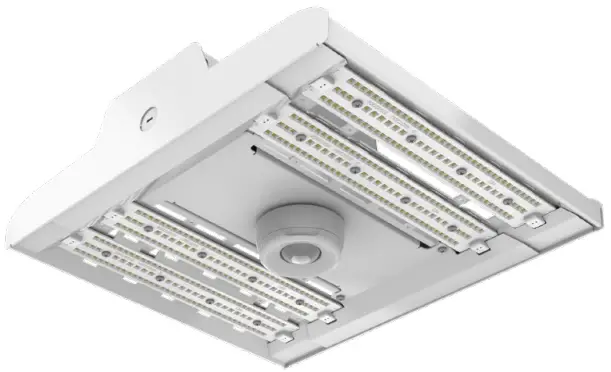

WHR1 IR REMOTE	ABV4 WITH OPTIONAL DAINTREE WIRELESS WHS20 CONTROL MODULE
