SDC LR100ARK Adams Rite Electric Latch Retraction Device Kit
ADAMS RITE ELECTRIC LATCH RETRACTION DEVICE KIT
RIM EXIT DEVICE
MODELS: 3700 & 8800
Visit: sdcsec.com/adamsrite for Installation Video

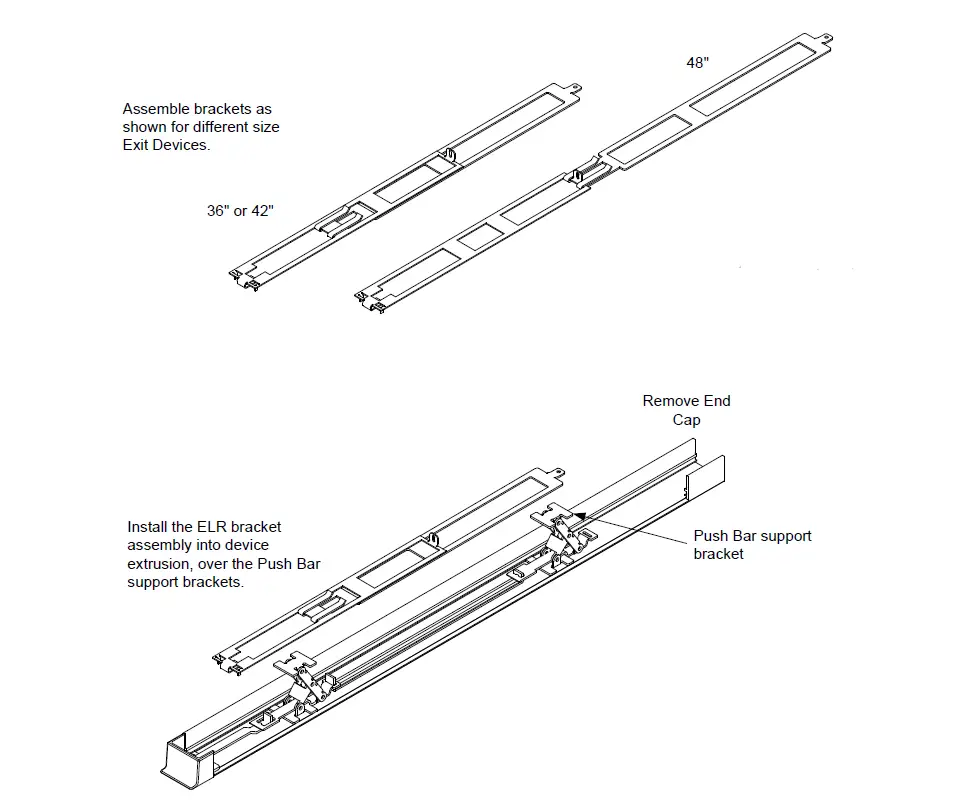

Installation
Retrofit Installation Note: 42″ or 48″ exit devices that have been modified to fit a 36″ or smaller opening, may not have the required space to fit the standard E. L. R. assembly. Always verify the distance from the end of the touchpad to the end rail, and if necessary, consult with the factory for appropriate selection.

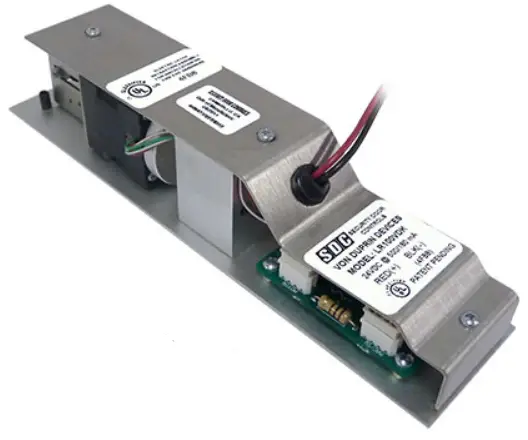

ELECTRICAL DATA
- 24VDC @ 700/200mA
- RED (+) BLK (-)
- PATENT #8,851,530

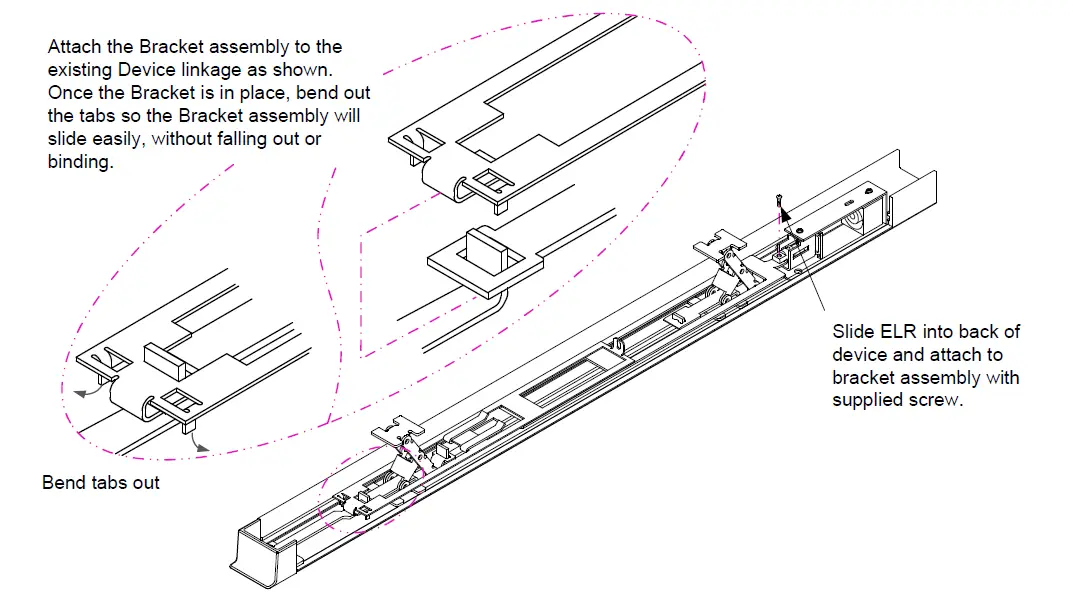

Apply power to the ELR unit to make it draw the sliding latch bracket back to the open position. Secure in position by tightening the set screws in the ELR assembly
Installation
Retrofit Installation Note: 42″ or 48″ exit devices that have been modified to fit a 36″ or smaller opening, may not have the required space to fit the standard E. L. R. assembly. Always verify the distance from the end of the touchpad to the end rail, and if necessary, consult with the factory for an appropriate selection.
