SDC LogoSECURITY DOOR CONTROLS
INSTALLATION INSTRUCTIONS
517
MONITORING SWITCH KITS
ADAMS RITE MODELS: 8300, 8400, 8700 & 8800

Contents hide
1 8300 Electric Latch Retraction Kit
2 Documents / Resources
3 Related Posts

8300 Electric Latch Retraction Kit

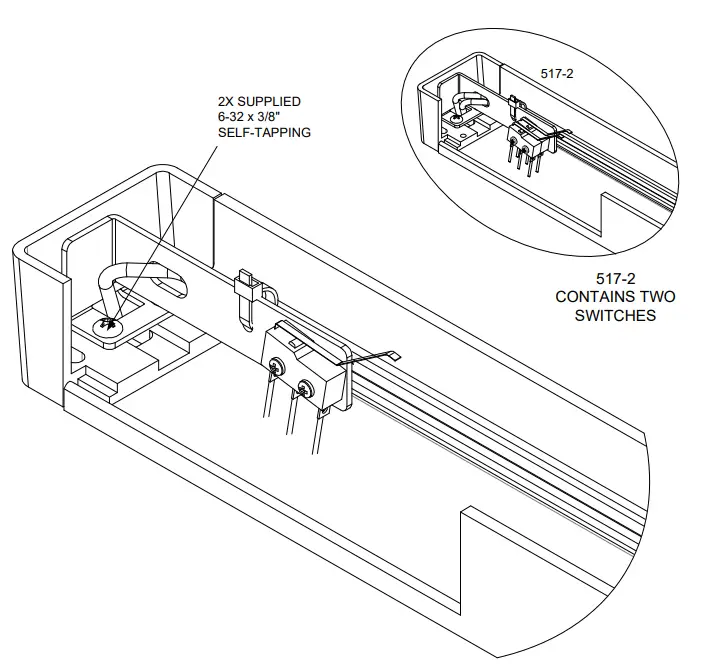

SDC 8300 Electric Latch Retraction Kit

WHT- COM
GRN- N/O
RED- N/C
5 AMP @ 125 VAC RESISTIVE
P:\INST INSTRUCTIONS\EGRESS CONTROLS\INST-517 REV A 07-210
Any suggestions or comments to this instruction or product are welcome. Please contact us through our website or email [email protected]

SECURITY DOOR CONTROLS
WWW.SDCSECURITY.COM
[t] 800.413.8783 ■ 805.494.0622
E-mail: [email protected]
801 Avenida Acaso, Camarillo, CA 93012
PO Box 3670, Camarillo, CA 93011
