ES-WD-FD-460-F-CAN 2306
Engineering Specification
FD-460-F Area Drain with 12 Inch Square Fixed Top
Job Name ––––––––––––––––––––––
Contractor ––––––––––––––––––––––
Job Location ––––––––––––––––––––
Approval –––––––––––––––––––––––
Engineer –––––––––––––––––––––––
Contractor’s P.O. No. ––––––––––––––
Approval ––––––––––––––––––––––––
Representative ––––––––––––––––––––
Tag ––––––––––––––––––––––––––––
FD-460-F
Area Drain with 12″ Square Fixed Top
Specification

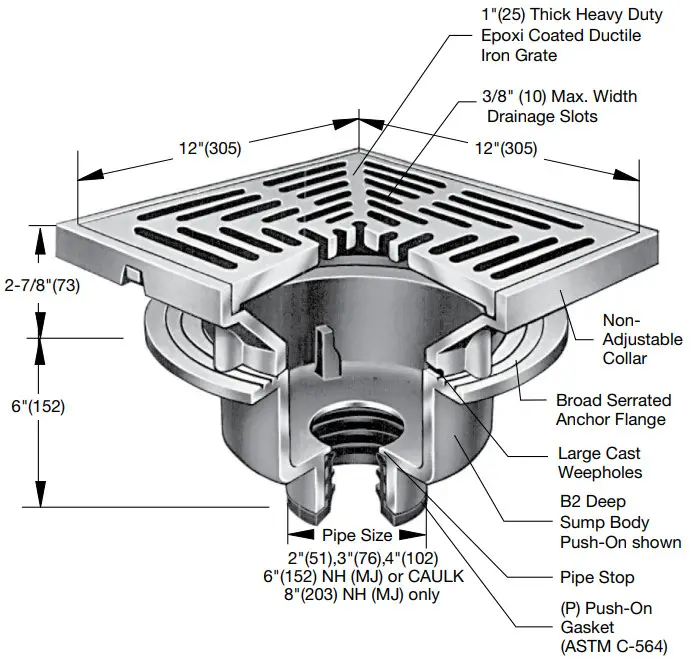

Watts FD-460-F epoxy coated cast iron area drain with anchor flange, weepholes, 12″x12″(305×305) fixed top with ductile iron (standard) tractor grate, no hub (MJ) (standard) outlet.
| Suffix | Pipe Sizing Description | |
| 2 | 2″(51) Pipe Size |  |
| 3 | 3″(76) Pipe Size | |
| 4 | 4″(102) Pipe Size | |
| 6 | 6″(152) Pipe Size | |
| 8 | 8″(203) Pipe Size | |
| Suffix | Pipe Sizing Description | |
| NH | No Hub (MJ) | |
| P | Push On | |
| T | Threaded Outlet | |
| X | Inside Caulk | |
| Suffix | Grate Description | |
| F-1 | 12″x12″(305×305), Nickel Bronze | |
| F-3 | 12″x12″(305×305), S.S. Veneer | |
| F-4 | 12″x12″(305×305), Ductile Iron | |
| Suffix | Optional Body Material Description | |
| -60 | PVC Body w/Socket Outlet | |
| -61 | ABS Body w/Socket Outlet | |
| Suffix | Options Description | |
| -5 | Sediment Bucket | |
| -6 | Vandal Proof | |
| -7 | Trap Primer Tapping | |
| -8 | Backwater Valve” (3, 4″ Only) | |
| -9 | Hinged Grate | |
| -10 | Secured Top c/w Phillips screws | |
| -12 | Galvanized Top | |
| -13 | All Galvanized | |
| -34 | Closure Plug | |
| -113M | Special Epoxy from 3M Range | |
| -SO | Side Outlet | |
| -Z | Elastomeric Flange | |
| Load Rating & Free Area | ||
| Suffix | Load Rating | Free Area Sq. In. |
| F-1 | *XHD | 41 |
| F-3 | *XHD | 41 |
| F-4 | *XHD | 41 |
NOTICE:
The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.
NOTICE:
* The load classifications are in accordance with the American National Standards ASME A112.21.1M ASME Ratings are as follows:
XHD – Safe Live Load 7500-10000 lbs.(3375-4500kg) The above categories are given as a guide only.
Please consult factory.
