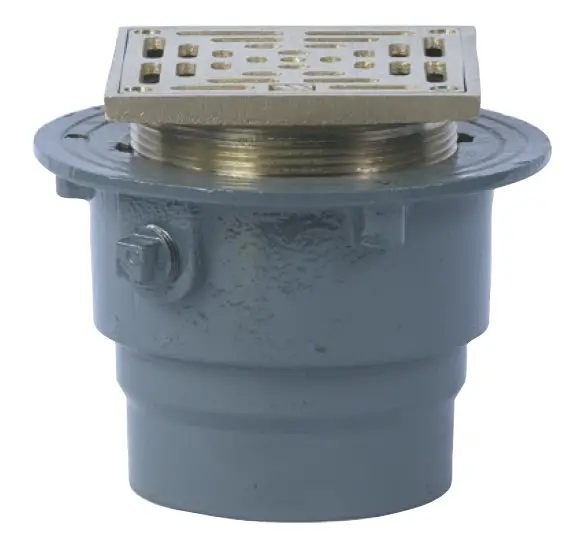

WATTS FD-200-L Floor Drain with Square Heavy Duty Strainer
Specification
Watts FD-200-L on-grade epoxy coated cast iron floor drain with anchor flange, weepholes, adjustable square heel proof heavy duty nickel bronze strainer, and no hub (standard) outle
| Pipe Sizing | ||
| Suffix | Description | |
| 2 | 2″(51) Pipe Size | |
| 3 | 3″(76) Pipe Size | |
| 4 | 4″(102) Pipe Size | |
| Outlet Type | ||
| Suffix | Description | |
| NH | No Hub (MJ) | |
| P | Push On | ✔ |
| X | Inside Caulk | |
| Strainer | ||
| Suffix | Description | |
| L5 | 5″ x 5″ Nickel Bronze | |
| L6 | 6″ x 6″ Nickel Bronze | |
| L8 | 8″ x 8″ Nickel Bronze | |
| Optional Body Material | ||
| Suffix | Description | |
| -60 | PVC Body w/Socket Outlet | |
| -61 | ABS Body w/Socket Outlet | |
| Options | ||
| Suffix | Description | |
| -5 | Sediment Bucket | ✔ |
| -6 | Vandal Proof | ✔ |
| -7 | Trap Primer Tapping | ✔ |
| -8 | Backwater Valve | ✔ |
| -9 | Hinged Grate (For 6″, 8″ Str. Only) | ✔ |
| -13 | Galvanized Body | ✔ |
| -15 | Strainer Extension (DD-50) | ✔ |
| -F4-50 | 4″ Round Cast Iron Funnel | ✔ |
| -F4-1 | 4″ Round Nickel Bronze Funnel | ✔ |
| -F6-1 | 6″ Round Nickel Bronze Funnel | |
| -G-50 | 4″x9″ Oval Cast Iron Funnel | |
| -G-1 | 4″x9″ Oval Nickel Bronze Funnel | |
NOTICE
The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer. You are required to thoroughly read all installation instructions and product safety information before beginning the installation of this product.

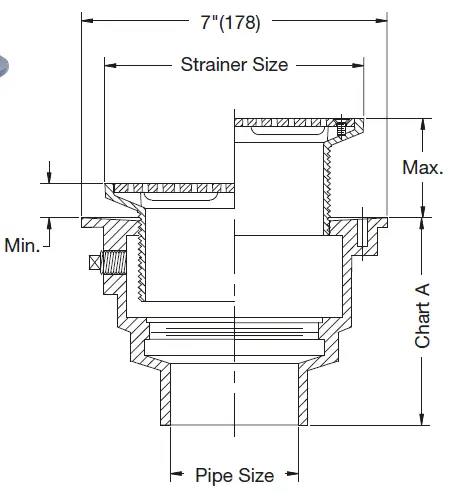

| Std. | P | 60/61 | |
| Pipe | No | Push | PVC/ |
| Size | Hub | On | ABS |
| 2″(51) | 4 1/2″(114) | 5 1/2″(140) | 4″(102) |
| 3″(76) | 4 1/2″(114) | 5 1/2″(140) | 4″(102) |
| 4″(102) | 4 3/4”(121) | 5 1/2″(140) | 4″(102) |
| Load | Free Area | |||
| Strainer | Min. | Max. | Rating | Sq. In. |
| 5″ x 5″(127×127) | 7/16″(11) | 2 5/16″(59) | HD | 9 |
| 6″ x 6″(152×152) | 5/8″(16) | 2 5/16″(59) | HD | 12 |
| 8″ x 8″(203×203) | 3/4″(19) | 2 3/4″(70) | HD | 26 |
NOTICE
The load classifications are in accordance with the American National Standard ASME A112.21.1M ASME Ratings are as follows:
HD Safe Live Load 5000-7499 lbs. (2250-3375 kg) The above categories are given as a guide only. Please consult factory.
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements, please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
