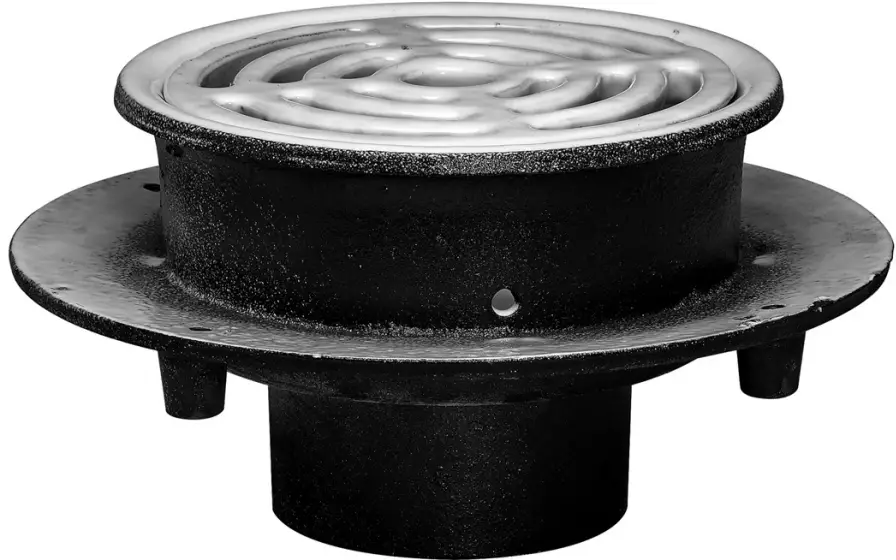

WATTS FS-700 8 Inch Round x 3 Inch Deep Sanitary Floor Sink
Specification
Watts FS-700 8″(203) round x 3″(76) deep flanged sanitary floor sink with white acid resistant porcelain enamel coated interior, loose set porcelain enamel coated cast iron grate, polypropylene dome bottom strainer, and no hub (standard) outlet.
| Pipe Sizing | ||
| Suffix | Description | |
| 2 | 2″(51) Pipe Size | |
| 3 | 3″(76) Pipe Size | |
| 4 | 4″(102) Pipe Size |
| Outlet Type | ||
| Suffix | Description | |
| NH | No Hub (MJ) | |
| P | Push-On |
| Options | ||
| Suffix | Description | |
| -FC | Flashing Clamp | |
| -1 | Nickel Bronze Top | |
| -5 | Sediment Bucket | |
| -6 | Vandal Proof | |
| -7 | Trap Primer Tapping | |
| -21 | Secondary Strainer | |
| -33 | Less Grate | |
| -150 | 1/2 Grate | |
| -175 | 3/4 Grate | |
| -F4-1 | 4″ Round Nickel Bronze Funnel | |
| -F6-1 | 6″ Round Nickel Bronze Funnel | |
| -G-1 | 4×9″ Oval Nickel Bronze Funnel |
| Free Area Sq. In. | |
| Standard Grate | With-1 Rim & Grate |
| 16 | 14 |

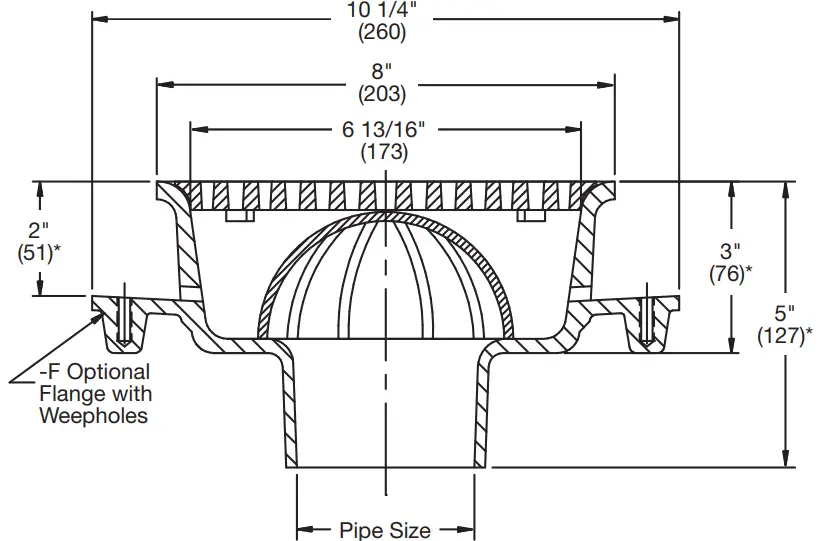

DIMENSIONS
Add 5/8″(16) for -1 Nickel Bronze Rim & Grate
NOTE
The information contained herein is not intended to replace the full product installation and safety information available or the experience of a trained product installer.
You are required to thoroughly read all installation instructions and product safety
information before beginning the installation of this product.
Watts product specifications in U.S. customary units and metric are approximate and are provided for reference only. For precise measurements, please contact Watts Technical Service. Watts reserves the right to change or modify product design, construction, specifications, or materials without prior notice and without incurring any obligation to make such changes and modifications on Watts products previously or subsequently sold.
