ovvo Connection System 1240 Instruction Manual
OVVO® Connection System 1240 Releasable Specifications
1240 Recommended Minimum Board Depth
Recommended minimum board depth or thickness values for the 1240 will change depending on both the substrate material used as well as the joint angle and axis of connection.
Minimum recommended measurements shown below are categorized according to two distinct groups of board material which share broadly similar connector retention properties.
| HPL/Composite, Solid Surface, Hardwoods, Birch Plywood | ||
| A | B | |
| Fig 1 | 16mm | 16mm |
| Fig 2 | 15mm | 15mm |
| Fig 3 | 18mm | 18mm |
| Fig 4 | 18mm | 18mm |
| Fig 5 | 15mm | 28mm |
| Fig 6 | 18mm | 15mm |
| Fig 7 | 18mm | 18mm |
| Fig 8 | 18mm | 18mm |
| Fig 9 | 18mm | 15mm |
| Fig 10 | 18mm | 15mm |
| Particle/Chipboard, Softwoods/MDF | ||
| A | B | |
| Fig 1 | 18mm | 18mm |
| Fig 2 | 15mm | 15mm |
| Fig 3 | 18mm | 15mm |
| Fig 4 | 18mm | 18mm |
| Fig 5 | 18mm | 28mm |
| Fig 6 | 18mm | 15mm |
| Fig 7 | 18mm | 18mm |
| Fig 8 | 18mm | 18mm |
| Fig 9 | 18mm | 15mm |
| Fig 10 | 18mm | 15mm |
These are guidelines only and OVVO® recommends trial connections be made before going into full production
OVVO® Permanent 1240 Shear & Tensile

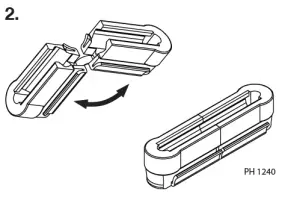

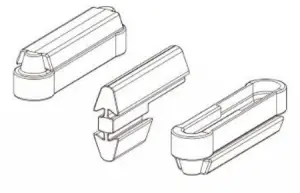

The OVVO® Permanent Connection Set is an ideal solution for connecting materials together permanently

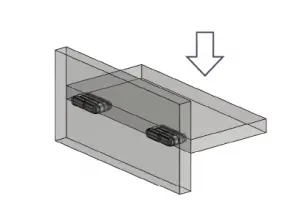

Shear
PH1240 (dual test shear)
Chipboard = 600 N
MDF = 700 N
Beech = 1000 N

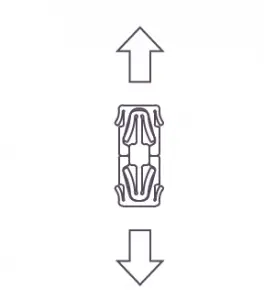

Tensile
PH1240 (component test tensile) Per Component = 500 N

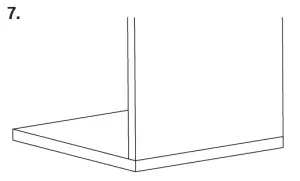

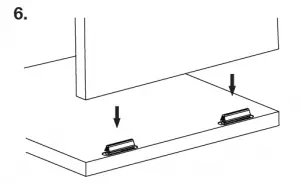

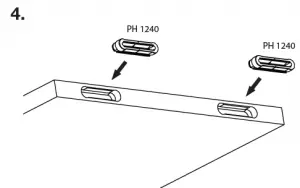

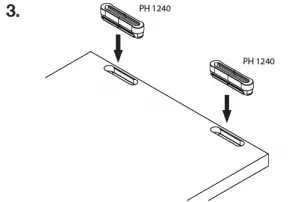

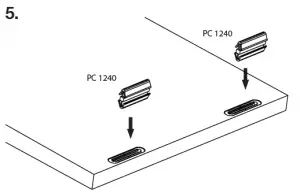

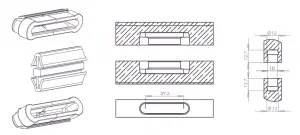

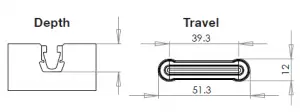

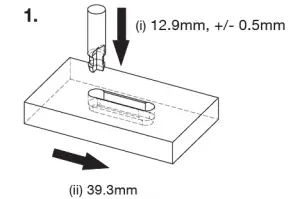

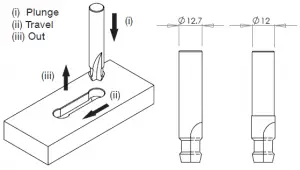

Milling
(i) Plunge Depth: 12.9mm, +/- 0.5mm
(ii) Travel (Centre to Centre): 39.3mm Out to Out: 51.3mm
CNC Speeds
Plunge: 2.5 Metres
Travel: 5 Metres – 7.5 Metres
Rotation: 18,000 Revolutions
Speeds vary with different materials
Important! Set Depth Correctly OVVO® 1240 Connection System
IMPORTANT! MAKE A TEST
WICHTIG! MACHEN SIE EINEN TEST
IMPORTANT! FAIRE UN TEST
IMPORTANTE! FARE UN TEST
IMPORTANTE! HACER UNA PRUEBA
| RECOMMENDED DEPTH TOLERANCES | |
| 1240 | 12.9mm, +/- 0.5mm |
Set the depth tolerance to 12.9mm and adjust +/- 0.5mm if required

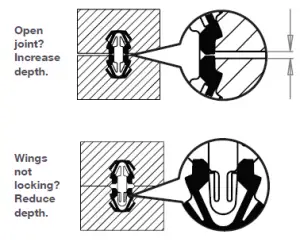

Less than 12.4mm will create an open joint
Greater than 13.4mm connector wing can not lock
Depth Setting Guide OVVO® 1240 Connection System

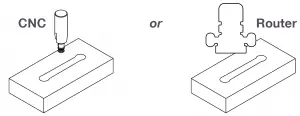

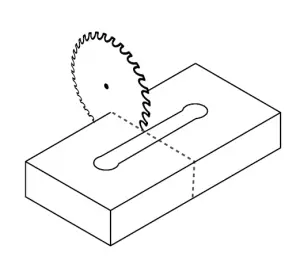

- Make a long cut with your tooling. Approximately 200mm long and 12.9mm depth
- Cut in half
- Insert Connection Set and check depth

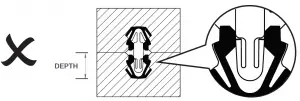

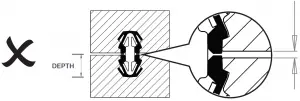

Depth incorrect
Depth incorrect

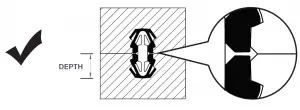

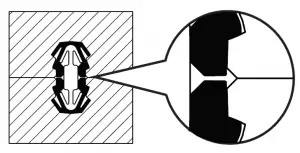

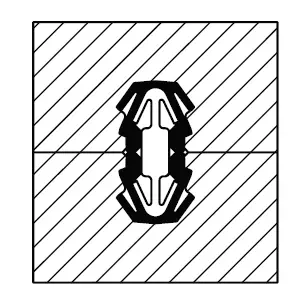

Depth correct
Depth correct
