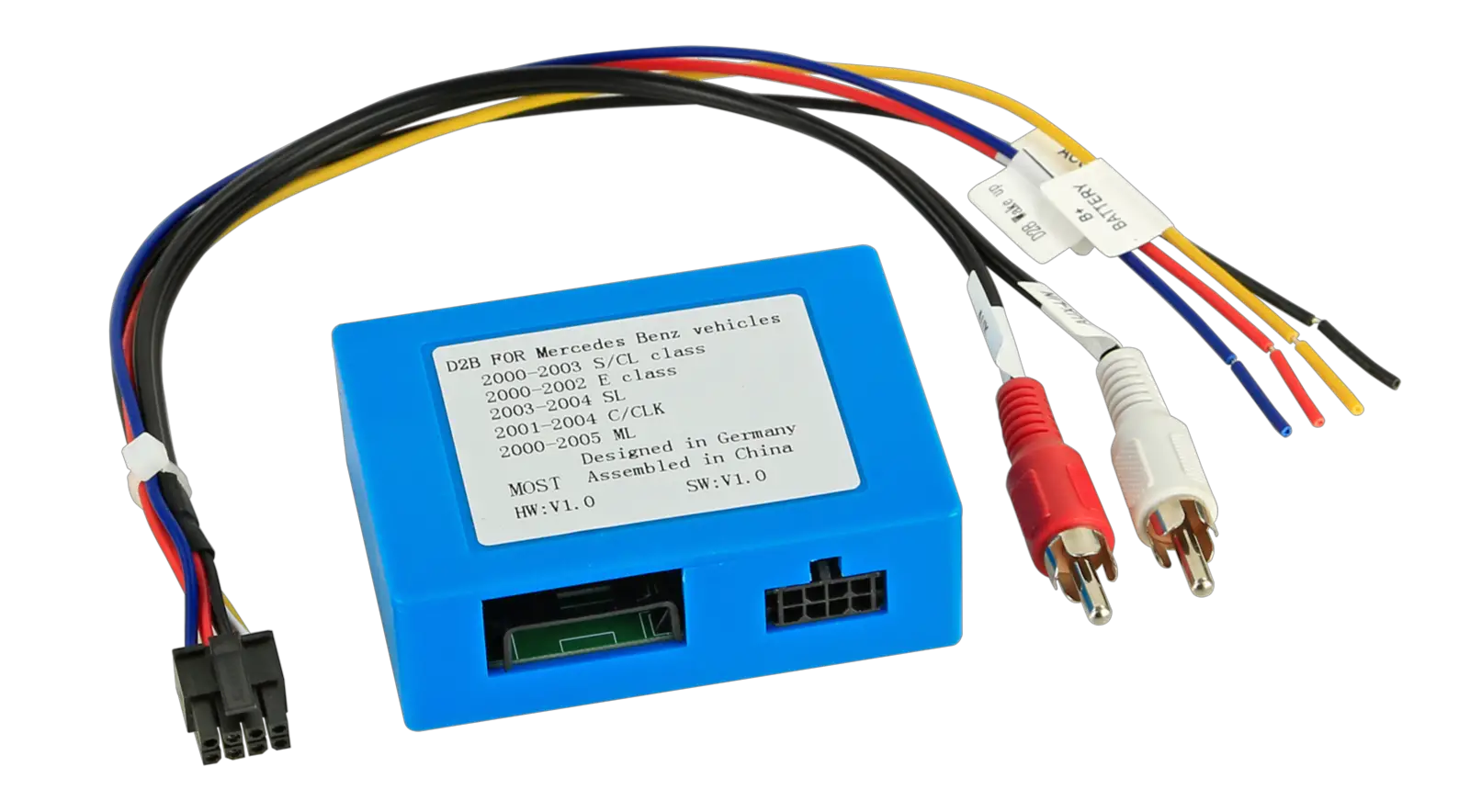

acv 13-1190-55 Active System Adapter
INSTALLATION INSTRUCTIONS

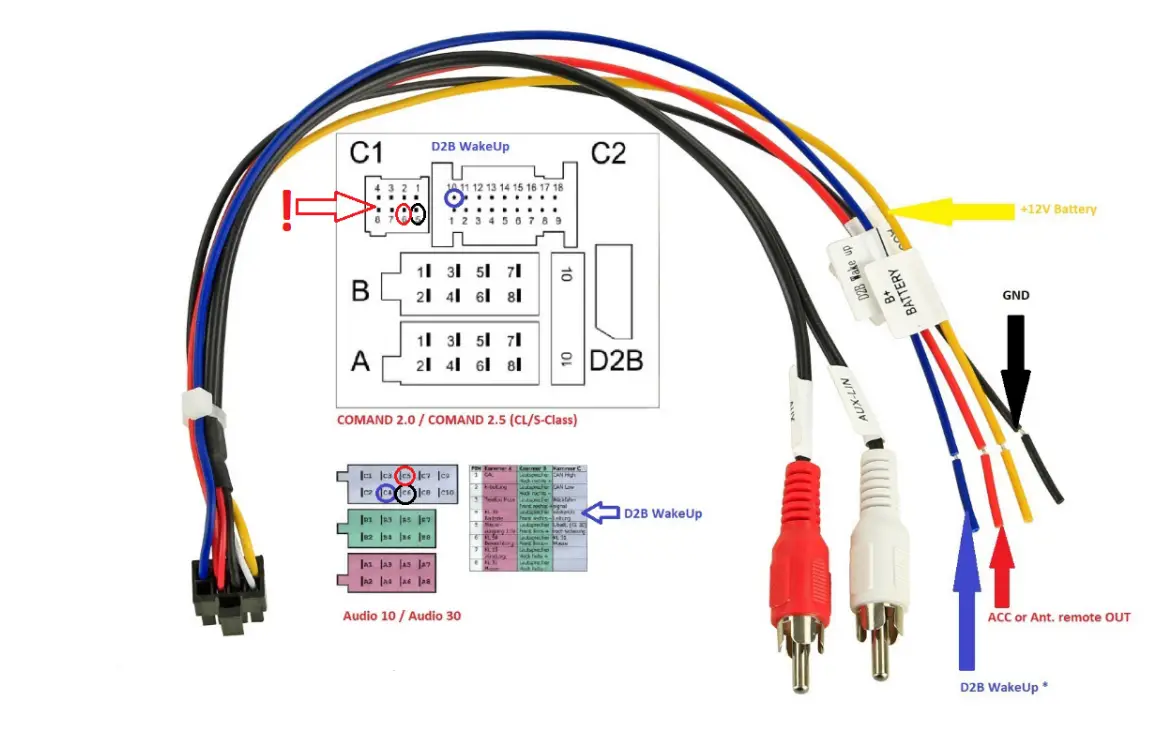

Connect to D2B wire in car, do NOT connect this wire to +12V remote out, this will destroy the interface and void warranty!
Cars equipped with COMAND System and OEM CD changer:
connect pin 5 to ground and pin 6 to a switched +12V source, otherwise there will be no sound!
Cars with Audio 10 / Audio 30 HU and CD changer:
10 PIN ISO connector, connect PIN 5 to GND, PIN 6 to a switched +12V power source!
Check with OEM device before installation !
- We will not be liable for damage due to improper installation or utilization.
- Use the specified accessory parts to prevent product failure.
- Subject to technical modifications; no responsibility is accepted for the accuracy of this information.
