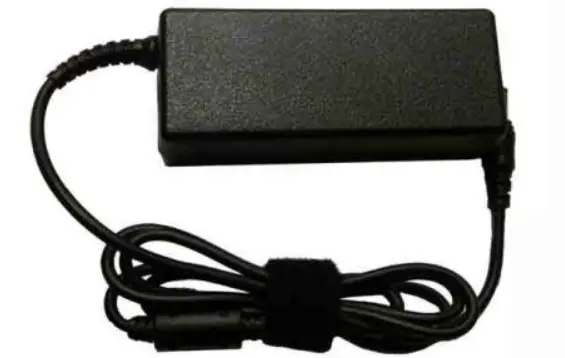

GIANNI PSC-122B Power Supply Adapter
Features
- PSC-122B is designed for use with access control systems and electric locks.
- Two independent power outputs for ease of connecting with electric locks and other devices.
- Distance between the power supply and output devices (e.g. electric locks) can be up to 50 meters.
- Electronically protected Output 1 and 2 against shorting and overloading.
- Battery protection: electronically protected against battery reversal, shorting, or overloading.
- Power light: Red LED when input power is connected and off when power is off.
- DC light: Green indicates DC power output (or battery charging) is normal. Off or flashing when there is an issue.
- Battery light: Yellow LED when battery voltage is normal. Off when battery is discharging and voltage is below 10 VDC.
Specifications
| Input Voltage | AC100~240V, 0.6A 50/60Hz |
| Output | |
| Output Voltage (each) | 12.8 VDC |
| Current Draw (each) | 1 Amps Max |
| Total Current Draw | 1.7 Amps Max |
| Battery Charging Current | 0.3 Amps Max (Maximum charge current to the 12VDC battery is approx. 0.28A) |
| LED Indicator | Power Light (Red) DC Light (Green) BATT Light (Yellow) |
| Weight | 70.55 oz (2000g) |
| Dimensions | 8 1/4” x 8 11/16” x 3 1/8” 210 x 220 x 80mm (L*W*H) |

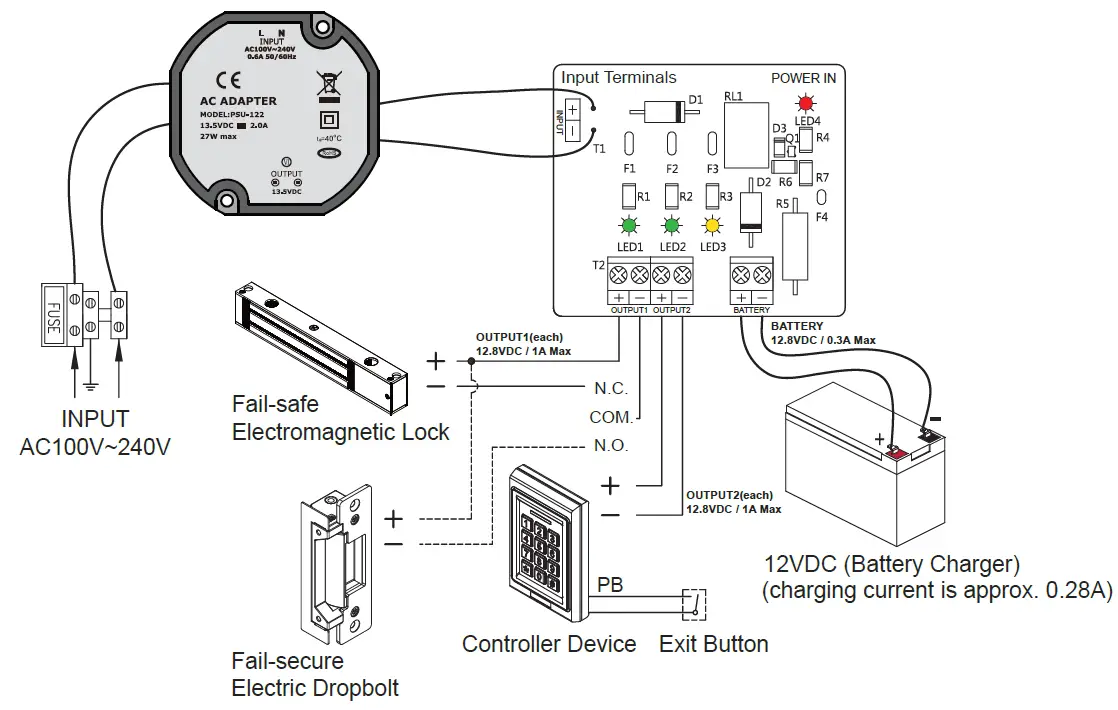

Wiring Diagram
