KOAMTAC KDC470 Pistol Grip Charging Cradle User Guide
What’s in the Box?

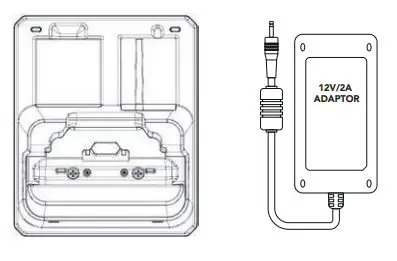

1-Slot Cradle
- 1 x SKXPro Pistol Grip Cradle or
- 1 x KDC470/475 Pistol Grip Cradle
- 1 x 12V/2A DC Power Adaptor
- 1 x USB TYPE-C Cable
5-Slot Cradle
- 1 x SKXPro 5-Slot Pistol Grip Cradle or
- 1 x KDC470/475 5-Slot Pistol Grip Cradle
- 1 x 12V/10A DC Power Adaptor

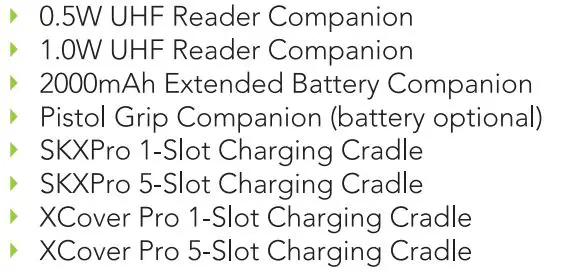

Additional Accessories

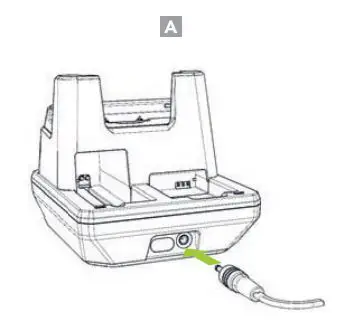

Charging via DC Connector (1-Slot)
Connect the power adaptor to the DC jack on the back of the 1-Slot Charging Cradle (A). Place the SKXPro or KDC470 /475 Pistol Grip on the charging cradle to begin charging.

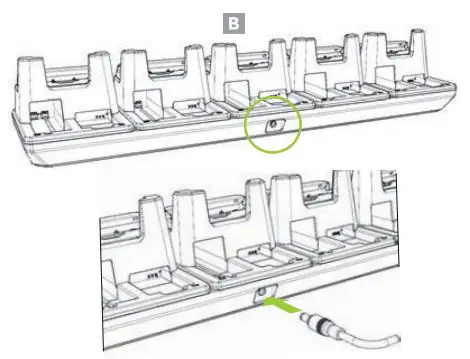

(5-Slot)
Connect the power adaptor to the DC jack on the back of the 5-Slot Charging Cradle (B). Place the SKXPro or KDC470 /475 Pistol Grip on the charging cradle to begin charging.

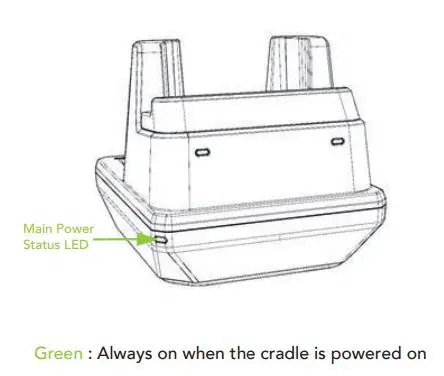

Cradle Power LED Status

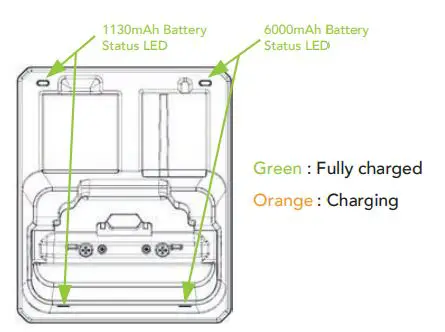

Battery LED Status

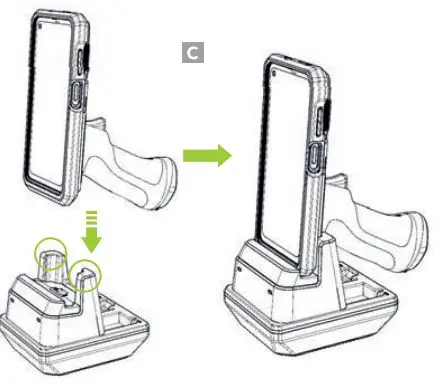

How to Charge the SKXPro Pistol Grip
Mount the SKXPro Pistol Grip in accordance with the guides on the top of the cradle. (C)

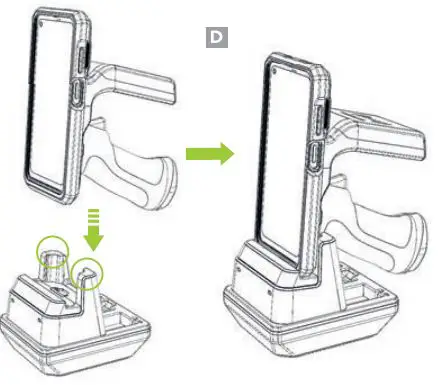

How to Charge the SKXPro 1.0W UHF Pistol Grip
Mount the SKXPro 1.0W UHF Pistol Grip in accordance with the guides on the top of the cradle. (D)

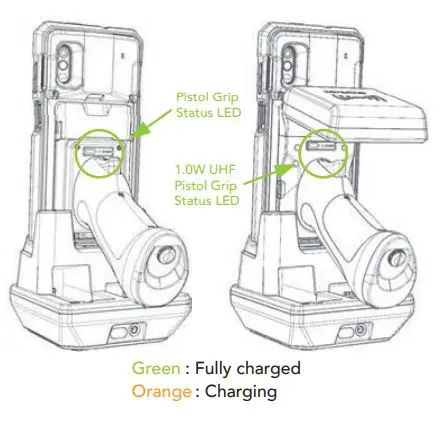

SKXPro Pistol Grip LED Status

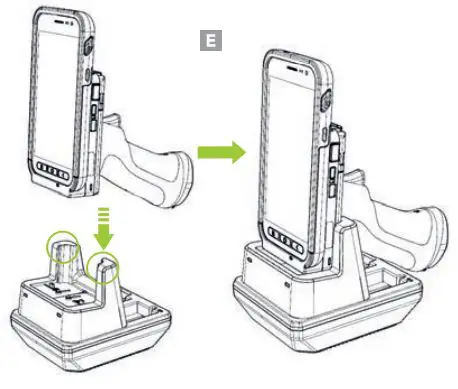

How to Charge the KDC470/475 Pistol Grip
Mount the KDC470/475 Pistol Grip in accordance with the guides on the top of the cradle. (E)

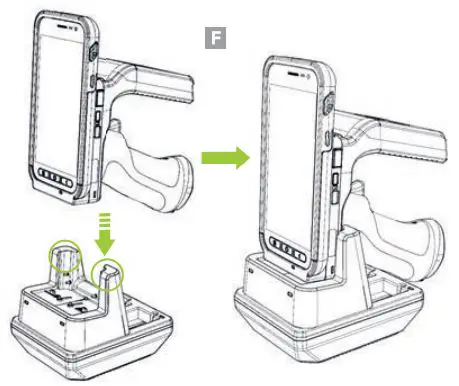

How to Charge the KDC470/475 1.0W UHF Pistol Grip
Mount the KDC470/475 1.0W UHF Pistol Grip in accordance with the guides on the top of the cradle. (F)

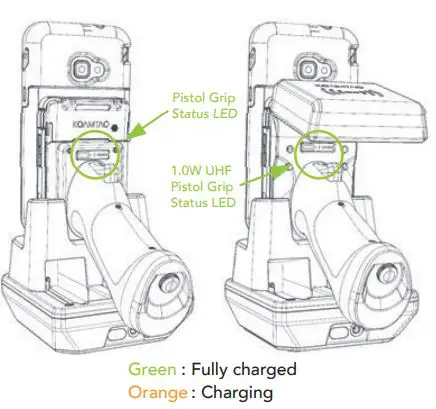

KDC470/475 Pistol Grip LED Status

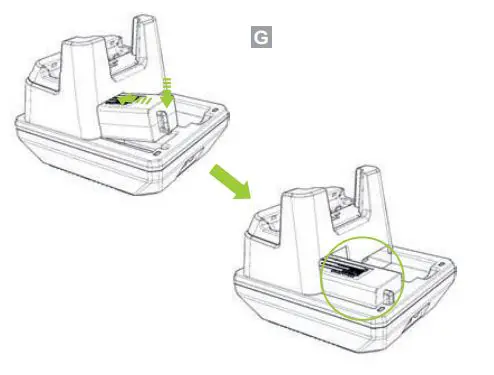

6000mAh Battery Charging
Tilt the battery as shown in the figure below and insert the battery into the battery slot. (G)

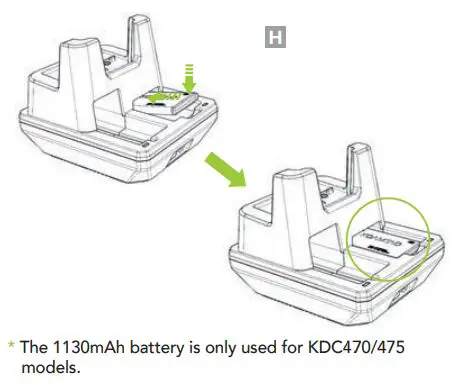

1130mAh Battery Charging
Tilt the battery as shown in the figure below and insert the battery into the battery slot. (H)
