KOAMTAC 1-Slot Charging Cradle for XCover Pro Cell Phones and Accessories User Guide

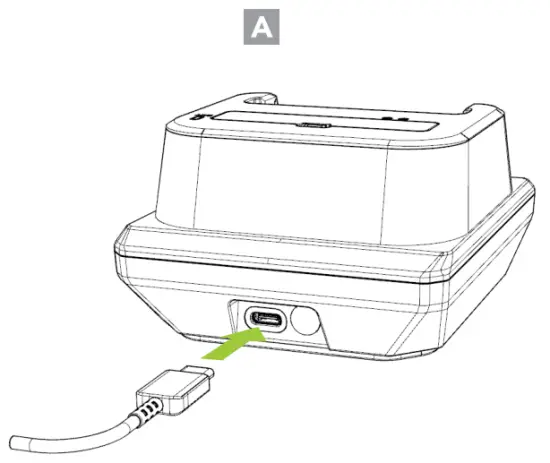

Charging via USB Type-C
Use a genuine Samsung AFC adaptor for 9V fast charging. If not using a Samsung AFC adaptor, use a USB adaptor with at least a 5V/2A rating to provide 5V normal charging. (A)
Fast charging is only supported when using a genuine Samsung AFC charger.
Charging via DC Connector
The 12V/2A DC power adaptor supports 9V fast charging when the XCover 5 is mounted on the charging cradle. (B)

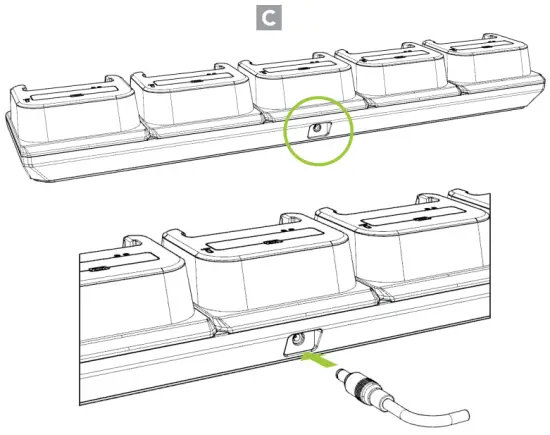

5-Slot Charging via DC Connector
The 12V/10A DC power adaptor supports 9V fast charging when the XCover 5 is mounted on the 5-slot charging cradle. (C)

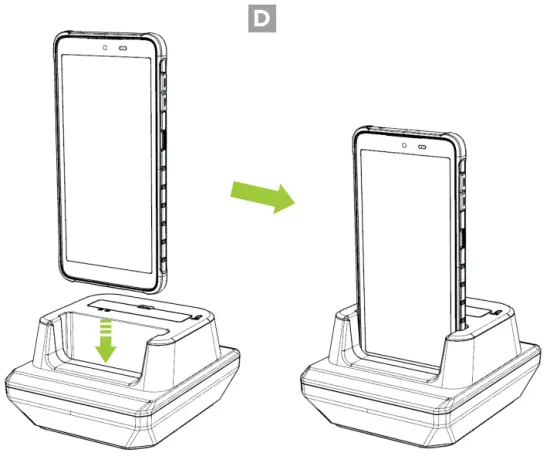

Charging the XCover 5
Insert the XCover 5 into the device charging slot. (D)

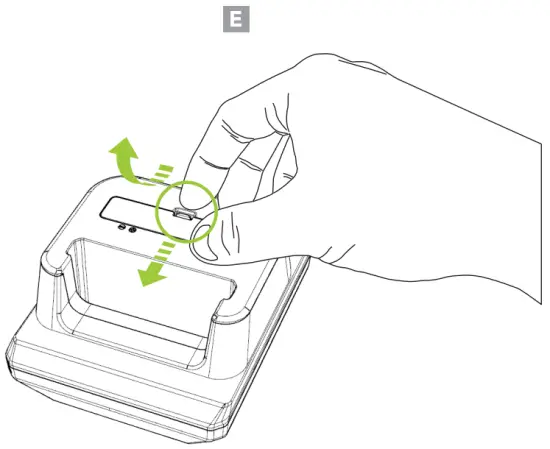

Removing the Battery Cover
To remove, pull the hook on the battery cover forward and tilt it upwards. (E)

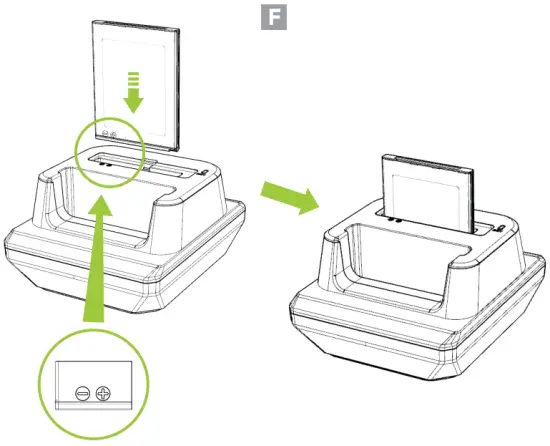

Charging the XCover 5 Battery
Insert the battery into the battery charging slot. Refer to the battery polarity indicators for correct placement. (F)

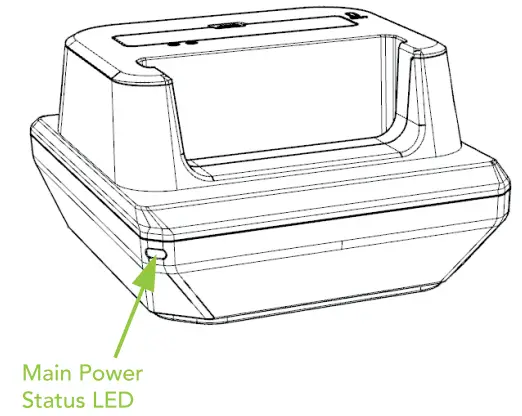

Cradle Power LED Status
GREEN: Always on when the cradle is powered on

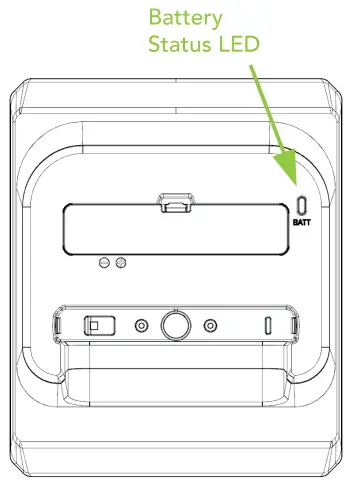

Battery LED Status
- GREEN: Fully charged
- Orange: Charging
- Blinking Red: Charging Issue
- Overheating
- Charging fault
- Foreign material inside
Additional Accessories
- 0.5W UHF Reader Companion
- 1.0W UHF Reader Companion
- 2000mAh Extended Battery Companion
- Pistol Grip Companion (battery optional)
- SKXS Companion
- SKX5 1-Slot Charging Cradle
- SKXS 5-Slot Charging Cradle
- XCover 5 Genuine Battery
