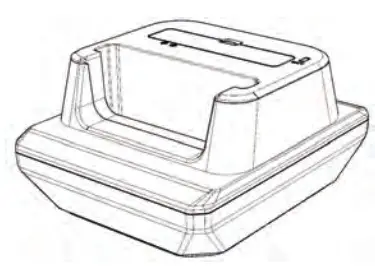

XCover Pro
Charging Cradle Mini Guide
Charging via USB Type-C

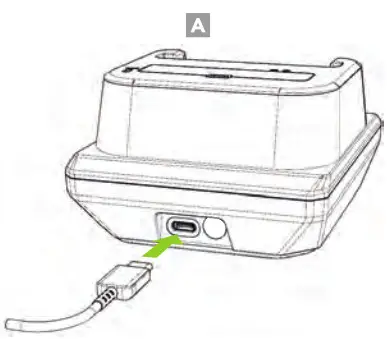

Use a genuine Samsung AFC adaptor for 9V fast charging. Use a minimum 5V/2A rated USB adaptor for 5V normal charging. (A)
Fast charging is only supported when using a genuine Samsung AFC charger.

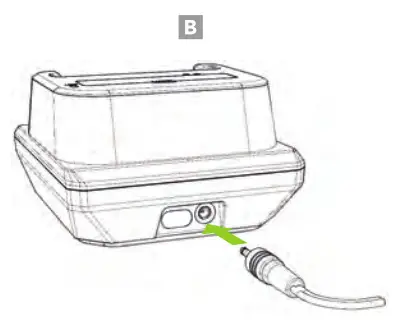

Charging via DC Connector
The 12V/2A DC power adaptor (Optional) supports 9V fast charging when the XCover Pro is mounted on the charging cradle. (B)

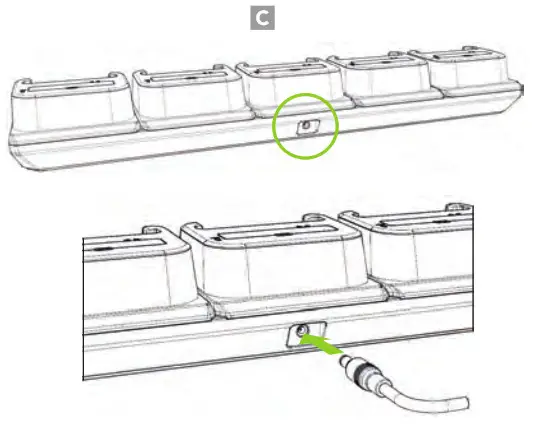

5-Slot Charging via DC Connector
The 12V/10A DC power adaptor supports 9V fast charging when the XCover Pro is mounted on the 5-slot charging cradle. (C)
Charging the XCover Pro

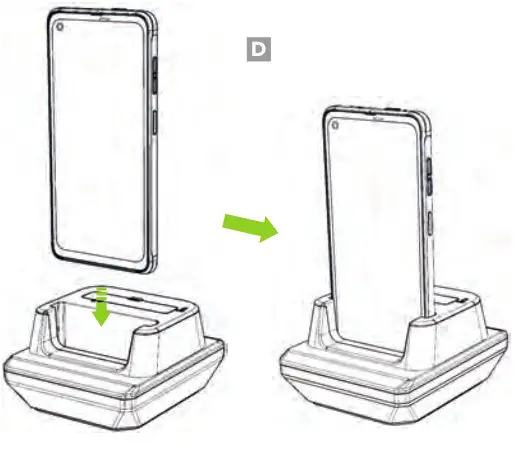

Insert the XCover Pro into the XCover Pro slot as shown below. (D)

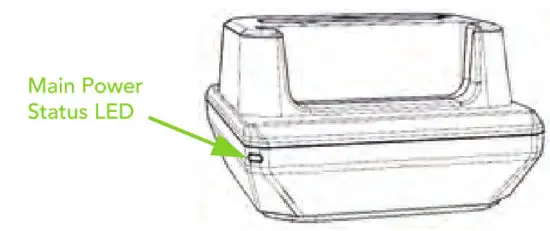

Cradle Power LED Status
Green: Always on when the cradle is powered on

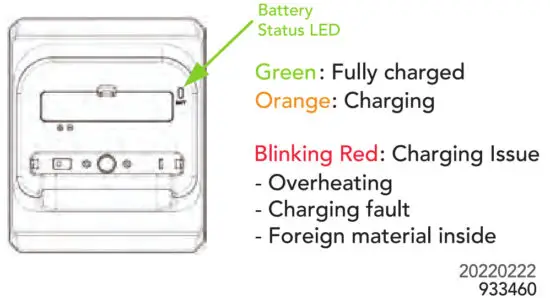

Battery LED Status
Removing the Battery Cover

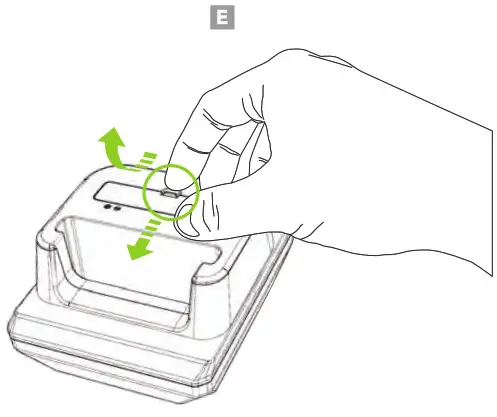

To remove, pull the hook on the battery cover forward and tilt it upwards. (E)

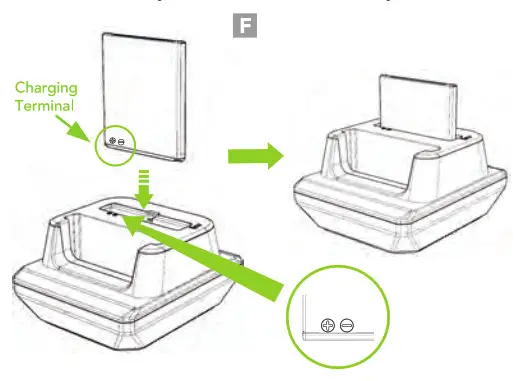

Charging the XCover Pro Battery
The battery’s charging terminal is located on the bottom left of the battery when viewed from the front. Align the left side of the battery with the left side of the XCover Pro battery slot and insert the battery. (F)
Additional Accessories
- 0.5W UHF Reader Companion
- 1.0W UHF Reader Companion
- 2000mAh Extended Battery Companion
- Pistol Grip Companion (battery optional)
- SKXPro Companion
- SKXPro 1-Slot Charging Cradle
- SKXPro Pro-5-Slot Charging Cradle
- XCover Pro Genuine Battery
