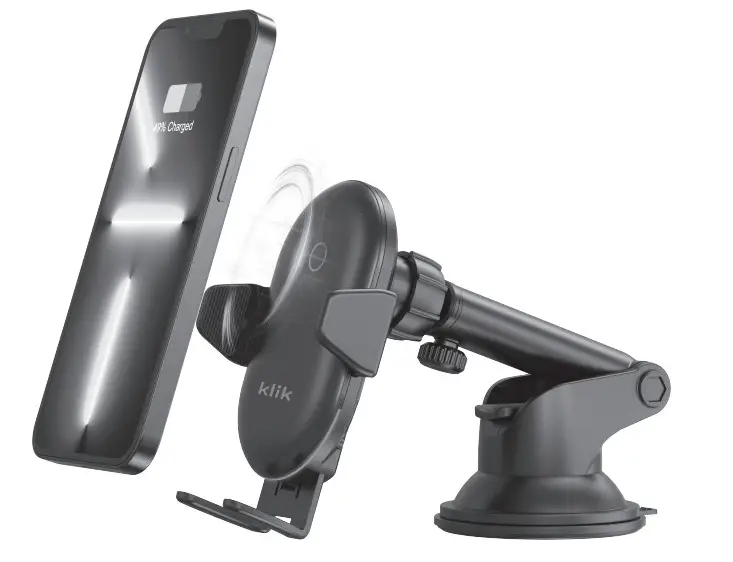

Klik Kwcc15 Wireless Charging Car Cradle User Manual

KWCC15 Wireless Charging Car Cradle
User Manual

Qi Certified
The certification program ensures this charger has passed rigorous tests to guarantee safety, compatibility, and energy efficiency.

Compatibility

Compatible with Qi-enabled devices* including

Features

• Place your phone in the cradle, the locking arms will automatically close and your phone will start wirelessly charging
• To remove it, simply press the button on the side and the locking arms will automatically open
• Supports 7.5W Apple wireless fast charging for iPhones with wireless charging#
• Supports 10W wireless fast charging for compatible devices such as the Samsung Galaxy Series and more#
• Supports 15W wireless fast charging for NextGen fast charging
• No need to remove your case. Works with most cases up to 3mm thick
• LED indicator to show charging status
• Full safety protection with Qi-certified temperature control, strict voltage regulation, and short circuit protection
• Includes vent mount and dash/window mount accessories
• Includes Quick Charge 3.0 USB car charger and 1m USB-A to USB-C charging cable

* Check with the device manufacturer for Qi wireless compatibility
# When connected to included Quick Charge 3.0 USB car charger

Specifications

• Wireless Standard: WPC/Qi (v1.2.4)
• Input: DC 5V/2A 9V/1.67A 12V/1.67A
• Wireless Output: 15W / 10W / 7.5W / 5W
• Charging Distance: 3 to 8mm
• Weight: 112g
• Certifications: Qi, RCM, RoHS, UN38.3

Wireless Charging Cradle Operation

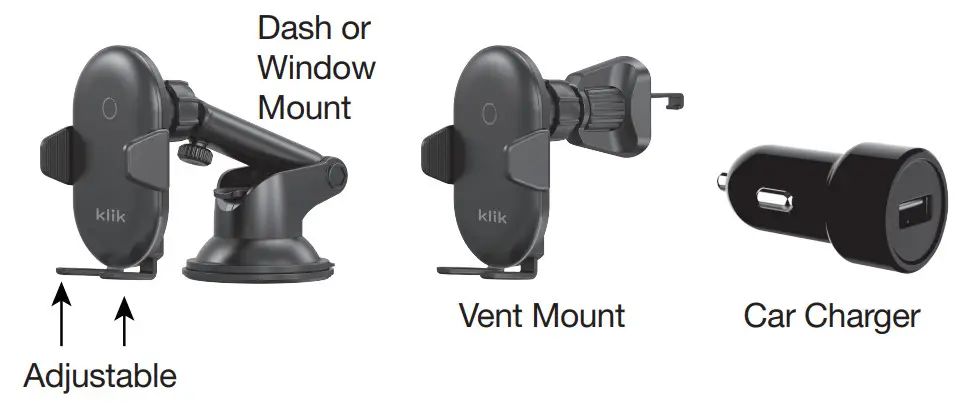

• Choose either the air vent mount or the dash/window suction mount and attach the accessory to the cradle by snapping the ball into place and tightening the screw
• Using the included USB cable, connect the cradle to the Quick Charge 3.0 car charger or the vehicle’s built-in USB charger
• When power is received from the vehicle, the blue circle LED will pulse for 30 seconds to indicate the cradle is powered on
• Place your Qi-enabled wireless phone into the cradle
• The locking arms will automatically close and your phone will start wirelessly charging
• If your phone doesn’t start charging, adjust the movable bottom phone bracket to suit the size of your phone
• To remove your phone, press the button on the right side of the cradle and the locking arms will automatically open


Important Safety Instructions

• Only use original or reputable third-party chargers and cables
• Only use the product for the specified purpose of use
• Do not get wet to avoid causing short-circuit damage and leakage
• Do not use in extremely hot, humid, or corrosive environments to avoid short circuit damage and leakage
• Do not place too close to the magnetic strip or chip ID card to avoid magnetic failure
• Do not place within 20cm of implantable medical devices (pacemaker, cochlear implant, etc.) to avoid potential interference
• Do not clean with harmful chemicals or detergents
• Misuse, dropping or excessive force may cause damage to the charging dock
• Do not use the product if it is damaged or emits a suspicious odor
• Unplug the product from power sources when not in use
  Please Note: When wirelessly charging a device, the wireless charger and your device may feel warm. This is a  normal operating condition and should not be cause for concern.

iPhone is a trademark of Apple inc.,
registered in the U.S. and other countries.
The ‘Qi’ Symbol is a trademark of the
Wireless Power Consortium.
