Desay Sv Automotive Chg-wireless 3.0 Car Wireless Charging User Manual

DESAY SV AUTOMOTIVE CHG-WIRELESS 3.0 Car Wireless Charging

Function Block Diagram

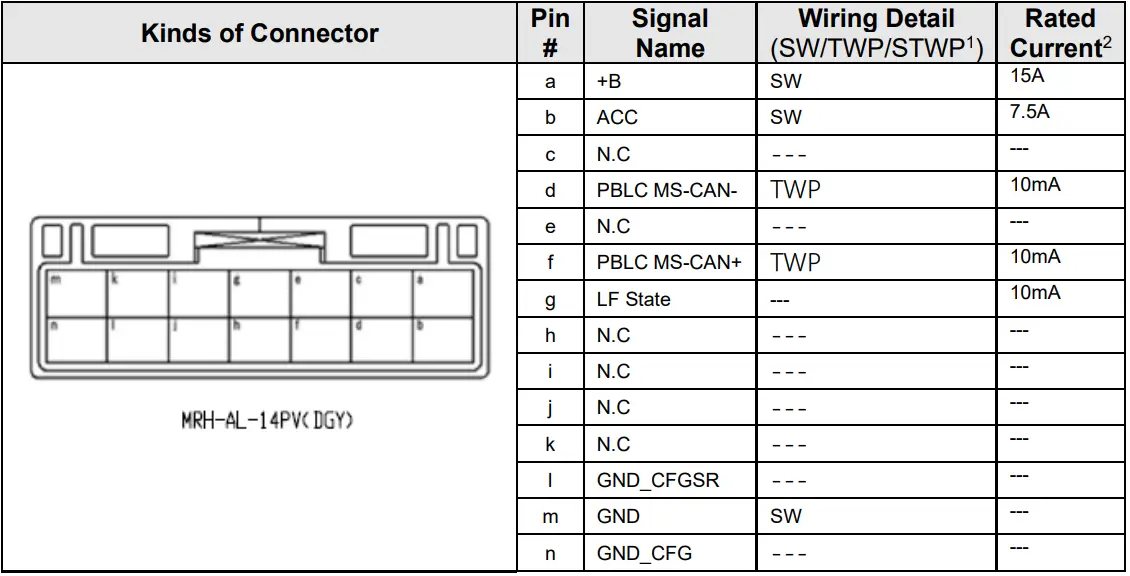

Definition of Radio Block Connector Pin-out Detail

Statement & Notice

Voltage and Current Requirement

Temperature Requirement

Parameter Tolerances
If not otherwise specified, the following tolerances shall apply:

• frequency and time: ±5%
• voltages: ±0.5V
• current: ±10%
• resistance: ±5%
• temperature: ±5°C
•  Operation Frequency: ±500HZ

Product information

• Manufactured Name: Huizhou Desay SV Automotive Co., Ltd
• Manufactured address: 103, He chang 5th Road West, Zhongkai National Hi-tech Industrial Development Zone, Huizhou, Guangdong, P.R. China
• Factory Name ：Huizhou Desay SV Automotive Co., Ltd
• Factory address: 103, He chang 5th Road West, Zhongkai National Hi-tech Industrial Development Zone, Huizhou, Guangdong, P.R. China
• EU importer Name：Mazda Motor Logistics Europe N.V.
  EU importer address：Blaasveldstraat 162, 2830 Willebroek, België
• Hardware/ Sofeware version
• HW:001
• SW: KAAA-21-002

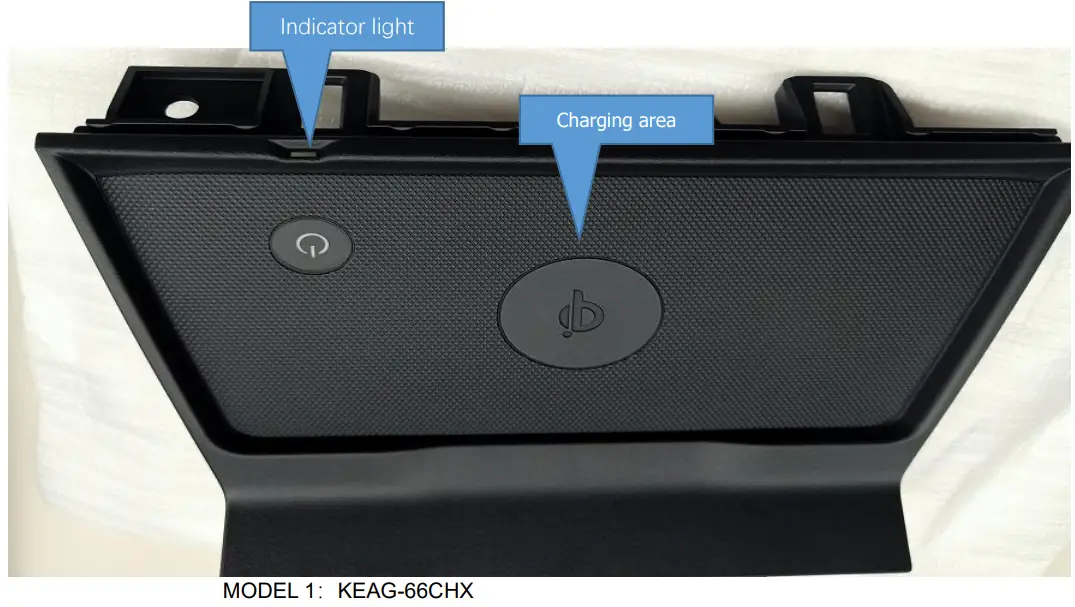

User’s Interface Overview

1. Indicator light _Charge indicator


   The Pattern	Qi State	Color	Lighting / Blinking	Frequency
   A	Power OFF	—	—	–
   B	Power on (Non-charging)	White	Flashing	0.5Hz
   C	Power on (Charging)	White	Light up	–
   D	Charging (rapid)	Green	Light up	–
   E	Charging (Rapid & misalignment)	Green	Flashing	0.5Hz
   F	Charging (Normal)	Orange	Light up	–
   G	Charging (Normal             & misalignment)	Orange	Flashing	0.5Hz
   H	high   temperature   / Foreign object detection	Red	Flashing	1Hz
   I	Malfunction	Red	Light up	–

2. area_ Charging area
   Functional Requirements：

   Wireless Charging
   Power transmitter	BATT：9~10.5V, Guaranteed 5W charging.
   	BATT：10.5~16V, Guaranteed 15W charging.

   Foreign object detection	Yes
   Temperature detection	Yes
   Charging working frequency switching	Yes (AM frequency hopping, PEPS frequency hopping)

   NFC
   Contactless card identification	Yes

Product Appearance

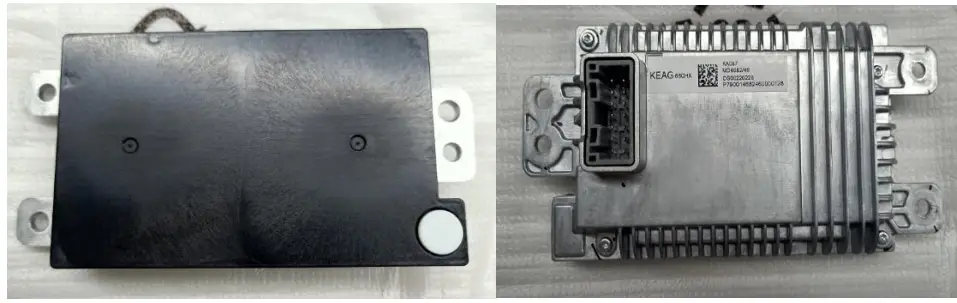

Wireless Charging Module:

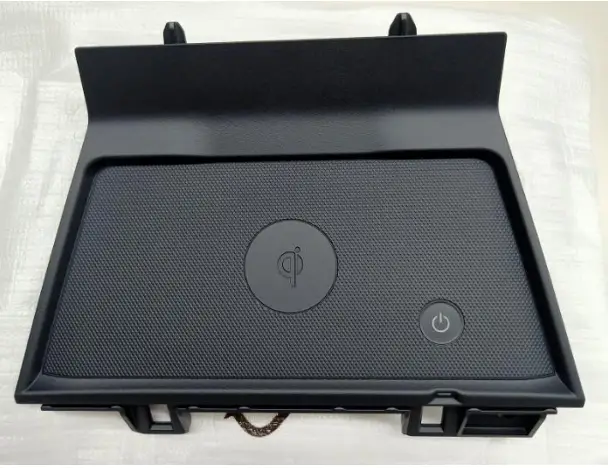

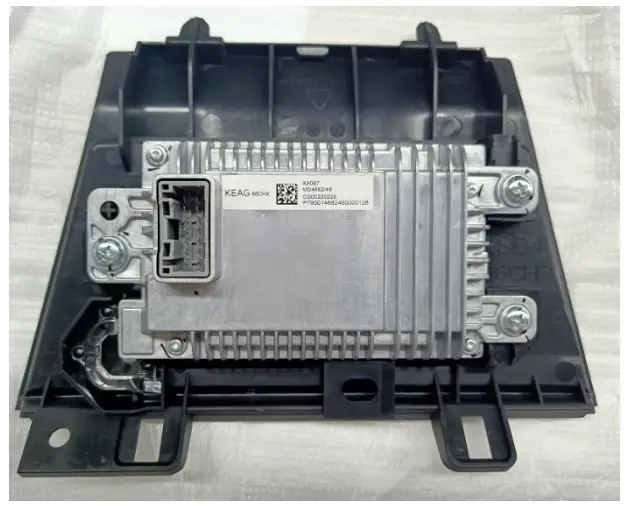

Wireless Charging Module+ panel:

Declaration of Conformity

Simplified EU Declaration of Conformity
The simplified EU declaration of conformity referred to in Article 10(9) shall be provided as follows: Hereby, [Huizhou Desay SV Automotive Co., Ltd.] declares that the radio equipment type [Car Wireless Charger] is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: http://www.desaysv.com/index.php?id=oumeng

FCC Statement
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions:

1. this device may not cause harmful interference
2. this device must accept any interference received, including interference that may cause undesired operation.
   Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help important announcement Important Note:

Radiation Exposure Statement

• This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.
• This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

IC Statement
This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:

1. This device may not cause interference.
2. This device must accept any interference, including interference that may cause undesired operation of the device.
