KOAMTAC XCover 5 5-Slot Charging Cradle for XCover Pro User Guide

Additional Accessories

• 0.5W UHF Reader Companion
• 1.0W UHF Reader Companion 2000mAh Extended Battery Companion
• Pistol Grip Companion (battery optional)
• SKX5 Companion

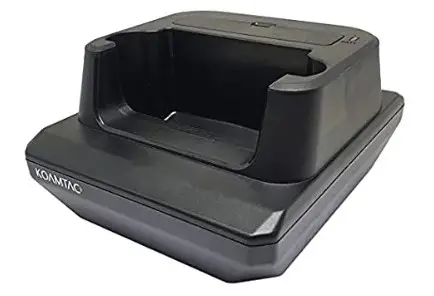

• SKX5 1-Slot Charging Cradle
• SKX5 5-Slot Charging Cradle
• XCover 5 Genuine Battery

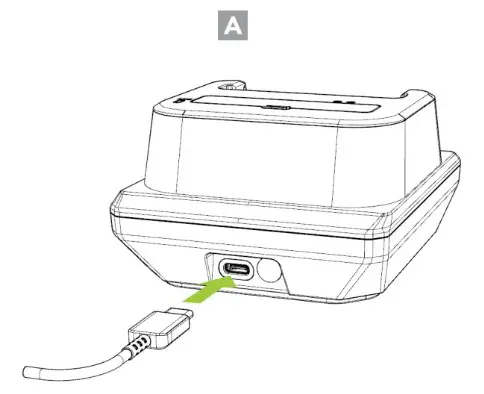

Charging via USB Type-C

Use a genuine Samsung AFC adaptor for 9V fast charging.
If not using a Samsung AFC adaptor, use a USB adaptor with at least a 5V/2A rating to provide 5V normal charging. (

Charging via DC Connector

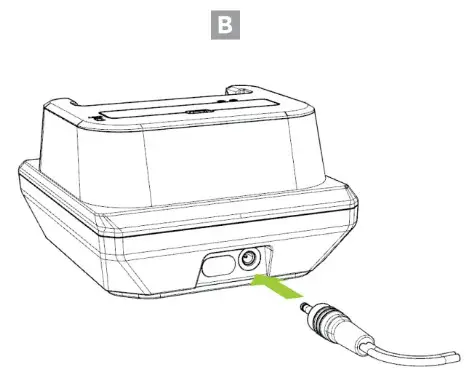

The 12V/2A DC power adaptor supports 9V fast charging when the XCover 5 is mounted on the charging cradle. (B)

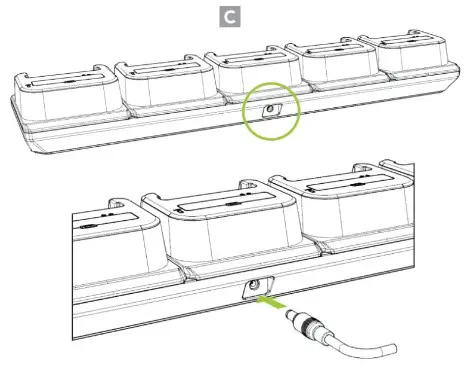

5-Slot Charging via DC Connector

The 12V/10A DC power adaptor supports 9V fast charging when the XCover 5 is mounted on the 5-slot charging cradle. (C)

Charging the XCover 5

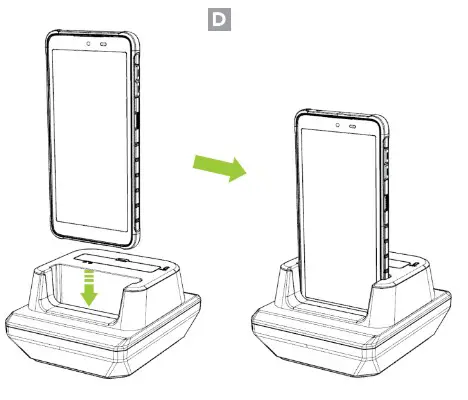

Insert the XCover 5 into the device charging slot. (D)

Removing the Battery Cover

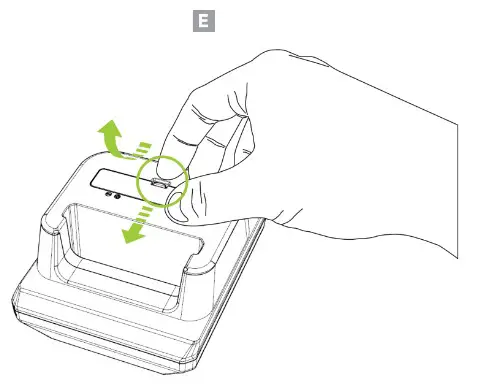

To remove, pull the hook on the battery cover forward and tilt it upwards. (E)

Charging the XCover 5 Battery

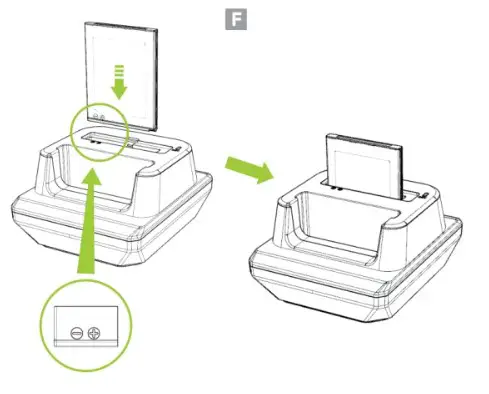

Insert the battery into the battery charging slot. Refer to the battery polarity indicators for correct placement. (F

Cradle Power LED Status

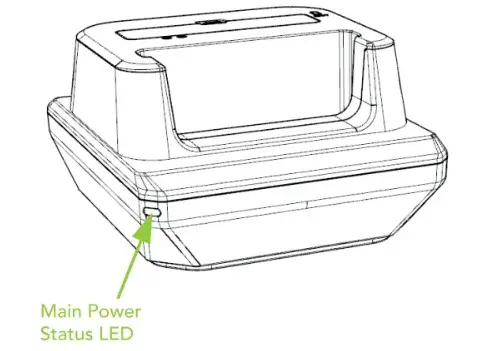

Green : Always on when the cradle is powered on

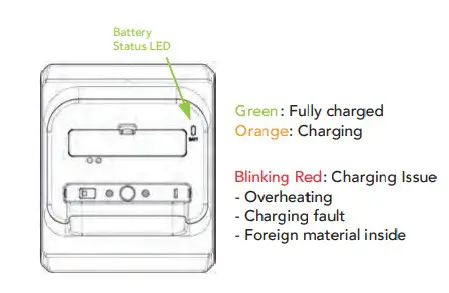

Battery LED Status
