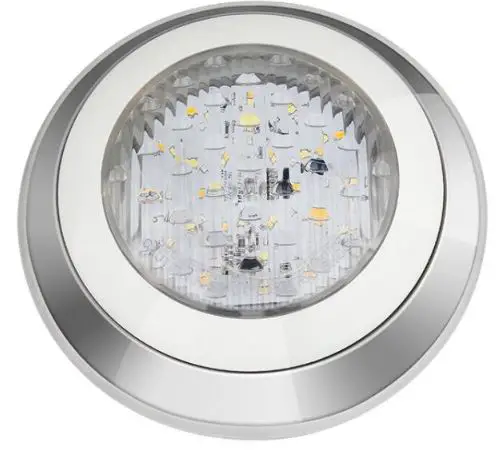

MIBOXER UW01 RGB Plus CCT Wall-Mounted Underwater Light
Features
This product is Underwater Lamp. It’s with RF module inside. We use LoRa modem technology to fulfill the super long distance controlling. It’s controlled by our 433MHz remote control or 433MHz Gateway for smartphone control.
16 Millions of colors to choose
Color temperature 2700K~6500K
Dim brightness / Saturation
433MHz RF wireless transmission technology
Super long distance 433MHz remote controller control
Support third party voice control (433MHz Gateway is needed)
Smartphone app control (433MHz Gateway is needed)
Waterproof and dustproof grade IP68
Dynamic Mode Sheet
| Number | Dynamic Mode | Brightness / Speed |
| 1 | Mardi Gras |
Adjustable |
| 2 | Automatic color change | |
| 3 | Sam | |
| 4 | Gemstone | |
| 5 | Twilight | |
| 6 | American | |
| 7 | Fat Tuesday | |
| 8 | Party | |
| 9 | Slow Color Splash |
Link / Unlink

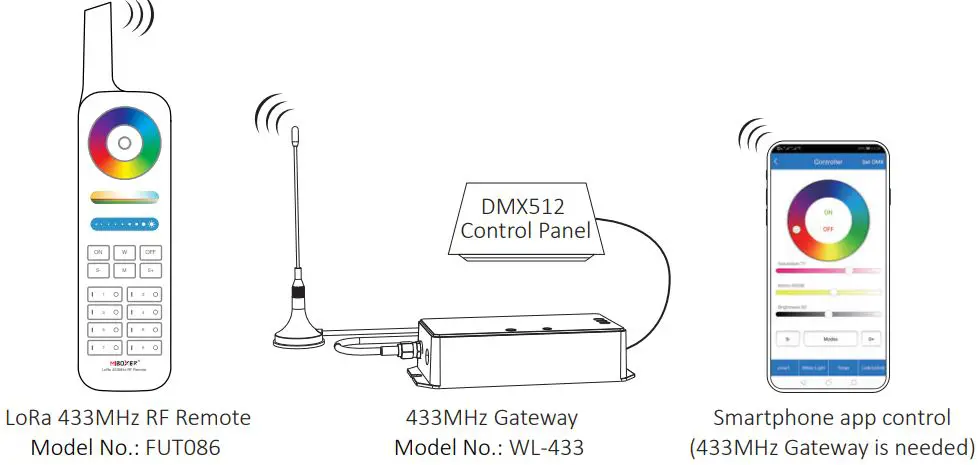

Compatible with “FUT086 remote controller” and “WL-433 433MHz gateway” (Purchased separately)
Light will work after linking with remote control;
for more details, please read the remote instruction.
Switch-OFF to change color instruction
| Switch OFF(for 5 seconds); Switch-ON again | Switch-OFF (For 5-10 seconds); Switch ON again | Switch-OFF (For over 10 seconds); Switch ON again |
| Switch the colors and dynamic modes in turn | ||
| 1. Static Red 10. Automatic color change 2. Static Green 11. Sam 3. Static Blue 12. Gemstone 4. Static Yellow 13. Twilight 5. Static Cyan 14. American 6. Static Purple 15. Fat Tuesday 7. Static Cool White 16. Party 8. Static Warm White 17. Slow Color Splash 9. Mardi Gras |
Static Red |
Status before Switch OFF |
Attention
- Please check whether the input voltage is in accordance with the lighting working voltage, and please check the connection of both the cathode and anode.
- The working Voltage is DC24V, the lighting will be damage if the voltage is higher than DC24V.
- Non-professional user cannot dismantle the lighting directly, Otherwise it may damage the lighting.
- The working temperature is -20~45°C.
- Please do not use lighting around the mental area and high magnetic field, otherwise, it will badly affect the control distance.
- Users must be correct, strict and solid to install the light; do not use the light on strenuous vibration area.
