Guided Flat Belt Conveyor Full Belt Type
Guided Belt to Prevent Lateral Movement, End Drive, 2-Groove Frame (Pulley Dia. 30mm)

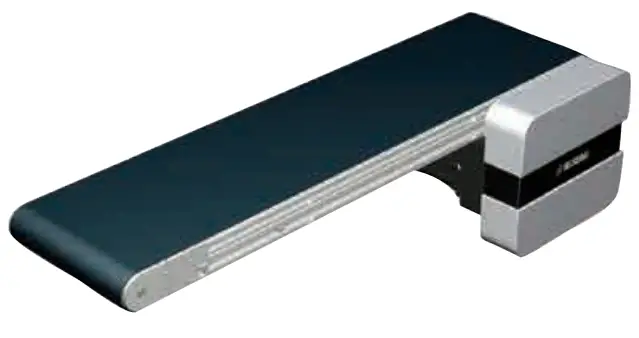

Guided Flat Belt Conveyor Full Belt
Features: Conveyor with a full-width belt that the entire surface can be used for transporting. The belt with the guide prevents lateral movement.

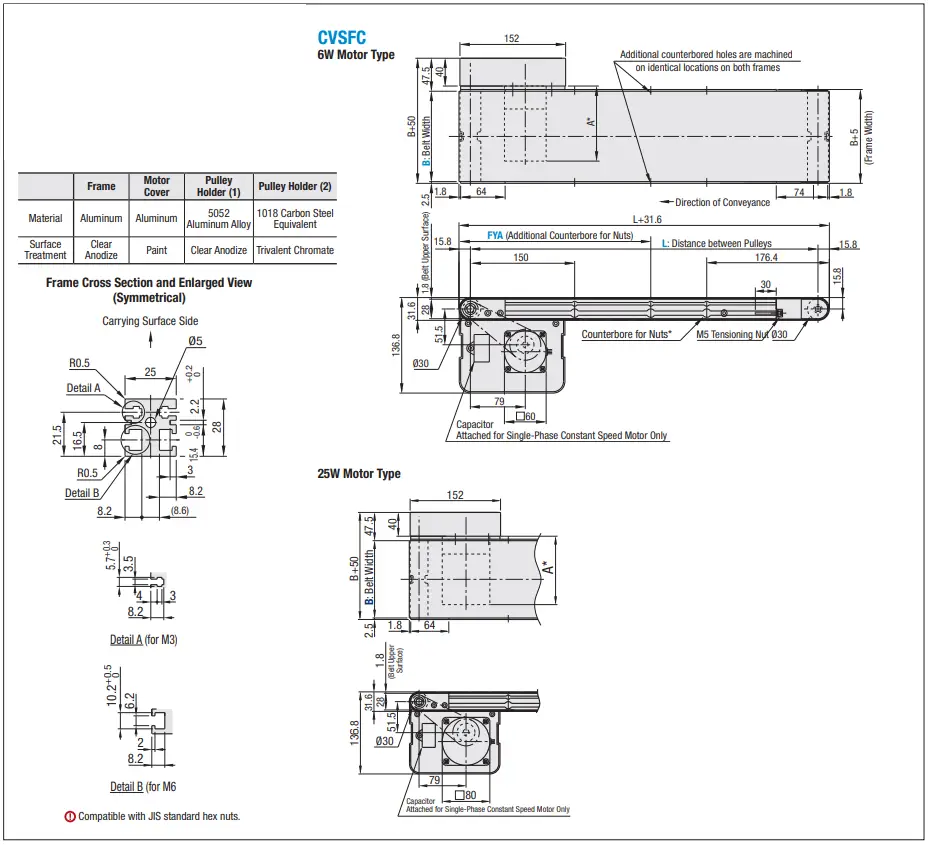

Guided Flat Belt Conveyor Full Belt Type – Guided Belt to Prevent Lateral Movement, End Drive, 2-Groove Frame (Pulley Dia. 30mm)
Motor Specifications
| Output (W) | Motor | Reduction Ratio | Motor Length (A) | |
| Specification | Manufacturer | |||
| 6W | Constant Speed Motor | Panasonic | 12.5–25 | 101.0 |
| 30–180 | 108.0 | |||
| Oriental | 12.5–18 | 105.0 | ||
| 25–180 | 115.0 | |||
| Taiwanese | 12.5–75 | 119.7 | ||
| 90–180 | 125.7 | |||
| Variable Speed Motor | Oriental | 12.5–18 | 115.0 | |
| 25–180 | 125.0 | |||
| Taiwanese | 12.5–75 | 131.9 | ||
| 90–180 | 137.9 | |||
| 25W | Constant Speed Motor | Panasonic | 5–180 | 115.0 |
| Oriental | 5–18 | 117.0 | ||
| 25–180 | 127.5 | |||
| Taiwanese | 5–75 | 129.0 | ||
| 90–180 | 136.0 | |||
| Variable Speed Motor | Oriental | 5–18 | 127.0 | |
| 25–180 | 137.5 | |||
| Taiwanese | 5–75 | 139.5 | ||
| 90–180 | 146.5 | |||

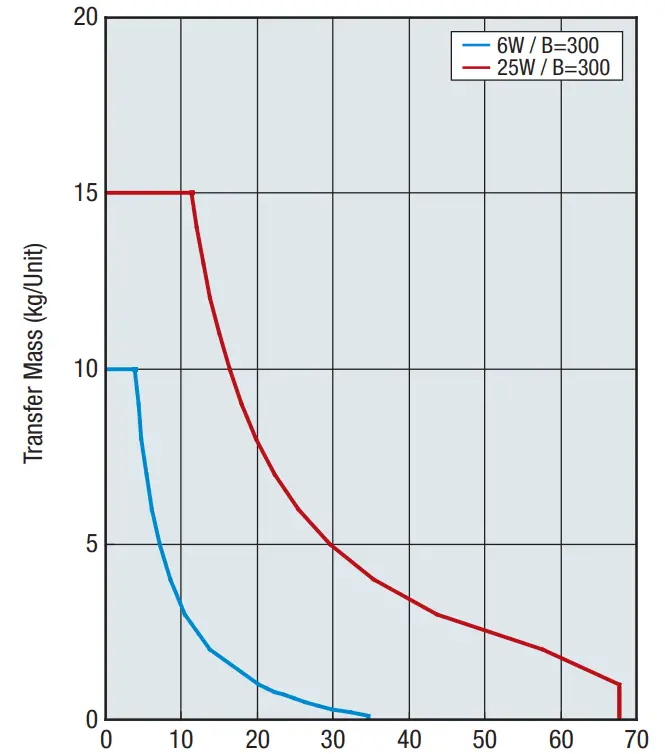

Conveying Capacity
Belt Speed (m/min)
*Reference Value may be different by selected Belt.
Gearhead Reduction Ratio
* May decrease depending on load condition.
| Gearhead Reduction Ratio | Belt Speed (m/min) | |
| 50Hz | 60Hz | |
| 5 | 56.4 | 67.7 |
| 7.5 | 37.6 | 45.1 |
| 9 | 31.3 | 37.6 |
| 12.5 | 22.6 | 27.1 |
| 15 | 18.8 | 22.6 |
| 18 | 15.7 | 18.8 |
| 25 | 11.3 | 13.5 |
| 30 | 9.4 | 11.3 |
| 36 | 7.8 | 9.4 |
| 50 | 5.6 | 6.8 |
| 60 | 4.7 | 5.6 |
| 75 | 3.8 | 4.5 |
| 90 | 3.1 | 3.8 |
| 100 | 2.8 | 3.4 |
| 120 | 2.4 | 2.8 |
| 150 | 1.9 | 2.3 |
| 180 | 1.6 | 1.9 |
Miniature Conveyors

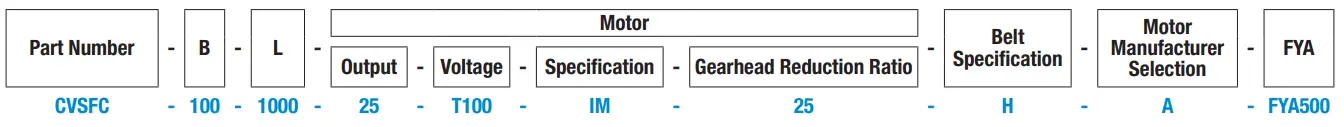

| Part Number | Width B 10mm Increment | Length L 5mm Increment | Motor | Belt Specification | FYA (Additional Counterbores) 5mm Increment | Motor Manufacturer Selection The prices vary by manufacturer. | |||
| Output (W) | Voltage (V) | Specification | Gearhead Reduction Ratio | ||||||
| CVSFC | 70–300 | 280–2000 | 6 | (Single-Phase) TA100 TA110 TA115 TA200 TA220 TA230 | IM (Constant Speed Motor) SCM (Variable Speed Motor) |
12.5 15 18 25 30 36 50 60 75 90 100 120 150 180
5–9 not applicable for 6W Motor | H (General Purpose, Green) W (General Purpose, White)G (For Sliding, Green) S (For Sliding, White) D (Static Conductive) F (For Food, White) O (Oil Resistant) N (Non-Stick Food Grade) J (No Belt) * For belts other than the above, select from Belt Specification below. |
190<FYA<L-210 * When not specified, there will be no additional counterbores. |
A (Panasonic Motor) B (Oriental Motor) C (Taiwanese Motor) * SCM (Variable Speed Motor) is not selectable for A. |
| 25 | (Three-Phase) SA200 SA220 SA230 | IM (Constant Speed Motor) | |||||||
| 6 25 | NV (No Motor) | NM (No Motor) | NH (No Gearhead) | R (No Motor, Gearhead) | |||||
Connect the motor so that the belt rotates in the direction of conveyance.When “No motor, gearhead” is selected, the motor mounting hole pitch will vary depending on the motor’s power rating. Please see Technical Information in our Conveyor Selection website for the dimension details.When “No motor, gearhead” is selected, this unit will be delivered unassembled. The customer is to assemble the unit according to the included assembly instructions. See our Conveyor Selection site for assembly procedures and packaging details.Note that warpage might occur on the guided belt depending on the number of plies (thickness).
| Belt Specification | Standard Belt | Optional Belt 1 | Optional Belt 2 | No Belt |
| General Purpose | H (Green), W (White) | — | — |
J (No Belt) |
| For Sliding | G (Green), S (White) | — | — | |
| For Inclined Transfer | — | — | — | |
| Grip Type | — | — | GG (Green), GW (White) | |
| Oil Resistant | O (Green) | OW (White) | — | |
| Non-Stick Food Grade | N (White) | NB (Sky Blue), NBG (Lime Green) HH (Green), HW (White) | — | |
| Food Grade | — | KW (White), KSB (Sky Blue), PHB (Sky Blue) | — | |
| Static Conductive | D (Black) | — | — |
If using Optional Belts, please select motor manufacturer A or B (Motor C is applicable for Standard Belt only.)
| Part Number | B | Available Types | |||||||||||||||||
| L280– 300 | L305– 400 | L405– 500 | L505– 600 | L605– 700 | L705– 800 | L805– 900 | L905– 1000 | L1005– 1100 | L1105– 1200 | L1205– 1300 | L1305– 1400 | L1405– 1500 | L1505– 1600 | L1605– 1700 | L1705– 1800 | L1805– 1900 | L1905– 2000 | ||
|
CVSFC | 70–100 | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • |
| 110–150 | — | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 160–200 | — | — | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 210–250 | — | — | — | • | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| 260–300 | — | — | — | — | • | • | • | • | • | • | • | • | • | • | • | • | • | • | |
| Motor Position Reversed |
| Motor Cover with Window |
| Brackets for Speed Controller Included |
| Post-Assembly Insertion Nuts Included |
| Motor with Terminal Box |
| Stands (Legs) |
For details of alterations, see P.1276.
