KEYSTONE KTS-MW3-12V-PKO /X Area Light Led Microwave Occupancy/Daylight Sens

DESCRIPTION

LED Microwave Occupancy/Daylight Sensor | Pre-wired for Quick Installation | Performance Parameters Set by Remote Control (sold separately)

INPUT VOLTAGE: 12Vdc ± 2Vdc
MICROWAVE FREQUENCY: 5.8 GHz ± 75MHz
OUTPUT VOLTAGE: 0–10Vdc
TRANSMIT POWER: 1mW max.

PRODUCT FEATURES

Partial discharge (PD) dual-technology differentiates artificial light brightness from natural light and automatically turns off light when ambient brightness exceeds preset lux level
Microwave sensing technology detects motion in the coverage area and automatically turns off light when motion is no longer detected
Pre-wired for quick installation
Powered by Keystone 0–10V dimming LED driver
Adjustable performance parameters set by Keystone remote control (sold separately)
Ambient operating temperature: −25ºC/−13ºF to 60ºC/140ºF

PERFORMANCE SPECIFICATIONS

Adjustable Settings

Microwave Frequency

Input Voltage

Input Current

Output Voltage

Transmit Power

Stand-By Power

Max Mounting Height

Detection Angle

Detection Range

Brightness

Sensitivity

Hold Time

Daylight Threshold

Stand-By Time

Stand-By Dimming Level

5.8GHz

12Vdc

30mA

0–10V

1mW

<0.5W

33 ft (ceiling mount)

30º–150º

Ceiling mount: ø 33 ft max

Wall mount: 35 ft max

70%

80%

90%

100%

20%

50%

75%

100%

10 sec

1 min

10 min

30 min

10 Lux

30 Lux

50 Lux

100 Lux Disable

1 min

30 min 60∞min

10%

20%

30%

50%

FACTORY PRESETS

Catalog Number	Stand-By Dim Level	Hold Time	Daylight Threshold	Stand-By Time
KTS-MW3-12V-PKO	50%	10 min	Disabled	∞
KTS-MW3-12V-PKO /A	30%	1 min	Disabled	3 min
KTS-MW3-12V-PKO /B	10%	5 min	Disabled	10 min

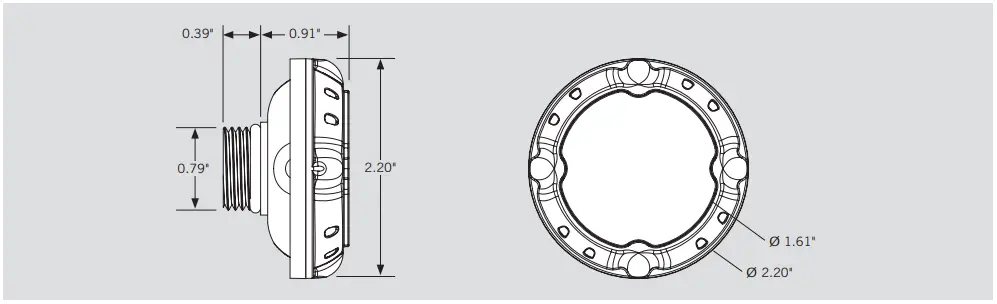

PHYSICAL SPECIFICATIONS

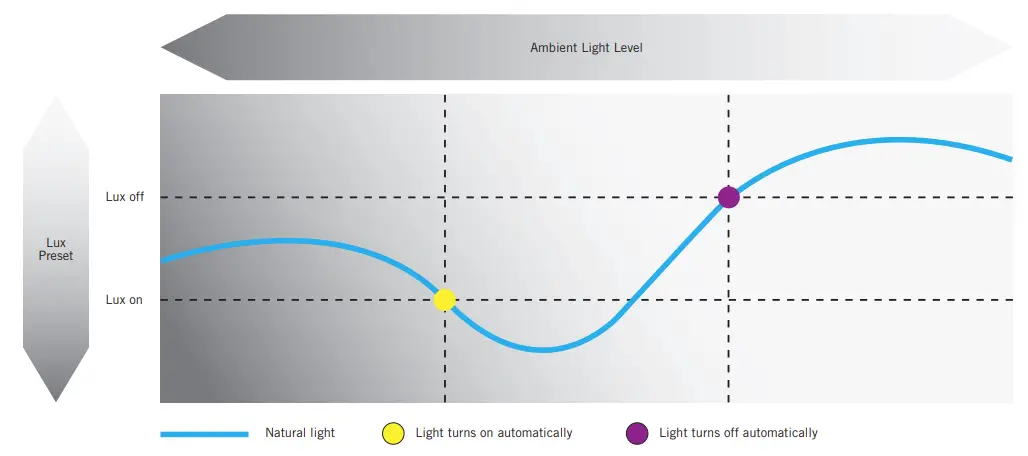

LUX ON/OFF SETTING

FUNCTION

Partial discharge (PD) dual-technology differentiates artificial light brightness from natural light and automatically turns off light when ambient brightness exceeds preset lux level.
Lux-Off function preconditions:

Stand-by period setting: ∞ • Stand-by dimming level setting: 10%, 20%, 30%, or 50%
Daylight threshold setting: 10 Lux, 30 Lux, 50 Lux, or 100 Lux

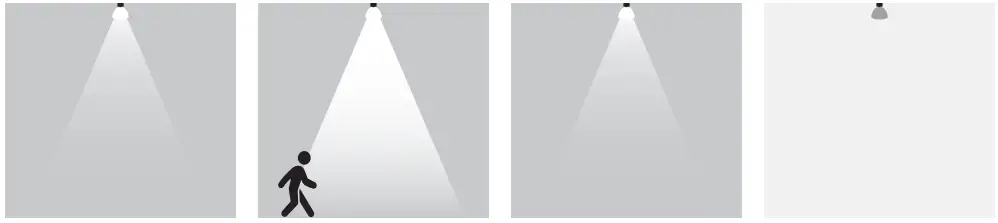

APPLICATION

When ambient light is lower than preset lux level, lighting will turn on and remain at preset stand-by dimming level.
With insufficient ambient light, when motion is detected, lighting will turn on and remain at preset brightness level until motion is no longer detected for duration of preset hold time.
If no further motion is detected after duration of hold time, lighting will dim and remain at preset brightness level for duration of standby time or until ambient light level exceeds preset lux level.
When ambient light reaches preset lux level, lighting will turn of and remain off until ambient light level falls below preset lux level.

INSTALLATION

Ensure power is off to the fixture.
Remove 1/2″ knock-out (KO) plug next to the Keystone emblem on the driver access door.
Screw in sensor head.
Re-connect power when ready. (see illustrations below)
Program desired settings as needed with Keystone Remote Control.

ACCESSORY (SOLD SEPARATELY)

REMOTE CONTROL
Catalog Number	Description	UPC	Easy Code
KTS-MW3-REMOTECONTROL	Remote Control for KTS-MW3-12V-XX Sensors, Sets/adjusts all sensor performance parameters	843654132020	XSR-61

ORDERING INFORMATION

ORDER CODE	PACK QTY.	UPC	Easy Code
KTS-MW3-12V-PKO	1	843654135212	TRM-32
KTS-MW3-12V-PKO /A	1	843654133317	XYR-25
KTS-MW3-12V-PKO /B	1	843654133324	SPF-37
