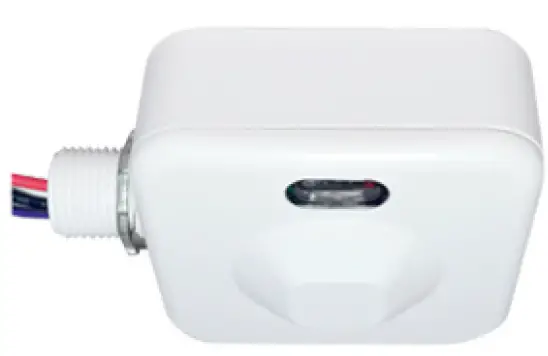

SUNCO LIGHTING 89845 Bi-Level and Daylight Harvest Microwave Sensor

FEATURES

• Slim, low-profile sensor with multiple mounting options for easy installation.
• Provides multi-level control based on motion and/or daylight contribution.
• 60’ range sensitivity detector.
• Works with ballasts or LED drivers.
• Adjustable light levels and stand-by time.

APPLICATION

• Designed for use with indoor fixtures in warehouses, work stations, hallways and offices.

360° TOP AND SIDE VIEW

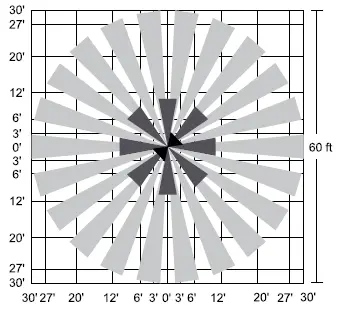

Top View

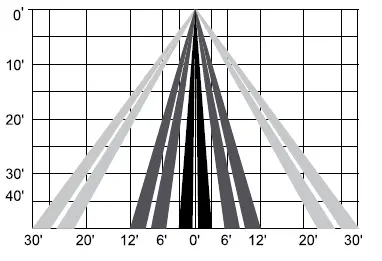

Side View

ELECTRICAL

• Voltage
  • 120V/277VAC 50/60 Hz
  • Resistive / Halogen
  • 800W @ 120V / 1200W @ 277V
• Power Supply
  • Fluorescent Ballast
  • 660W @ 120V / 1200W @ 277V
  • Electronic Ballast (LED/CFL)
  • 5A @ 120V / 5A @ 277V

PERFORMANCE

• Detection Angle: 360°
• Detection Radius Max: 30ft
• Max Mounting Height: 50ft Height
• Adjustable Time Delay: 10 Sec. – 15 Mins.
• Adjustable Light Control: 10 – 2000 Lux
• Dimmable Lighting Control: 0-10V Dimming Control

ENVIRONMENT

• Operating Temperature: -40° ~ 158°F
• Suitable Location: Indoor Only
• Humidity: Max. 95% RH

LIFESPAN

• Warranty (Years): 2

CONSTRUCTION

• Housing: PC
• Mounting: Hard Wired
• Finish: White

QUALIFICATIONS

• Specifications are subject to change without notice.

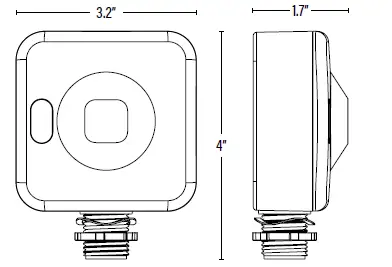

DIMENSIONS (Inches)

• Length: 4’’
• Width: 3.2”
• Height: 1.7’’
• Net Weight: (Lbs) —

SUPPORTING DOCUMENTS

(Grey = not available at this time.)

• Product Sheet: VIEW
• Install Instructions: VIEW

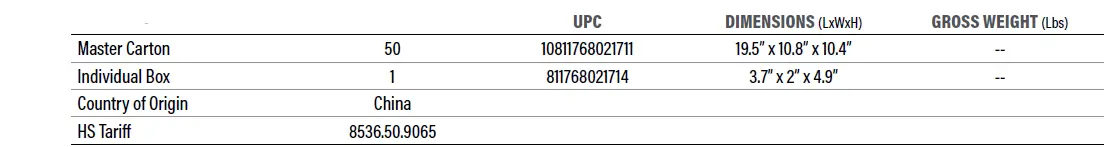

PACKAGING

ORDERING

ITEM/DESCRIPTION/CASE

• 89845
• 360° HIGH BAY BI-LEVEL AND DAYLIGHT HARVEST MICROWAVE SENSOR 60FT DIA, 8-50FT HEIGHT 800W/1200W • 120/277V
• 50

ACCESSORIES

• 49845
• EXTENDER MOUNT FOR SENSOR 69845/79845/89845
• 100

Photos and drawings may not be to scale and are for general reference only.

Rev: 08/25/2022
