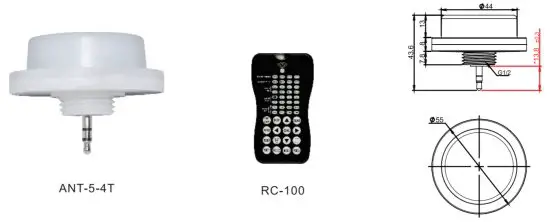

ANT-5-4T Bi-Level Microwave Motion Sensor for High Bay
Light Instructions
INTRODUCTION
The ANT-5-4T is a motion sensor that dims lighting from high to low based on movement. This slim, low-profile sensor is designed for installation inside the bottom of a light fixture body.
The sensors use microwave sensing technology that reacts to changes in movement within the coverage area.
Once the sensor stops detecting movement and the time delay elapses lights will go from high to low mode and eventually to an OFF position if it is desired. Sensors must directly “see” the motion of a person or moving object to detect them, so careful consideration must be given to sensor luminaire placement and lens selection. Avoid placing the sensor where obstructions may block the sensor’s line of sight.
SPECIFICATIONS
| Power supply | 12V-24V DC, >50mA |
| Dim control output | 0-10V, max. 25mA sinking current |
| HF System | 5.8GHz±75MHz |
| Transmission power | <0.2mW |
| Detection radius | 20%/50%/75%/100%(1-8m) |
| Mounting height | Max 40ft.(12meters) |
| Time setting | 10s/1min/5min/10min/15min/20min/30min/60min |
| Light-control | 24H/10LUX/30LUX/50LUX |
| Temperature | -4°F — +140°F (-20°C — +60°C) |
| IP rating | IP65 |
WARNING
NOTE: Warm-up time is 15seconds. After the sensor connects the input to power the first time, the light will keep on 15seconds, then go to dimming to work normally.
NOTE: Factory Default Setting: 100% sensitivity, Hold on time: 5min, Daylight sensor is Q, Dimming level:30%, Dimming time: 30minitues.
NOTE: Any setting changed by remote control, the led light that the sensor connects will be on/off as confirmed.
CORRIDOR FUNCTION
This function inside the motion sensor to achieve tri-level control, for some areas which require a light change notice before switch-off. The sensor offers 3 levels of light: 100%–>dimmed light (natural light is insufficient) –>off; and 2 periods of selectable waiting time: motion hold-time and stand-by period; Selectable daylight threshold and freedom of detection area.
 |  |

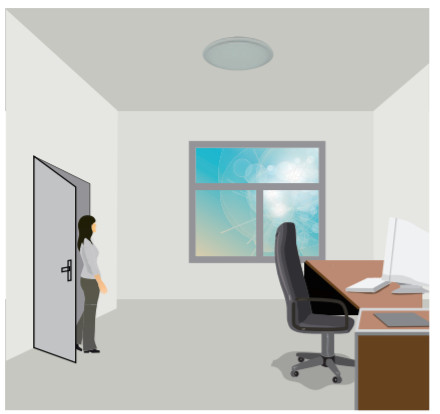

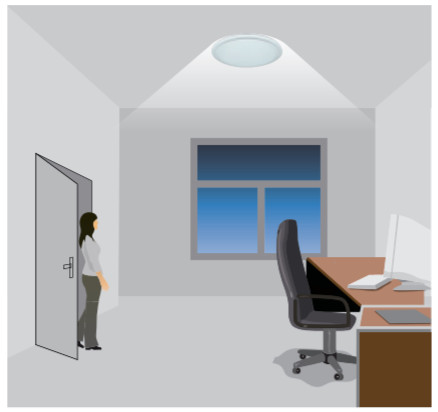

| With sufficient natural light, the light does not switch on when presence is detected. | With insufficient natural light, the sensor switches on the light automatically when presence is detected. |
 |  |

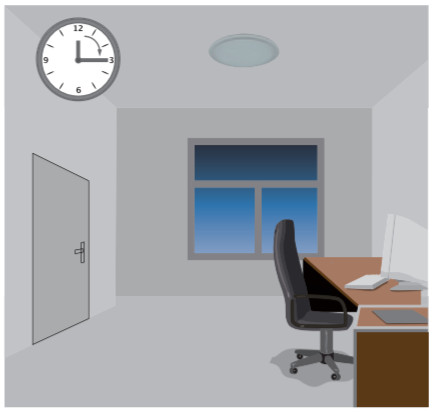

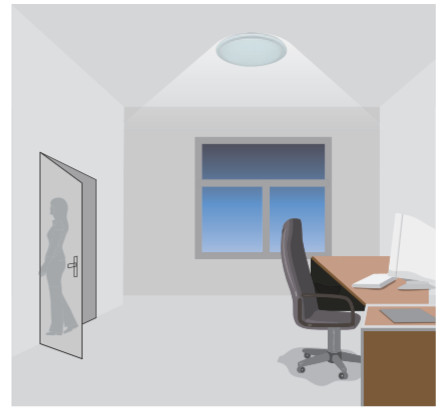

| After hold-time, the light dims to stand-by level if the surrounding natural light is below the daylight threshold. | Light switches off automatically after the stand-by period elapses. |

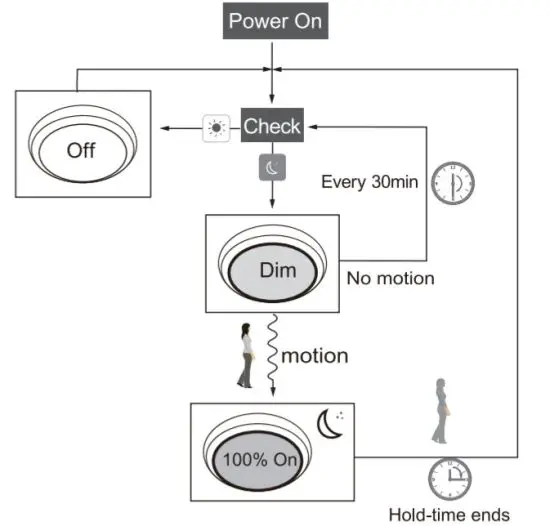

DAYLIGHT SENSOR FUNCTION
Open the daylight sensor by pushing
when the remote control is in setting condition.
 |  |
| The light switches on at 100% when there is movement detected. | The light dims to stand-by level after the hold-time. |
 |  |

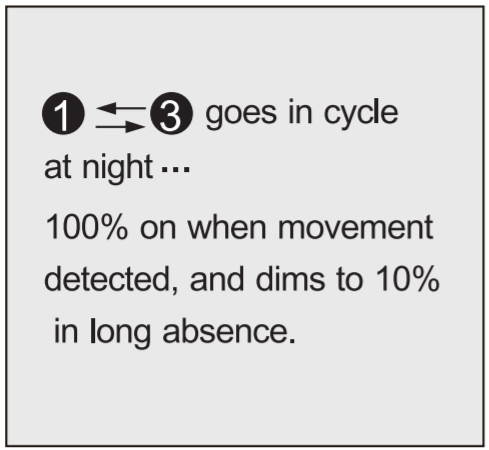

| The light remains at a dimming level at night. | |
 |  |
| When the natural light level exceeds setpoint off to light, the light will turn off even when the space is occupied. | The light automatically turns on at 10% when natural light is insufficient (no motion). |
Settings on this demonstration:
Hold-time: 30min
Setpoint on:50Iux
Setpoint off:300Iux
Stand-by Dim: 10%
Stand-by period: +o
(when the smart photocell sensor opens, the stand-by time is only +oo)

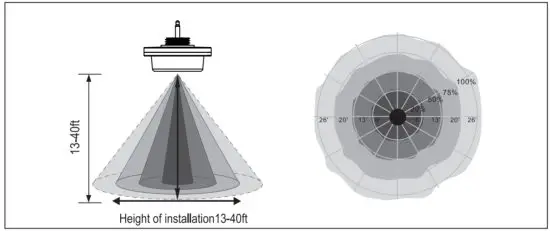

SENSOR COVERAGE
