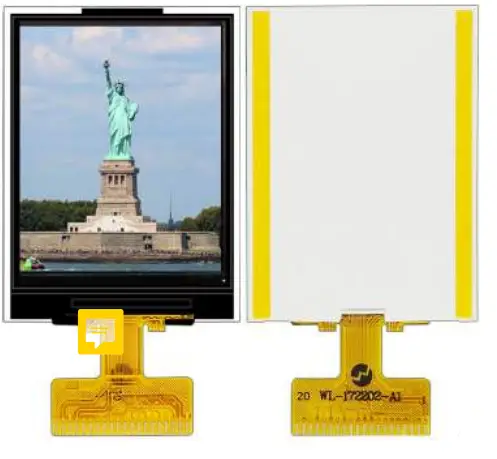

Surenoo STP0177E-128160 Series TFT LCD Panel
General Description
| MODEL NO
| STP0177E-128160 |
| Display Mode
| Transmissive |
| Display Format
| Graphic 128RGB*160 Dot-matrix |
| Input Data
| 8080-8 |
| Viewing Direction
| 12 o’clock |
| Drive
| ST7735S |
Mechanical Specification
| Item | Specifications | Unit |
| Dimensional outline
| 34.00(W)*43.70(H)*2.50MAX(T) | mm |
| Resolution
| 128RGB*160 | dots |
| LCD Active area
| 28.03(W)*35.04(H) | mm |
| Pixel size
| 0.219(W)*0.219(H) | mm |

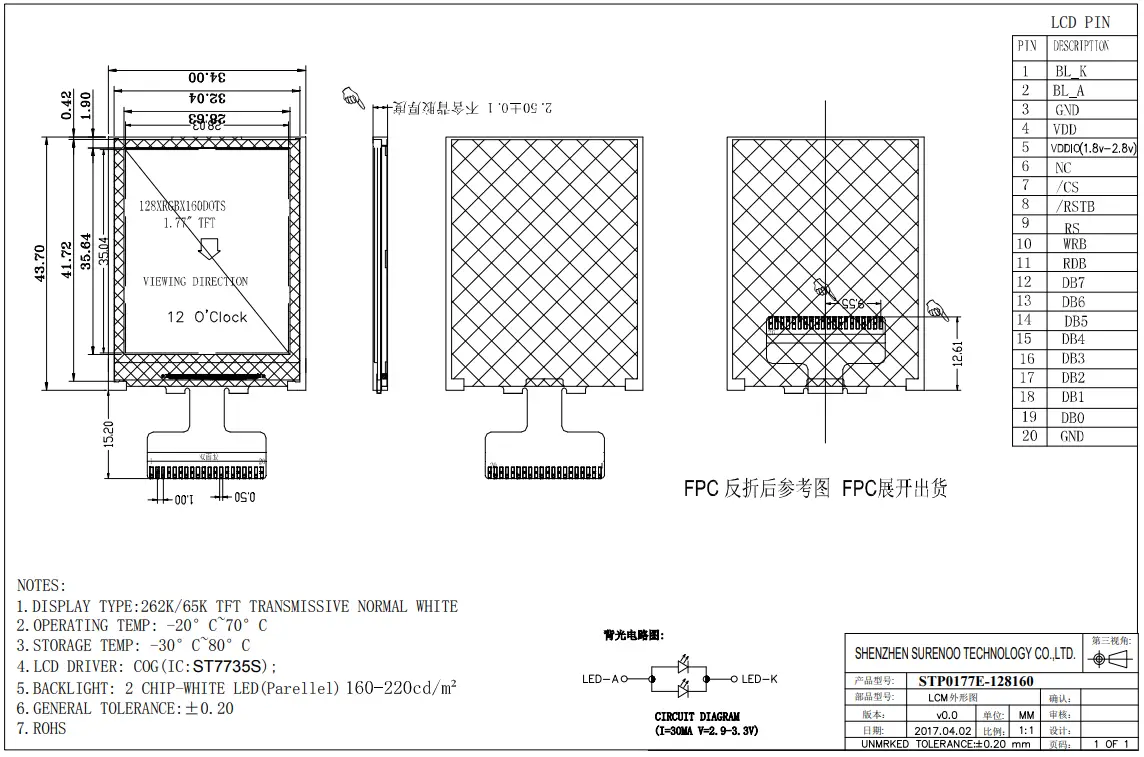

Mechanical Dimension
Electrical Maximum Ratings
| Item
| Symbol
| Min
| Max
| Unit
| Note
|
| Supply voltage（VDDI） ) | V | 1.8 | 3.3 | V | – |
| Supply voltage（VDD）
| V | 2.8 | 3.3 | V | – |
| Operating temperature 工 | TOPR | –20 | 70 | ℃ | – |
| Storage temperature
| TSTR | –30 | 80 | ℃ | – |
NOTE: VDDI（2.8V~3.3V）
Brightness characteristic&Power dissipation
| Item
| Symbol
| Min
| Typical
| Max
| Unit |
| LED module Forward voltage
| VLED | 2．9 | 3.1 | 3.3 | V |
| LED module current
| ILED | – | 18 | – | mA |
| LCD Surface Luminance
| LS | 180 | 200 | – | Cd/m2 |
| LCD Surface brightness uniform
| LD | 80 | – | – | % |
| LCD power dissipation
| PLCD | – | 0.11 | – | W |

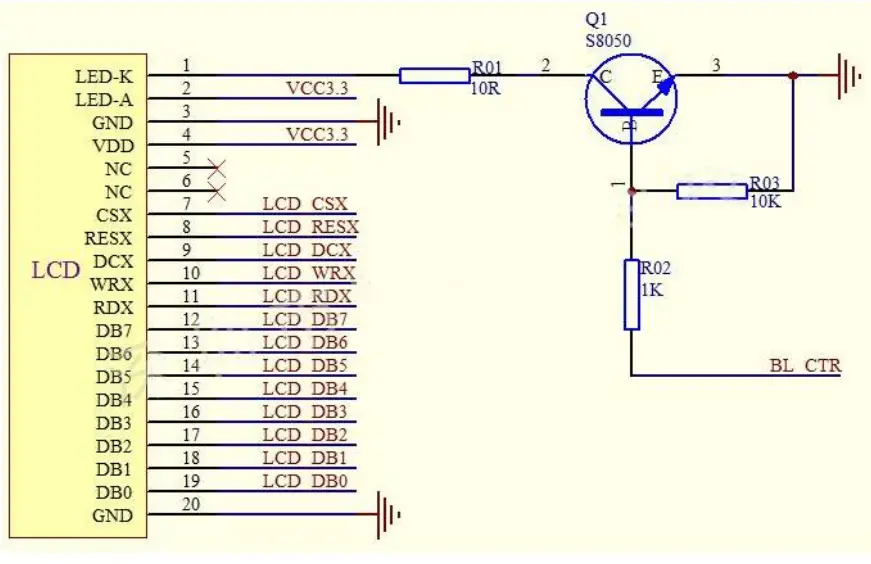

Module Function Description
Display Pin
| Pin no. | Symbol | Function |
| 1 | K | Cathode of LED backlight |
| 2 | A | Anode of LED backlight |
| 3 | GND | Ground |
| 4 | VDD | Power supply for logic |
| 5 | IOVCC | Power supply for I/O |
| 6 | NC | No connection |
| 7 | /CS | Chip select signal, When /CS = ‘L’, the chip select becomes active, and data/command I/O is enabled |
| 8 | /RESET | When /RESET is set to “L”, the register settings are initialized |
| 9 | /RS | It determines whether the access is related to data or command. /RS=“H” : Indicates that signals on D[7:0] are display data. /RS=“L” : Indicates that signals on D[7:0] are command. |
| 10 | /WR | Read /Write execution control signal |
| 11 | /RD | Read /Write enable control signal |
| 12 | DB7 |
Data bus |
| 13 | DB6 | |
| 14 | DB5 | |
| 15 | DB4 | |
| 16 | DB3 | |
| 17 | DB2 | |
| 18 | DB1 | |
| 19 | DB0 | |
| 20 | GND | Ground |
STP0177E-128160
Response time&Contrast ratio
| Item
| Symbol
| Condition
| Remark | Unit
| ||
| Min.
| Typ.
| Max.
| ||||

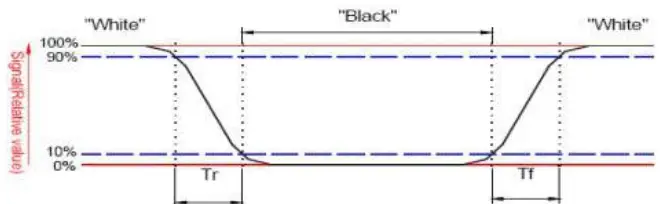

| Response time
| Tr+Tf | θ=0° | – | 30 | 60 | ms |
| Contrast ratio
| CR | θ=0° | 200 | 300 | – | – |
Viewing Angle
| Item
| Symbol
| Condition
| Remark | Unit
| ||
| Min.
| Typ.
| Max.
| ||||
|
Viewing angle
| Top
| CR≥10
| 40 | 50 | – |
Deg.
|
| Bottom
| CR≥10
| 50 | 60 | – | ||
| Left
| CR≥10
| 50 | 60 | – | ||
| Right
| CR≥10
| 50 | 60 | – | ||
Reliability Trial
| NO.
| ITEM
| CONDITION
| CRITERION
|
| 1 | High Temperature Non-Operating Test | 80℃*120Hrs | No Defect Of |
| Operational | |||
| 2 | Low Temperature Non-Operating Test | -30℃*120Hrs | Function In Room |
| Temperature Are | |||
| 3 | High Temperature/Humidity Non Operating Test | 60℃*90%RH*120Hrs | Allowable |
| 4 | High Temperature Operating Test | 70℃*72Hrs | |
| 5 | Low Temperature Operating Test | -20℃*72Hrs | |
| 6 | Thermal Shock Test | -20 ℃ (30Min) n 70 ℃ | |
| (30Min) *10CYCLES |
Inspection standards
Glass defect
| NO | Defect item | Criteria | Remark |
| 1 | Dimension Unconformity (Major defect) | By Engineering Drawing | |
|
2 | Cracks (Major defect) | 1. Linear cracks panel 【Reject】 2. Nonlinear crack contrast by limited sample |  |
|
3 | Glass extrude the conductive area (minor defect) | a: disregards and no influence assemblage. 1) b≤1/3Pin width(non bonding area) 【Accept】 2) bonding area≤0.5mm 【Accept】 | A: Length, b: Width |
|
4 | Pin-side ,conductive area damaged (minor defect) | (a c: disregards) b≤1/3of effective length for bonding electrode 【Accept】 | a: length, b: Width, c: Thickness
|
| 5 | Pin-side,non-conductive area damaged | 1)Damage area don’t touch the ITO (Inclueling contraposition mark, | a: Length, b: Width c: Thickness |
| (minor defect) | except scribing mark) 【Accept】 2) C<T b≦BM1/3of width 【Accept】 3) c=T b not touch the seal glue 【Accept】 4) a disregards |  | |
|
6 | Non-pin-side damage (minor defect) | c<T 1)b exceeds 1/3Bm 【Reject】 c=T b not touch the seal glue 【Reject】 | c: Thickness b: width of
damage |
LCD appearance defect(View area)
| NO | Defect item | Criteria | Remark | |
|
1 |
Fiber、glass cratch、polarizer scratch/folded (minor defect) | Specification | Allowable | note1:L: Length, W: Width note2: disregard if out of AA
|
| W≦0.03mm | disregard | |||
| 0.03mm<W≦0.05mm; L≦3.0mm | 2 | |||
| 0.05mm<W≦0.1mm; L≦3.0mm | 1 | |||
| W>0.1mm;L>3.0mm | 0 | |||
|
2 | Polarizer bubble、 concave and convex (minor defect) | φ≦0.2mm | disregard | note1: φ=(L+W)/2,L:Length, W :Width note2:disregard if out of AA |
| 0.2mm<φ≦0.3mm | 2 | |||
| 0.3mm<φ≦0.5mm | 1 | |||
| 0.5mm<φ | 0 | |||
|
3 | Black dots、dirty dots、 impurities、eye winker (minor defect) | φ≦0.15mm | disregard | note2:disregard if out of AA
|
| 0.15mm<φ≦0.25mm | 2 | |||
| 0.25mm<φ≦0.3mm | 1 | |||
| 0.3mm<φ | 0 | |||
|
4 | Polarizer prick (minor defect) | φ≦0.1mm | disregard | note1: φ=(L+W)/2,L=Length, W=Width
note2:the distance between two dots>5mm |
| 0.1mm<φ≦0.25mm | 3 | |||
| φ>0.25mm | 0 | |||

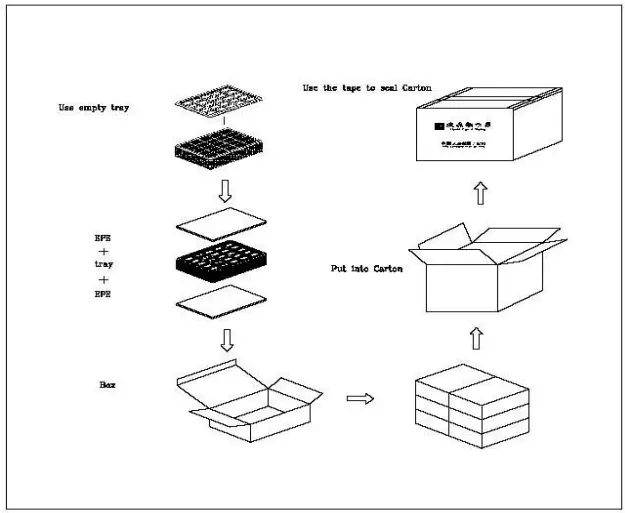

Package Method
