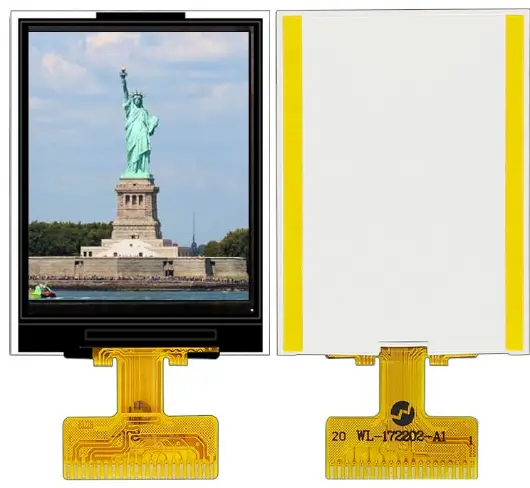

Surenoo STP0177C-128160 Series TFT LCD Panel
Model No.: STP0177C-128160
Shenzhen Surenoo Technology Co.,Ltd.
Skype: Surenoo365
www.surenoo.com
General Description
| MODEL NO
| STP0177C-128160 |
| Display Mode
| Transmissive |
| Display Format
| Graphic 128RGB*160 Dot-matrix 128xRGBx160 |
| Input Data
| SPI-4wire interface |
| Viewing Direction
| 12 o’clock 12 |
| Drive
| ST7735S |
Mechanical Specification
| Item | Specifications | Unit |
| Dimensional outline
| 33.30(W)*42.94(H)*2.30+/-0.1(T) (FPC not include) | mm |
| Resolution
| 128RGB*160 | dots |
| LCD Active area
| 28.03 (W)*35.04 (H) | mm |
| Pixel size
| 0.219(W)*0.219(H) | mm |

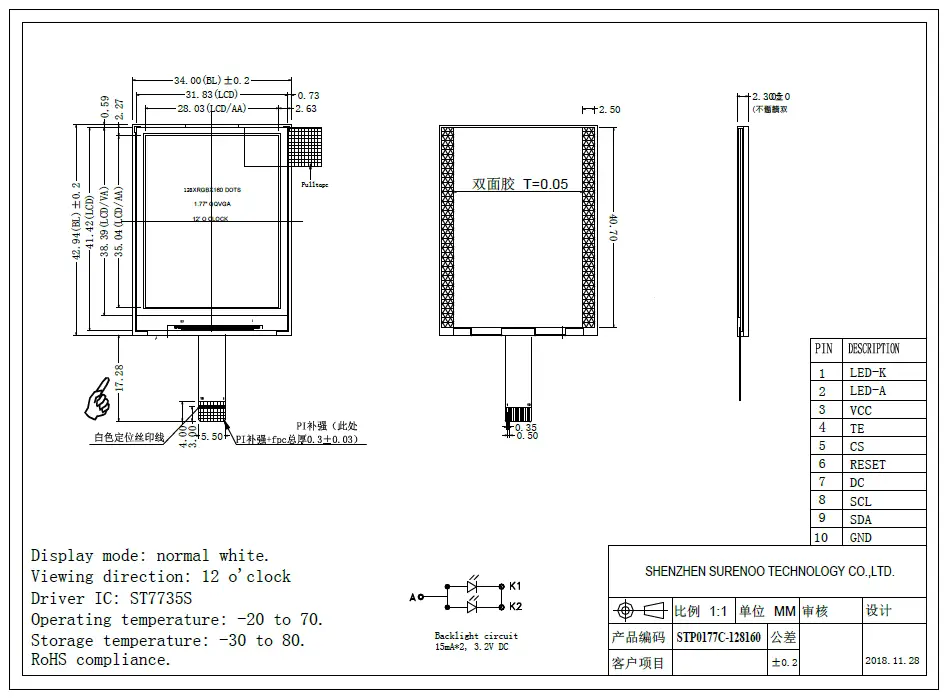

Mechanical Dimension
Electrical Maximum Ratings
| Item
| Symbol
| Min
| Max
| Unit
| Note
|
| Supply voltage（IOVCC）
| V | 1.65 | 3.3 | V | 1.8 |
| Supply voltage（ VCC ）
| V | 2.5 | 3.5 | V | 2.8 |
| Operating temperature 工
| TOPR | -20 | 70 | ℃ | |
| Storage temperature
| TSTR | -30 | 80 | ℃ |

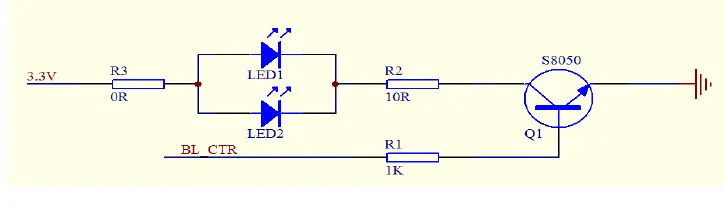

Backlight Characteristic
| Item
| Symbol
| Min
| Typical
| Max
| Unit |
| LED module Forward voltage
| VLED | 3．0 | 3.3 | 3.4 | V |
| LED module current
| ILED | – | 30 | – | mA |
| LCD Surface Luminance
| LS | 150 | 200 | – | Cd/m2 |
| LCM Surface brightness uniform
| LD | 80 | – | – | % |
Module Function Description
| 1 | LED-K |
| 2 | LED-A |
| 3 | VCC |
| 4 | TE |
| 5 | CS |
| 6 | RESET |
| 7 | DC |
| 8 | SCL |
| 9 | SDA |
| 10 | GND |
TFT-LCD
| VCC | — | 2.5 | 2.8 | 3.5 | V |
| IOVCC | — | 1.65 | 1.8 | 3.3 | V |
| VIH | IOVCC=1.8-3.3V | 0.8* VIOVCC | — | IOVCC | V |
| VIL | VSSI | — | 0.2* VIOVCC | V | |
| IDD | VCC=2.8V | TBD | mA |
| IF | VF=3.2V | — | 30 | 40 | mA |
| VF | IF=15mA | 3.0 | — | 3.4 | V |
| Lv | — | — | — | cd/m2 | |
| ΔBp | 80 | — | — | % |

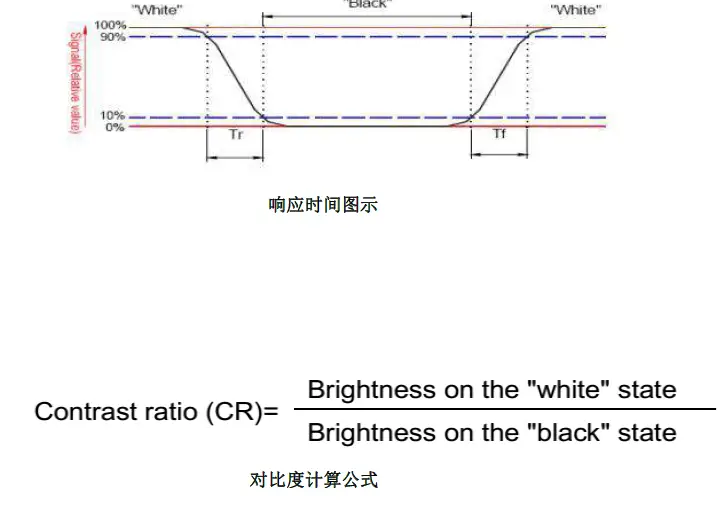

Response time&Contrast ratio
| Item
| Symbol | Condition | Remark | Unit
| ||
| Min.
| Typ.
| Max.
| ||||
| Response time
| Tr+Tf | θ=0° | – | 30 | 60 | ms |
| Contrast ratio
| CR | θ=0° | 200 | 300 | – | |

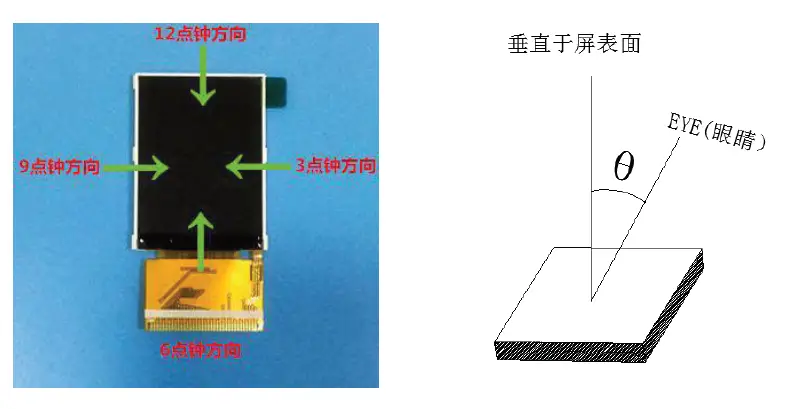

Viewing Angle
| Item | Symbol | Condition | Remark | Unit | ||
| Min.
| Typ.
| Max.
| ||||
|
Viewing angle
| Top
| CR≥10
| 20 | 30 | – |
Deg.
|
| Bottom
| CR≥10
| 40 | 45 | – | ||
| Left
| CR≥10
| 40 | 45 | – | ||
| Right
| CR≥10
| 40 | 45 | – | ||
Reliability Trial
| NO.
| ITEM
| CONDITION
| CRITERION
|
| 1 | High Temperature Non-Operating Test | 80℃*120Hrs | No Defect Of |
| Operational | |||
| 2 | Low Temperature Non-Operating Test | -30℃*120Hrs | Function In Room |
| Temperature Are | |||
| 3 | High Temperature/Humidity Non Operating Test | 60℃*90%RH*120Hrs | Allowable |
| 4 | High Temperature Operating Test | 70℃*72Hrs | |
| 5 | Low Temperature Operating Test | -20℃*72Hrs | |
| 6 | Thermal Shock Test | -20 ℃ (30Min) n 70 ℃ | |
| (30Min) *10CYCLES |
Inspection standards
Glass defect
| NO | Defect item | Criteria | Remark |
| 1 | Dimension Unconformity (Major defect) | By Engineering Drawing | |
|
2 | Cracks (Major defect) | 1. Linear cracks panel 【Reject】 2. Nonlinear crack contrast by limited sample |  |
|

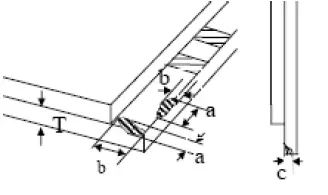

3 | Glass extrude the conductive area (minor defect) | a: disregards and no influence assemblage. 1) b≤1/3Pin width(non bonding area) 【Accept】 2) bonding area≤0.5mm 【Accept】 | A: Length, b: Width |
|
4 | Pin-side ,conductive area damaged (minor defect) | (a c: disregards) b≤1/3of effective length for bonding electrode 【Accept】 | a: length, b: Width, c: Thickness
|
| 5 | Pin-side,non-conductive area damaged | 1)Damage area don’t touch the ITO (Inclueling contraposition mark, | a: Length, b: Width c: Thickness |
| (minor defect) | except scribing mark) 【Accept】 2) C<T b≦BM1/3of width 【Accept】 3) c=T b not touch the seal glue 【Accept】 4) a disregards |  | |
|

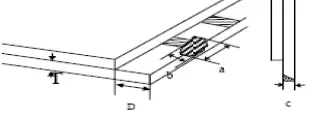

6 | Non-pin-side damage (minor defect) | c<T 1)b exceeds 1/3Bm 【Reject】 c=T b not touch the seal glue 【Reject】 | c: Thickness b: width of damage |
LCD appearance defect(View area)
| NO | Defect item | Criteria | Remark | |
|
1 | Fiber、glass cratch、polarizer scratch/folded (minor defect) | Specification | Allowable | note1:L: Length, W: Width note2: disregard if out of AA
|
| W≦0.03mm | disregard | |||
| 0.03mm<W≦0.05mm;L≦3.0mm | 2 | |||
| 0.05mm<W≦0.1mm;L≦3.0mm | 1 | |||
| W>0.1mm;L>3.0mm | 0 | |||
| 2 | Polarizer bubble、 concave and convex(minor defect) | φ≦0.2mm | disregard | note1: φ=(L+W)/2,L:Length,W :Width note2:disregard if out of AA |
| 0.2mm<φ≦0.3mm | 2 | |||
| 0.3mm<φ≦0.5mm | 1 | |||
| 0.5mm<φ | 0 | |||
| 3 | Black dots、dirty dots、 impurities、eye winker (minor defect) | φ≦0.15mm | disregard | note2:disregard if out of AA |
| 0.15mm<φ≦0.25mm | 2 | |||
| 0.25mm<φ≦0.3mm | 1 | |||
| 0.3mm<φ | 0 | |||
| 4 | Polarizer prick (minor defect) | φ≦0.1mm | disregard | note1: φ=(L+W)/2,L=Length,W=Width note2:the distance between two dots>5mm |
| 0.1mm<φ≦0.25mm | 3 | |||
| φ>0.25mm | 0 | |||

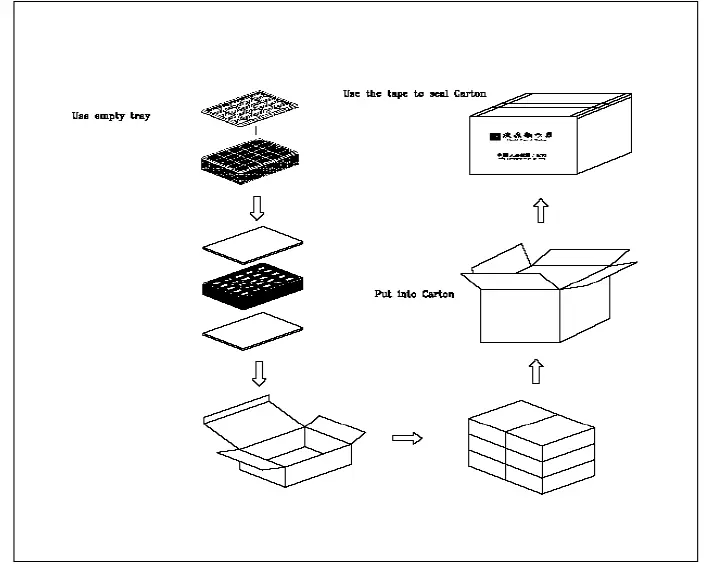

Package Method
