Surenoo STP0144A-128128 Series TFT LCD Panel

General Description

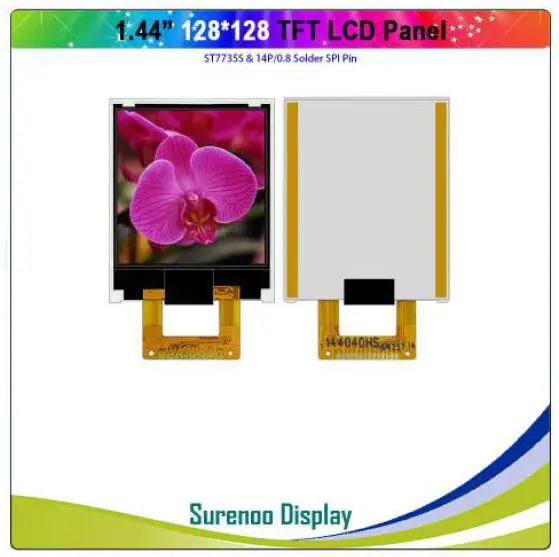

STP0144A-128128 is a 128RGB*128 dots matrix TFT LCD module. It has a TFT panel composed of 384sources and 128gates. The LCM can be easily accessed by micro-controller.

Features

Display Mode	Transmissive
Display Mode	a-TFT
Display Format	Graphic 128RGB*128 Dot-matrix
Input Data	SPI interface
Viewing Direction	12 o’clock
Drive	ST7735S

Mechanical Specification

Item	Specifications	Unit
Dimensional outline	29.50(W)36.50(H)2.25+/-0.1(T) (FPC not include)	mm
Resolution	128RGB*128	dots
LCD Active area	25.50 (W)*26.50 (H)	mm
Pixel size	0.20(W)*0.20(H)	mm

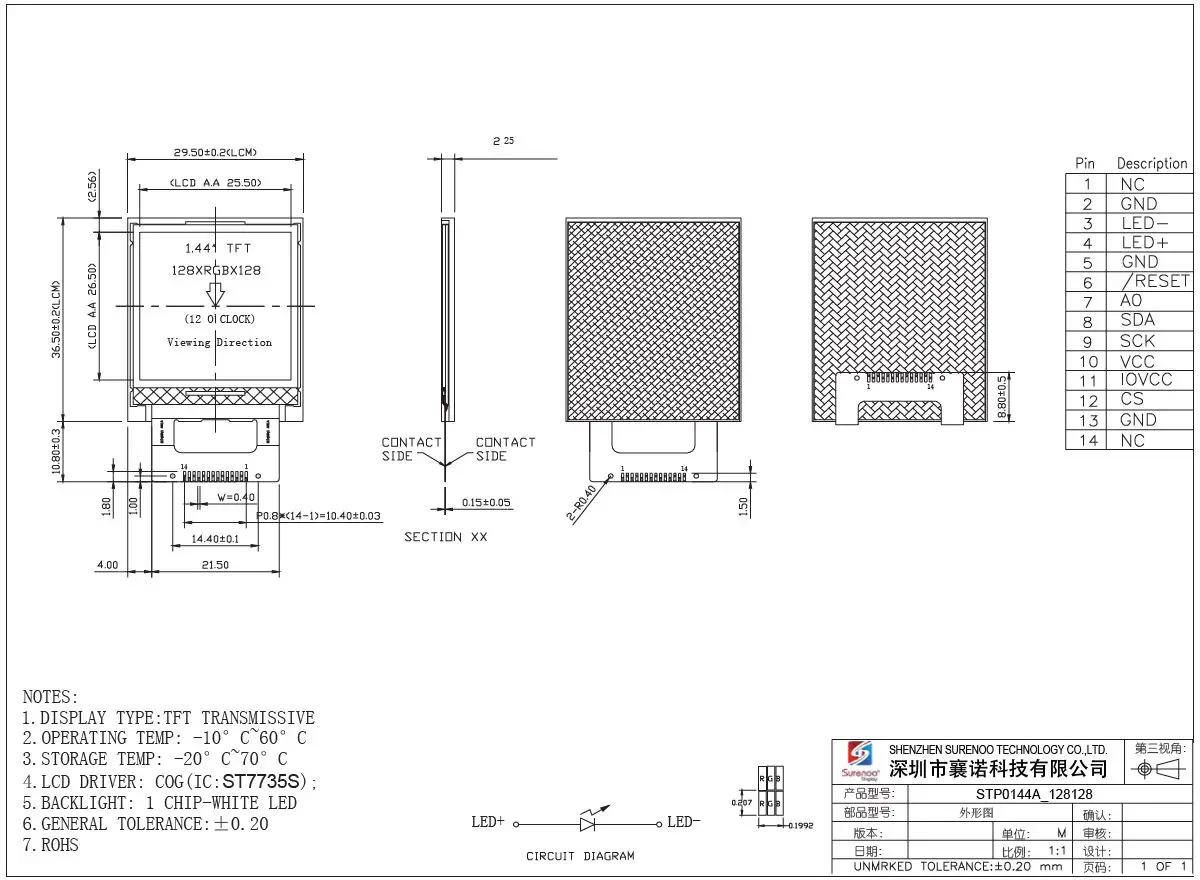

Mechanical Dimension

Maximum Ratings

Item	Symbol	Min	Max	Unit	Note
Supply voltage	V	-0.3	4.6	V
Operating temperature	V_T	-0.3	Vcc+0.3	V
Storage temperature	TOPR	-20	70	℃
Storage temperature	TSTR	-30	80	℃

Electrical Characteristics

Item		Symbol	Condition	Min.	Typ.	Max.	Unit
Supply voltage	Logic	VCC		2.7	2.8	3.3	V
Input Voltage	H level	TIH		*0.8IOVCC**		IOVCC	V
Input Voltage	L level	TIL		-0.3		*0.2 IOVCC**	V
Storage temperature		IDD	With internal voltage generation V_CC=2.8V; T_emp=25℃			TBD	mA

Backlight Characteristic

Item	Symbol	Min	Typical	Max	Unit
LED module Forward voltage	VLED	3.0	3.2	3.4	V
LED module current	VLED		20		mA
L/G Surface Luminance ★1	L_S	1800			Cd/m3
LCM Surface brightness uniform ★2	L_D	80			%

Test condition is:
- Center point on active area.
- Best Contrast.
Uniform measure condition:

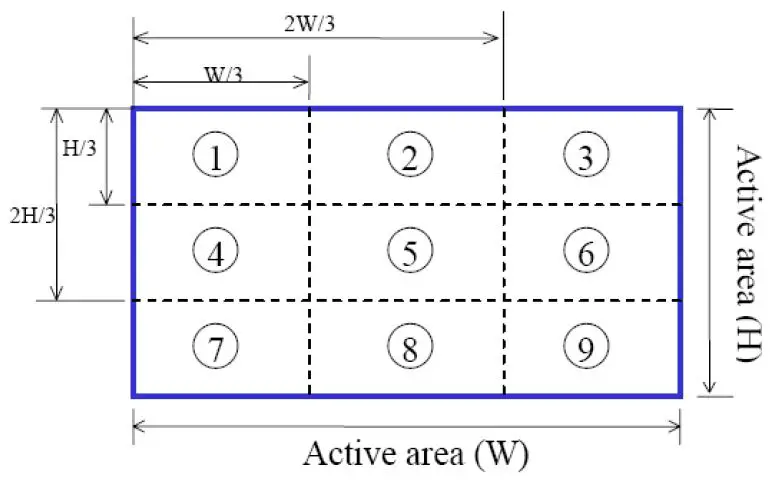

- Measure 9 point. Measure location show below;
- Uniform=(Min. brightness /Max. brightness)*100%
Best Contrast.

Module Function Description

Pin Descriptions

PIN No.	Symbol	Description	Notes
1	NC	No connection
2	GND	Ground
3	LED-	Cathode of Backlight
4	LED+	Anode of Backlight （3.0V-3.4V）
5	GND	Ground
6	/RESET	LCM Reset pin
7	A0	Register select pin RS=’1’: Display data.（RS=’1’） RS=’0’: Command data.（RS=’0’:)
8	SDA	Serial data input / output.
9	SCK	Serial clock pin.
10	VCC	Power supply for Analog（2.8V-3.3V）
11	IOVCC	Power supply for interface(1.8V-3.3V)
12	CS	Chip select pin (“Low” enable)
13	GND	Ground
14	NC	No connection

Timing characteristics.

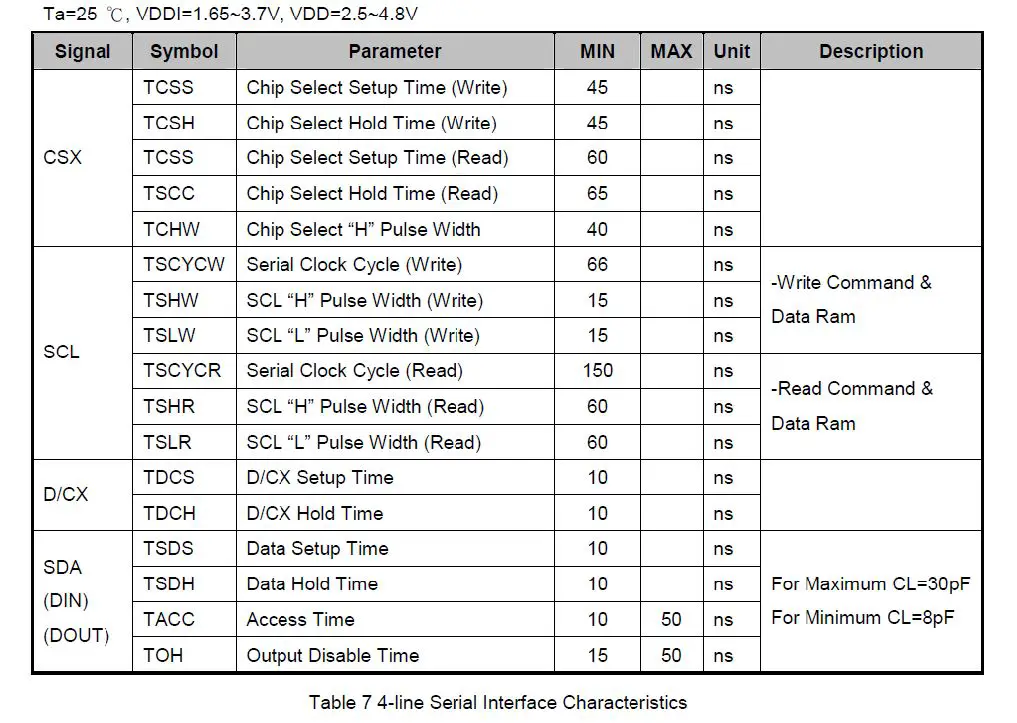

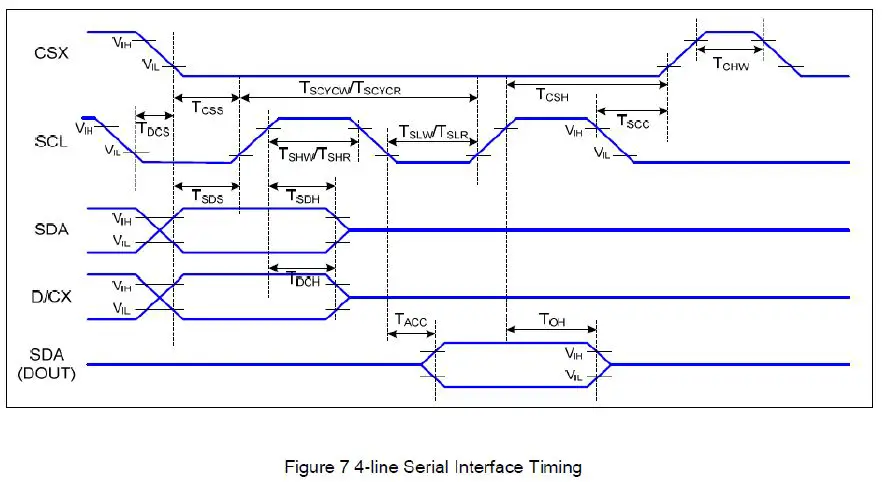

Serial Interface Characteristics (4-line Serial)

Electro-optical Characteristics

Item	Symbol	Conditions		Temp		Min.	Typ.	Max.	Unit	Note
Response Time	T_R	θ=φ =0		25℃			TBD	TBD	msec	NOTE2
	T_F						TBD	TBD
Viewing Angle Range	φ=00(6”)		φ=900(3”)		φ=1800(12”)			φ=2700(9”)		NOTE3
θ(25℃) CR≥10	TBD		TBD		TBD			TBD		NOTE3

The above “viewing angle” is the measuring position with the largest contrast ratio. Not for good image quality. Viewing direction for good image quality is 12 O’clock.

For panel only
Electro-Optical Characteristics Test Method

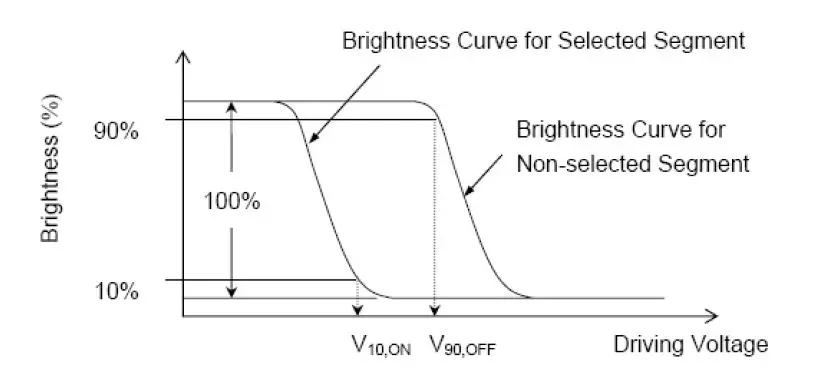

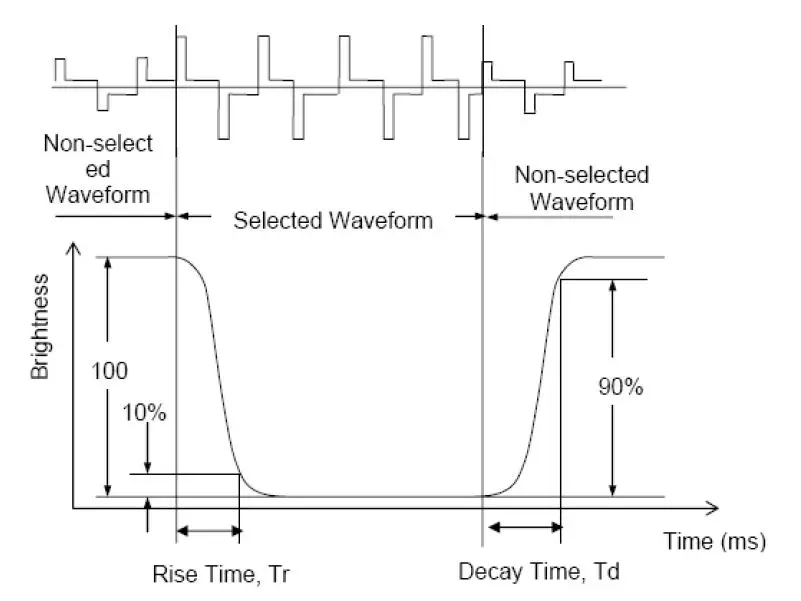

Note2. Definition of Optical Response Time:

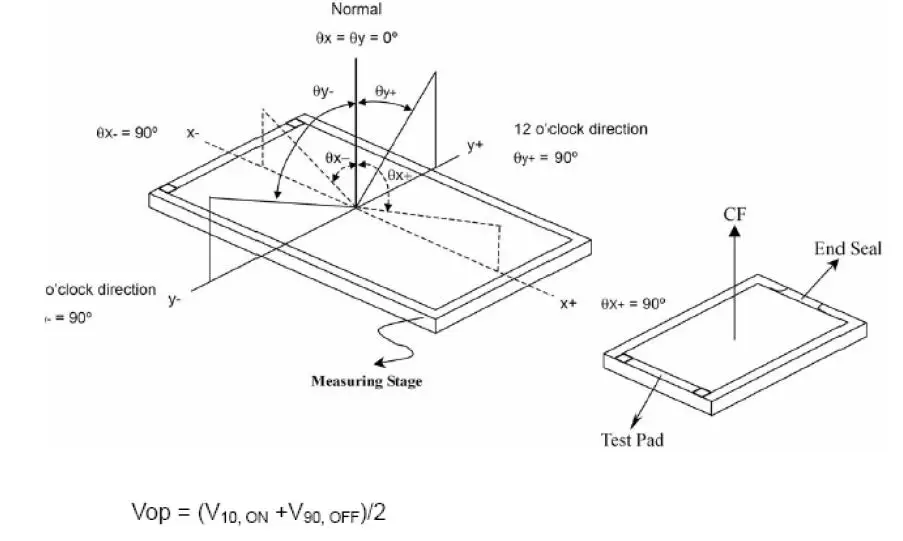

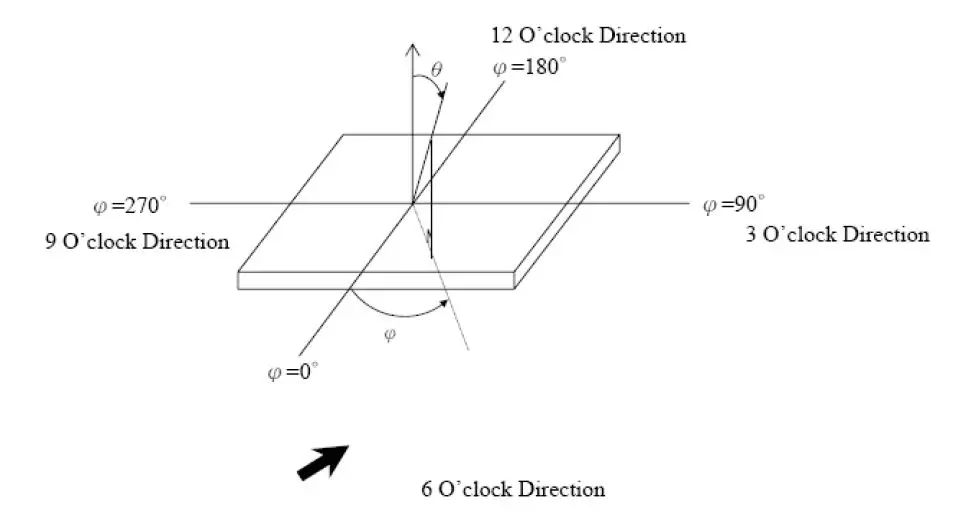

Note3. Definition of Viewing Angle θ and φ:

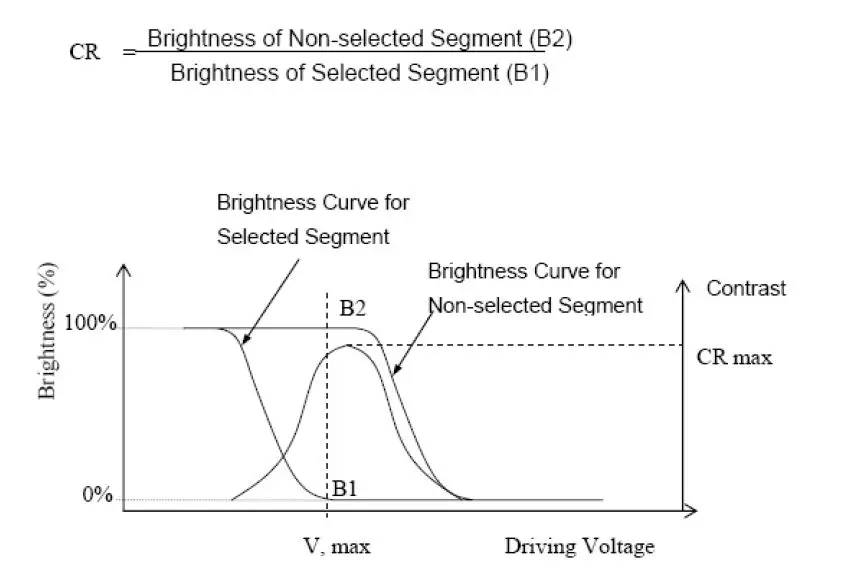

Note4. Definition of Contrast ratio (CR):

Reliability

Mtbf

The LCD module shall be designed to meet a minimum MTBF value of 50000 hours with normal

Test condition

NO.	ITEM	CONDITION	CRITERION
1	High Temperature Non-Operating Test	80℃*240Hrs	o No Defect Of Operational
2	Low Temperature Non-Operating Test	-30℃*240Hrs	Function In Room Temperature
3	High Temperature/Humidity Non Operating Test	60℃90%RH240Hrs	Are Allowable
4	High Temperature Operating Test	70℃*240Hrs	o IDD of LCM in Pre-and
5	Low Temperature Operating Test	-20℃*240Hrs	Post-Test Should Follow
6	Thermal Shock Test	-20 ℃ (30Min) e70 ℃(30Min)	Specification
6	Thermal Shock Test	*10CYCLES

Notes:

Judgments should be made after exposure in room temperature for two hours.
The distill water is used for the high temperature/humidity test.
The sample above is individually for every reliability tests condition.

Inspection standards

AQL(Acceptable Quality Level

AQL of major and minor defect.

	MAJOR DEFECT	MINOR DEFECT
AQL	0.65	1.5

Basic conditions for inspection

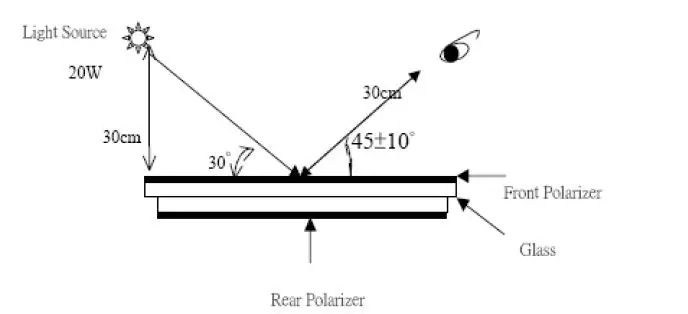

The LCM face to us, in normal environment, the lux is 1000±200.(Darkroom’s lux: 100±50),About an angle of incidence 30,a distance of 30 cm with an angle of 45 degree to check the products without uncovering the film!

(As shown below)

Inspection item and criteria

Visual inspection criterion in immobility

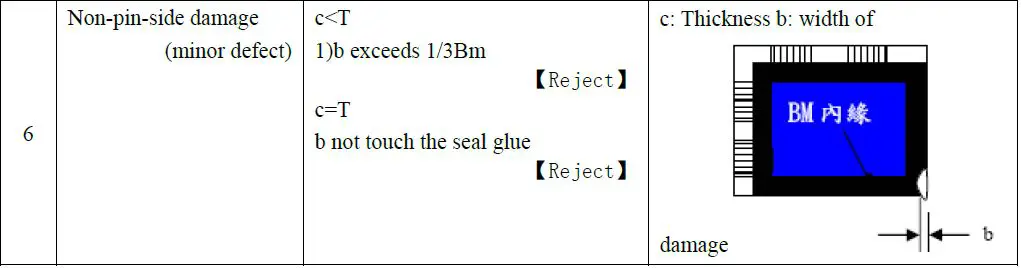

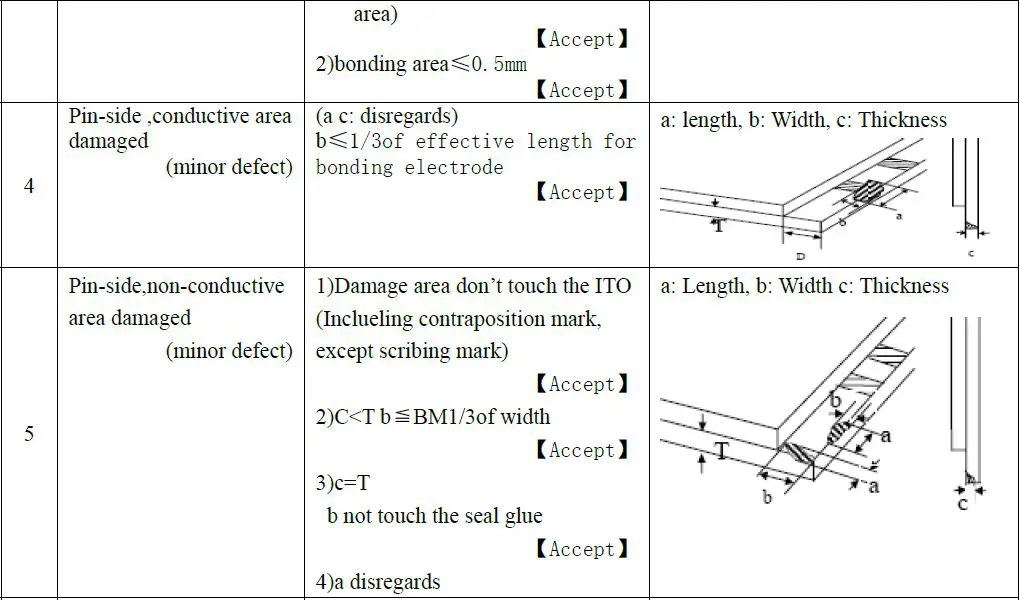

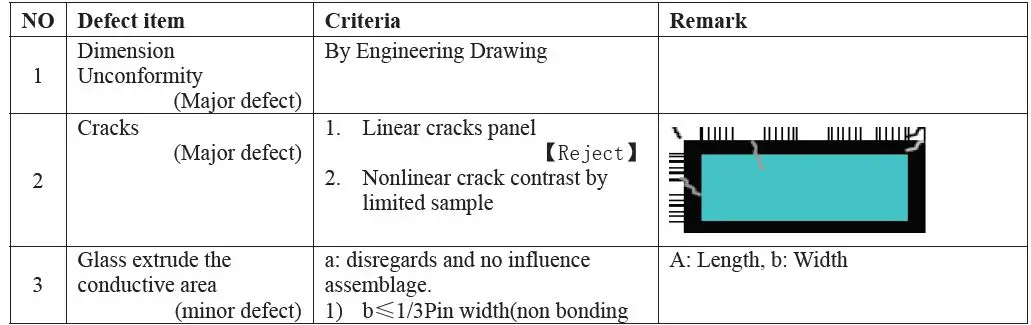

Glass defect

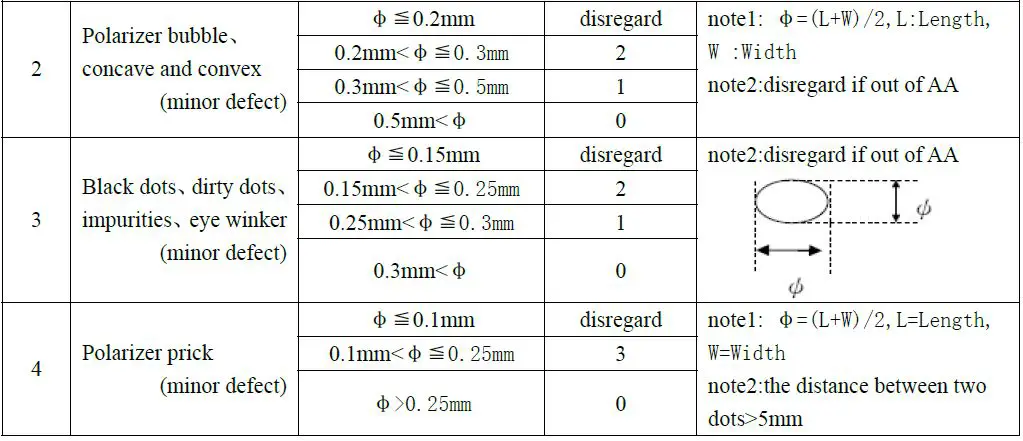

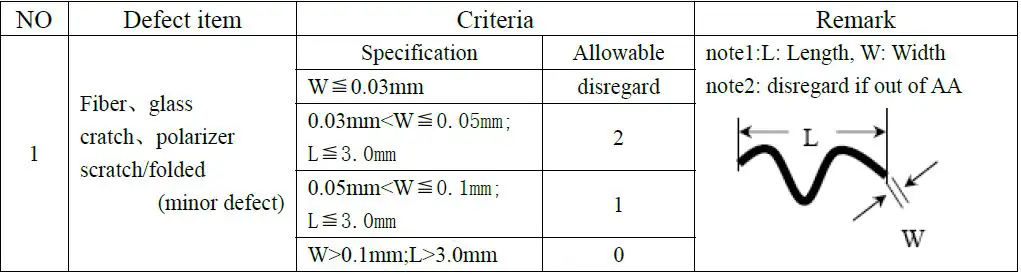

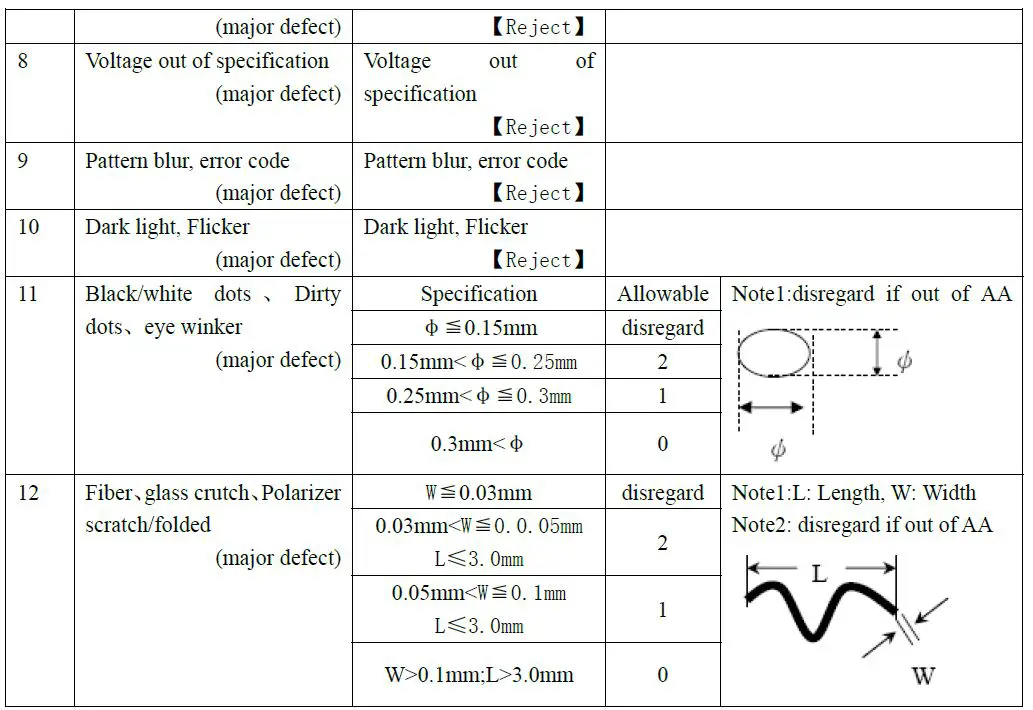

LCD appearance defect(View area)

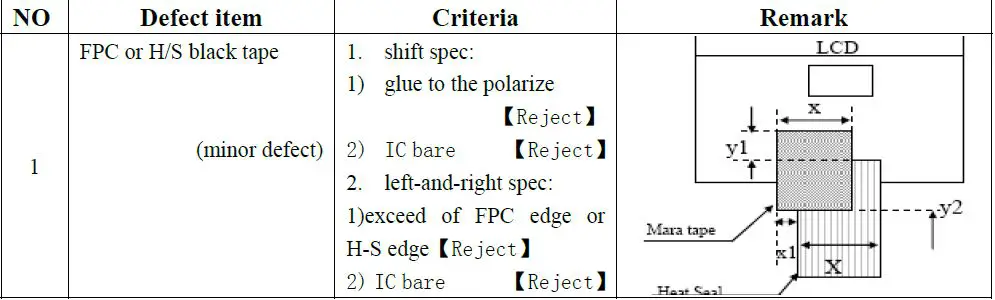

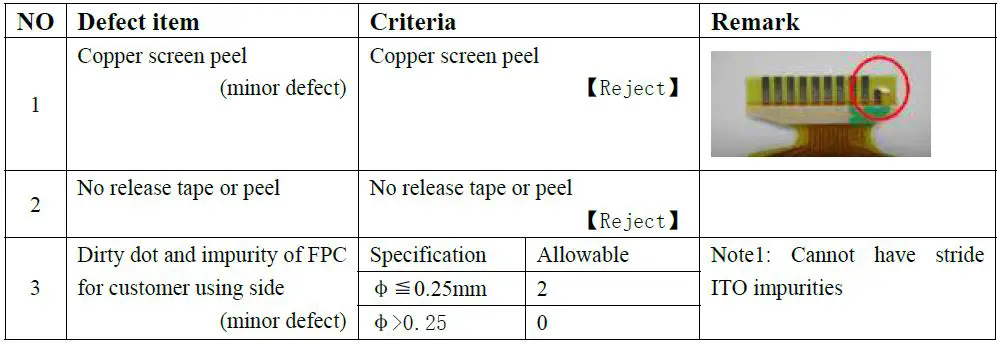

FPC

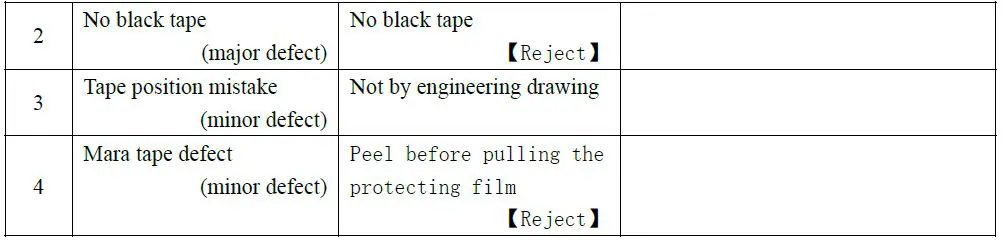

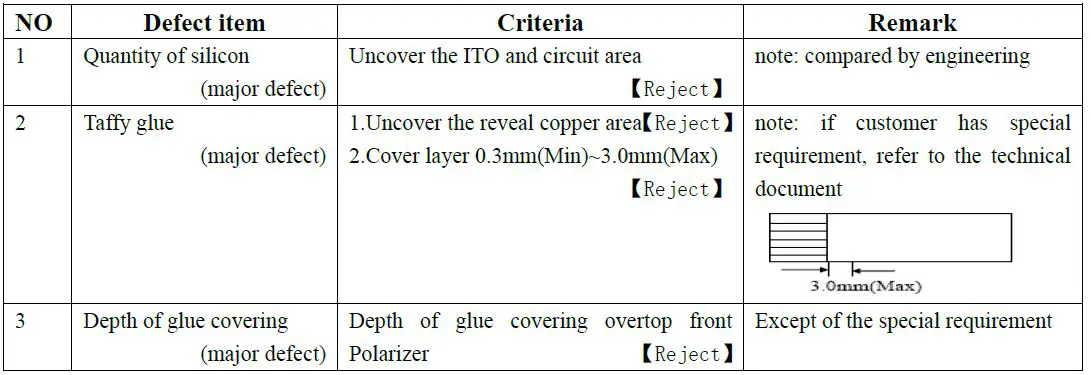

Black tape &Mara tapeSilicon and Taffy glue

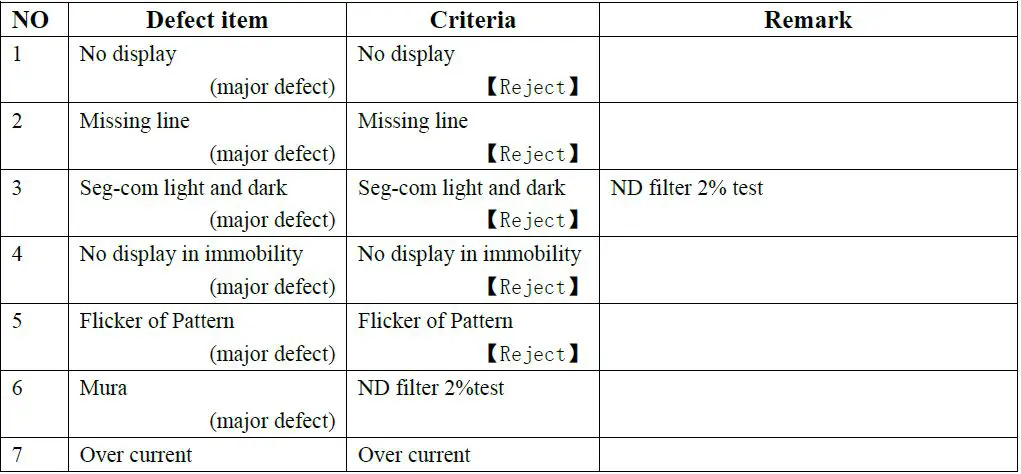

Electrical criteria

Precautions for using LCD modules

Safety

Do mot swallow any liquid crystal ,even if there is no proof that liquid crystal is poisonous.
If the LCD panel breaks, be careful not to get liquid crystal to touch your skin.
If skin is exposed to liquid crystal, wash the area thoroughly with alcohol or soap.

Srorang Conditions

Store the panel or module in a dark place where the temperature is 23±5℃and the humidity is below 45 ±20%RH.
Store in anti-static electricity container.
Store in clean environment, free from dust, active gas, and solvent.
Do not place the module near organics solvents or corrosive gases.
Do not crush, shake, or jolt the module.

Handling Precautions

Avoid static electricity, which can damage the CMOS LSI.
The polarizing plate of the display is very fragile, please handle if very carefully.
Do not give external shock.
DO mot apply excessive force on the surface.
Bo not wipe the polarizing plate with a dry cloth, as it may easily scratch the surface of plate.
Do not use ketonics solvent & Aromatic solvent, use with a soft cloth soaked with a cleaning naphtha solvent.
Do not operate it above the absolute maximum rating.
Do not remove the panel or frame from the module.

Warranty
The period is within twelve months since the date of shipping out under normal using and storage conditions.
