CONDUX 08931009 Flexible Cable
Flexible Cable Guides with Aluminum Adapters

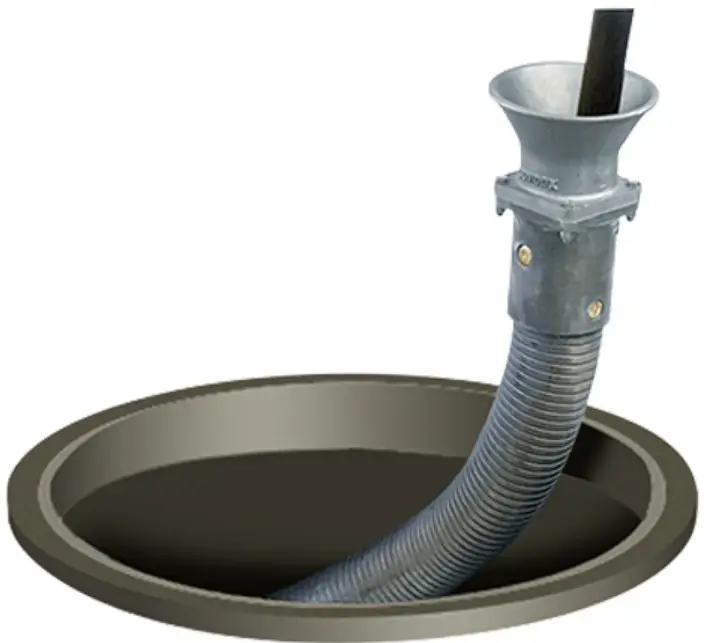

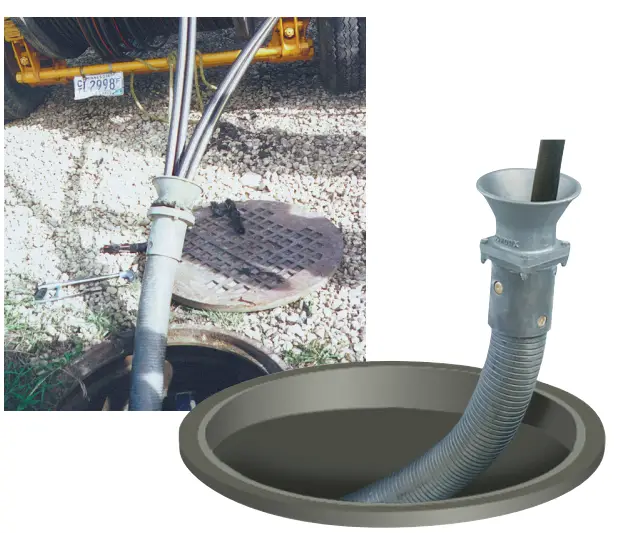

Cable feeds through the Bell Adapter and exits through the Duct Adapter which fits into the duct. Bell Adapter and Duct Adapter included for specific duct and guide size ordered.
Duct Adapters
| Diameter | Duct Size | OD | ID | |||||
| Part Number | (IN.) | (MM) | (IN.) | (MM) | (IN.) | MM | (IN.) | MM |
| 08931010 | 2 | 51 | 1.00 | 25 | 0.90 | 23 | 0.72 | 18 |
| 08931015 | 2 | 51 | 1.50 | 38 | 1.44 | 37 | 1.19 | 30 |
| 08934020 | 4 | 102 | 2.00 | 51 | 1.91 | 49 | 1.65 | 42 |
| 08934030 | 4 | 102 | 3.00 | 76 | 2.94 | 75 | 2.69 | 68 |
| 08934035 | 4 | 102 | 3.50 | 89 | 3.44 | 80 | 3.13 | 87 |
| 08935020 | 5 | 127 | 2.00 | 51 | 1.98 | 50 | 1.75 | 44 |
| 08935030 | 5 | 127 | 3.00 | 76 | 2.98 | 76 | 2.76 | 70 |
| 08935035 | 5 | 127 | 3.50 | 89 | 3.45 | 88 | 3.25 | 83 |
| 08935040 | 5 | 127 | 4.00 | 102 | 3.93 | 100 | 3.30 | 95 |
| 08936040 | 6 | 152 | 4.00 | 102 | 3.93 | 100 | 3.50 | 89 |
| 08936050 | 6 | 152 | 5.00 | 127 | 4.94 | 125 | 4.63 | 118 |
| Replacement Duct Adapters | ||||||||
| 08931020 | 2 | 51 | 2.00 | 51 | 1.91 | 49 | 1.66 | 42 |
| 08934040 | 4 | 102 | 4.00 | 102 | 3.94 | 100 | 3.69 | 94 |
| 08935050 | 5 | 127 | 5.00 | 127 | 4.93 | 125 | 4.50 | 114 |
| 08936060 | 6 | 152 | 6.00 | 152 | 5.94 | 151 | 5.50 | 143 |
| 08988080 | 8 | 203 | 8.00 | 203 | 7.94 | 202 | 7.62 | 194 |

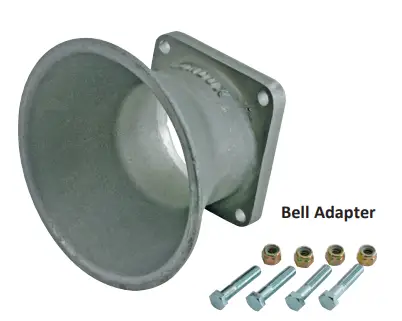

Replacement Bell Adapters
| Size | ID | |||
| Part Number | (IN.) | (MM) | (IN.) | (MM) |
| 08931000 | 2 | 51 | 2.00 | 51 |
| 08934000 | 4 | 102 | 4.00 | 102 |
| 08935000 | 5 | 127 | 5.00 | 127 |
| 08936000 | 6 | 152 | 6.00 | 152 |
| 08988000 | 8 | 203 | 8.00 | 203 |
