CONDUX 08042100 Power Cable User Guide

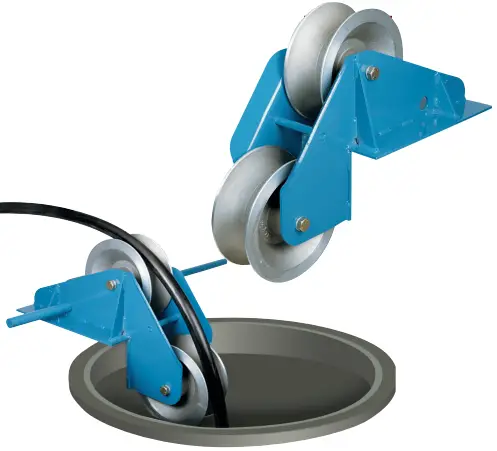

Corner Cable Guides
Aluminum and Nylatron® sheaves for pulling cable into manholes. 5,000 lbs. (22,241 N) cable tension load capacity. See Specifications and Selection Charts on page 97 for Replacement Sheaves. Support bar sold separately.
Size
| Part Number | Nylatron Part Number | (IN.) | (MM) |
| 08043100 | 08043125 | 4 | 102 |
| 08043200 | 08043225 | 5 | 127 |
| 08088600 | 08088625 | 6 | 152 |
| 08088800 | 08088825 | 8 | 203 |
NOTE: Nylatron® is a registered trademark of DSM.

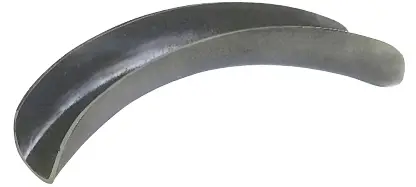

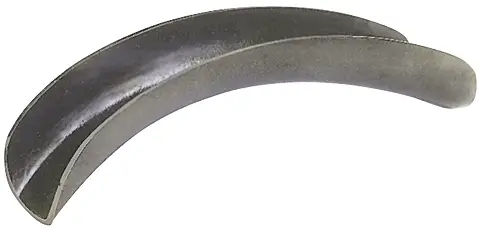

Cable Bending Shoe
Protects cable from corner abrasion during pulling operations.
Bend radius of 20″ (508 mm). Rugged, high-impact plastic.
| Part | ID | OD | |||
| Number | Description | (in) | (mm) | (in) | (mm) |
| 08042100 | Plastic Bending Shoe | 3.19 | 81 | 3.44 | 87 |
Nylon Cable Protector
Flanged, split tube to insert in duct end and protect cable from damage during installation. Also can be left in place for permanent protection.
| Part Number | Description |
| 08042301 | 1″–21⁄2″ (25–63 mm) Duct |
| 08042300 | 3″–6″ (76–152 mm) Duct |

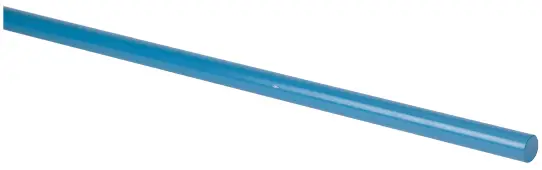

Support Bar
Use to support quadrant blocks or cable guides at street level.
| Part Number | Description |
| 08091440 | 1 1⁄4″ (32 mm) x 4′ (1.2 m) Steel Bar |

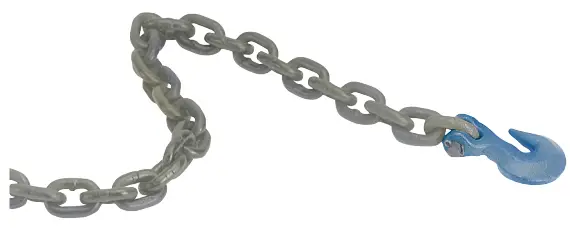

Chains
Used to tie off cable guides in the manhole. Not to be used for overhead lifting.
| Part Number | Description |
| 08066301 | 4′ (1.2 m) Chain, Double Hook, 3/8″ (9 mm) Alloy Links, 7,100 lbs. (31,581 N) capacity |
| 08066300 | 8′ (2.4 m) Chain, Double Hook, 3/8″ (9 mm) Alloy Links, 7,100 lbs. (31,581 N) capacity |
