CONDUX 08041520 Aluminum Split Bells

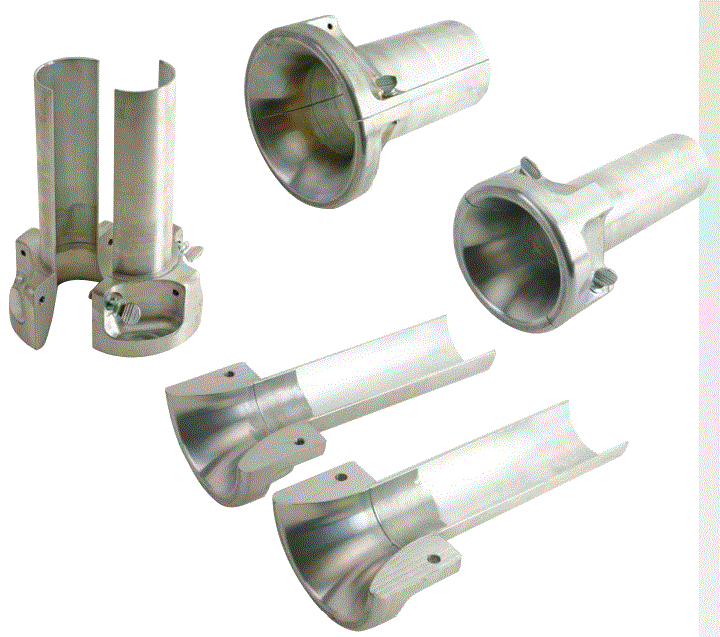

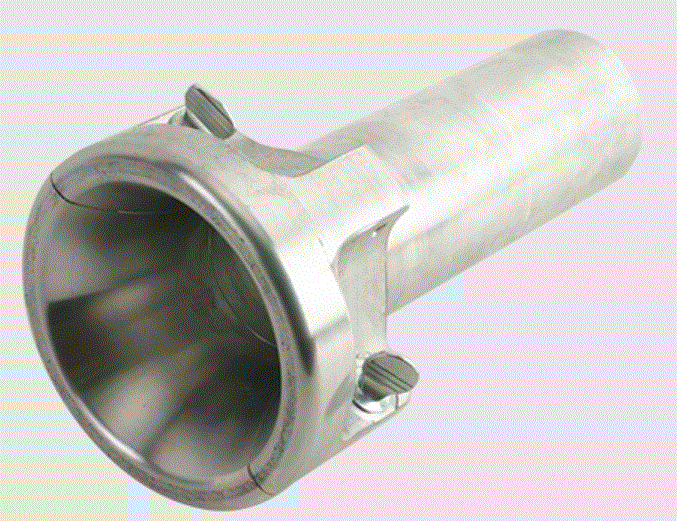

Aluminum Split Bells
Plugs into conduit in manhole wall, guiding cable safely into the conduit regardless of the pulling angle.
| Size | Tube Length | Tube I.D. | Tube O.D. | ||||||
| Part Number | (IN.) | (MM) | (IN.) | (MM) | (IN.) | (MM) | (IN.) | (MM) | |
| 08041520 | 2 | 51 | 8 | 203 | 1.625 | 41 | 1.875 | 48 | |
| 08041530 | 3 | 76 | 8 | 203 | 2.625 | 67 | 2.875 | 73 | |
| 08041535 | 3.5 | 89 | 8 | 203 | 3.125 | 79 | 3.375 | 88 | |
| 08041540 | 4 | 102 | 8 | 203 | 3.625 | 92 | 3.875 | 98 | |
| 08041550 | 5 | 127 | 8 | 203 | 4.625 | 117 | 4.875 | 124 | |
| 08041560 | 6 | 152 | 8 | 203 | 5.625 | 143 | 5.875 | 149 | |
| 08041564 | 6 | 152 | 12 | 305 | 5.625 | 143 | 5.875 | 149 | |
| 08041570 | 8 | 203 | 12 | 305 | 7.500 | 191 | 7.875 | 200 | |
Replacement Sheaves
Refer to this chart for specifications on sheave sizes for these products: 4,000 lb. (17,793 N) Hooked Hanger Sheaves, Cable Feeding Sheaves, Corner Cable Guides, Heavy Duty Quadrant Blocks, Three Sheave Cable Guides, and Jamb Skid.

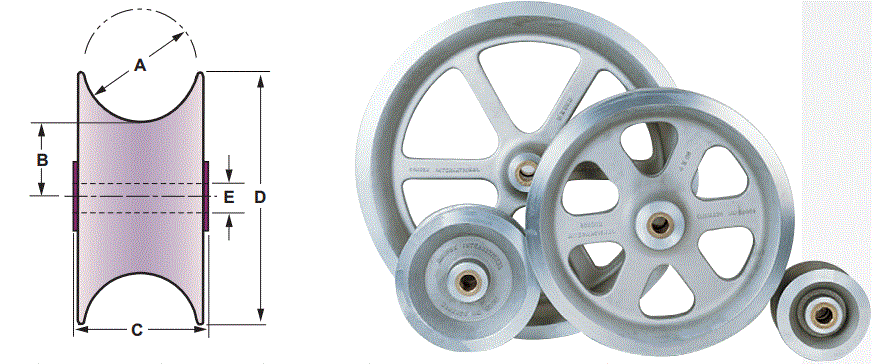

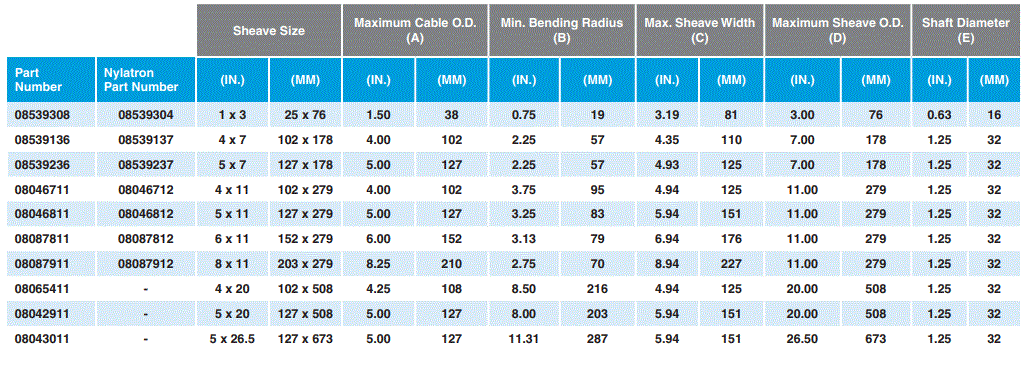

Sheaves Specifications
4,000 lb Sheaves
| Sheave Size | Maximum Cable O.D. (A) | Min. Bending Radius (B) | Max. Sheave Width (C) | Maximum Sheave O.D. (D) | Shaft Diameter (E) | ||||||||
| Part Number | Nylatron Part Number | (IN.) | (MM) | (IN.) | (MM) | (IN.) | MM | (IN.) | MM | (IN.) | MM | (IN.) | (MM) |
| 08042612 | 08046812 | 5 x 11 | 127 x 279 | 5.00 | 127 | 3.25 | 83 | 5.94 | 151 | 11.00 | 279 | 1.25 | 32 |
| 08042621 | – | 5 x 20 | 127 x 508 | 5.00 | 127 | 8.00 | 203 | 5.94 | 151 | 20.00 | 508 | 1.25 | 32 |
| 08042627 | – | 5 x 26.5 | 127 x 673 | 5.00 | 127 | 11.31 | 287 | 5.94 | 151 | 26.50 | 673 | 1.25 | 32 |
| 08042651 | – | 8 x 26 | 203 x 660 | 8.00 | 203 | 11.25 | 286 | 8.94 | 227 | 26.00 | 660 | 1.25 | 32 |
NOTE: Nylatron® is a registered trademark of DSM
