Licatec F2000 Cable Conduit System
The provision of optimal solutions for industrial lighting and cable conduit systems both in the electrical installation trade and in mechanical engineering and switch cabi-net construction managed medium sized company LICATEC has been meeting these requirements for more than 50 years with its high degree of flexibility and short decision making paths. We develop and produce innovative and easy to install systems which make our client´s work easier. Our well developed international sales network enables us to guarantee competent local advice and our central logistics secures the fast on time delivery, often onto the construction site. More than 5000 customers place their trust in our products and our service, and that with a growing tendency this is a great motivation for us to consistently continue along this road. All technical data and illustrations have been prepared with care. Errors excepted. We reserve the right to make any technical modifications which serve further development. www.licatec.de/agb for reference regarding our Terms of Delivery and Payment.
Terminal
Control Panel Trunkings
General Features

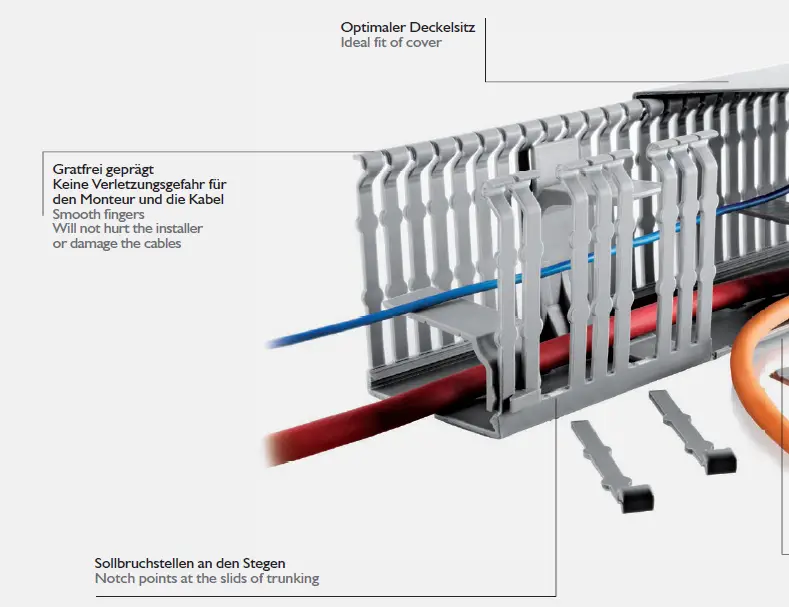

- Ideal fit of cover, easy assembly and disassembly.
- Notch points at the slids and base of trunkings
- Use of dividers possible
- Perforated base according to DIN, identical punch picture for each length • Smooth fingers – will not hurt the installer or damage the cables
- Delivery length: 2 m, with cove
- Fixed lengths: on request
- All dimensions can be supplied without punches.

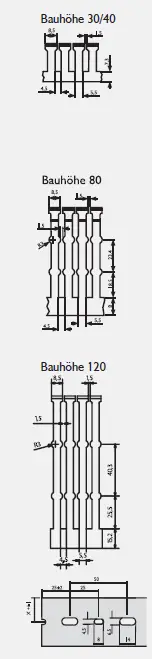

Terminal F 2000
Control Panel Trunkings
Licatec Terminal F 2000 Control Panel Trunkings in accordance with DIN EN 50085. Material: rigid-PVC, lead-free, hard to inflame, according to UL 94V0 self-extinguishing, temperature-resistant -20° C up to + 60° C.

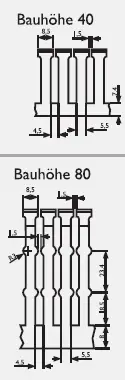

Specific Features
- Cover contour 90°

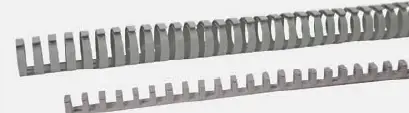

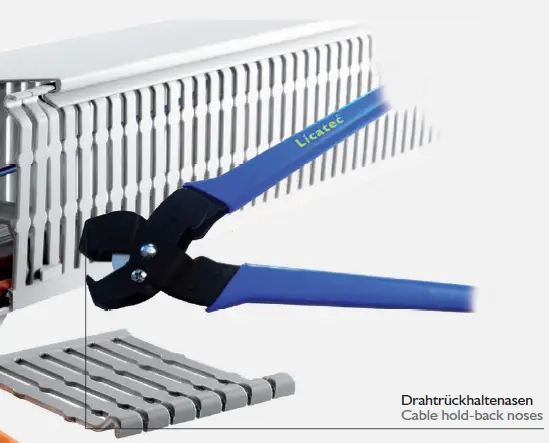

- Cable hold-back noses from installation height 60 mm onwards
- Colour: grey, RAL 7030
Bis Breite 60 mm Up to width 60 mm
Ab Breite 80 mm From width 80 mm upwards
| VE / m | Art Nr | ||||||||
| Nominal Size | Interior Dimensions | Cross section | 60 % | PU / m | Art No | ||||
| Quantity of Cables with | |||||||||
| Filling Capacity of 60 % | |||||||||
| B x H / W x H | B x H / W x H | in mm² | 2,5 mm² | ||||||
| in mm | in mm | 100% | Ø 3,4 | ||||||
| 30 x 30 | 27 x 27 | 729 | 15 | 64 | 7308-1 | ||||
| 25 x 40 | 22 x 37 | 814 | 22 | 68 | 7309-1 | ||||
| 30 x 40 | 27 x 37 | 999 | 28 | 60 | 7310-1 | ||||
| 40 x 40 | 37 x 37 | 1.347 | 40 | 52 | 7311-1 | ||||
| 60 x 40 | 56 x 37 | 2.035 | 62 | 40 | 7312-1 | ||||
| 25 x 60 | 22 x 56 | 1.232 | 34 | 60 | 7319-1 | ||||
| 30 x 60 | 26 x 56 | 1.512 | 43 | 52 | 7320-1 | ||||
| 40 x 60 | 36 x 56 | 2.027 | 61 | 48 | 7321-1 | ||||
| 60 x 60 | 56 x 56 | 3.080 | 94 | 36 | 7322-1 | ||||
| 80 x 60 | 76 x 56 | 4.200 | 130 | 32 | 7323-1 | ||||
| 100 x 60 | 96 x 56 | 5.376 | 166 | 22 | 7324-1 | ||||
| 120 x 60 | 115 x 56 | 6.496 | 202 | 20 | 7325-1 | ||||
| 25 x 80 | 22 x 76 | 1.672 | 55 | 56 | 7329-1 | ||||
| 30 x 80 | 26 x 76 | 2.052 | 70 | 48 | 7330-1 | ||||
| 40 x 80 | 36 x 76 | 2.721 | 96 | 40 | 7331-1 | ||||
| 60 x 80 | 56 x 76 | 4.180 | 156 | 36 | 7332-1 | ||||
| 80 x 80 | 76 x 76 | 5.700 | 215 | 24 | 7333-1 | ||||
| 100 x 80 | 96 x 76 | 7.296 | 275 | 24 | 7334-1 | ||||
| 120 x 80 | 115 x 76 | 8.755 | 318 | 16 | 7335-1 | ||||
| 30 x 100 | 26 x 96 | 2.477 | 96 | 32 | 7340-1 | ||||
| 40 x 100 | 36 x 96 | 3.398 | 115 | 24 | 7343-1 | ||||
| 60 x 100 | 56 x 96 | 5.280 | 187 | 32 | 7341-1 | ||||
| 80 x 100 | 76 x 96 | 7.200 | 264 | 20 | 7344-1 | ||||
| 100 x 100 | 96 x 96 | 9.139 | 324 | 16 | 7342-1 | ||||
| 150 x 100 | 145 x 96 | 13.909 | 504 | 8 | 7345-1 | ||||
| 40 x 120 | 35 x 116 | 4.060 | 153 | 24 | 7351-1 | ||||
| 60 x 120 | 55 x 116 | 6.380 | 249 | 24 | 7352-1 | ||||
| 80 x 120 | 75 x 116 | 8.700 | 348 | 20 | 7353-1 |
Covers
| Size in mm | VE / m PU / m | Art Nr |
| 25 | 10 | 5509-1 |
| 30 | 10 | 5510-1 |
| 40 | 10 | 5511-1 |
| 60 | 10 | 5512-1 |
| Nominal Size in mm | VE / m PU / m | Art Nr |
| 80 100 120 150 | 10 | 5513-1 |
| 10 | 5514-1 | |
| 10 | 5515-1 | |
| 10 | 5021-1 |

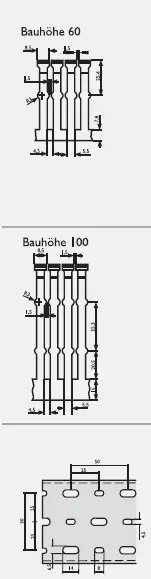

Terminal F 2000 halogenfrei / halogenfree Control Panel Trunkings
Licatec Terminal F 2000 halogen free Control Panel Trunkings in accordance with DIN EN 50085. This series is made of halogen free plastic, in accordance with VDE 0472, part 815. In case of a fire this material does not set free any toxic gases. Temperature resistant -25° C up to +90° C.

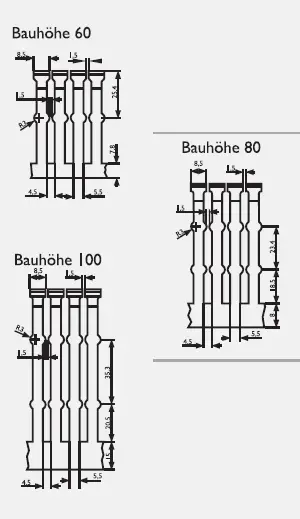

Specific Features
- Cover contour 90°
- Cable hold-back noses from installation height 60 mm onwards
- Colour: grey, RAL 7035
60 mm Up to width 60 mm
Ab Breite 80 mm Width 80 mm upwards
| Nominal Size
B x H / W x H in mm | Interior Dimensions
B x H / W x H in mm | Cross section
in mm² 100% | 60 % Quantity of Cables with Filling Capacity of 60 % 2,5 mm² Ø 3,4 | VE / m PU / m | Art Nr | ||||
| 30 x 30 | 27 x 27 | 729 | 15 | 64 | 7358-1 | ||||
| 25 x 40 | 22 x 37 | 814 | 22 | 68 | 7359-1 | ||||
| 40 x 40 | 37 x 37 | 1.347 | 40 | 52 | 7361-1 | ||||
| 60 x 40 | 56 x 37 | 2.035 | 62 | 40 | 7362-1 | ||||
| 25 x 60 | 22 x 56 | 1.232 | 34 | 60 | 7369-1 | ||||
| 40 x 60 | 36 x 56 | 2.027 | 61 | 48 | 7371-1 | ||||
| 60 x 60 | 56 x 56 | 3.080 | 94 | 36 | 7372-1 | ||||
| 80 x 60 | 76 x 56 | 4.200 | 130 | 32 | 7373-1 | ||||
| 25 x 80 | 22 x 76 | 1.672 | 55 | 56 | 7379-1 | ||||
| 40 x 80 | 36 x 76 | 2.721 | 96 | 40 | 7381-1 | ||||
| 60 x 80 | 56 x 76 | 4.180 | 156 | 36 | 7382-1 | ||||
| 80 x 80 | 76 x 76 | 5.700 | 215 | 24 | 7383-1 | ||||
| 100 x 80 | 96 x 76 | 7.296 | 275 | 24 | 7384-1 | ||||
| 120 x 80 | 115 x 76 | 8.755 | 318 | 16 | 7385-1 | ||||
| 30 x 100 | 26 x 96 | 2.477 | 96 | 32 | 7390-1 | ||||
| 40 x 100 | 36 x 96 | 3.398 | 115 | 24 | 7393-1 | ||||
| 60 x 100 | 56 x 96 | 5.280 | 187 | 32 | 7391-1 | ||||
| 80 x 100 | 76 x 96 | 7.200 | 264 | 20 | 7394-1 | ||||
| 100 x 100 | 96 x 96 | 9.139 | 324 | 16 | 7392-1 | ||||
Covers
| Nominal Size in mm | VE / m PU / m | Art Nr |
| 25 | 10 | 5519-1 |
| 30 | 10 | 5520-1 |
| 40 | 10 | 5521-1 |
| 60 | 10 | 5522-1 |
| Nominal Size in mm | VE / m PU / m | Art.-Nr. |
| 80 | 10 | 5523-1 |
| 100 | 10 | 5524-1 |
| 120 | 10 | 5525-1 |

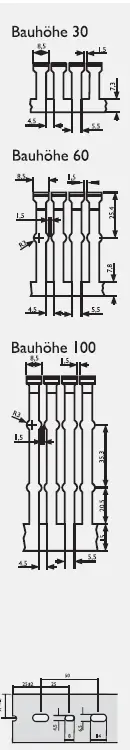

Terminal DIN Control Panel Trunkings
Licatec Terminal DIN Control panel trunkings in accordance with EN 50085. Material rigid-PVC, lead-free, hard to inflame, according to UL 94V0 self extinguishing, temperature resistant -20° C up to + 60° C.

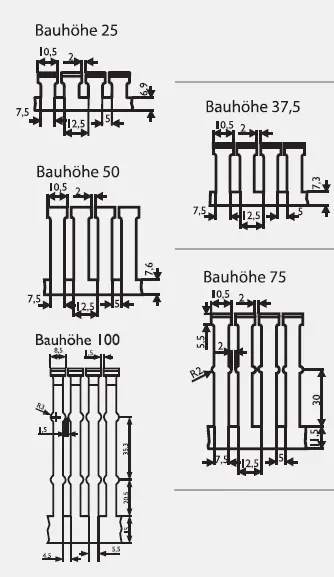

Specific features
- Cable hold-back noses from height 75 mm onwards
- Self adhesive tape as retaining aid on the bottom of the trunking
- Colour: grey, RAL 7030
Bis Breite 50 mm Up to width 50 mm
Ab Breite 75 mm Width 75 mm upwards
| Nominal Size
B x H / W x H in mm | Interior Dimensions
B x H / W x H in mm | Cross section in mm² 100% | 60 % Quantity of Cables with Filling Capacity of 60 % 2,5 mm² Ø 3,4 | VE / m PU / m | Art Nr | ||||
| 25 x 25 | 20 x 20 | 400 | 10 | 48 | 7610-1 | ||||
| 25 x 37,5 | 20 x 33 | 650 | 20 | 54 | 7620-1 | ||||
| 37,5 x 37,5 | 33 x 33 | 1.089 | 36 | 40 | 7621-1 | ||||
| 50 x 37,5 | 45 x 33 | 1.485 | 50 | 32 | 7622-1 | ||||
| 25 x 50 | 20 x 45 | 900 | 30 | 44 | 7630-1 | ||||
| 37,5 x 50 | 33 x 45 | 1.485 | 54 | 32 | 7631-1 | ||||
| 50 x 50 | 45 x 45 | 2.025 | 75 | 42 | 7632-1 | ||||
| 75 x 50 | 70 x 45 | 3.150 | 120 | 28 | 7633-1 | ||||
| 100 x 50 | 95 x 45 | 4.275 | 162 | 20 | 7634-1 | ||||
| 25 x 75 | 20 x 70 | 1.400 | 41 | 36 | 7640-1 | ||||
| 37,5 x 75 | 33 x 70 | 2.310 | 73 | 24 | 7641-1 | ||||
| 50 x 75 | 45 x 70 | 3.015 | 120 | 28 | 7642-1 | ||||
| 75 x 75 | 70 x 70 | 4.900 | 168 | 24 | 7643-1 | ||||
| 100 x 75 | 95 x 70 | 6.650 | 217 | 16 | 7644-1 | ||||
| 125 x 75 | 118 x 70 | 8.260 | 273 | 16 | 7645-1 | ||||
| 50 x 100 | 43 x 96 | 4.118 | 145 | 32 | 7647-1 | ||||
| 75 x 100 | 69 x 96 | 6.586 | 240 | 20 | 7648-1 | ||||
| 100 x 100 | 96 x 96 | 9.139 | 324 | 16 | 7649-1 | ||||
| 150 x 100 | 145 x 96 | 13.909 | 504 | 8 | 7646-1 | ||||
Covers
| Nominal Size in mm | VE / m PU / m | Art Nr |
| 25 37,5 50 | 10 | 5015-1 |
| 10 | 5016-1 | |
| 10 | 5017-1 |
| Nominal Size in mm | VE / m PU / m | Art Nr |
| 75 | 10 | 5018-1 |
| 100 | 10 | 5019-1 |
| 125 | 10 | 5020-1 |
| 150 | 10 | 5021-1 |
Terminal DIN halogenfrei / halogenfree Control Panel Trunkings
Licatec Terminal Control panel trunkings DIN halogenfree in accordance with EN 50085. This series is made of haloge free plastic, in accordance with VDE 0472, part 815. In case of a fire this material does not set free any toxic gases. Temperature restistant -25° C up to +90° C.
Specific Features
- Cable hold-back noses from height 75 mm onwards
- Colour: grey, RAL 7035
Bis Breite 50 mm Up to width 50 mm
Ab Breite 75 mm Width 75 mm upwards
| Nominal Size
B x H / W x H in mm | Interior Dimensions
B x H / W x H in mm | Cross section
in mm² 100% | 60 % Quantity of Cables with Filling Capacity of 60 % 2,5 mm² Ø 3,4 | VE / m PU / m | Art Nr | ||||
| 25 x 25 | 20 x 20 | 400 | 10 | 48 | 7656-1 | ||||
| 25 x 37,5 | 20 x 33 | 650 | 20 | 54 | 7650-1 | ||||
| 37,5 x 37,5 | 33 x 33 | 1.089 | 36 | 40 | 7651-1 | ||||
| 50 x 37,5 | 45 x 33 | 1.485 | 50 | 32 | 7652-1 | ||||
| 25 x 50 | 20 x 45 | 900 | 30 | 44 | 7660-1 | ||||
| 37,5 x 50 | 33 x 45 | 1.485 | 54 | 32 | 7661-1 | ||||
| 50 x 50 | 45 x 45 | 2.025 | 75 | 42 | 7662-1 | ||||
| 75 x 50 | 70 x 45 | 3.150 | 120 | 28 | 7663-1 | ||||
| 100 x 50 | 95 x 45 | 4.275 | 162 | 20 | 7664-1 | ||||
| 25 x 75 | 20 x 70 | 1.400 | 41 | 36 | 7670-1 | ||||
| 37,5 x 75 | 33 x 70 | 2.310 | 73 | 24 | 7671-1 | ||||
| 50 x 75 | 45 x 70 | 3.015 | 120 | 28 | 7672-1 | ||||
| 75 x 75 | 70 x 70 | 4.900 | 168 | 24 | 7673-1 | ||||
| 100 x 75 | 95 x 70 | 6.650 | 217 | 16 | 7674-1 | ||||
| 125 x 75 | 118 x 70 | 8.260 | 273 | 16 | 7675-1 | ||||
| 50 x 100 | 43 x 96 | 4.118 | 145 | 32 | 7677-1 | ||||
| 75 x 100 | 69 x 96 | 6.586 | 240 | 20 | 7678-1 | ||||
| 100 x 100 | 96 x 96 | 9.139 | 324 | 16 | 7679-1 | ||||
Covers
| Nominal Size in mm | VE / m PU / m | ArtNr |
| 25 | 10 | 5030-1 |
| 37,5 | 10 | 5031-1 |
| 50 | 10 | 5032-1 |
| Nominal Size in mm | VE / m PU / m | Art Nr |
| 75 | 10 | 5033-1 |
| 100 | 10 | 5034-1 |
| 125 | 10 | 5035-1 |
Terminal F 2000 Safety / tools/ Control Panel Trunkings
Licatec Terminal F 2000 Safety control panel trunkings in accordance with DIN EN 50085 and are intended for the use in separately secured areas. Material: rigid-PVC, lead-free, hard to inflame, according to UL 94V0 self-extinguishing, temperature resistant -20° C up to + 60° C.
Specific Features
- Cable hold-back noses from height 60 mm onwards
- Colour: blue, RAL 5015
Bis Breite 60 mm Up to width 60 mm
Ab Breite 80 mm Width 80 mm upwards
| Nominal Size | Interior Dimensions | Cross section | 60 % | PU / m | Art No | ||||
| Quantity of Cables with | |||||||||
| Filling Capacity of 60 % | |||||||||
| B x H / W x H | B x H / W x H | in mm² | 2,5 mm² | ||||||
| in mm | in mm | 100% | Ø 3,4 | ||||||
| 30 x 30 | 27 x 27 | 729 | 15 | 64 | 7308-1 | ||||
| 25 x 40 | 22 x 37 | 814 | 22 | 68 | 7309-1 | ||||
| 30 x 40 | 27 x 37 | 999 | 28 | 60 | 7310-1 | ||||
| 40 x 40 | 37 x 37 | 1.347 | 40 | 52 | 7311-1 | ||||
| 60 x 40 | 56 x 37 | 2.035 | 62 | 40 | 7312-1 | ||||
| 25 x 60 | 22 x 56 | 1.232 | 34 | 60 | 7319-1 | ||||
| 30 x 60 | 26 x 56 | 1.512 | 43 | 52 | 7320-1 | ||||
| 40 x 60 | 36 x 56 | 2.027 | 61 | 48 | 7321-1 | ||||
| 60 x 60 | 56 x 56 | 3.080 | 94 | 36 | 7322-1 | ||||
| 80 x 60 | 76 x 56 | 4.200 | 130 | 32 | 7323-1 | ||||
| 100 x 60 | 96 x 56 | 5.376 | 166 | 22 | 7324-1 | ||||
| 120 x 60 | 115 x 56 | 6.496 | 202 | 20 | 7325-1 | ||||
| 25 x 80 | 22 x 76 | 1.672 | 55 | 56 | 7329-1 | ||||
| 30 x 80 | 26 x 76 | 2.052 | 70 | 48 | 7330-1 | ||||
| 40 x 80 | 36 x 76 | 2.721 | 96 | 40 | 7331-1 | ||||
| 60 x 80 | 56 x 76 | 4.180 | 156 | 36 | 7332-1 | ||||
| 80 x 80 | 76 x 76 | 5.700 | 215 | 24 | 7333-1 | ||||
| 100 x 80 | 96 x 76 | 7.296 | 275 | 24 | 7334-1 | ||||
| 120 x 80 | 115 x 76 | 8.755 | 318 | 16 | 7335-1 | ||||
| 30 x 100 | 26 x 96 | 2.477 | 96 | 32 | 7340-1 | ||||
| 40 x 100 | 36 x 96 | 3.398 | 115 | 24 | 7343-1 | ||||
| 60 x 100 | 56 x 96 | 5.280 | 187 | 32 | 7341-1 | ||||
| 80 x 100 | 76 x 96 | 7.200 | 264 | 20 | 7344-1 | ||||
| 100 x 100 | 96 x 96 | 9.139 | 324 | 16 | 7342-1 | ||||
| 150 x 100 | 145 x 96 | 13.909 | 504 | 8 | 7345-1 | ||||
| 40 x 120 | 35 x 116 | 4.060 | 153 | 24 | 7351-1 | ||||
| 60 x 120 | 55 x 116 | 6.380 | 249 | 24 | 7352-1 | ||||
| 80 x 120 | 75 x 116 | 8.700 | 348 | 20 | 7353-1 |
Setting Tool
| in mm PU / pcs. | Art No. | |
| für Niete / For rivets | 4,5 6,5 1 | 7817-1 |
Cutting Pliers
| VE / St. PU / pcs. | |
| Art No | |
| 1 | 7882 |
Accessoires
Divider made of PVC
White, only in combination with universal wire holders
| For Installheight in mm | Length in mm | Height in mm | PU / m | Art.-Nr. / |
| 80 / 100 | 2.000 | 60 | 10 | 8830 |
Body-Bound Rivets
Made of PP halogen free
| Drilling Ø mm necessary | Ø in mm | PU / pcs. | Art Nr | |
| 3,7 | schwarz | 3,5 | 4000 | 7814 |
| 5,2 | schwarz | 5,0 | 4000 | 7815 |
| 6,2 | schwarz | 6,0 | 4000 | 7816 |
| 6,7 | grau | 6,5 | 2000 | 7816.5 |
Retaining clamp
Made of PS halogenfree incl. self adhesive tape
| Nominal Size W x H | W x H | PU / m | Art No |
| in mm | in mm | ||
| 75 x 50 | 64,9 x 40,5 | 100 | 7835 |
| 37,5 x 75 | 27,4 x 65,5 | 100 | 7837 |
| 50 x 75 | 39,4 x 65,5 | 100 | 7838 |
| 75 x 75 | 64,9 x 65,5 | 100 | 7839 |
Universal Wire and Divider Holder
Made of PS halogen free
| Für For | Applicable Width | PU / pcs. | |
| Art No | |||
| F 2000 / Safety DIN / DIN free | 40 mm | 50 | 7801 |
| 37,5 mm | 50 | 7804 |
Retaining Strip
Made of PP halogen free
| For | Applicable Width | PU / pcs. | . |
| Art No. | |||
| F 2000 / Safety DIN / DIN /free | 40 mm | 50 | 7801 |
| 37,5 mm | 50 | 7804 |
Standard Wire Holder
Aus PS halogen free / Made of PS halogen free
Flexible Wiring Ducts with self adhesive tape
Made of PP halogenfree, according to UL94VO self extinguishing
| Ø in mm | Length in mm | St. PU / pcs. | Farbe Colour | Art Nr |
| 10 | 500 | 100 | RAL 7030 | 7860-1 |
| 10 | 500 | 100 | RAL 9010 | 7864-1 |
| 20 | 500 | 60 | RAL 7030 | 7861-1 |
| 20 | 500 | 60 | RAL 9010 | 7865-1 |
| 30 | 500 | 36 | RAL 7030 | 7862-1 |
| 30 | 500 | 36 | RAL 9010 | 7866-1 |
| 40 | 500 | 24 | RAL 7030 | 7863-1 |
| 40 | 500 | 24 | RAL 9010 | 7867-1 |

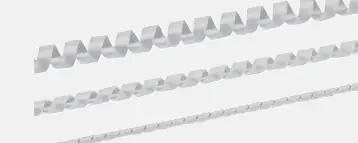

Spiral Tubes halogen free
Made of PE halogen free
| Bunching Ø in mm | Ø in mm | Temperaturresistant | VE / m PU / m | Art Nr |
| 4 – 20 | 3 | -60° C bis / to +90° C | 25 | 7806-2 |
| 12 – 80 | 12 | -60° C bis / to +90° C | 20 | 7812-2 |
| 20 – 120 | 20 | -60° C bis / to +90° C | 25 | 7822-2 |
End tail
Made of PS halogenfree
| For Install-height in mm | Farbe Colour | PU / pcs. | Art No |
| 40 x 40 bis / to 80 x 100 | RAL 7030 | 10 | 7399-1 |
Control Panel Trunkings
Mounting Bracket
| Height in mm | Width in mm | Ø in mm | l Material | PU / pcs. | Art.-No. |
| 48 | 60 | M5 | Stahl / Steel | 100 | 78792 |
| 130 | 60 | M5 | Stahl / Steel | 50 | 78793 |
Spacer
| Höhe Height in mm | Breite Width in mm | Ø in mm | Material | PU / pcs | Art Nr
|
| 20 | 35 | M5 | Stahl / Steel | 50 | 78794 |

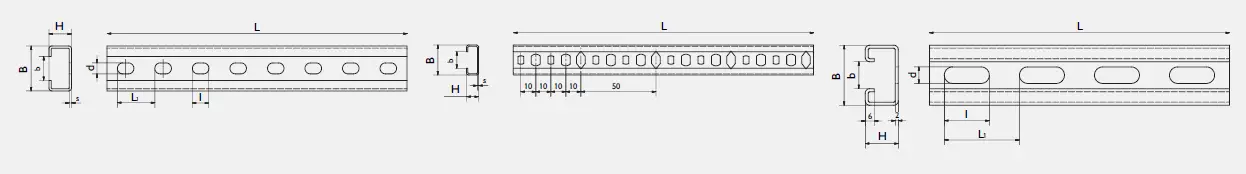

Top-Hat Rails
According to EN 60715
| 15 x 5,5 x 2.000 | 10,5 | 1 | unperforated | 0 | 40 | 7870 S-U | |||
| 35 x 7,5 x 2.000 | 27 | 1 | unperforated | 0 | galvanic | 40 | 7872 | ||
| 35 x 7,5 x 2.000 | 27 | 1 | unperforated | 0 | 40 | 7892 | |||
| 35 x 10 x 2.000 | 27 | 1 | unperforated | 0 | 40 | 7891 S-U | |||
| 35 x 15 x 2.000 | 27 | 1,5 | unperforated | 15° | galvanic | 20 | 7873 | ||
| 35 x 15 x 2.000 | 27 | 1,5 | ungelocht / unperforated | 15° | sendzimir | 20 | 7893 | ||
| 35 x 15 x 2.000 | 24 | 2,3 | unperforated | 15° | 20 | 7894 | |||
| 15 x 5,5 x 2.000 | 10,5 | 1 | 20 | 12 | 4,2 | 0 | 40 | 7870 S-G | |
| 35 x 7,5 x 2.000 | 27 | 1 | 25 | 18 | 5,2 | 0 | galvanic | 40 | 7875 |
| 35 x 7,5 x 2.000 | 27 | 1 | 25 | 18 | 5,2 | 0 | 40 | 7895 | |
| 35 x 7,5 x 2.000 | 27 | 1 | 36 | 25 | 5,2 | 40 | 7895-P | ||
| 35 x 7,5 x 2.000 | 27 | 1 | 25 | 15 | 6,2 | 0 | galvanic | 40 | 7895 G-G |
| 35 x 7,5 x 2.000 | 27 | 1 | 25 | 15 | 6,2 | 0 | 40 | 7895 S-G | |
| 35 x 7,5 x 2.000 | 27 | 1 | 25 | 18 | 6,2 | 0 | 40 | 7895 S-G1 | |
| 35 x 10 x 2.000 | 27 | 1 | 25 | 18 | 5,2 | 0 | 40 | 7891 S-G | |
| 35 x 15 x 2.000 | 27 | 1,5 | 25 | 18 | 5,2 | 15° | galvanic | 20 | 7876 |
| 35 x 15 x 2.000 | 27 | 1,5 | 36 | 25 | 5,2 | 15° | galvanic | 20 | 7876 P |
| 35 x 15 x 2.000 | 27 | 1,5 | 25 | 18 | 5,2 | 15° | 20 | 7896 | |
| 35 x 15 x 2.000 | 27 | 1,5 | 36 | 25 | 5,2 | 15° | 20 | 7896-P | |
| 35 x 15 x 2.000 | 27 | 1,5 | 25 | 18 | 6,2 | 15° | 20 | 7896 S-G1 | |
| 35 x 15 x 2.000 | 27 | 1,5 | 25 | 15 | 6,2 | 15° | 20 | 7897 S-G | |
| 35 x 15 x 2.000 | 27 | 1,5 | 25 | 15 | 6,2 | 15° | galvanic | 20 | 7897 G-G |
| 35 x 15 x 2.000 | 27 | 1,5 | 25 | 15 | 6,2 | 15° | white passivated | 20 | 7897 WP-G |

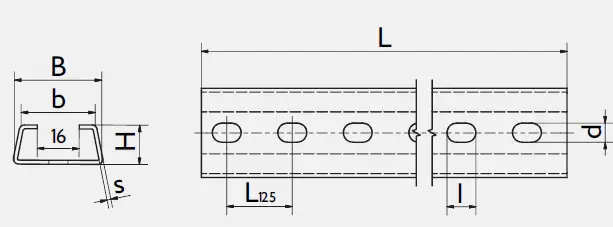

C Rails
| Dimension B x H x L in mm | Opening Material Thickness Dimensions Perforation Type of galvanization PU / m b in mms in mm L1 in mm l in mm d in mm | Art Nr
| ||||||
| 20 x 8 x 2.000 | 11 | 0,8 | unperforated | 20 | 7900 S-U | |||
| 30 x 15 x 2.000 | 16 | 1,5 | unperforated | 20 | 7907 S-U | |||
| 25 x 10 x 2.000 | 11 | 1,0 | unperforated | 20 | 7909 S-U | |||
| 20 x 8 x 2.000 | 11 | 0,8 | see sketch | 20 | 7900 S-G | |||
| 35 x 18 x 2.000 | 17 | 1,25 | 25 | 11 | 7,2 | 20 | 7901 S-G | |
| 30 x 15 x 2.000 | 16 | 1,5 | 25 | 11 | 7,3 | 20 | 7907 S-G | |
| 40 x 22 x 6.000 | 18 | 2,0 | 50 | 30 | 11 | hot-dip | 20 | 890235 |
Trapeze Rails
According to EN 60715
| Maße Dimension B x H x L in mm | Opening Material Thickness Dimensions Perforation Type of galvanisation PU / m b in mms in mm L1 in mm l in mm d in mm | Art.-Nr. Art.-No. | ||||||
| 34 x 15 x 2.000 | 29 | 1,5 | unperforated | 20 | 7960 S-U | |||
| 34 x 15 x 2.000 | 29 | 1,5 | unperforated | hot-dip | 20 | 7960 F-U | ||
| 35 x 18 x 2.000 | 30 | 1,5 | unperforated | 20 | 7955 S-U | |||
| 35 x 18 x 2.000 | 30 | 2,0 | unperforated | 20 | 7950 S-U | |||
| 35 x 18 x 2.000 | 30 | 2,0 | unperforated | hot-dip | 20 | 7950 F-U | ||
| 34 x 15 x 2.000 | 29 | 1,5 | 25 | 11 | 7,3 | 20 | 7960 S-G | |
| 35 x 18 x 2.000 | 30 | 1,5 | 25 | 11 | 7,3 | 20 | 7955 S-G | |
| 35 x 18 x 2.000 | 30 | 2,0 | 25 | 11 | 7,3 | 20 | 7950 S-G | |
Profilextrusion
Trendlight LED

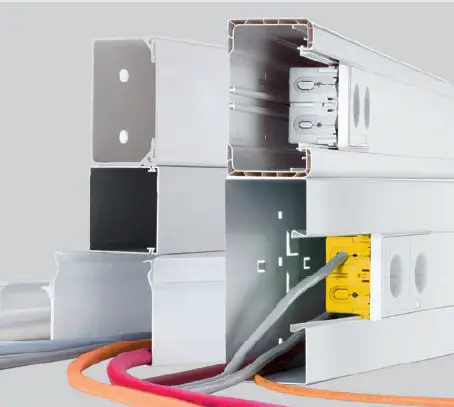

Installations
Kabelbahnen KBL Steel

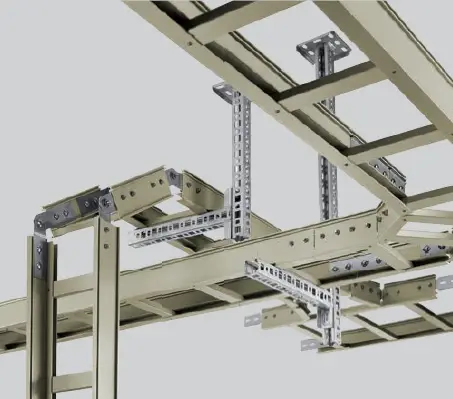

Kabelleitern Convey
Licatec | Licatec | Licht- und Kabelführungssysteme | Lighting Systems, Cable Conduit Systems, Trunking Systems, LED, Luminaires, lightning
