POWER CABLE INSTALLATION

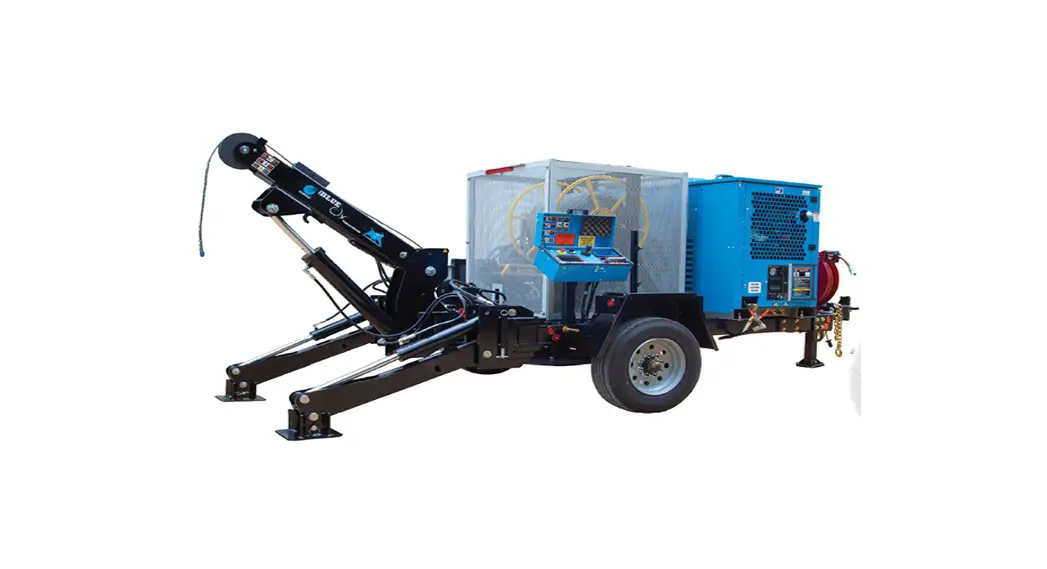

THE BLUE OX™ CABLE PULLER

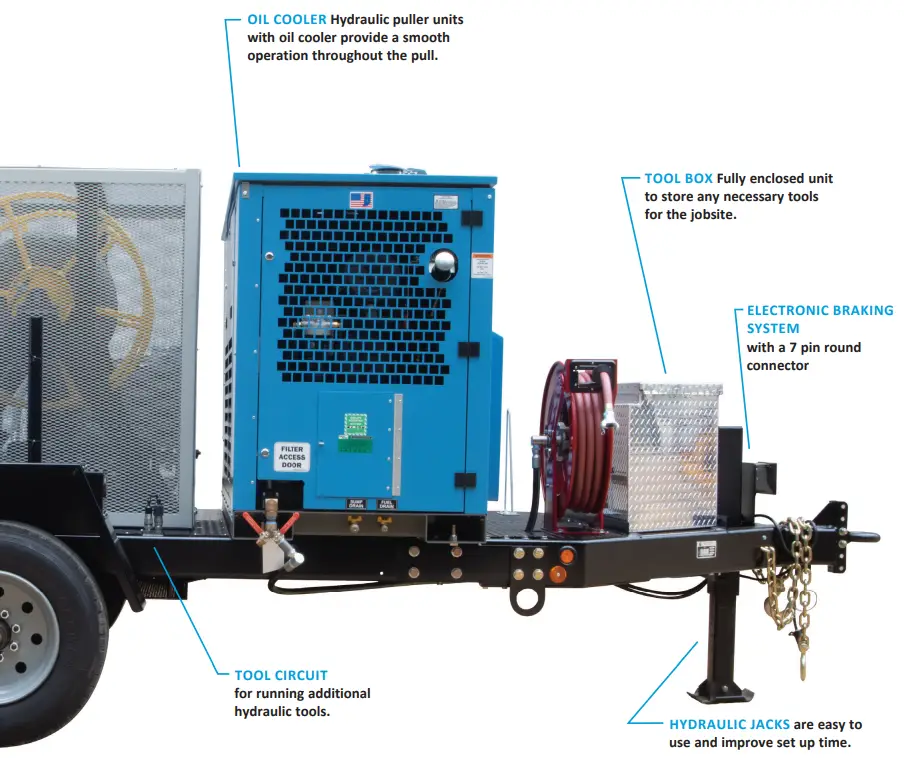

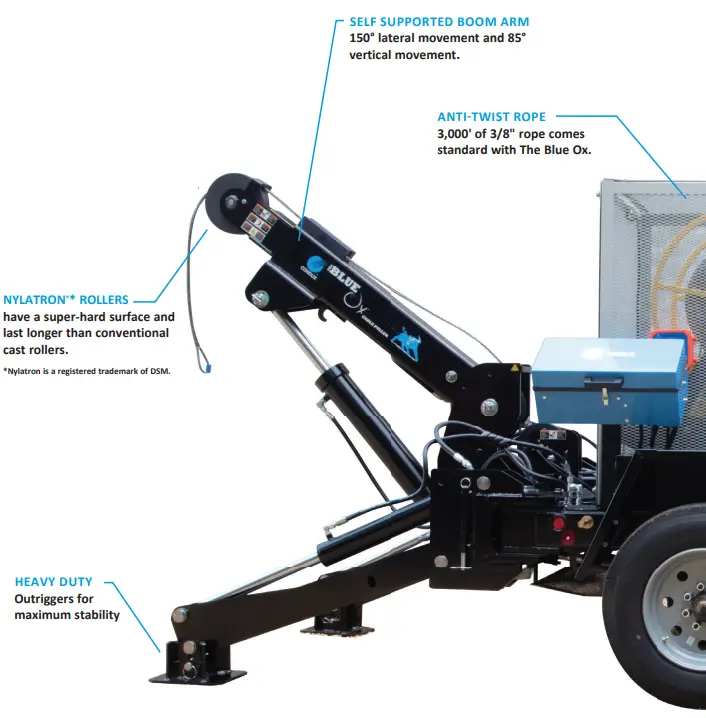

Combining years of experience, fi eld research, and end-user feedback, The Condux Blue Ox™ Cable Puller has been designed to excel in the most demanding utility applications. Featuring 8,500 lbs of continuous pull force, a heavy-duty steel frame, and hydraulically controlled boom and outriggers, The Blue Ox does not require the arm to be supported during pulling operations. The extendable – up to 90″ – steel boom arm boasts 150° of lateral adjustment, providing easy access in even the most confi ned areas.
| Part Number | Description |
| 08773001 08775500 | The Blue Ox Cable Puller without Compressor The Blue Ox Cable Puller with Compressor |

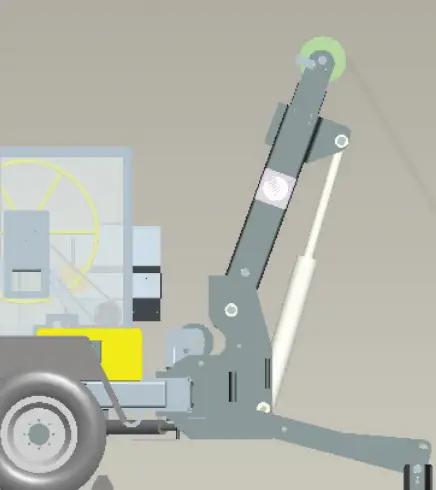

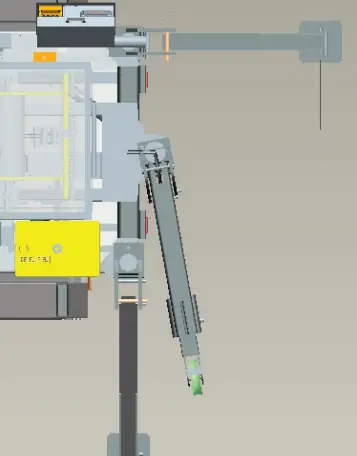

The Boom Arm features the ability to pull 85° from the manhole; eliminating the need for an A-Frame.
Outriggers allow The Blue Ox to pull directly over the hydraulics without being hooked to a tractor or a truck.

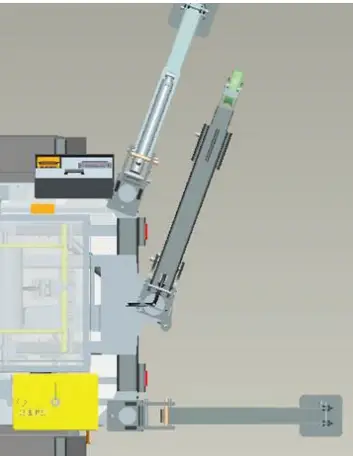

The combination of the outrigger and the boom arm allows for easy pulling 75° from the right or left of center

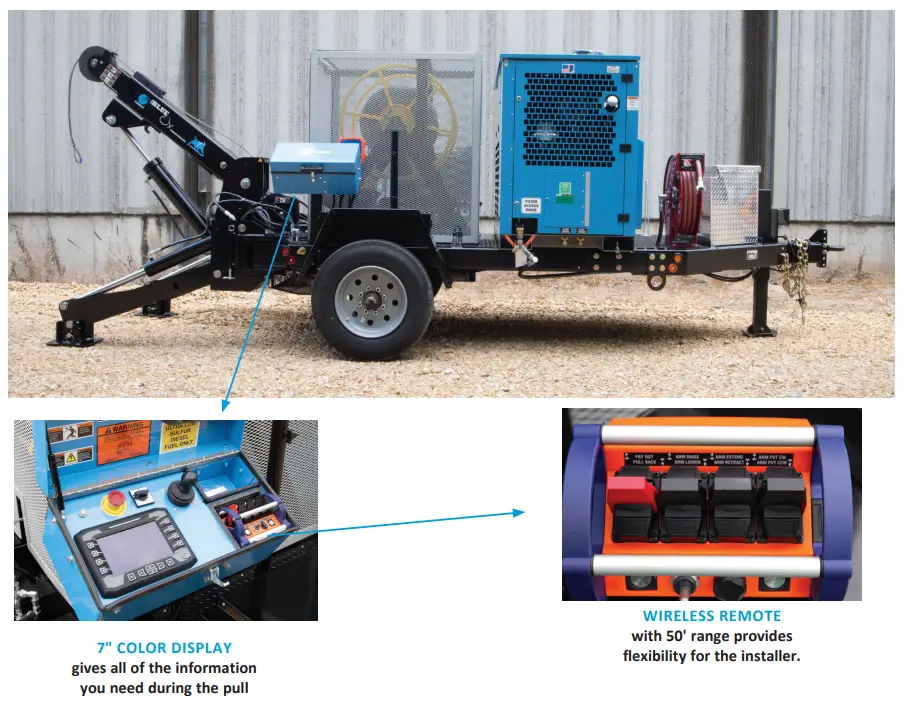

Control Box
- Real Time Tension Monitoring
- Downloadable Pull Data
- Wireless/Bluetooth Remote Control
Replacement Rope
| Part Number | Description |
| 8771275 | 3/8″ x 2450′ Antitwist Rope with woven eye |
| 8773112 | 3/8″ x 3000′ Antitwist Rope with woven eye |
| 8773189 | 3/8″ x 2600′ IWRC 6×25 Rope with eye |
| 8773190 | 3/8″ x 3000′ IWRC 6×25 Rope with eye |
| 8773196 | 3/8″ x 3600′ IWRC 6×25 Rope with eye |
Replacement Parts
| Part Number | Description |
| 2291362 | Hitch Pin (Outrigger – up/down) |
| 8772016 | Clevis Pin with Cotter Pin (Outrigger – left/right) |
| 8772017 | Clevis Pin with Cotter Pin (Boom Arm) |
| 8773084 | Clevis Pin with Cotter Pin (Foot pin) |
| 8773317 | Levelwind Brass Pawl |
| 8773020 | Remote and Receiver Kit |
| 2292756 | Replacement Remote Only (requires original black chip) |
| 8773110 | 18gal Fuel Tank Upgrade Kit (to aluminum tank) |
| THE BLUE OX™ CABLE PULLER SPECIFICATIONS | ||
| Standard | w/Compressor | |
| Performance | ||
| Maximum Line Pull (lbs) | 8,500 | |
| Maximum Speed (fpm) | 175 | |
| Engine | ||
| Engine Type | Diesel | |
| Horsepower | 49 | 74 |
| Electrical System | 12 volt | |
| Fuel Tank (g) | 18 | 22 |
| Bullwheel | ||
| Dimensions | 8 inch diameter with 7 grooves | |
| Rope Reel w/Built in Level Wind | ||
| Antitwist Rope | 3000 feet of 3⁄8 inch | |
| Hydraulics | ||
| Tool Circuit | 7 gpm @ 2000 psi | |
| Dimensions | ||
| Width | 95 inches | |
| Height | 108 inches | |
| Length | 192 inches | |
| Weight | 9,000 Pounds (Wet) | 10,500 Pounds (Wet) |
| Axle | Single | |
| Air Compressor | ||
| Velocity | 210 cfm @ 125 psi | |
| Compressor Hose with Couplings | 3⁄4″ x 50′ air hose reel | |
Purchase from Multicom www.multicominc.com I 800-423-2594
