08042400 Hooked Hanger Sheaves
User Guide

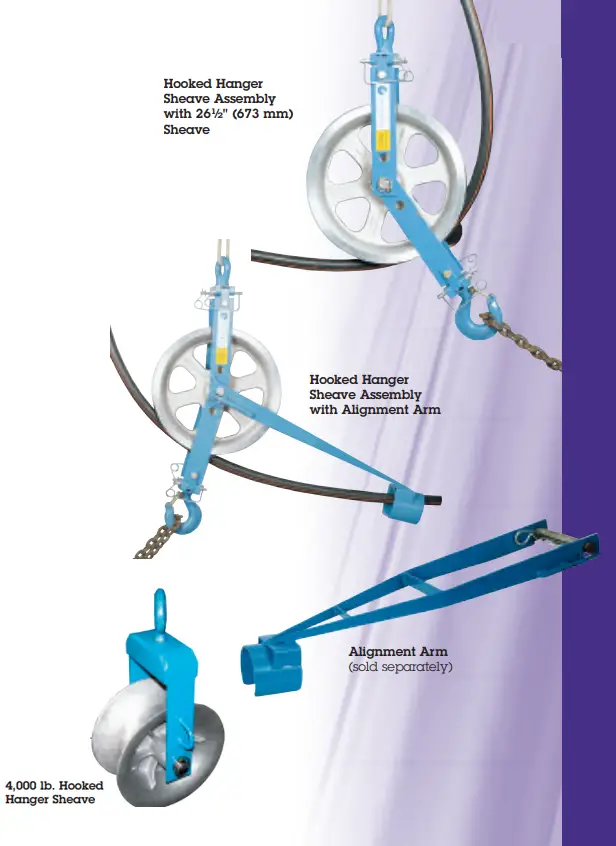

Hooked Hanger Sheaves

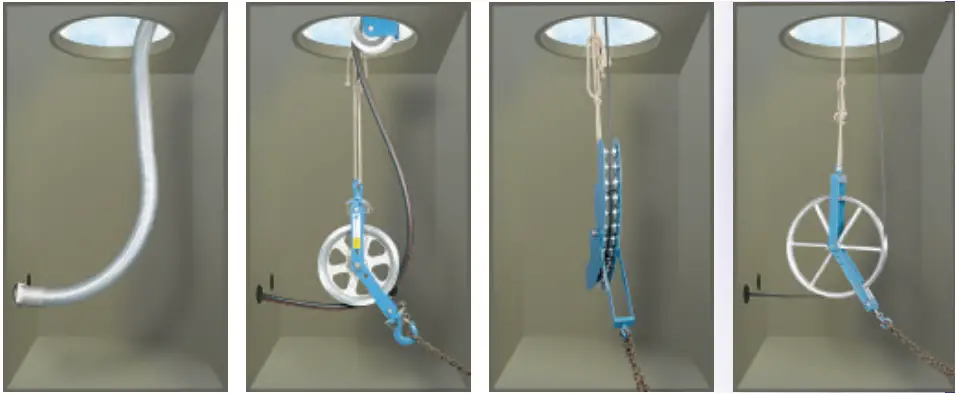

Tie off in the manhole to guide the cable into the duct. Also used with an alignment arm for cable removal. Hinged yoke for easy cable installation and removal. 10,000 lbs.
(44,480 N) cable tension load capacity. See the replacement sheave chart for specifications on sheave sizes. Alignment arm sold separately. Replacement Sheaves are available. See Specifications and Selection Charts on page 153.
| Part | Sheave Size | |
| Number | (in) | (mm) |
| 08041400 08042400 08042420 | 3 x 11 4 x 11 4 x 20 | 76 x 279 102 x 279 102 x 508 |
| 08042500 08042520 08042526 | 5 x 11 5 x 20 5 x 26½ | 127 x 279 127 x 508 127 x 673 |
| 08042527 08082600 08082800 | 5 x 26½ 6 x 11 8 x 11 | 127 x 673 w/Light Duty Hanger Arm 152 x 279 203 x 279 |
| 8045901 | Alignment arm for 3, 4, & 5” (76, 102, & 127 mm) sheaves | |
4,000 lb. Hooked Hanger Sheaves
Tie off in the manhole to guide the cable into and out of the duct.
4,000 lbs cable tension load capacity. For less demanding cable pulling applications than Condux 10,000 lbs sheaves. Replacement Sheaves are available. See Specifications and Selection Charts on page 153.
- Steel welded frame
- Nylon cable protectors
- Lightweight
- Cast aluminum sheaves
- Forged hook with 1.12” opening
| Part | Sheave Size | ||
| Number | (in) | (mm) | |
| 08042611 08042610 08042620 | 127 x 279 127 x 279 127 x 508 | 127 x 279 127 x 279 127 x 508 | Aluminum Nylatron Aluminum |
| 08042626 08042650 | 5 x 26½ 8 x 26 | 127 x 673 203 x 660 | Aluminum Aluminum |
