Gaggenau Ad410040 Black Flexible Connecting Piece Instruction Manual

GAGGENAU AD410040 Black Flexible Connecting Piece

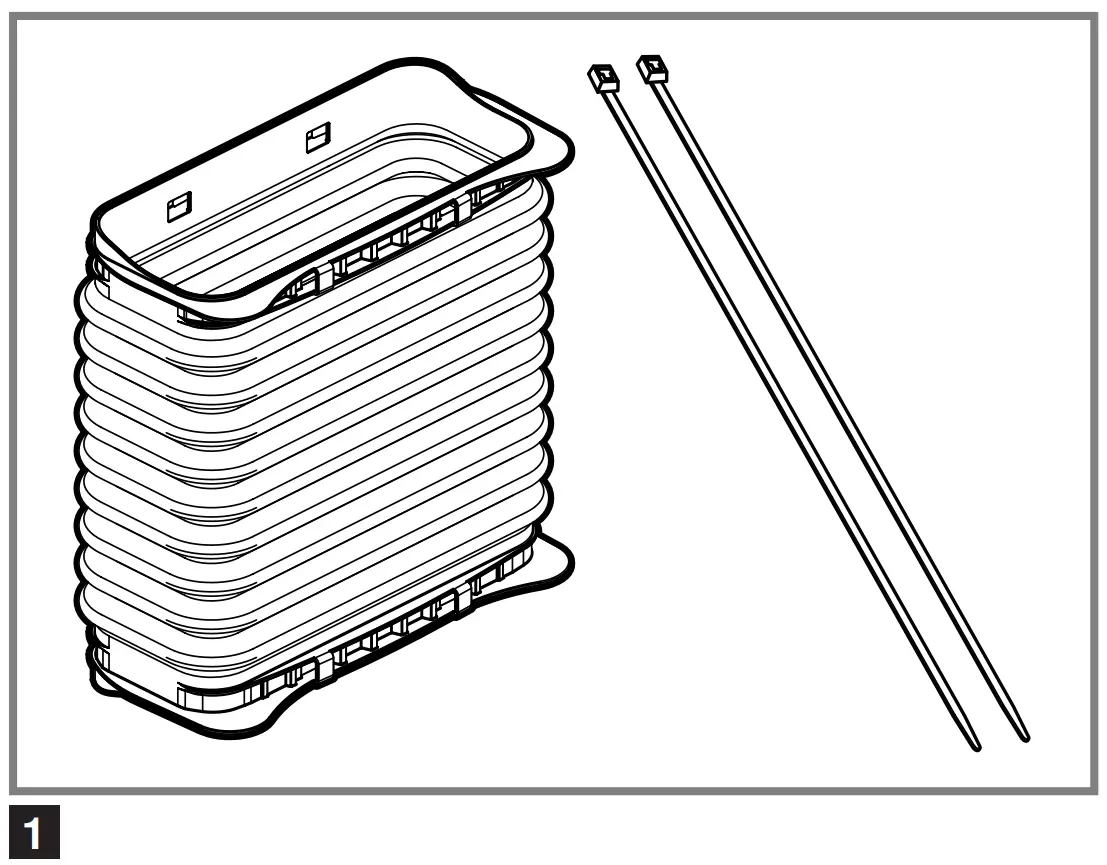

Scope of delivery

After unpacking all parts, check for any damage in transit and completeness of the delivery.
→ Fig. 1

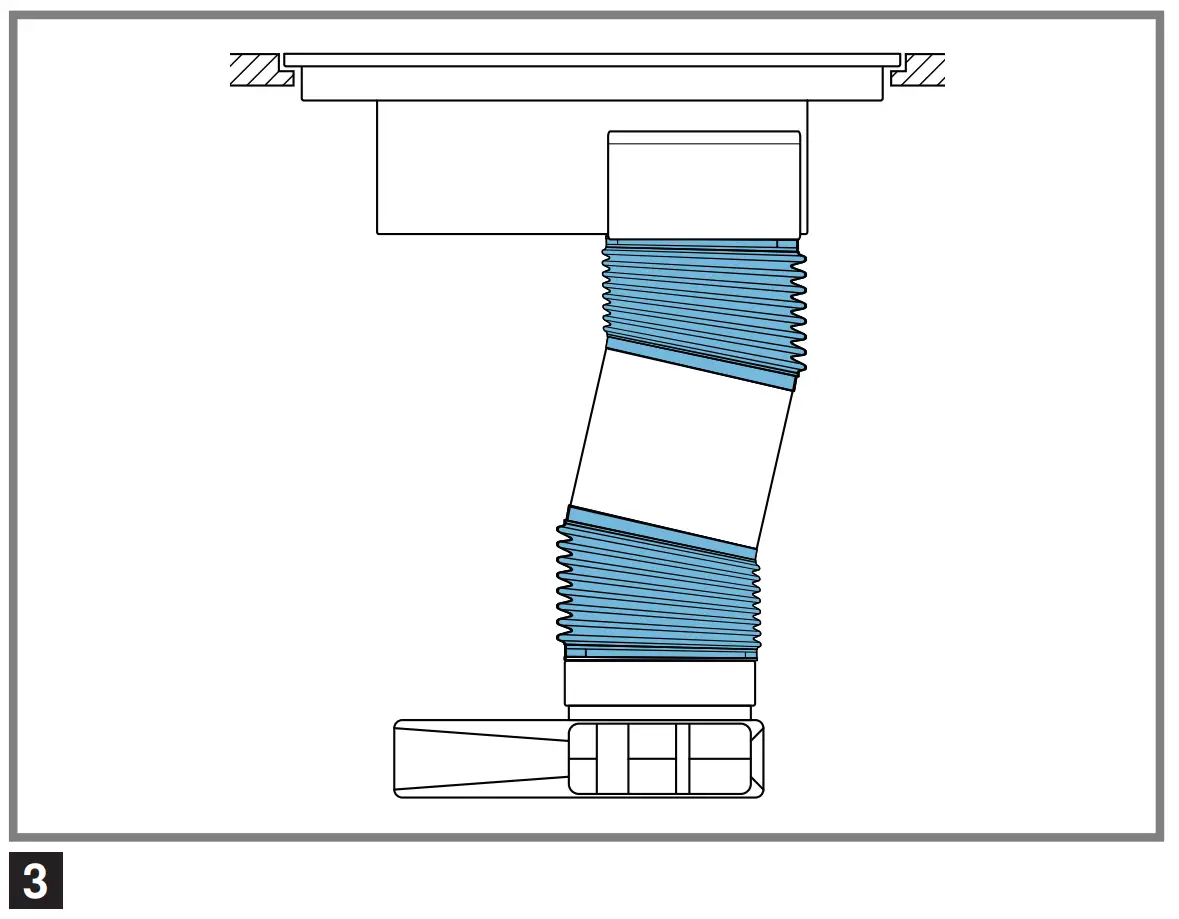

Installation variants

You will learn about the possible installation variants here.

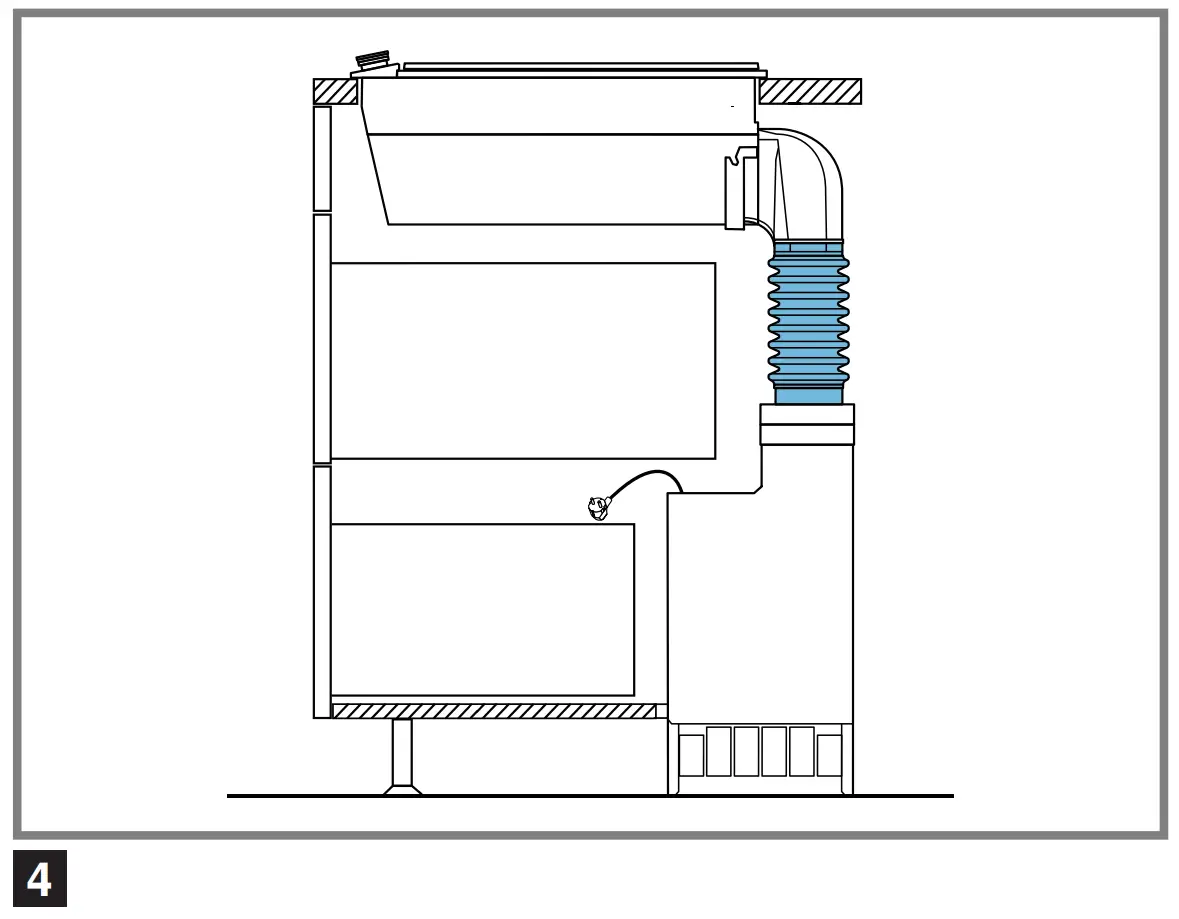

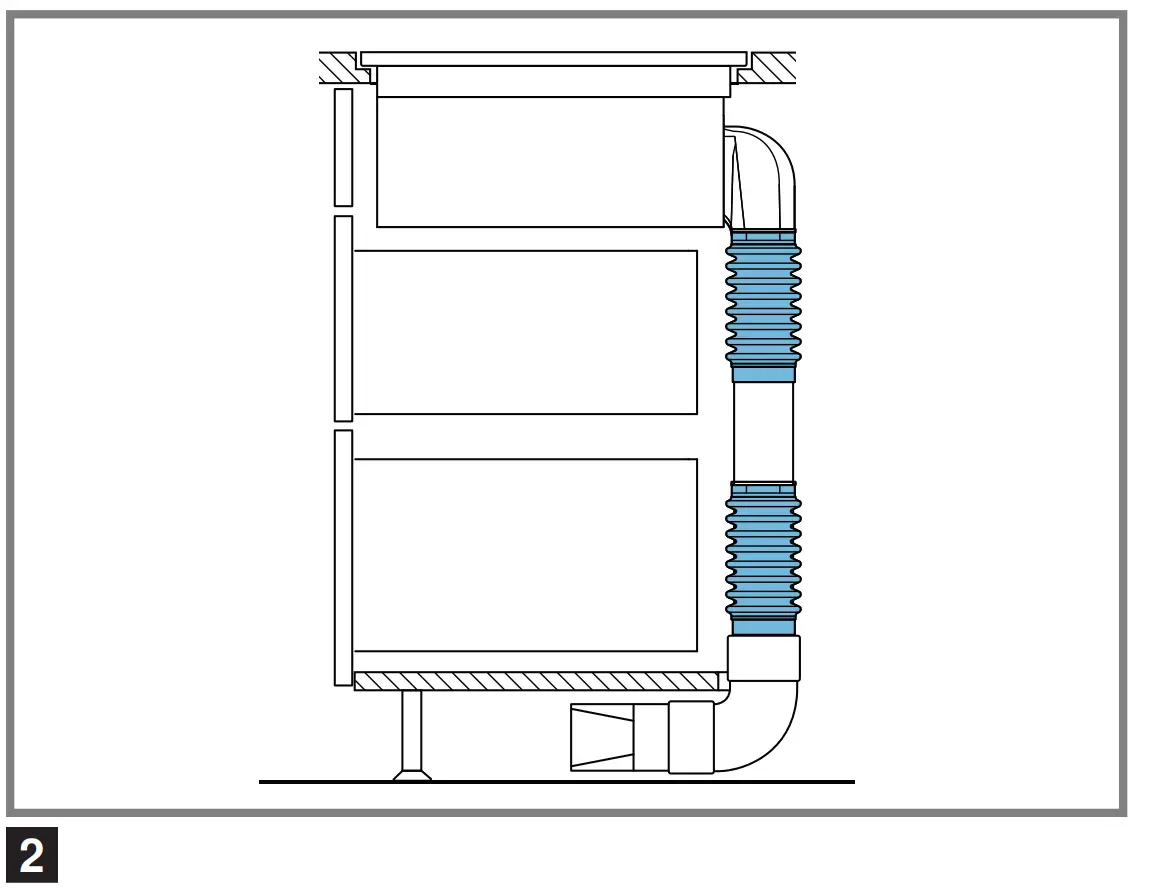

→ Fig. 2 , → Fig. 3 , → Fig. 4

Securing the cable ties

1. Use cable ties to secure the bellows.

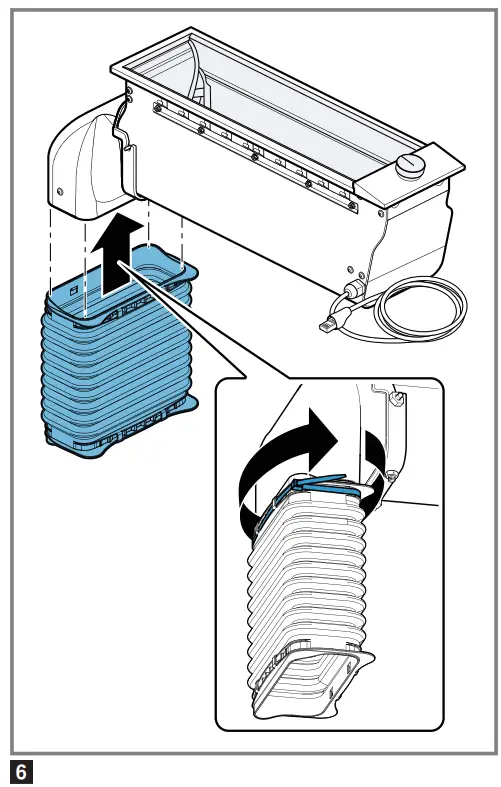

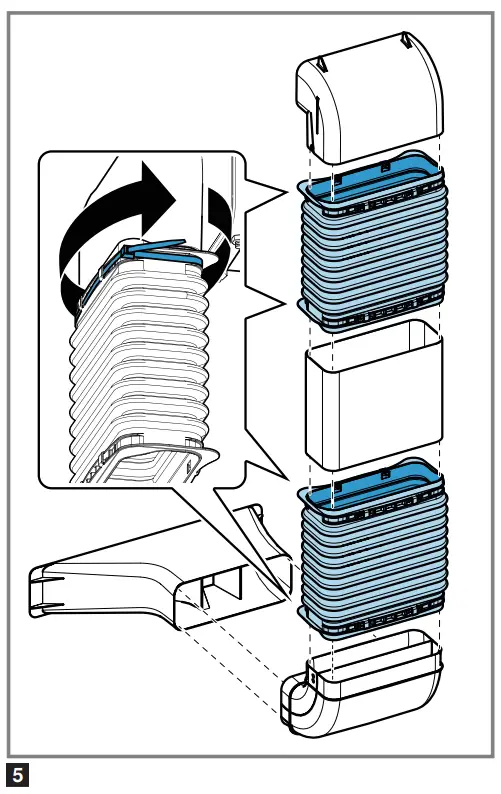

   → Fig. 5 , → Fig. 6


2. To ensure an air-tight connection, firmly tighten the cable ties, place each of the cable tie connecting pieces on a corner and cut off the ends of the cable tie.
   → Fig. 7

3. Insert the downdraft ventilation with the bellows into the unit cut-out.

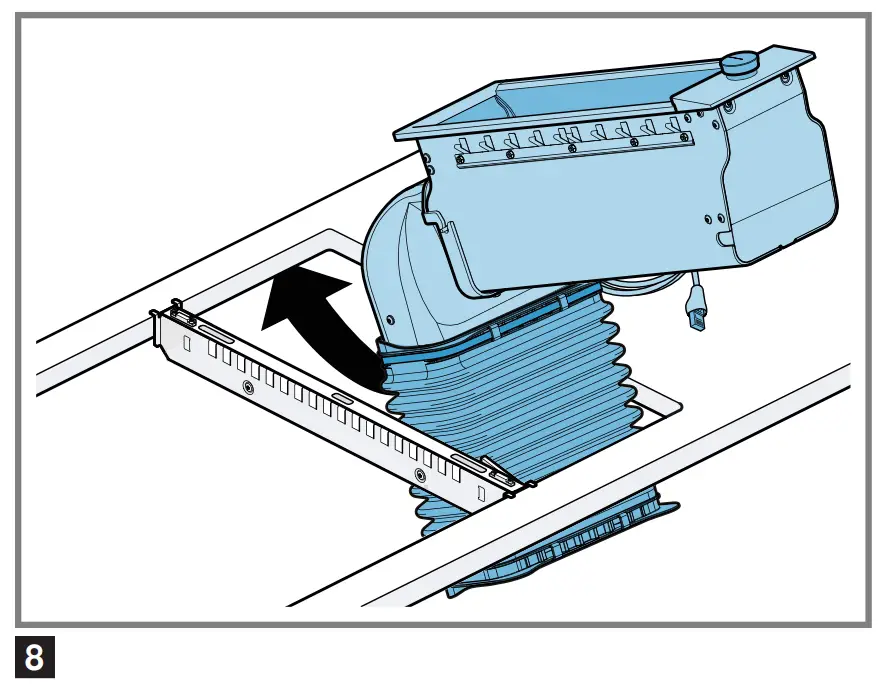

   → Fig. 8


4. Attach the bellows to the remote fan unit.

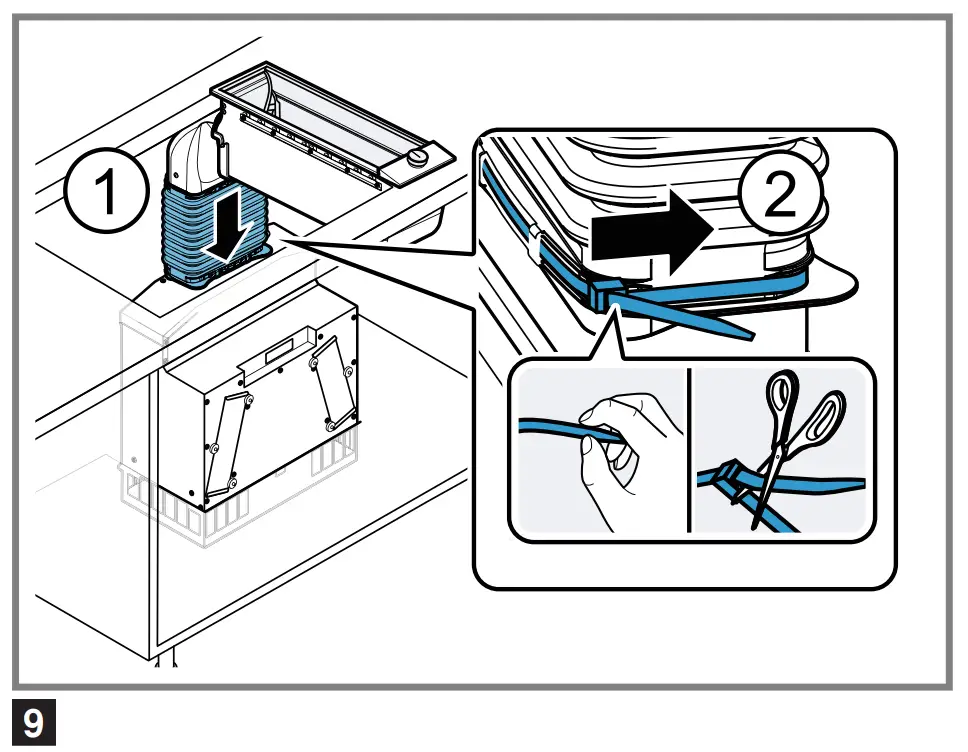

    → Fig. 9
