Oe Electrics Instr1299 Connecting Shoe Panel Instruction Manual

QIKPAC M2F (Charging)Connecting Shoe
Panel installation instructions
INSTR1299

INSTR1299 Connecting Shoe Panel

NOTE: M2F Connecting Shoe is used for Charging Applications

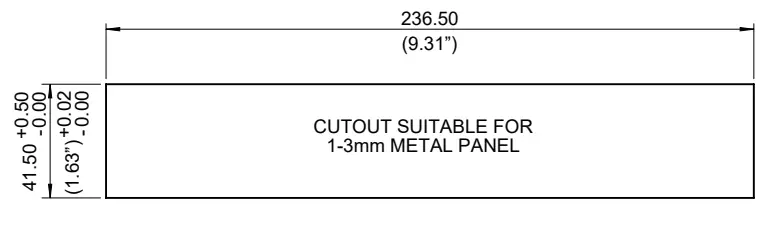

1. Cutout Dimensions
   Single Connecting Shoe

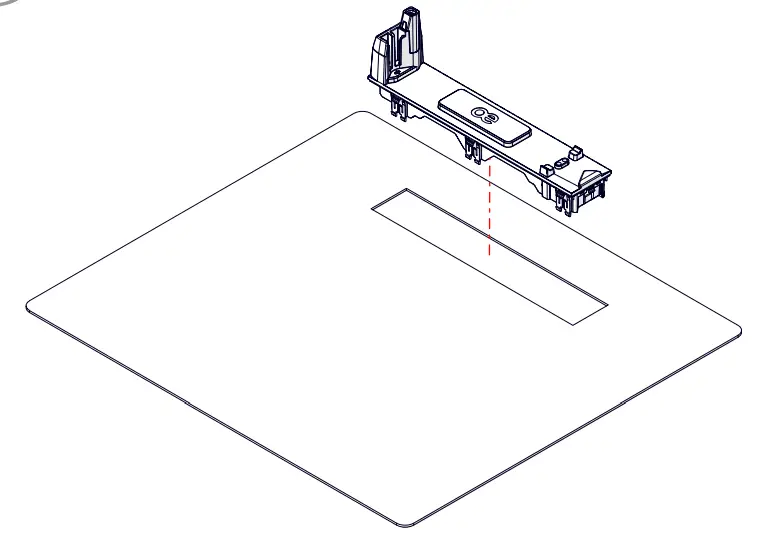

2. Align Connecting Shoe(s) with cutout and snap into place

3. Connect GST08 interconnecting cable to PSU.

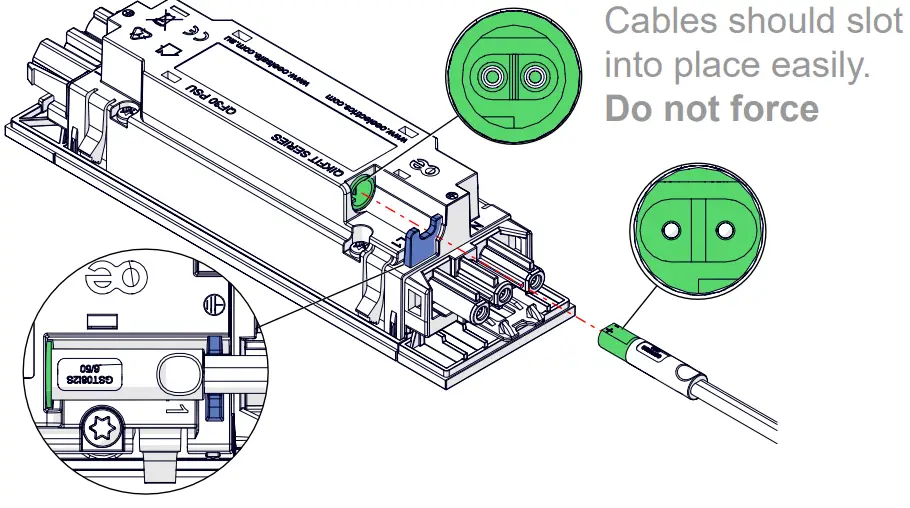

   With the PSU upside down align the cable with the writing facing up to slot it into place. Cable retention clip shown in blue

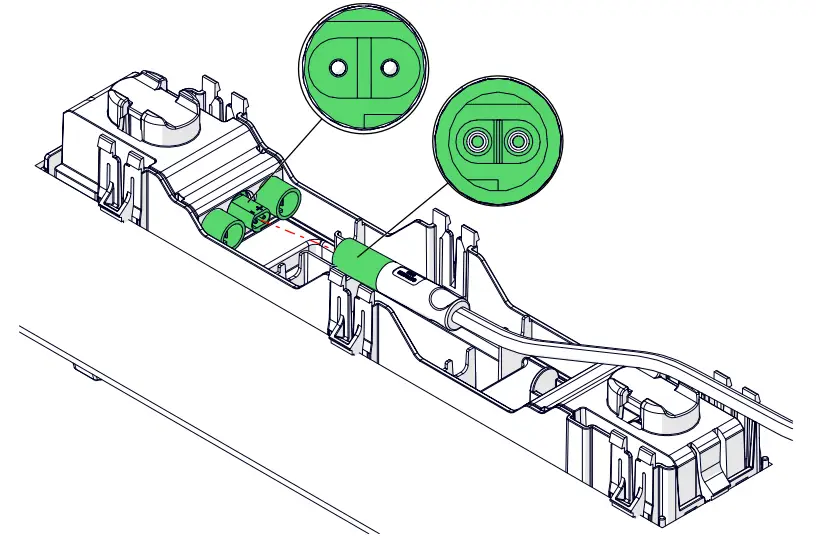

4. Connect another end of the GST08 interconnecting cable to the middle connector on the underside of connecting the shoe with writing on the cable facing up

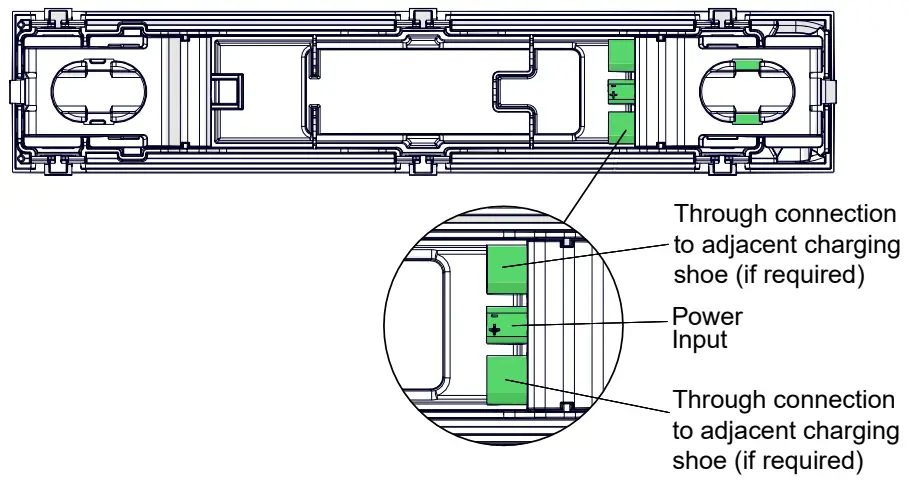

5. Power inputs and outputs

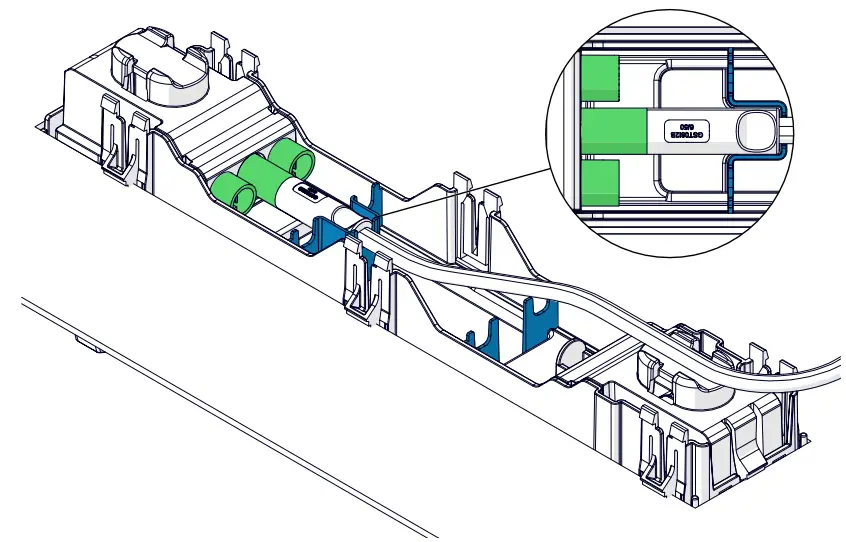

6. Cable retention clips shown in blue

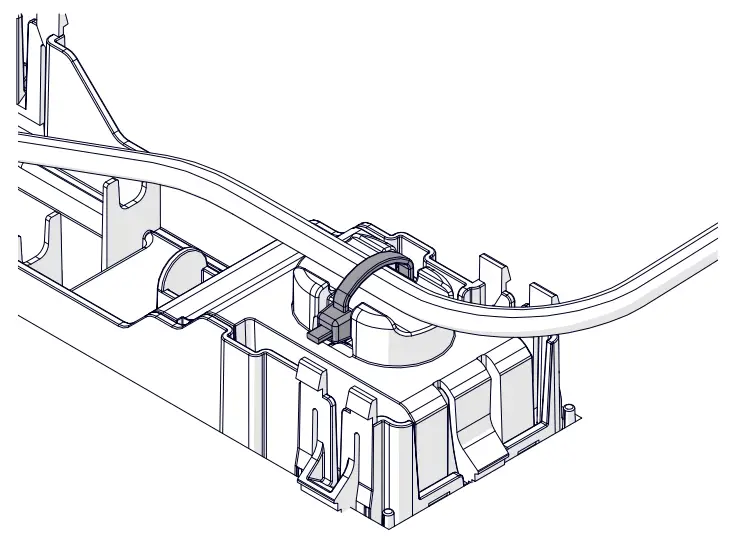

7. Cable tie GST08 cable into place

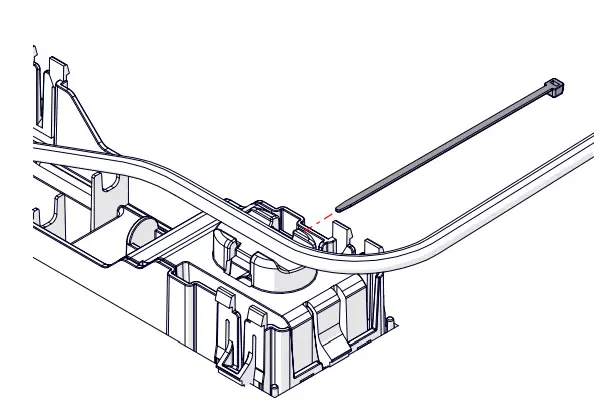

   Slide cable tie-through slot

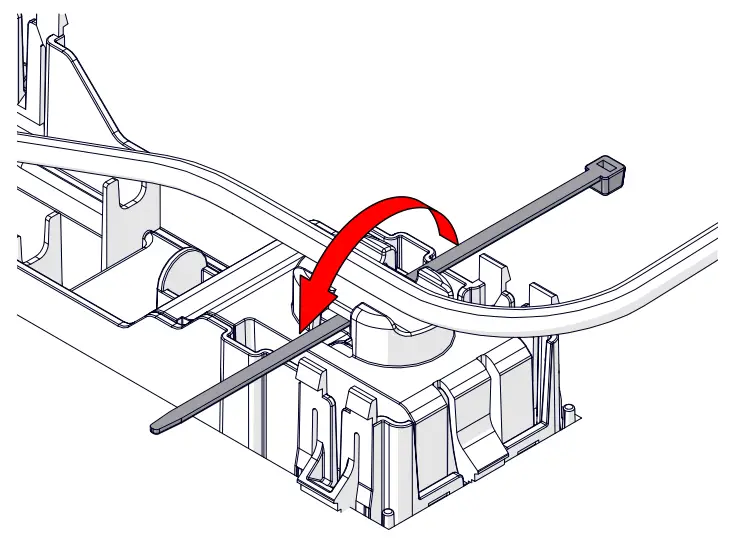

   Fold cable tie over cable(s)
   Tighten the cable tie & remove excess

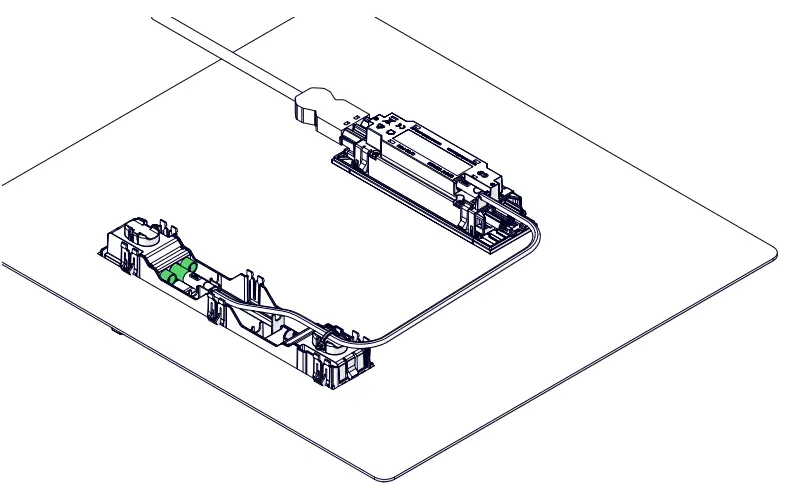

8. Connect GST18i3 cable to PSU*
   Complete*See separate instructions for mounting PSU here: https://www.oeelectrics.co.uk/2020/12/qikfit-30-psu/

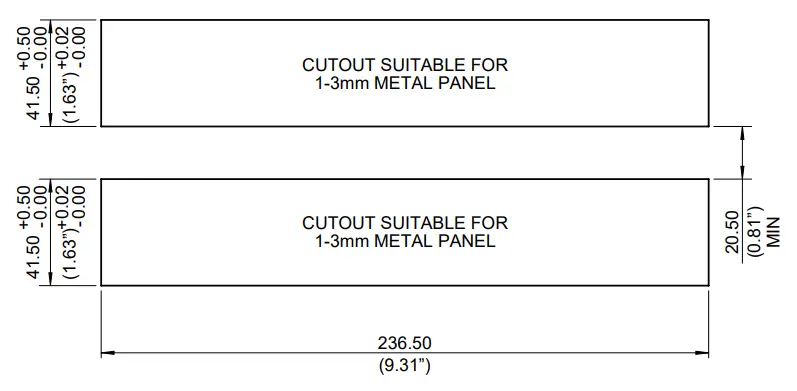

9. Cutout Dimensions**
   Multiple Connecting Shoes
   **The above cutout should be used with a short GST08 cable – Part code: 2720960 – GST08-175 MF/W. Larger gaps would require a longer GST08 cable please enquire.

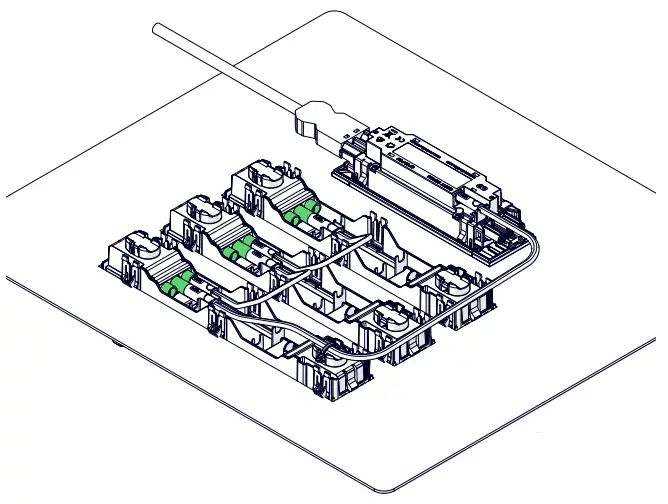

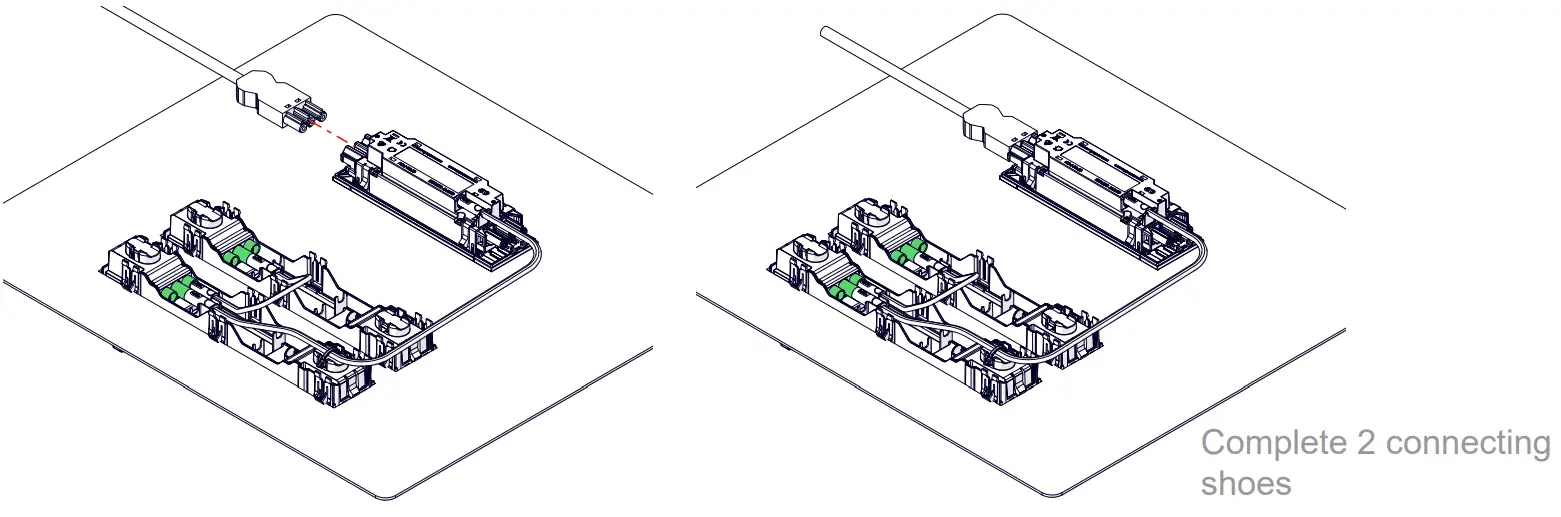

10. Connect multiple shoes together using GST08 interconnecting cable(s) using the correct GST08 output and input*** on the next shoe. Ensure writing on the GST08 cable is  acting up

11. Repeat Step 2 for how to fit connecting shoes into the cutout then Connect the GST18i3 cable to PSU
    Complete 3 connecting shoes. Maximum of 3 connecting shoes per PSU
