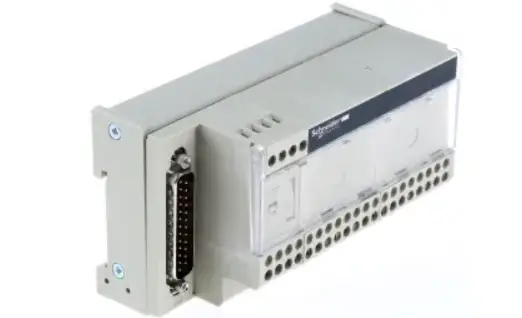

SCHNEIDER ABE7H16R31 Passive Connection Sub-Base Instruction Manual
ABE-7H16Rpp ABE-7H16RppE
DANGER
HAZARDOUS VOLTAGE
Disconnect all power before servicing equipement.
Electric shock will result in death or serious injury
ABE-7H16Rpp ABE-7H16Rppe
ABE-7H16Rpp ABE-7H16RppE
WARNING !
INTERNAL FUSE MAY NOT DEACTIVATE OUTPUTS

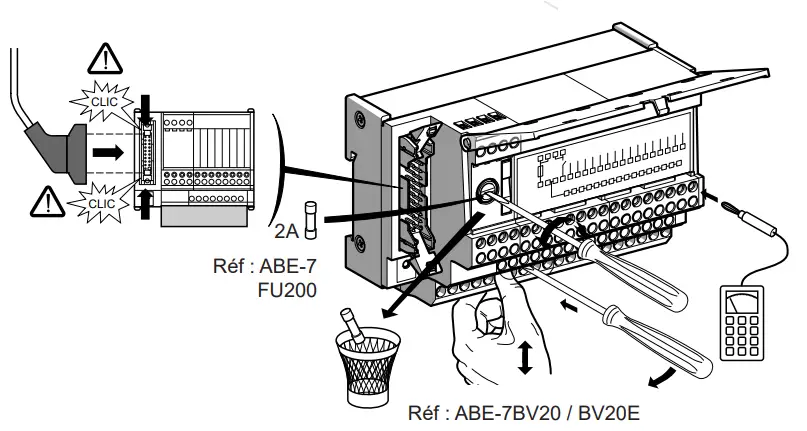

When multiple ABE7 modules are connected to a single PLC output source, module outputs may remain active after an internal fuse is removed or blown. To deactivate module outputs or to service the equipement, halt the PLC, disconnect all power and disconnect the HE10.
Failure to follow these instructions can result in death, serious injury or equipement damage.
ABE-7H16Rpp ABE-7H16RppE
ABE-7H16Rpp ABE-7H16RppE
DANGER
HAZARDOUS VOLTAGE
Disconnect all power before servicing equipement.
Electric shock will result in death or serious injury
ABE-7H16Rpp ABE-7H16RppE
