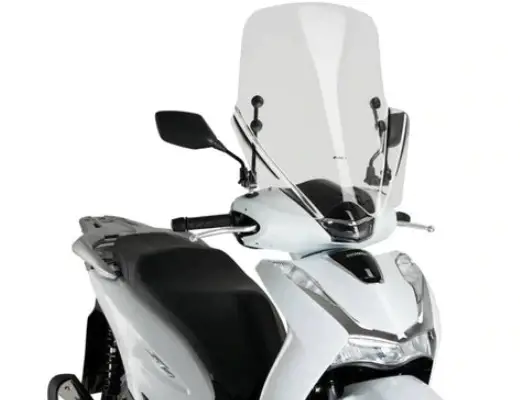

Puig TX Clear Wind Shield
MOTOPLASTIC, S.A.
Molí de la sal, 1 – 08403 Granollers (Barcelona) SPAIN Tel. 34 93 849 06 33 – Fax 34 93 849 09 88
[email protected] – [email protected]
www.puig.tv – www.puigusa.com
PREVENTION
- Use water and neutral soap to clean the windshield.
- Check the tightening of the fasteners periodically.
- Park the scooter facing the sun, avoiding the sun-reflection effect that may damage some parts.
- Park if possible on even surfaces.
Thanks for your attention.

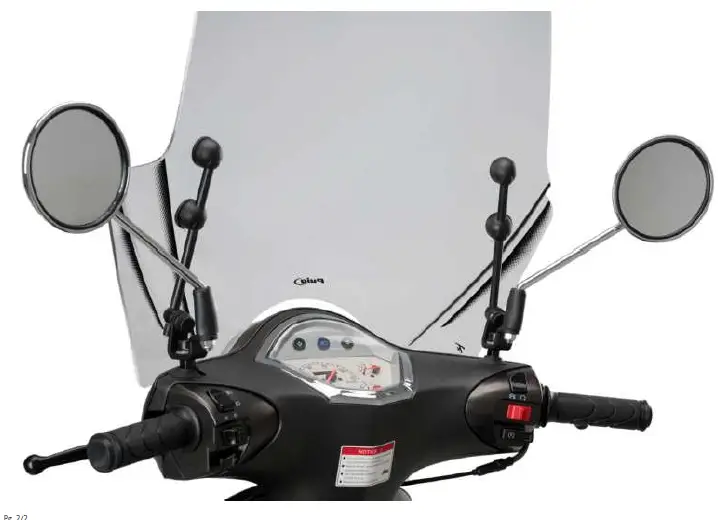

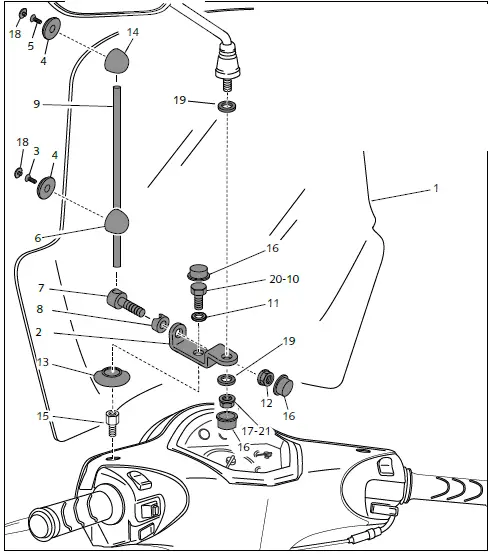

| ID. | DESCRIPTION | QTY. |
| 1 | Clear windshield | 1 |
| 2 | Metal support Ø10 70-73º | 2 |
| 3 | 5,5×12 screw to tight into plastic | 2 |
| 4 | Plastic washer | 4 |
| 5 | 5,5×14 screw to tight into plastic | 2 |
| 6 | Support with drill through | 2 |
| 7 | Screw with drill through | 2 |
| 8 | Special washer | 2 |
| 9 | Ø10×190 bar | 2 |
| 10 | M8x20 screw (Left fastener) | 1 |
| 11 | M8 contact washer | 2 |
| 12 | M8 nut cover DIN 6923 | 2 |
| 13 | Below drill cover | 2 |
| 14 | Plastic support | 2 |
| 15 | Original mirror extension | 2 |
| 16 | M8 nut cover | 2 |
| 17 | M8 right lock nut (Left fastener) | 1 |
| 18 | Screw cap | 4 |
| 19 | Ø10 nylon washer | 4 |
| 20 | M8x20 right screw | 1 |
| 21 | M8 left lock nut | 1 |
IMPORTANT
“Adjusting the tightening of the nut ID.21 achieves the rotational rotation of the mirror without loss of grip:
When the rear-view mirror receives an impact, it rotates the whole assembly without losing the self-braking.
So the rider, in situ, can return it to its initial position without losing the tension of rotation that was regulated “.
