HILTI HSA-R M8 Wedge Anchor Instruction

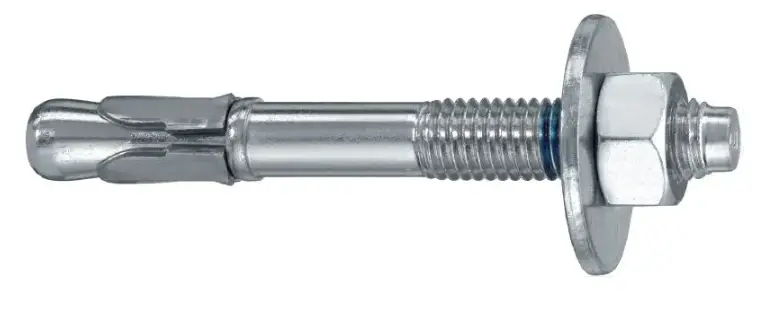

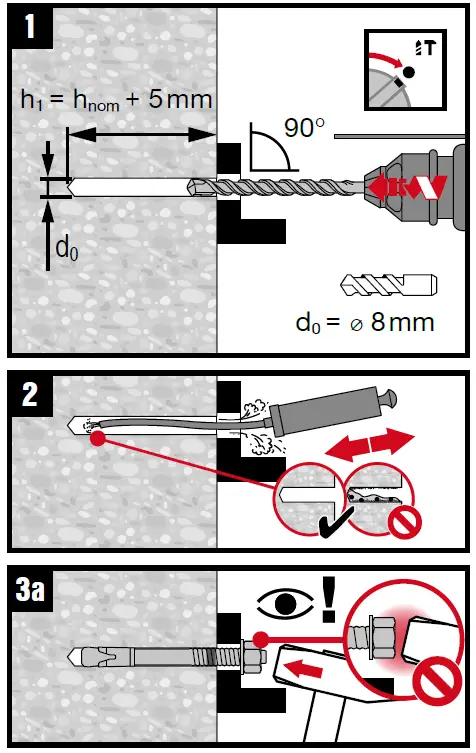

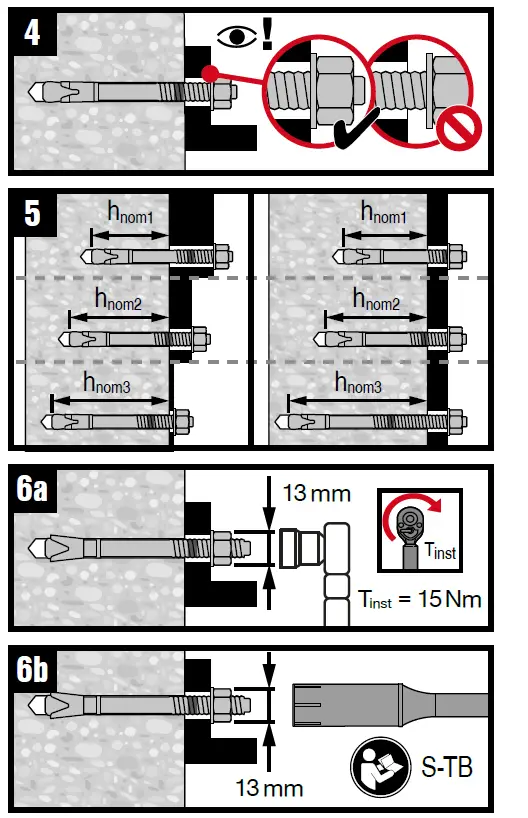

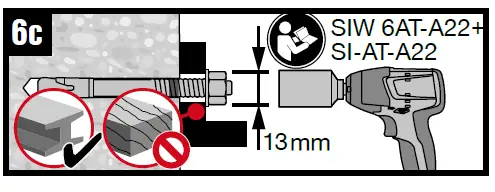

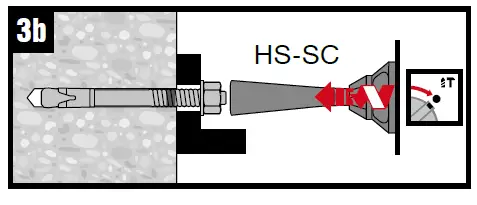

INSTALLATION

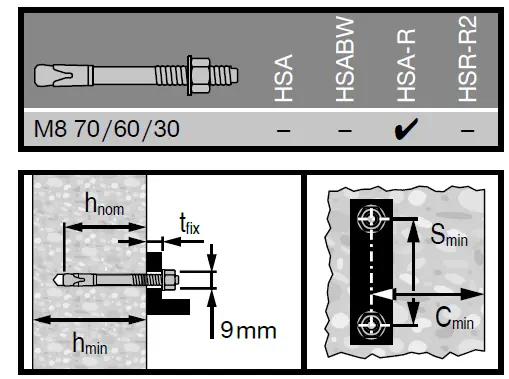

DIMENSION
| HSA | tfix 1 [mm] | tfix 2 [mm] | tfix 3 [mm] |
| M8 70 / 60 / 30 | 70 | 60 | 30 |
| HSA | 1 | 2 | 3 |
| hnom [mm] | 39 | 49 | 79 |
| hmin [mm] | 100 | 100 | 120 |
| smin [mm] | 35 | 35 | 35 |
| cmin [mm] | 40 | 35 | 35 |
