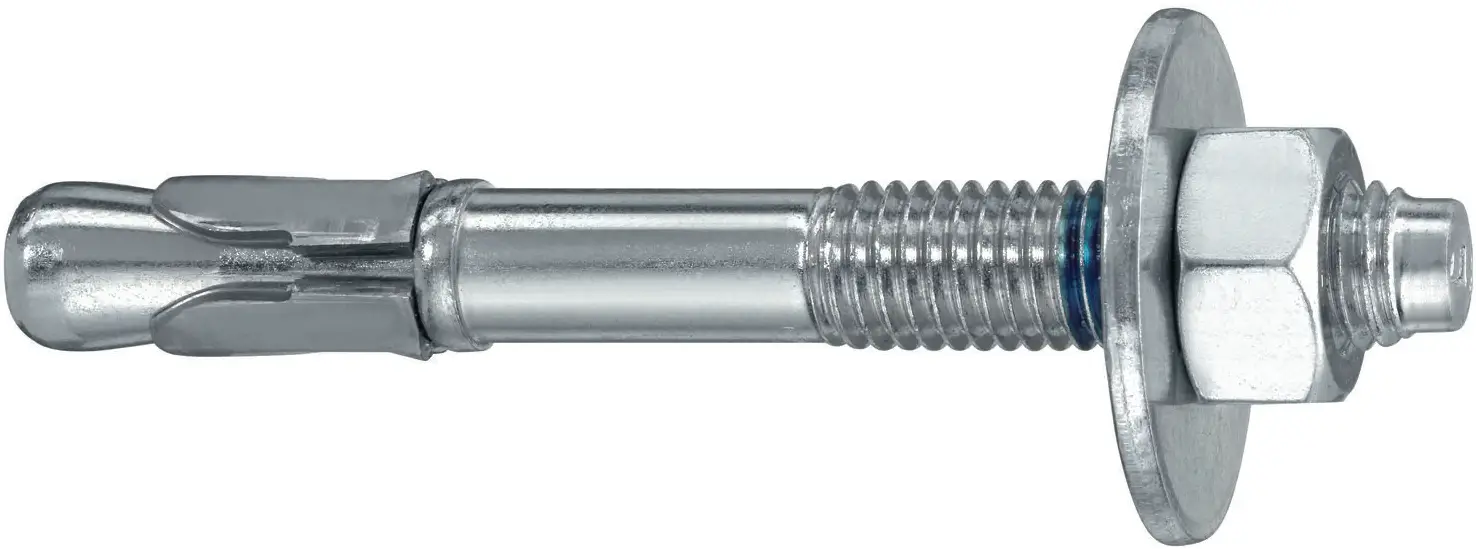

HILTI HSA-BW Wedge Anchor

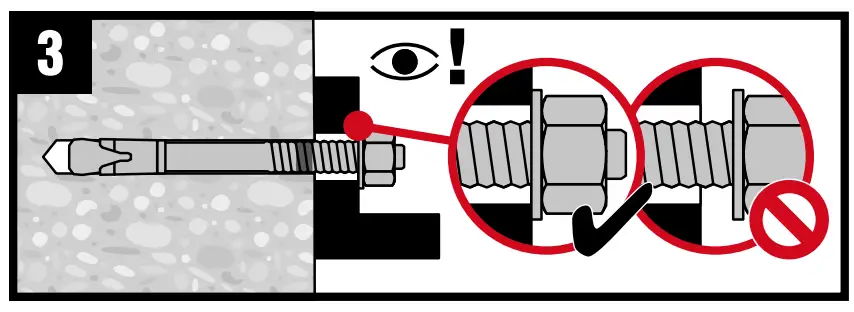

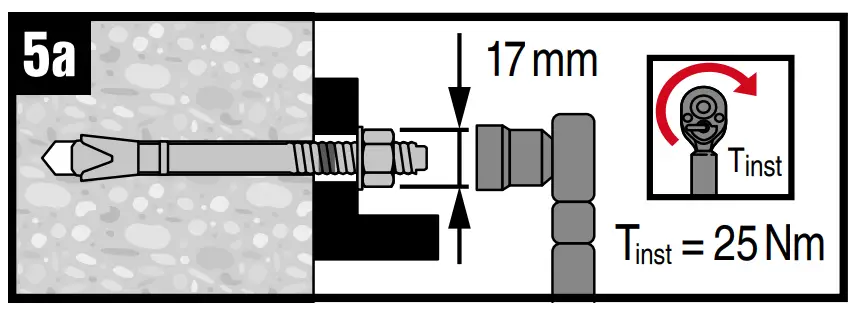

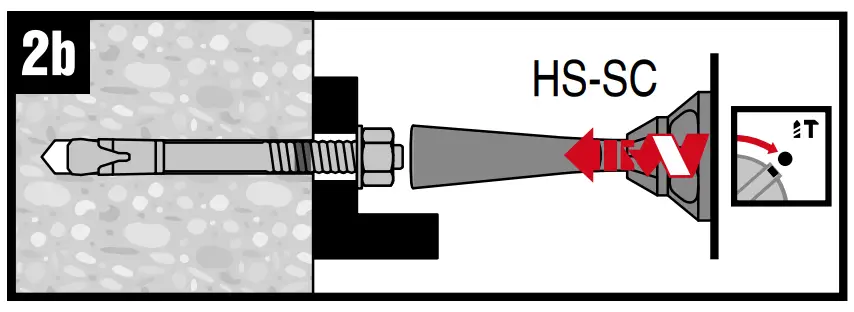

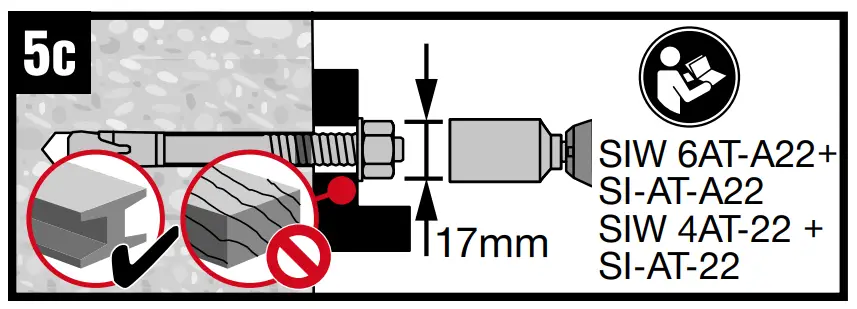

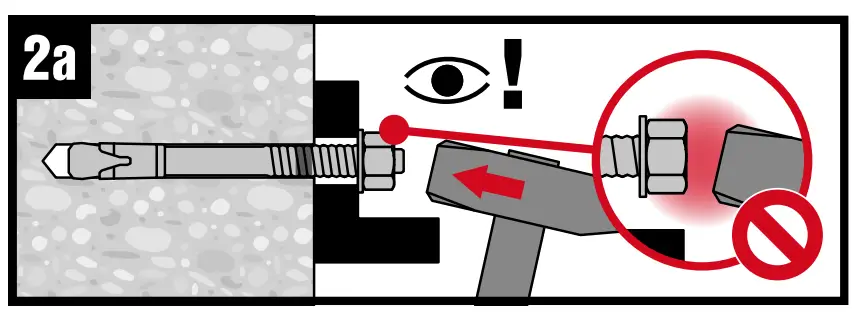

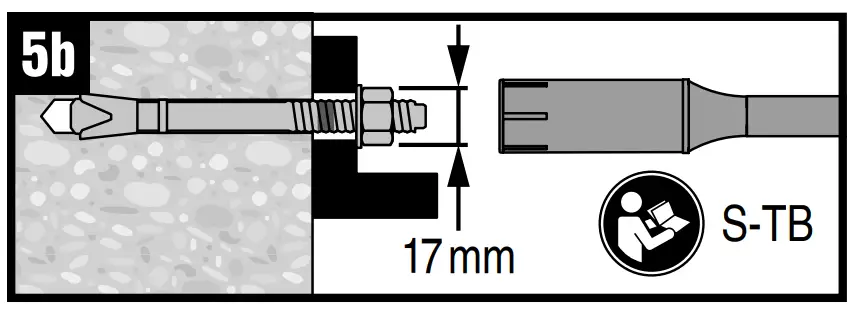

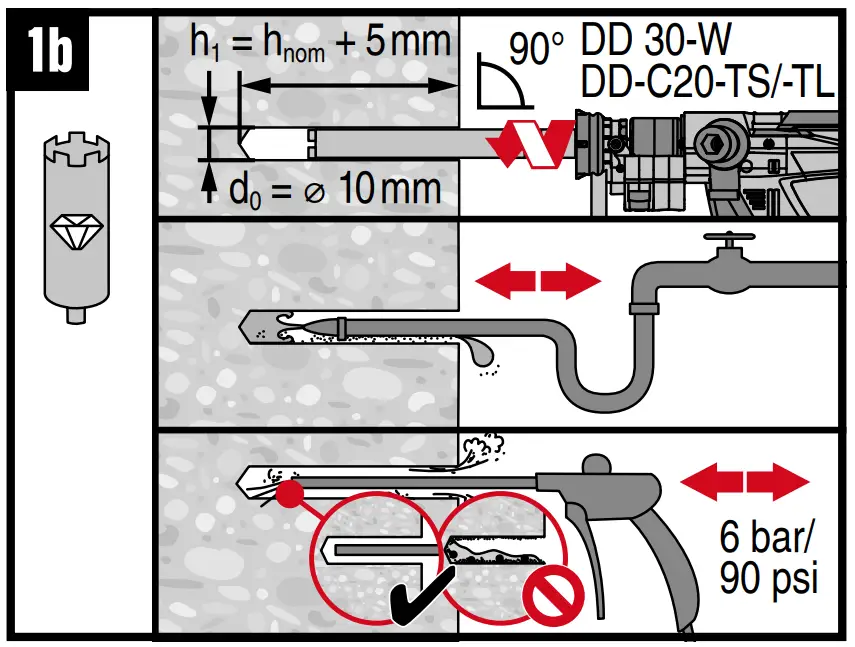

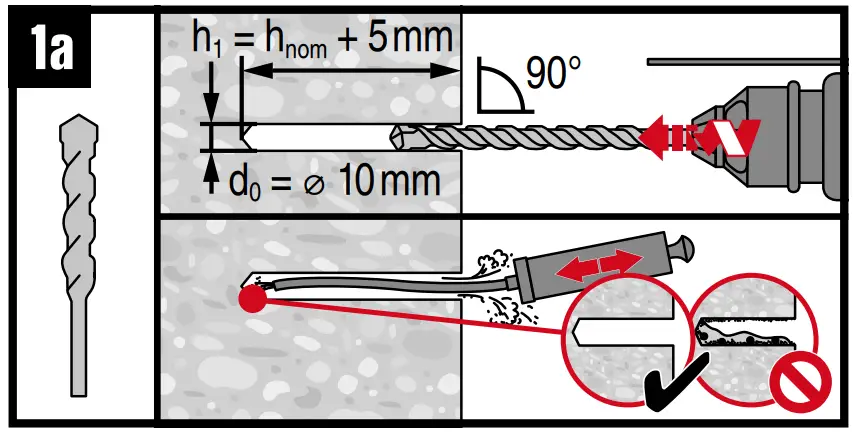

OPERATION INSTRUCTIONS
| HSA | HSABW | HSA-R | HSR-R2 |
M10 5 / – / – | ✔ | ✔ | ✔ | – |
| M10 20 / 10 / – | ✔ | ✔ | ✔ | ✔ |
M10 35 / 25 / – | ✔ | – | ✔ | – |
| M10 50 / 40 / 10 | ✔ | – | ✔ | – |
M10 70 / 60 / 30 | ✔ | – | ✔ | – |
| M10 90 / 80 / 50 | ✔ | – | ✔ | – |
M10 105 / 95 / 65 | ✔ | – | – | – |
HSA | tfix 1 [mm] | tfix 2 | [mm] | tfix 3 | [mm] |
| M10 5 / – / – | 5 | – | – | ||
M10 20 / 10 / – | 20 | 10 | – | ||
| M10 35 / 25 / – | 35 | 25 | – | ||
M10 50 / 40 / 10 | 50 | 40 | 10 | ||
| M10 70 / 60 / 30 | 70 | 60 | 30 | ||
M10 90 / 80 / 50 | 90 | 80 | 50 | ||
| M10 105 / 95 / 65 | 105 | 95 | 65 | ||

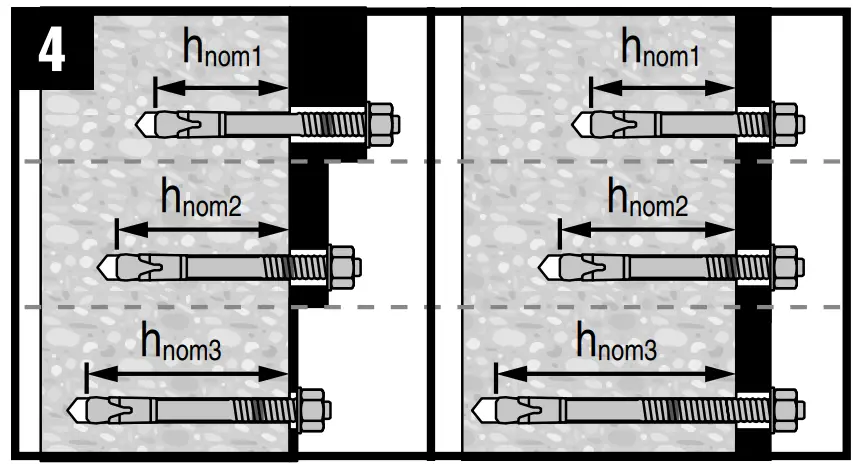

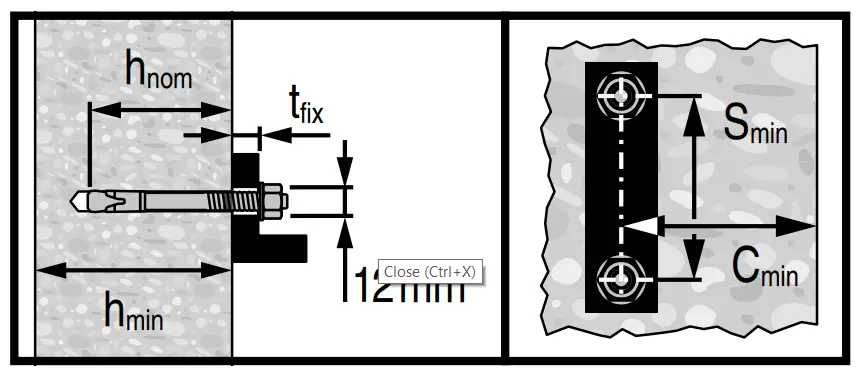

HSA | 1 | 2 | 3 |
| hnom [mm] | 50 | 60 | 90 |
hmin [mm] | 100 | 120 | 160 |
| smin [mm] | 50 | 50 | 50 |
cmin [mm] | 50 | 40 | 40 |
