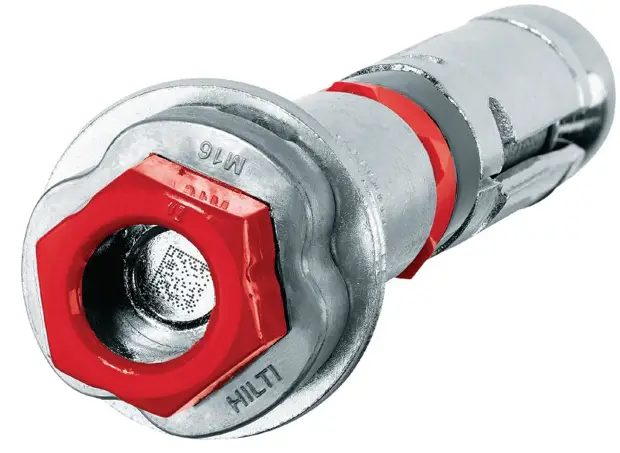

HSL4-B M16 Heavy-Duty Wedge Anchor
Instructions
HSL4-B M16/M20/M24
2246190-08.2022
HSL4-B M16 Heavy-Duty Wedge Anchor

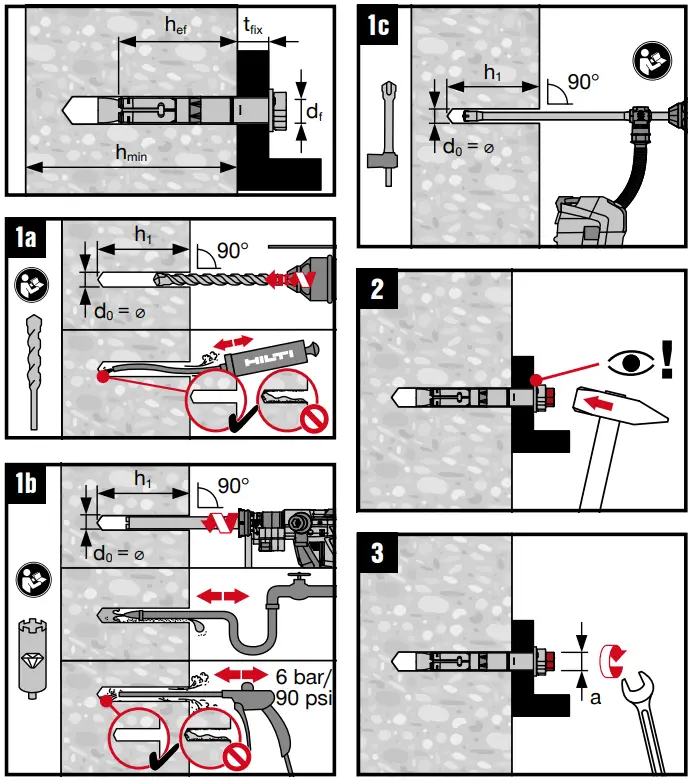

| HSL4-B | [ tfix ] mm | [ hef ] mm | [hmin] mm | [ h1 ]mm | [ d0 ]mm | [ df ]mm | [ a ]mm |
| M16 ⌀24 ×151 | 10/-/- | 100 | 200 | 125 | 24 | 26 | 24 |
| M16 ⌀24 ×166 | 25/-/- | ||||||
| M16 ⌀24 ×191 | 50/25/- | ||||||
| M20 ⌀28 ×178 | 10/-/- | 125 | 250 | 155 | 28 | 31 | 30 |
| M20 ⌀28 ×198 | 30/-/- | ||||||
| M20 ⌀28 ×228 | 60/30/- | ||||||
| M24 ⌀32 ×203 | 10/-/- | 150 | 300 | 180 | 32 | 35 | 36 |
| M24 ⌀32 ×223 | 10/30/- | ||||||
| M24 ⌀32 ×231 | 60/30/- |
