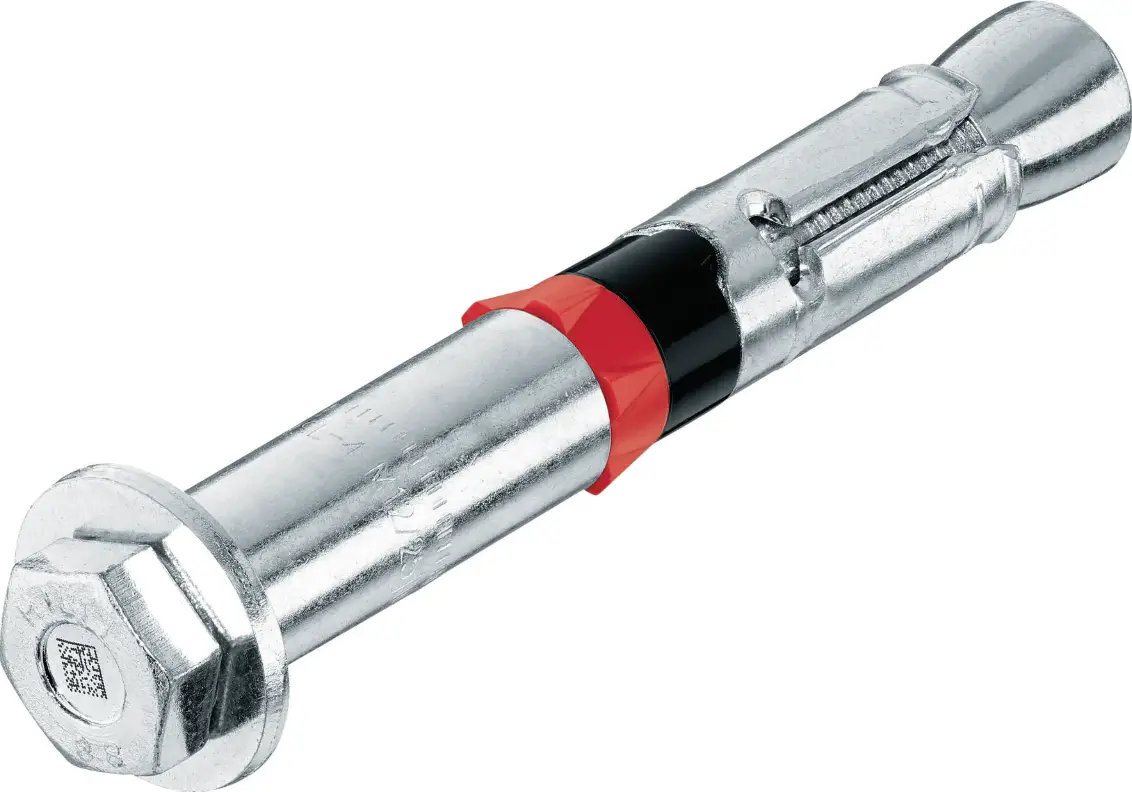

HILTI HSL4 M12 Heavy-Duty Wedge Anchor Instruction Manual

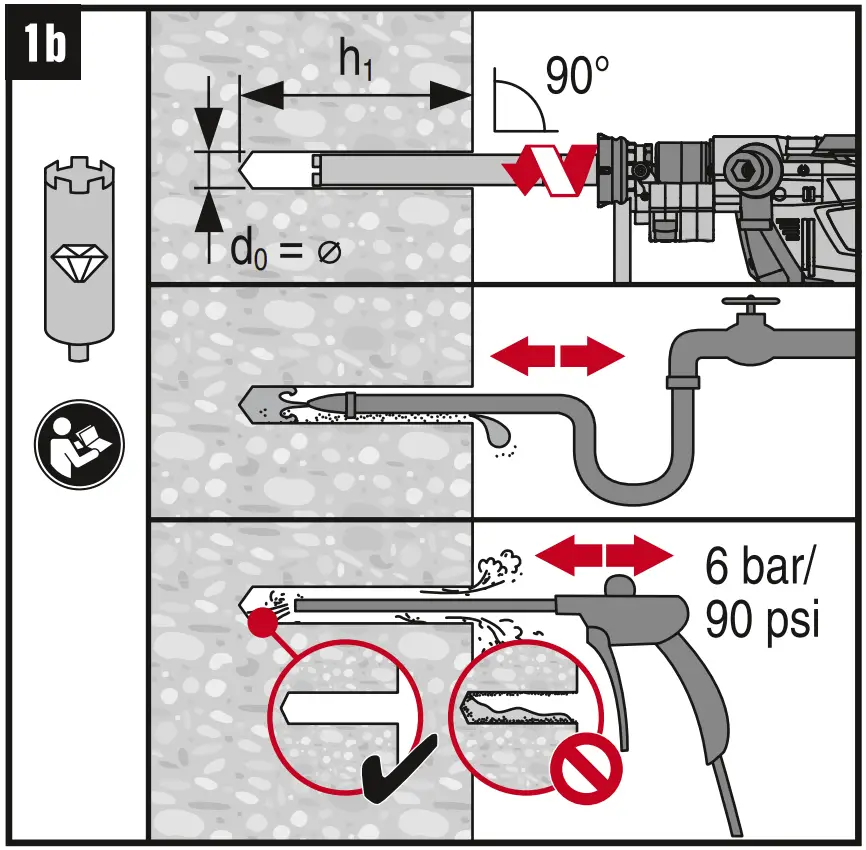

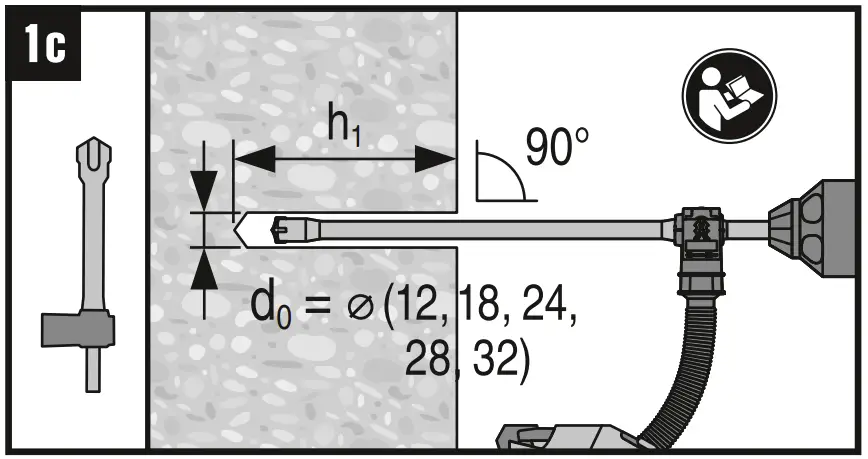

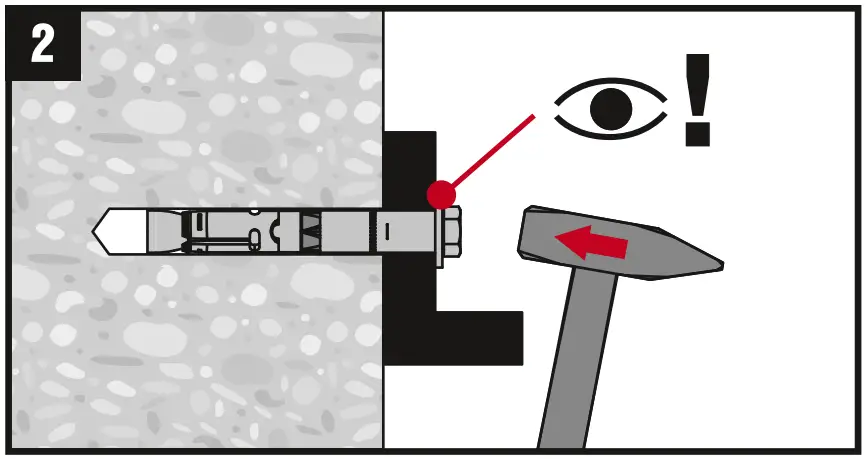

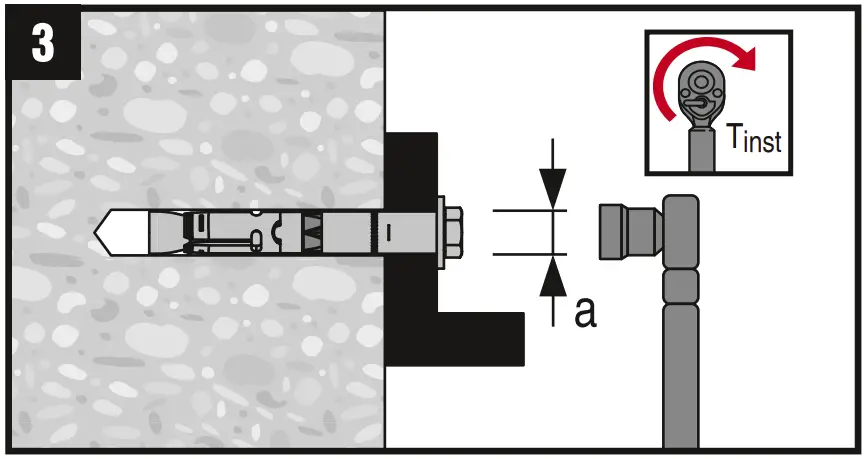

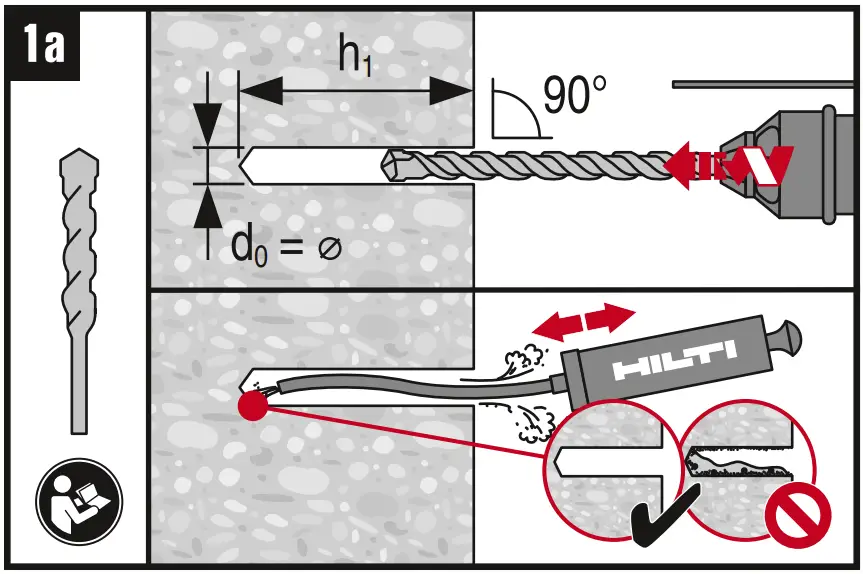

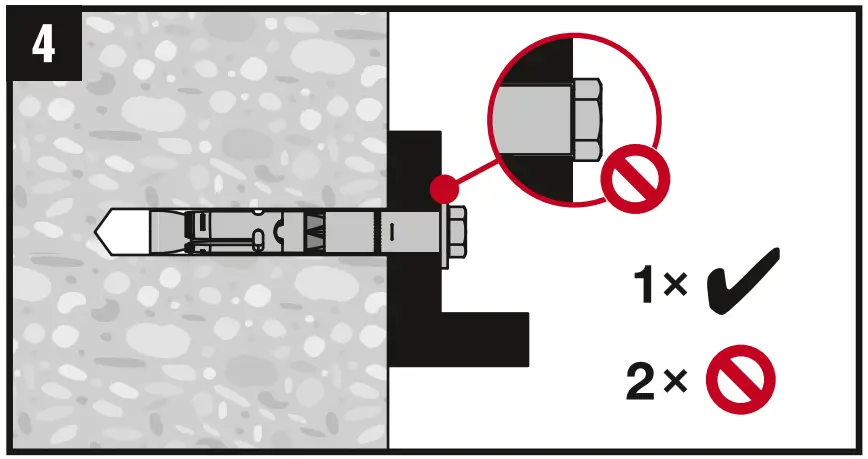

Installation instruction

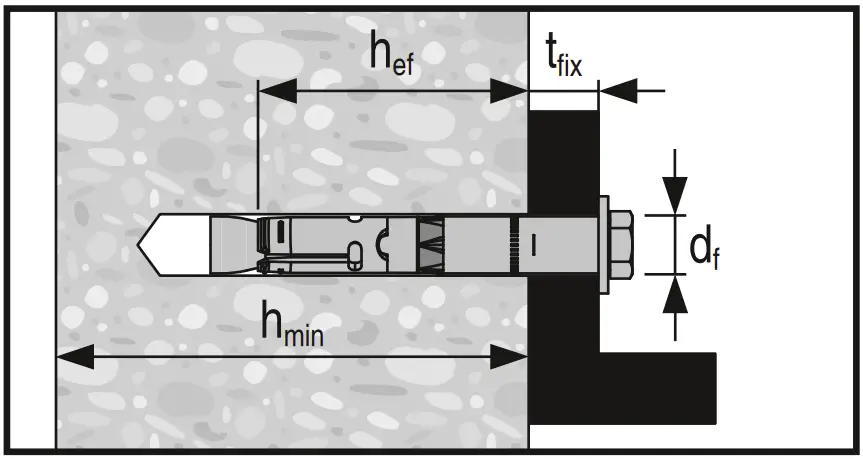

Dimension
| HSL4 | tfix [mm] | hef [mm] | hmin [mm] | h1 [mm] | d0 [mm] | df [mm] | a [mm] | Tinst [Nm] |
| M12 ø 18×206 | 100/75/50 | 80 | 160 | 105 | 18 | 20 | 19 | 60 |
