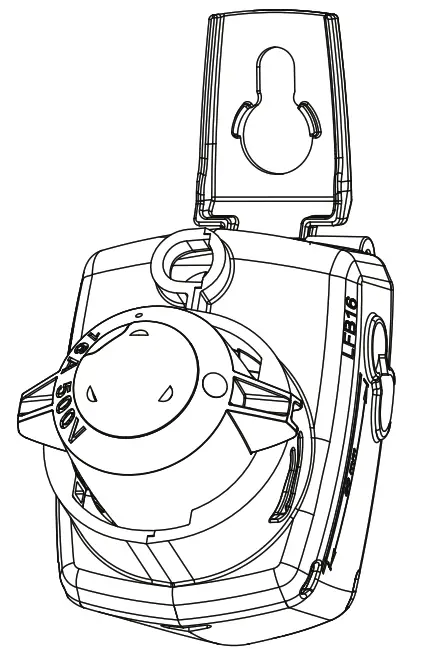

INSTALLATION INSTRUCTION PEM1854
2021-12
REVISION J
LFBxxR <1 kV
LCK4xxA LCK5xxA
LEGAL NOTICE
- The product must be installed only by a competent person with sufficient training in installation practices and with sufficient knowledge of good safety and installation practices in respect of electrical equipment. If local legislation contains provisions in respect of such training or sufficient knowledge in respect of the installation of electrical equipment such provisions shall be fulfilled by the said person.
- Ensto accepts no liability concerning claims resulting from misuse, incorrect installation or ignored national safety regulations or other national provisions.
- WARNING: Failure to follow the installation instructions may result in damage to the product and serious or fatal injury.
PEM1854 2021-12
 |
|  |  | |  | ||||||
LFB | D II | KE10.3 Al 10-35 mm² Cu 1.5-25 mm² | KE10.1 Al 10-35 mm² Cu 1.5-25 mm² | KE10.504 Al 10-50 mm² Cu 2.5-35 mm² | KE10.506 Al 10-50 mm² Cu 2.5-35 mm² | ||||||
| 4 mm² | 10 mm² | 2 A | 4 A | 6 A | 10 A | max A | |||||
| LFB16-R | x | 16 | |||||||||
| LFB16.1-R | x | 16 | |||||||||
| LFB16-06A-R | x | x | 16 | ||||||||
| LFB16-10A-R | x | x | 16 | ||||||||
| LFB06.1-06A-R | x | x | 6 | ||||||||
| LFB10.1-10A-R | x | x | 10 | ||||||||
| LFB16.1-06A-R | x | x | 16 | ||||||||
| LFB16.1-10A-R | x | x | 16 | ||||||||
| LCK4-06-02A | x | x | 6 | 1 | 3 | ||||||
| LCK4-06-04A | x | x | 6 | 1 | 3 | ||||||
| LCK4-16-06A | x | x | 16 | 1 | 3 | ||||||
| LCK4-16-10A | x | x | 16 | 1 | 3 | ||||||
| LCK4-06.1-06A | x | x | 6 | 1 | 3 | ||||||
| LCK4-10.1-10A | x | x | 10 | 1 | 3 | ||||||
| LCK4-16.1-06A | x | x | 16 | 1 | 3 | ||||||
| LCK4-16.1-10A | x | x | 16 | 1 | 3 | ||||||
| LCK4.50-10-10A | x | x | 16 | 3 | 1 | ||||||
| LCK5-16-06A | x | x | 16 | 1 | 4 | ||||||
| LCK5-16-10A | x | x | 16 | 1 | 4 | ||||||
| LCK5-06.1-06A | x | x | 6 | 1 | 4 | ||||||
| LCK5-10.1-10A | x | x | 10 | 1 | 4 | ||||||
| LCK5-16.1-06A | x | x | 16 | 1 | 4 | ||||||
| LCK5-16.1-10A | x | x | 16 | 1 | 4 | ||||||
 |  |
 |  |
 |  |
