TOYOTA Ipsum 2000 Fuse Box

Toyota Ipsum 2000 – 2006 fuse box diagrams

Year of production: 2000, 2001, 2002, 2003, 2004, 2005, 2006

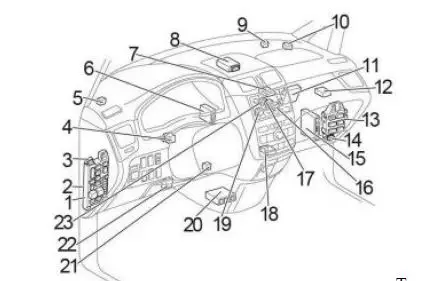

Passenger Compartment

LHD

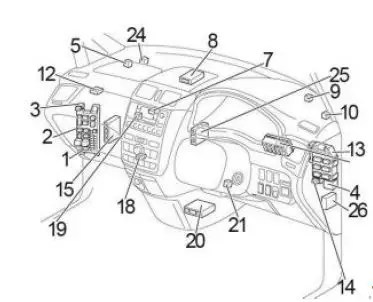

Toyota Ipsum – fuse box diagram – passenger compartment – location LHD

RHD

Toyota Ipsum – fuse box diagram – passenger compartment – location RHD

Fuse Box
Body ECU
Power Point Relay
Turn Signal Flasher Relay
Circuit Opening Relay (Fuel Pump)
LHD: TVSS ECU
Radio and Player with Display
Transponder Key Computer
Rear Heater Relay (HI)
Rear Heater Relay
LHD: A/C Amplifier (Manual A/C)
Television Camera ECU (with Navigation System)
Junction Block
Front Fog Light Relay
Engine and ECT ECU (A/T) Engine ECU (M/T)
LHD: Blower Relay (M2)
LHD: Blower Relay (M1)
A/C Control Assembly (Automatic A/C)
Antenna Amplifier
or
RHD (to 10.2003): Blower Relay (M2) / Blower Relay (M1) / Blower Relay (HI)
Airbag Sensor Assembly
Transponder Key Amplifier
LHD: PTC Heater Amplifier (1AZ-FE)
LHD: Blower Relay (HI)
RHD: Back-Up Light Relay
RHD: Theft Deterrent ECU
RHD: Double Door Lock ECU

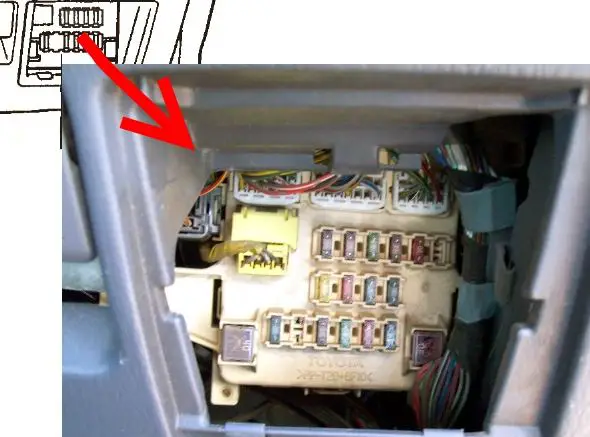

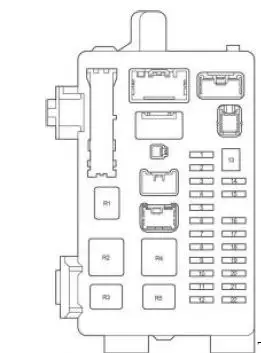

Passenger Compartment Fuse Box

Toyota Ipsum – fuse box diagram – passenger compartment
3RR HTR4FR FOG5AM16PANEL7SRS-IGor AIRBAG-IG8SEAT HTR9C/LTRorCIG10HTRor HEATER11MTR HTR12ECU-ACC13PWR14TAIL15PWR OUTLET16FR P/W17DOOR18WIPER19ECU-IG20RR DEF21GAUGE22STOP

No.	Fuse	A	Circuit
1	IGN	10	SRS airbag system, gauge and meters, starting system, multiport fuel injection system/sequential multiport fuel injection system, electric cooling fan, air conditioning system, ABS, VSC, “FUEL HTR” relay, “IG2” relay
2	DOOR NO.2	25	Avensis Verso, Picnic: Power door lock system
	PWR SEAT	30	Ipsum: Power seat
	10	Rear heater
	15	Front fog light
	25	Starting system
	7.5	Instrument cluster lights, instrument panel lights, electronic controlled transmission, audio system, headlight cleaner, front fog light, TOYOTA parking assist, clock, air conditioning system, key reminder and light reminder
	10	SRS airbag system
	10	Avensis Verso, Picnic: Seat heater
	TEMS	10	Ipsum: TOYOTA electronic modulated suspension
	15	Cigarette lighter
	10	Air conditioning system, charging system, multiport fuel injection system/sequential multiport fuel injection system, ABS, VSC, key reminder and light reminder, seat belt warning, TOYOTA parking assist, instrument cluster, rear windshield defogger
	10	Outside rear view mirror heaters
	7.5	Power door lock system, electric cooling fans, power windows, audio system, fog light, interior light, tail lights, parking lights, headlight
	30	Power windows, sliding roof
	10	Tail lights, parking lights, license plate lights, trunk light, front fog light, rear fog light, instrument cluster
	15	Power outlet
	30	Power windows, sliding roof
	25	Power door lock system
	25	Front wiper and washer, rear wiper and washer, headlight cleaner
	7.5	Electric cooling fans, multiport fuel injection system/sequential multiport fuel injection system, ABS, VSC, audio system, TOYOTA electronic modulated suspension, power rear view mirrors, automatic light control system
	20	Rear windshield defogger
	7.5	Charging system, instrument cluster, back-up light, turn signal and hazard warning light, multiport fuel injection system/sequential multiport fuel injection system, ABS, power door lock system, power windows, key reminder and light reminder, seat belt warning, sliding roof, audio system, clock,
			headlight, automatic light control system, fog light, tail lights, parking lights, interior light, TOYOTA parking assist, air conditioning system, rear windshield defogger
	15	Stop light, shift lock control system, ABS, high mounted stoplight, multiport fuel injection system/sequential multiport fuel injection system, TOYOTA electronic modulated suspension
Relay
R1	Short Pin (since 10.2003: Avensis Verso, Picnic)
R2	Heater (HTR)
R3	Rear windshield defogger (RR DEF)
R4	Ignition (IG1)
R5	Taillight (TAIL)

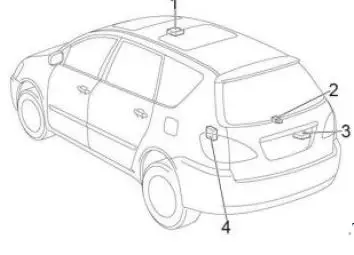

Toyota Ipsum – fuse box diagram – location

Moon Roof Control Relay
Rear Cooler Relay
Rear Wiper Relay (to 10.2003)
Wireless Door Lock Control Receiver

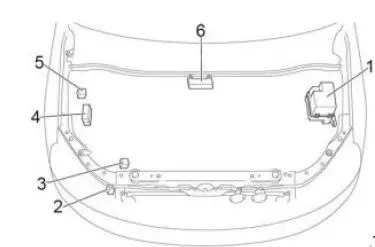

Engine Compartment

Toyota Ipsum – fuse box diagram – engine compartment – location

Fuse Box
Headlight Cleaner Control Relay
Skid Control ECU with Actuator
ABS Relay Box
1CD-FTV: Glow Plug Relay
Relay Box

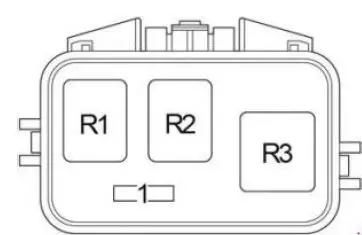

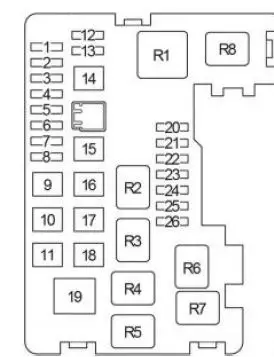

Engine Compartment Fuse Box

Toyota Ipsum – fuse box diagram – engine compartment

No.	Fuse	A	Circuit
1	DCC	30	“ECU-B”, “DOME”, “RAD NO.1” fuses
2	IG2	15	Gasoline: Electric cooling fans, multiport fuel injection system/sequential multiport fuel injection system, air conditioning system
2	FUEL HTR	30	Diesel: Fuel heater
3	HORN	10	Horn
4	HAZ	10	Turn signal and hazard warning light
5	EFI	15	Multiport fuel injection system/sequential multiport fuel injection system, air conditioning system, electric cooling fans
6	ETCS	10	Avensis Verso, Picnic (to 10.2003): Electronic throttle control system Ipsum (since 10.2003): Electronic throttle control system
6	A/F	15	Avensis Verso, Picnic (since 10.2003): Air fuel ratio sensor
7	OBD	7.5	On-board diagnosis system
8	ALT-S	7.5	Avensis Verso, Picnic: Charging system
8	FR DEF	15	Ipsum (since 10.2003): Windshield wiper de-icer
9	MAIN	50	“HEAD” relay (“HEAD LH LWR”, “HEAD RH LWR”, “HEAD LH UPR”, “HEAD RH UPR” fuses)
10	AM2	30	Ignition switch
11	RR CLR	30	Rear air conditioning system
12	HEAD LP CLN	30	Avensis Verso, Picnic: Headlight cleaner
	AC INV	15	Ipsum: Power outlet
13	RR FOG	7.5	Rear fog light
14	ABS NO.1	40	Avensis Verso, Picnic: except VSC (to 10.2003): ABS since 10.2003: ABS, VSC Ipsum: ABS, VSC
		50	Avensis Verso, Picnic: VSC (to 10.2003): ABS, VSC
15	ABS NO.2	30	Avensis Verso, Picnic (to 10.2003): ABS, VSC Ipsum: except VSC (since 10.2003): ABS
		40	Avensis Verso, Picnic (since 10.2003): ABS, VSC Ipsum: to 10.2003: ABS or VSC: ABS, VSC
16	CDS	30	Gasoline: Electric cooling fans
		40	Diesel: Electric cooling fans
17	RDI	30	Gasoline: Electric cooling fans
		40	Diesel: Electric cooling fans
18	HTR	50	Air conditioning system / heater
19	ALT	140	“RR DEF” relay (“RR DEF”, “MIR HTR” fuses) “TAIL” relay (“TAIL”, “PANEL” fuses), “IG1” relay (“ECU-IG”, “GAUGE”, “HTR”, “SEAT HTR”, “SRS-IG”, “WIPER” fuses), “PWR”, “RR HTR”, “DOOR”, “DOOR NO.2”, “FR FOG”, “PWR OUTLET”, “STOP”, “AM1” fuses
20	HEAD RH UPR	15	Right-hand headlight (high beam), instrument cluster
21	HEAD LH UPR	15	Left-hand headlight (high beam)
22	HEAD RH LWR	15	Left-hand headlight (low beam), headlight beam level control
23	HEAD LH LWR	15	Right-hand headlight (low beam)
24	RAD NO.1	15	Audio system
25	ECU-B	7.5	Charging system, multiport fuel injection system/sequential multiport fuel injection system, ABS, TOYOTA electronic modulated suspension, power door lock system, power windows, key reminder and light reminder, seat belt warning, audio system, clock, instrument cluster, headlight, automatic light control system, fog light, tail lights, parking lights, interior light, TOYOTA parking assist, air conditioning system, rear windshield defogger
26	DOME	10	Interior light, personal lights, foot lights, door courtesy lights, trunk light, vanity lights
Relay
R1	Headlight (HEAD)
R2	Avensis Verso, Picnic: (DIMMER) Ipsum (since 10.2003): FR DEF
R3	Gasoline: Ignition (IG2) Diesel: Fuel heater (FUEL HTR)
R4	Horn
R5	Electric cooling fan (FAN NO.2)
R6	Electric cooling fan (FAN NO.1)
R7	Electric cooling fan (FAN NO.3)
R8	Engine control unit (EFI)

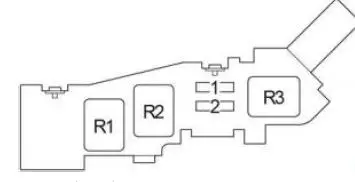

Toyota Ipsum – fuse box diagram – engine compartment

No.	Fuse	A	Circuit
1	ST	7.5	Starting system, multiport fuel injection system/sequential multiport fuel injection system
2	–	–	–
Relay
R1	Starter (ST)
R2	1CD-FTV: Engine control unit (EDU) 1AZ-FE (since 10.2003): Air fuel ratio sensor (A/F)
R3	Air conditioner compressor clutch (MG/C)

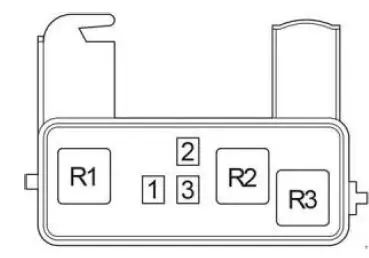

Relay Box

Toyota Ipsum – fuse box diagram – relay box

No.	Fuse	A	Circuit
1	HTR SUB 3	50	Power heater
2	HTR SUB 1	50	Power heater
3	HTR SUB 2	50	Power heater
Relay
R1	Power heater (HTR SUB 1)
R2	Power heater (HTR SUB 2)
R3	Power heater (HTR SUB 3)
