The front Bussed Electrical Center (BEC) is located in the front of the engine compartment on the passenger’s side.

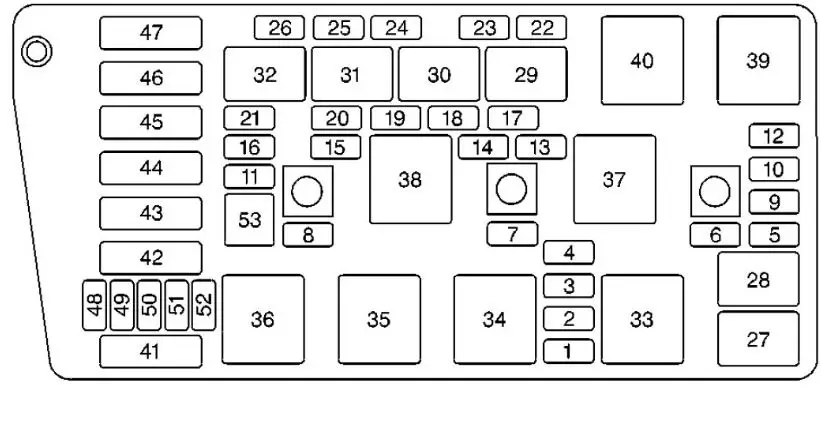

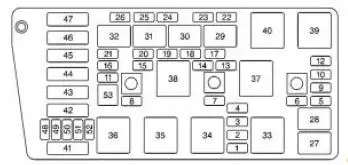

Oldsmobile Aurora – fuse box – engine compartment bussed electrical center

Mini fuses	Usage
1	Not Used
2	Accessory
3	Windshield Wipers
4	Not Used
5	Left Low-Beam Headlamp
6	Right Low-Beam Headlamp
7	Instrument Panel
8	Powertrain Control Module Battery
9	Right High-Beam Headlamp
10	Left High-Beam Headlamp
11	Ignition 1
12	Not Used
13	Transaxle
14	Cruise Control
15	Direct Ignition System
16	Injector Bank #2
17	Not Used

18	Not Used
19	Powertrain Control Module Ignition
20	Oxygen Sensor
21	Injector Bank #1
22	Auxiliary Power
23	Cigarette Lighter
24	Fog Lamps/Daytime Running Lamps
25	Horn
26	Air Conditioner Clutch

Rear Underseat Bussed Electrical Center (BEC)

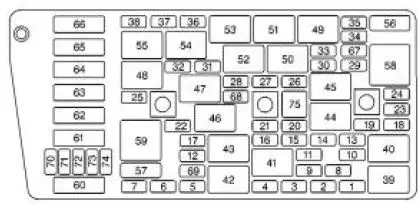

Oldsmobile Aurora – fuse box – rear under seat bussed electrical center

5	Rear Fog Lamps
6	CD
7	Driver’s Door Module
8	Air Bag System
9	Not Used
10	Right Parking Lamp
11	Vent Solenoid
12	Ignition 1
13	Left Parking Lamp
14	Dimmer
15	Not Used
16	Left Front Heated Seat
17	Not Used
18	Rear Door Module
19	Stoplamp
20	NSBU
21	Audio
22	Retained Accessory Power (RAP)
23	Not Used
24	Not Used
25	Passenger Door Module
26	Body
27	Interior Lamps
28	Not Used
29	Ignition Switch
30	Not Used
31	Right Front Heated Seat

32	Not Used
33	HVAC
34	Ignition 3 Rear
35	Anti-Lock Brake System (ABS)
36	Turn Signal/Hazard
37	HVAC Battery
38	Dimmer
Micro Relay		Usage
39		Fuel Pump
40		Parking Lamp
41		Ignition 1
42		Rear Fog Lamp
43		Not Used
44		Park
45		Reverse
46		Retained Accessory Power (RAP)
47		Fuel Tank Door Lock
48		Not Used
49		Ignition 3
50		Fuel Tank Door Release
51		Interior Lamps
52		Trunk Release
53		Front Courtesy Lamps
54		Not Used
55		Electronic Level Control (ELC)
Circuit Breakers			Usage
56			Power Seats
