Scion xA 2004 – 2006 Fuse Box Diagram Instructions
Fuse box in engine compartment

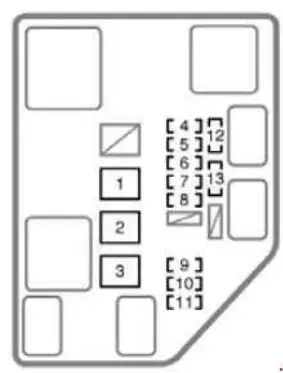

Scion xA – fuse box diagram – engine compartment
| Number | Fuse | Ampere rating | Description |
| 1 | RDI | [A] | Electric cooling fan |
| 2 | HTR SUB1 | 30 | Air conditioning system |
| 3 | ABS NO.1 | 50 | Anti−lock brake system |
| 4 | DOME | 40 | Clock, interior light, gauges of meters |
| 5 | EFI | 15 | Multiport fuel injection system/sequential multiport fuel injection system |
| 6 | HORN | 15 | Horn |
| 7 | AM2 | 15 | Starter system, SRS airbag system, multiport fuel injection system/sequential multiport fuel injection system, discharge warning system |
| 8 | ST | 30 | Starter system |
| 9 | H−LP LH H−LP LO LH | 10 | Left−hand headlight |
| 10 | H−LP RH H−LP LO RH | 10 | Right−hand headlight |
| 11 | A/C2 | 7,5 | Air conditioning system |
| 12 | SPARE | 30 | Spare |
| 13 | SPARE | 15 | Spare |
Fuse box on the dashboard
2004

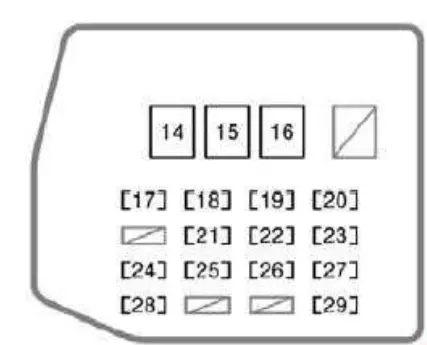

Scion xA – fuse box diagram – dashboard
2006
Scion xA – fuse box diagram – dashboard
| Number | Fuse | Ampere rating [A] | Description |
| 14 | AM1 | 40 | 2004-2005: “ACC”, “GAUGE”, “WIPER”, and“ECU−IG” fuses |
| 50 | 2006: “ACC”, “GAUGE”, “WIPER”, and “ECU−IG” fuses | ||
| 15 | POWER | 30 | Power windows |
| 16 | HTR | 40 | Air conditioning system |
| 17 | DEF | 30 | 2004-2005: Rear window defogger system. |
| GAUGE | 10 | 2006: Back−up lights, charging system, airconditioning system, power window system, gauges of meters | |
| 18 | GAUGE | 10 | 2004-2005: Back−up lights, charging system, air conditioning system, power window system, gauges of meters |
| 21 | WIPER | 20 | 2004-2005: Windshield wipers and washer |
| 25 | 2006: Windshield wipers and washer | ||
| 22 | ECU−B | 7,5 | SRS airbag system |
| 23 | FOG | 15 | Front fog lights |
| 24 | ACC | 15 | Clock, cigarette lighter |
| 25 | ECU−IG | 7,5 | Anti−lock brake system, electric cooling fan |
| 26 | OBD | 7,5 | On−board diagnosis system |
| 27 | HAZ | 10 | Turn signal lights, emergency flashers |
| 28 | A.C. | 7,5 | Air conditioning system |
| 29 | STOP | 10 | Stop lights, high mounted stop light, anti−lock brake system, shift lock system, multiport fuel injection system/sequential multiport fuel injection system |
