![Volkswagen Passat Fuse Box Diagram / Location [1998-2006]](https://static-data1.manualsee.com/1/img/283/64925/2021/02/fxcpaxtl-3c.jpg)
This diagram is for the interior fuse box on a 1998-2006 Volkswagen Passat. The fuse map lists what each fuse operates, what number it is, where to find it, and the AMP requirement.

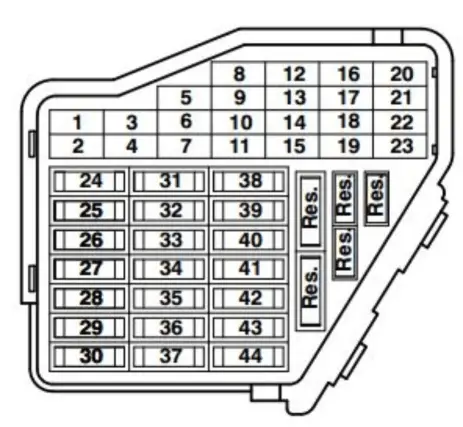

Diagram
Fuse Amp Ratings
| Fuses | Description | Ampere rating (A) |
|---|---|---|
| 1 | Heated washer nozzle | 5 |
| 2 | Turn signal system | 10 |
| 3 | Free | — |
| 4 | License plate light | 5 |
| 5 | Power Seats, air conditioning, telematics, Multi‐Function Steering Wheel, Power sunroof, mirror adjustment, HomeLink | 10 |
| 6 | Comfort module comfort system | 5 |
| 7 | ABS, Cruise Control system, Engine Control Unit | 10 |
| 8 | Automatic headlight beam adjusting | 5 |
| 9 | Parking aid | 5 |
| 10 | CD-Changer Unit, Telematics, Multi‐Function Steering Wheel, Navigation, Radio | 5 |
| 11 | Power Seats with Memory | 5 |
| 12 | B+ (battery positive voltage) for Data Link Connector (DLC) | 10 |
| 13 | Brake lights | 10 |
| 14 | Comfort module system | 10 |
| 15 | Instr. cluster, air conditioning, automatic transmission | 10 |
| 16 | ABS, Steering Angle Sensor | 5 |
| 17 | Power outlet, Telematics | 10 |
| 15 | ||
| 18 | Right headlight, high beam | 10 |
| 19 | Left headlight, high beam | 10 |
| 20 | Right headlight, low beam | 15 |
| 21 | Left headlight, low beam | 15 |
| 22 | Parklight, right | 5 |
| 23 | Parklight, left | 5 |
| 24 | Wiper system | 25 |
| 25 | Fresh air blower, recirculating control, air conditioning, Power sunroof | 30 |
| 26 | Rear window defogger | 30 |
| 27 | Rear window wiper system | 15 |
| 28 | Fuelpump (FP) | 20 |
| 29 | Engine Control Unit, Coolant Fan | 20 |
| 30 | Sunroof | 20 |
| 31 | Back‐up lights, cruise control system, automatic transmission, Mirror adjustments, diagnostic | 15 |
| 32 | Engine Control Module (ECM), cruise control system | 20 |
| 33 | Cigarette lighter | 15 |
| 34 | Engine Control Module (ECM), injectors | 15 |
| 35 | Trailer socket | 30 |
| 36 | Fog lights | 15 |
| 37 | Radio system, Navigation | 20 |
| 38 | Comfort module system | 15 |
| 39 | Emergency flasher system | 15 |
| 40 | Dual horn | 25 |
| 41 | Telematics | 25 |
| 42 | ABS | 25 |
| 43 | Engine Control Module (ECM) | 15 |
| 44 | Heated seats | 30 |
Fuse Card
Fuse Box Location
