SMD Connectors

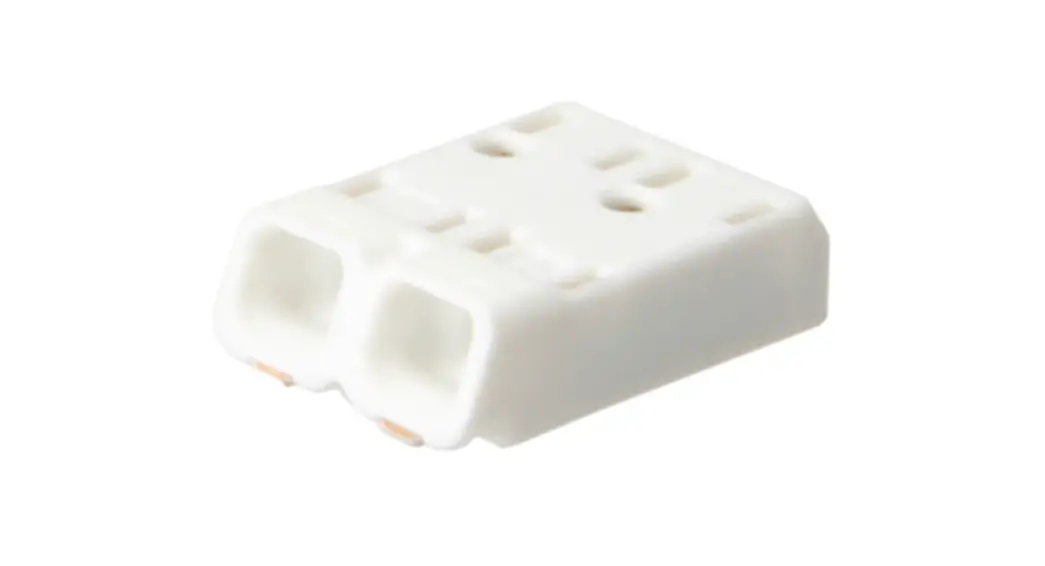

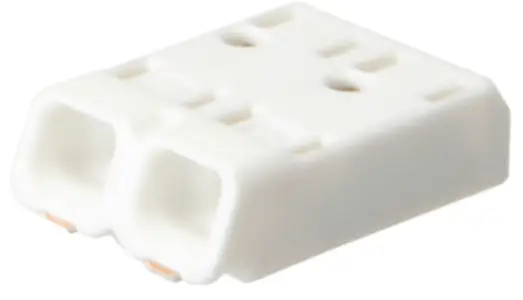

SMDflat 345/ 2 WS
https://www.adels-contact.com/smd-connectors-smdflat-345-2-ws.html
terminal block, pin spacing: 4.00 mm, 2 pole, current rating: 6.0 A, voltage rating: 250 V, connection type: screwless
Order Info
| reference number (ref. no.) | 351102 |
| PU | 1,500 (tape-on-reel) |
| EAN | 4028012112456 |
Type
| type | terminal block |
| number of poles | 2 pole |
| clamping units per pole | 1 |
| colour | white |
| connection type | screwless |
Technical Data
| voltage rating | 250 V |
| current rating | 6.0 A |
| insulating material | PPA-GF |
| contact material | Spring Steel, Copper |
| core cross-section min. | 0.2 mm² |
| core cross-section max. | 0.75 mm² |
| impulse voltage rating | 4.0 kV |
| flammability rating | V-0 |
| max. Ambient Temperature Operation | 115 °C |
| type of conductor solid | yes |
| type of conductor flexible | yes |
| type of conductor stranded | yes |
| stripping length | 8.0-9.0 mm |
| pin spacing | 4.00 mm |
| lower limit temperature | -40 °C |
| upper limit temperature | 150 °C |
Approvals
| acc. to EN 60947 | Download PDF |
| acc. to UL | Download PDF |
Accessories
| SMDflat 345 KU/ 2 | 351152 |
| SMDflat WKZ | 351199 |
10/02/2022
