Overview

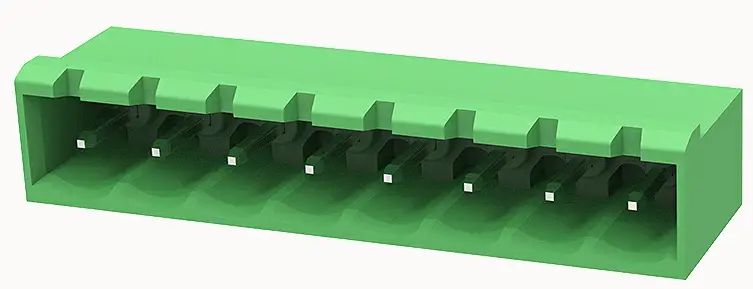

2EDGRC-5.0-10030001451
Pluggable terminal blocks, Rated current:20A.Rated voltage （ Ⅲ /2 ）
:320V,pitch:5.0mm,Color:green,Contact surface :Tin
Product advantages
☑ Universal installation method to ensure a high degree of flexibility in device design
☑ The plug direction is parallel to the PCB
Product certification
Technical data
| Product drawing | |
| 3D model | |
| Processing notes | |
| Process | Wave soldering/manual soldering |
| Electrical parameters UL | |
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated current (B) | 15A |
| Rated current (D) | 10A |
| Electrical parameters IEC | |
| Rated current | 320V |
| 20A | |
| Rated current(III/2) | 320V |
| Rated surge voltage(III/2) | 4KV |
Item properties
| Type of installation | PCB welding |
| Pin arrangement | Single row in a straight line |
| Pitch | 5mm |
| Number of potentials | 8 |
| Pluggable or not | Yes |
| Number of rows | 1 |
| Material data | |
| Environmental items | Compliant with REACH/RoHS |
| Contact material | copper |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | Ⅰ |
| Flammability rating | UL94V-0 |
| Environmental data | |
| Ambient temperature (operation) | -40 ℃~105 ℃ |
Accessories
Tool
| Screwdriver | / |
| Operating tool | / |
| Accessories | |
| Coding strip | / |
| Bridge | / |
| Marking strip | / |
| Others | 2EDG-PWP-01H |
| Business data | |
| Order number | 10030001451 |
| Packing unit | 960 |
| Minimum order quantity | 30 |
| Products weight (without packaging) | 3.28 |
