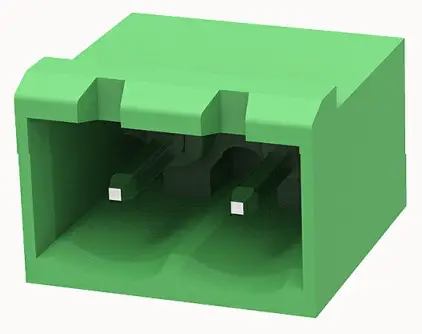

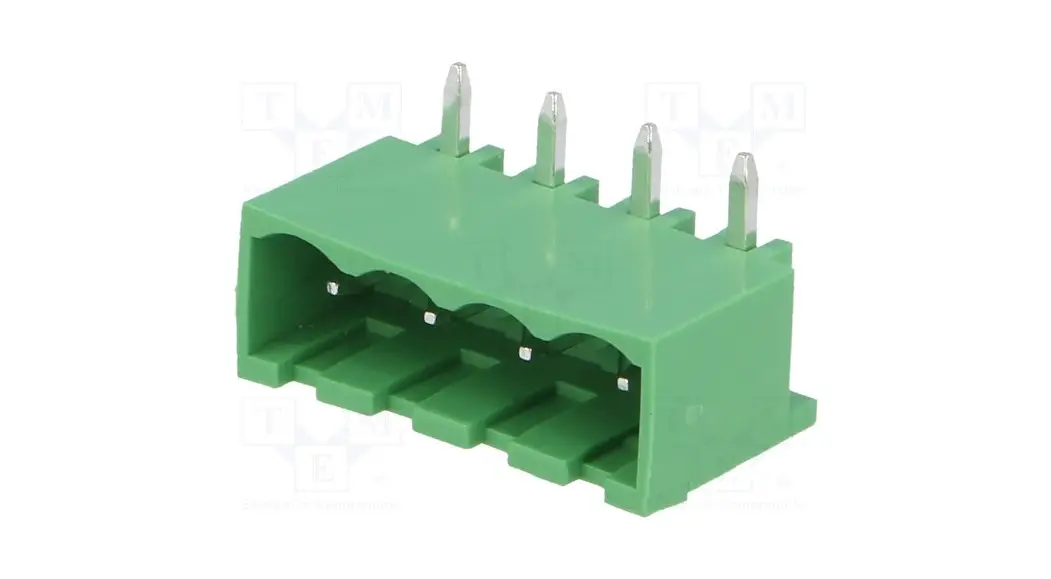

2EDGRC-5.0-10030001444 Pluggable Terminal Block
User Manual
Overview
2EDGRC-5.0-10030001444
Pluggable terminal blocks,Rated current:20A.Rated voltage (III/2) :320V,pitch:5.0mm,Color:green,Contact surface :Tin
Product advantages
☑ The universal installation method to ensure a high degree of flexibility in device design
☑ The plug direction is parallel to the PCB
Product certification
Technical data
Product drawing
3D model
Processing notes
| Process | Wave soldering/manual soldering |
Electrical parameters UL
| Rated voltage (B) | 300V |
| Rated voltage (D) | 300V |
| Rated current (B) | 15A |
| Rated current (D) | 10A |
Electrical parameters IEC
| Rated current | 320V |
| 20A | |
| Rated current(III/2) | 320V |
| Rated surge voltage(III/2) | 4KV |
Item properties
| Type of installation | PCB welding |
| Pin arrangement | A single row in a straight line |
| Pitch | 5mm |
| Number of potentials | 2 |
| Pluggable or not | Yes |
| Number of rows | 1 |
Material data
| Environmental items | Compliant with REACH/RoHS |
| Contact material | copper |
| Contact zone metal surface | tin-plated |
| Insulation Materials | PA66 |
| Insulating material group | I |
| Flammability rating | UL94V-0 |
Mechanical tests
| Test Specification | IEC61984/ UL1059 |
Environmental data
| Ambient temperature (operation) | -40ºC∼105ºC |
Accessories
Tool
| Screwdriver | / |
| Operating tool | / |
| Coding strip | / |
| Bridge | / |
| Marking strip | / |
| Others | 2EDG-PWP-01H |
Business data
| Order number | 10030001444 |
| Packing unit | 200 |
| Minimum order quantity | 30 |
| Products weight (without packaging) | 0.83 |
