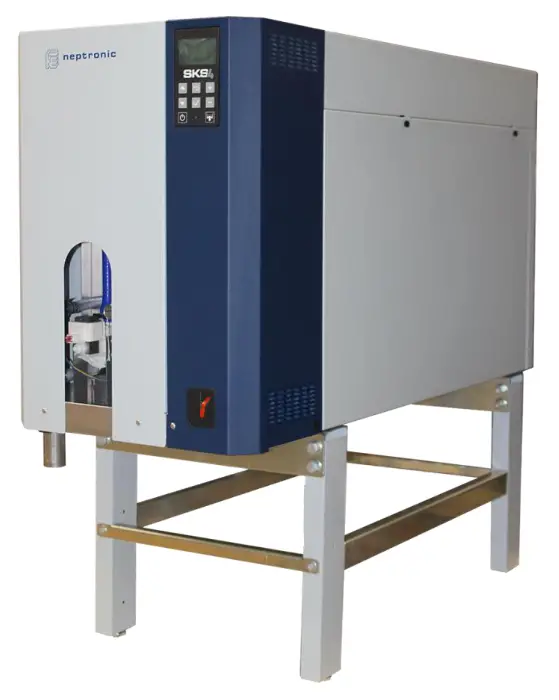

SKS4 Steam to Steam Humidifier
Modbus Communication Module User Guide
SKS4-Modbus Guide-211019
Introduction
The SKS4 Modbus Communication Module User Guide provides information for using Neptronic ® communication feature. The controller uses Modbus communication protocol over the serial line in the RTU mode and provides a Modbus network interface between client devices and Neptronic SKS4 devices.
The SKS4 Modbus Guide assumes that you are familiar with Modbus terminology.
The following are the requirements for Modbus:
- Data Model. The SKS4 Steam to Steam Humidifier Modbus server data model uses only the Modbus Registers table.
- Register Address:
o As per protocol base (base 0); for PLC add 1 to the protocol base.
o As per holding register (base 400001).
Note: Ensure that the Modbus communication software used does not have a limit on the range of the register addresses that can be viewed and supports 6-digit holding registers.
- Function Codes. The SKS4 Steam to Steam Humidifier Modbus server supports a limited function codes subset comprising:
o Read Holding Registers (0x03)
o Write Single Register (0x06)
o Write Multiple Registers (0x10) - Exception Responses. The SKS4 Steam to Steam Humidifier Modbus server supports the following exception codes:
o Illegal data address
o Illegal data value
o Slave device busy - Serial Line. The SKS4 Steam to Steam Humidifier Modbus over serial line uses RTU transmission mode over a two-wire configuration RS485 (EIA/TIA-485 standard) physical layer.
o The physical layer can use fixed baud rate selection or automatic baud rate detection (default) as per the Modbus Auto Baud Rate device menu item or holding register index 1.
o The supported baud rates are 9600, 19200, 38400, and 57600.
o The physical layer also supports variable parity control and stop bit configuration as per the Modbus
Comport Config device menu item or holding register index 2.
o In auto baud rate configuration, if the device detects only consecutive bad frames (2 or more) for one second with any given baud rate, it will reinitialize itself to the next baud rate. - Addressing. The SKS4 Steam to Steam Humidifier device only answers at the following address:
o The device’s unique address (1 to 246) can be set through the device menu or through holding register index 0.
Modbus Registers
Table Glossary
| Name | Description | Name | Description |
| W | Writable Register | ASCII | For registers containing ASCII (8-bit) characters |
| RO | Read Only Register | MSB | Most Significant Byte |
| Unsigned | For range of values from 0 to 65,535, unless otherwise specified | LSB | Least Significant Byte |
| Signed | For range of values from -32,768 to 32,767, unless otherwise specified | MSW | Most Significant Word |
| Bit String | For registers with multiple values using bit mask (example, flags) | LSW | Least Significant Word |
Modbus Registers Table
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 0 | 400001 | Modbus Address and Product Type | Unsigned | MSB = Product type, not writable LSB = Modbus Address (1 to 247), writable | W | |
| 1 | 400002 | Device Baud Rate | Unsigned Scale 100 | 0, 9600, 19200, 38400, and 57600, 0 = Auto Baud Rate Detection Value/100 (e.g. 38400 baud = 384) | W | 19200 |
| 2 | 400003 | Modbus Slave Communication Port Configuration | Unsigned | 0 = No parity, 2 Stop bits 1 = Even parity, 1 Stop bit 2 = Odd parity, 1 Stop bit | W | No parity, 2 Stops bits |
| 3 | 400004 | Product Name (characters 8 & 7) | ASCII | MSB = char 6, LSB = char 7 | W | |
| 4 | 400005 | Product Name (characters 6 & 5) | ASCII | MSB = char 4, LSB = char 5 | W | |
| 5 | 400006 | Product Name (characters 4 & 3) | ASCII | MSB = char 2, LSB = char 3 | W | |
| 6 | 400007 | Product Name (characters 2 & 1) | ASCII | MSB = char 0, LSB = char 1 | W | |
| 7 | 400008 | Product Actual Firmware Version (in Integer x100) | Unsigned Scale 100 | 1 to 65535 (e.g. 100) | RO |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 8 | 400009 | Product Actual EEPROM Version (in Integer x100) | Unsigned Scale 100 | 1 to 65535 (e.g. 100) | RO | |
| 2000 | 402001 | Control Signal | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 15V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2001 | 402002 | Room RH Signal | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 15V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2002 | 402003 | Supply RH Signal | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 15V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2003 | 402004 | Water Level Signal | Unsigned Scale 1 | Units: Hz, Range: 0 to 30000Hz Value x 1 (e.g. 10Hz = 10) | RO | 0Hz |
| 2004 | 402005 | Water Level Low Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2005 | 402006 | Water Level High Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2006 | 402007 | Water Temperature Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2007 | 402008 | Foam Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2008 | 402009 | Cabinet Temperature Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2009 | 402010 | Board Temperature Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2010 | 402011 | Main Power Supply | Unsigned Scale 10 | Unit: Volt (V), Range: 0V to 40V Value x 10 (e.g. 1V = 10) | RO | 0V |
| 2011 | 402012 | Steam Valve Feedback Signal | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 10.5V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 4000 | 404001 | Steam Output Feedback Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 4001 | 404002 | Steam Valve Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 6000 | 406001 | Control Input | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6001 | 406002 | Control Min | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6002 | 406003 | Control Max | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6003 | 406004 | Control Bias | Signed Scale 100 | Unit: %, Range: -10% to 10% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6004 | 406005 | Room RH | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6005 | 406006 | Room RH Min | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6006 | 406007 | Room RH Max | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6007 | 406008 | Room RH Bias | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6008 | 406009 | Supply High Limit RH | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6009 | 406010 | Supply High Limit RH Min | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6010 | 406011 | Supply High Limit RH Max | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6011 | 406012 | Supply High Limit RH Bias | Signed Scale 100 | Unit: %, Range: -10% to 10% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6012 | 406013 | Water Temperature Signal Min | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 6013 | 406014 | Water Temperature Signal Max | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 6014 | 406015 | Water Temperature | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 50°C or 122°F |
| 6015 | 406016 | Water Temperature Min | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 250°C or 32°F to 482°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6016 | 406017 | Water Temperature Max | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 250°C or 32°F to 482°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 125°C or 257°F |
| 6017 | 406018 | Water Temperature Bias | Unsigned Scale 100 | Unit: ºC/ºF, Range: -10°C to 10°C or -18°F to 18°F Value x 100 (e.g. 5°C = 500 or 14ºF = 1400) | RO | 0°C or 32°F |
| 6018 | 406019 | Cabinet Temperature | Unsigned Scale 100 | Unit: ºC/ºF, Range: -20°C to 100°C or -4°F to 212°F Value x 100 (e.g. 5°C = 500 or 10ºF = 1000) | RO | 0°C or 32°F |
| 6019 | 406020 | Modbus TCP IP Keep Alive Time Out (0) | Unsigned Scale 1 | Unit: Minutes (min), Range: 1 to 1440 mins Value x 1 (e.g. 5 mins = 5) | W | 5 min |
| 6020 | 406021 | Modbus TCP IP Keep Alive Time Out (1) | Unit: Minutes (min), Range: 1 to 1440 mins | |||
| 6021 | 406022 | HRL Temperature | Signed Scale 100 | Unit: ºC/ºF, Range: -40°C to 260°C or -40°F to 500°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6022 | 406023 | HRL Humidity | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 1% RH = 100) | RO | 0% RH |
| 6023 | 406024 | Board Temperature | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 100°C or 32°F to 212°F Value x 100 (e.g. 5°C = 500 or 32ºF = 3200) | RO | 0°C or 32°F |
| 6024 | 406025 | Power Output Feedback Bias | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | W | 0V |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6025 | 406026 | Power Output Feedback Min | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | W | 0V |
| 6026 | 406027 | Power Output Feedback Max | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | W | 0V |
| 6027 | 406028 | Power Output Feedback | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | RO | 0% |
| 6028 | 406029 | Steam Valve Control | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | RO | 0% |
| 6029 | 406030 | Water Level | Unsigned Scale 10 | Unit: %, Range: 0% to 120% Value x 10 (e.g. 10% = 100) | RO | 78% |
| 6030 | 406031 | Water Probe Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6031 | 406032 | Water Probe High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6032 | 406033 | Water Probe Abs Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6033 | 406034 | Water Probe Abs High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6034 | 406035 | Room RH Network Reading | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6035 | 406036 | Room RH Setpoint | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 40% RH |
| 6036 | 406037 | Room RH Unoccupied Setpoint | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 30% RH |
| 6037 | 406038 | Room RH Vacant Setpoint | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 20% RH |
| 6038 | 406039 | Room Demand Proportional Gain | Unsigned Scale 10 | No Unit, Range: 1 to 200 Value x 10 (e.g. 10 = 100) | W | 20 |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6039 | 406040 | Room Demand Integral Time | Unsigned Scale 10 | Unit: sec, Range: 0 to 900 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| 6040 | 406041 | Room Demand Derivative Time | Unsigned Scale 10 | Unit: sec, Range: 0 to 60 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| 6041 | 406042 | Room Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6042 | 406043 | Room Demand Proportional Band (0) | Unsigned Scale 10 | Unit: %, Range: 1% to 100% Value x 10 (e.g. 10% RH = 100) | W | 5% |
| 6043 | 406044 | Room Demand Proportional Band (1) | Unit: %, Range: 1% to 100% | |||
| 6044 | 406045 | Supply High Limit Network Reading | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6045 | 406046 | Supply High Limit Setpoint | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 80% RH |
| 6046 | 406047 | Supply High Limit Proportional Gain | Unsigned Scale 10 | No Unit, Range: 1 to 200 Value x 10 (e.g. 10 = 100) | W | 10 |
| 6047 | 406048 | Supply High Limit Integral Time | Unsigned Scale 10 | Unit: sec, Range: 0 to 900 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| 6048 | 406049 | Supply High Limit Derivative Time | Unsigned Scale 10 | Unit: sec, Range: 0 to 60 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| 6049 | 406050 | Supply High Limit Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6050 | 406051 | Supply High Limit Proportional Band (0) | Unsigned Scale 10 | Unit: %, Range: 1% to 100% Value x 10 (e.g. 10% RH = 100) | W | 10% |
| 6051 | 406052 | Supply High Limit Proportional Band (1) | Unit: %, Range: 1% to 100% | |||
| 6052 | 406053 | Humidity Control Network Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6053 | 406054 | Humidity Control Network High Limit | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 100% RH |
| 6054 | 406055 | Humidity Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6055 | 406056 | Humidity Demand Low Dead Band (0) | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 1% |
| 6056 | 406057 | Humidity Demand Low Dead Band (1) | Unit: %, Range: 0% to 100% | |||
| 6057 | 406058 | Network Timeout (0) | Unsigned Scale 1 | Unit: Seconds (sec), Range: 1 to 900 sec Value x 1 (e.g. 10sec = 10) | W | 900 sec |
| 6058 | 406059 | Network Timeout (1) | Unit: Seconds (sec), Range: 1 to 900 sec | |||
| 6059 | 406060 | System Power Output | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | RO | 0% |
| 6060 | 406061 | System Steam Capacity | Unsigned Scale 10 | Unit: kg/hr or lb/hr, Range: 0 to 300 kg/hr or 0 to 66 1lb/hr Value x 10 (e.g. 10 kg/hr = 100 or 10 lb/hr = 100) | RO | 0 kg/hr or 0 lb/hr |
| 6061 | 406062 | Water Level Replace Interval (0) | Unsigned Scale 1 | Unit: Days, Range: 0 day to 7 days Value x 1 (e.g. 1 day = 1) | W | 7day |
| 6062 | 406063 | Water Level Replace Interval (1) | Unit: Days, Range: 0 day to 7 days Value x 1 (e.g. 1 day = 1) | |||
| 6063 | 406064 | Boiler Anti-freeze Keep Warm Setpoint (0) | Signed Scale 100 | Unit: ºC/ºF, Range: -40ºC to 100ºC or -40ºF to 212ºF Value x 100 (e.g. 10ºC = 1000 or 40ºF = 4000) | RO | 30°C or 86°F |
| 6064 | 406065 | Boiler Anti-freeze Keep Warm Setpoint (1) | Unit: ºC/ºF, Range: -40ºC to 100ºC or -40ºF to 212ºF | |||
| 6065 | 406066 | Boiler Anti-freeze Keep Warm (0) | Signed Scale 100 | Unit: ºC/ºF, Range: -40ºC to 100ºC or -40ºF to 212ºF Value x 100 (e.g. 10ºC = 1000 or 40ºF = 4000) | RO | 10°C or 50°F |
| 6066 | 406067 | Boiler Anti-freeze Keep Warm (1) | Unit: ºC/ºF, Range: -40ºC to 100ºC or -40ºF to 212ºF | |||
| 6067 | 406068 | Boiler Anti-freeze Drain (0) | Signed Scale 100 | Unit: ºC/ºF, Range: -40ºC to 100ºC or -40ºF to 212ºF Value x 100 (e.g. 10ºC = 1000 or 40ºF = 4000) | RO | 1°C or 34°F |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6068 | 406069 | Boiler Anti-freeze Drain (1) | Unit: ºC/ºF, Range: -40ºC to 100ºC or -40ºF to 212ºF | |||
| 6069 | 406070 | Boiler Demand | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6070 | 406071 | Boiler Capacity | Unsigned Scale 10 | Unit: kg/hr or lb/hr, Range: 0 to 3000kg/hr or 0 to 6613.8lb/hr Value x 10 (e.g. 10 kg/hr = 100 or 10 lb/hr = 100) | RO | 15 kg/hr or 33.06 lb/hr |
| 6071 | 406072 | Boiler Power Output | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | RO | 0% |
| 6072 | 406073 | Boiler Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 21474836.47 h Value x 100 (e.g. 10h = 1000) | RO | 0h |
| 6073 | 406074 | Boiler Run Time (1) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6074 | 406075 | Boiler Run Time (2) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6075 | 406076 | Boiler Run Time (3) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6076 | 406077 | Boiler On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 21474836.47 h Value x 100 (e.g. 10h = 1000) | RO | 0h |
| 6077 | 406078 | Boiler On Time (1) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6078 | 406079 | Boiler On Time (2) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6079 | 406080 | Boiler On Time (3) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6080 | 406081 | Boiler Service Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 21474836.47 h Value x 100 (e.g. 10h = 1000) | RO | 0h |
| 6081 | 406082 | Boiler Service Run Time (1) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6082 | 406083 | Boiler Service Run Time (2) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6083 | 406084 | Boiler Service Run Time (3) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6084 | 406085 | Boiler Service On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 21474836.47 h Value x 100 (e.g. 10h = 1000) | RO | 0h |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6085 | 406086 | Boiler Service On Time (1) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6086 | 406087 | Boiler Service On Time (2) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6087 | 406088 | Boiler Service On Time (3) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6088 | 406089 | Boiler Minimum Steam Output | Unsigned Scale 1 | Unit: %, Range: 1% to 25% Value x 1 (e.g. 1% = 1) | W | 5% |
| 6089 | 406090 | Boiler Drain Interval | Unsigned Scale 1 | Units: Hours (h), Range: 0 to 24 h Value x 1 (e.g. 1 h = 1) | W | 6h |
| 6090 | 406091 | Boiler Drain Volume | Unsigned Scale 1 | Unit: %, Range: 25% to 100% Value x 1 (e.g. 30% = 300) | W | 100% |
| 6091 | 406092 | Boiler Max Steam Output | Unsigned Scale 1 | Unit: %, Range: 0% to 100% Value x 1 (e.g. 30% = 300) | W | 100% |
| 6092 | 406093 | Boiler Idle Time Drain | Unsigned Scale 1 | Unit: Hours (h), Range: 0 to 72 h Value x 1 (e.g. 1 h = 1) | W | 24h |
| 6093 | 406094 | Boiler Idle Temperature Setpoint | Unsigned Scale 1 | Unit: ºC/ºF, Range: 0°C to 60°C or 32°F or 140°F Value x 1 (e.g. 5°C = 500 or 32ºF = 3200) | W | 0°C or 32°F |
| 6094 | 406095 | Boiler Blowdown Rate | Unsigned Scale 1 | Unit: %, Range: 0% to 100% Value x 1 (e.g.1% = 1) | W | 0% |
| 6095 | 406096 | Boiler Service Interval | Unsigned Scale 1 | Unit: Hours (h), Range: 1000 to 3000 h Value x 1 (e.g. 1500 h = 1500) | W | 1000h |
| 6096 | 406097 | Boiler Idle Tank Rinse Interval | Unsigned Scale 1 | Unit: Days, Range: 1 to 7 days Value x 1 (e.g. 1 day = 1) | W | 3 day |
| 6097 | 406098 | Actuator Deadband | Unsigned Scale 1 | Unit: %, Range: 0% to 25% Value x 1 (e.g. 5% = 5) | W | 5% |
| 6098 | 406099 | Boiler Manual Calibration Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 21474836.47 h Value x 100 (e.g. 10h = 1000) | RO | 0h |
| 6099 | 406100 | Boiler Manual Calibration Time (1) | Units: Hours (h), Range: 0 to 21474836.47 h |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6100 | 406101 | Boiler Manual Calibration Time (2) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6101 | 406102 | Boiler Manual Calibration Time (4) | Units: Hours (h), Range: 0 to 21474836.47 h | |||
| 6102 | 406103 | Steam Valve Feedback | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | RO | 0% |
| 10000 | 410001 | Air Flow | Unsigned Scale 1 | 0 = Closed 1 = Open | RO | Closed |
| 10001 | 410002 | Supply High Limit | Unsigned Scale 1 | 0 = Closed 1 = Open | RO | Closed |
| 10002 | 410003 | Interlock | Unsigned Scale 1 | 0 = Closed 1 = Open | RO | Closed |
| 10003 | 410004 | Binary External Demand | Unsigned Scale 1 | 0 = 0% 1 = 100% | RO | 0% |
| 10004 | 410005 | Water Leak Detection | Unsigned Scale 1 | 0 = Ok 1 = Leak | RO | Ok |
| 10005 | 410006 | Thermal Cutout | Unsigned Scale 1 | 0 = Closed 1 = Open | RO | Closed |
| 10006 | 410007 | RS485 Interface | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| 10007 | 410008 | Ethernet Interface | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| 10008 | 410009 | Contactors PCB Fuse | Unsigned Scale 1 | 0 = Normal 1 = Blown Fuse | RO | Normal |
| 10009 | 410010 | Control PCB Fuse | Unsigned Scale 1 | 0 = Normal 1 = Open Fuse | RO | Normal |
| 11000 | 411001 | Drain Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 11001 | 411002 | Alarm Warning Relay | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11002 | 411003 | Service Warning Relay | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11003 | 411004 | Water Level Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11004 | 411005 | Tank Water Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11005 | 411006 | Drain Cooler Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11006 | 411007 | Drain Pump | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11007 | 411008 | Drain Pump 2 | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11008 | 411009 | Drain Pump 3 | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11009 | 411010 | Alarm LED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11010 | 411011 | Power LED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11011 | 411012 | Buzzer | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12000 | 412001 | Network Control State | Unsigned Scale 1 | 0 = Normal 1 = Fault | W | Normal |
| 12001 | 412002 | Water Level Low | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 12002 | 412003 | Water Level High | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12003 | 412004 | Foam Sensor | Unsigned Scale 1 | 0 = NoFoam 1 = Foam | RO | NoFoam |
| 12004 | 412005 | HRL Lock Setpoint | Unsigned Scale 1 | 0 = Unlock 1 = Lock | W | Unlock |
| 12005 | 412006 | Notify Alarm | Unsigned Scale 1 | 0 = Off 1 = On | W | Off |
| 12006 | 412007 | Notify Warning | Unsigned Scale 1 | 0 = Off 1 = On | W | Off |
| 12007 | 412008 | Notify App Msg | Unsigned Scale 1 | 0 = Off 1 = On | W | Off |
| 12008 | 412009 | Inhibit Resistive Probe | Unsigned Scale 1 | 0 = No 1 = Yes | W | No |
| 12009 | 412010 | Boiler Service Operation | Unsigned Scale 1 | 0 = Not Allowed 1 = Allowed | W | Allowed |
| 12010 | 412011 | Boiler Service Due | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12011 | 412012 | Foam | Unsigned Scale 1 | 0 = Ok 1 = Detected | RO | Ok |
| 12012 | 412013 | Boiler Line Rinse | Unsigned Scale 1 | 0 = Off 1 = On | W | On |
| 12013 | 412014 | Power Up Drain | Unsigned Scale 1 | 0 = Off 1 = On | W | Off |
| 12014 | 412015 | Manual Water Calibration State | Unsigned Scale 1 | 0 = Ok 1 = Required | RO | Ok |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
| 15000 | 415001 | System Power State | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
|
15001 |
415002 |
System Log Verbose Level | Unsigned Scale 1 | 0 = None 1 = Emergency 2 = Alert 3 = Critical 4 = Error | 5 = Warning 6 = Notice 7 = Info 8 = Debug |
W |
Debug |
| 15002 | 415003 | Modbus Server Units | Unsigned Scale 1 | 0 = Metric 1 = Imperial | W | Metric | |
| 15003 | 415004 | Control Signal Type | Unsigned Scale 1 | 0 = 0-10Vdc 1 = 2-10Vdc | 2 = 4-20mA 3 = 0-20mA | W | 0-10Vdc |
| 15004 | 415005 | Room RH Signal Type | Unsigned Scale 1 | 0 = 0-10Vdc 1 = 2-10Vdc | 2 = 4-20mA 3 = 0-20mA | W | 0-10Vdc |
| 15005 | 415006 | Supply RH Signal Type | Unsigned Scale 1 | 0 = 0-10Vdc 1 = 2-10Vdc | 2 = 4-20mA 3 = 0-20mA | W | 0-10Vdc |
| 15006 | 415007 | Control Profile | Unsigned Scale 1 | 0 = ExternAnalog 1 = ExternNetwork 2 = InternAnalog | 3 = InternNetwork 4 = HRL 5 = Custom | W | ExternAnalog |
| 15007 | 415008 | Modulating High Limit Profile | Unsigned Scale 1 | 0 = Disabled 1 = ExternAnalog 2 = ExternNetwork | 3 = InternAnalog 4 = InternNetwork 5 = Custom | W | Disabled |
| 15008 | 415009 | Occupancy State | Unsigned Scale 1 | 0 = Occupied 1 = Unoccupied | 2 = Vacant 3 = Off | RO | Occupied |
| 15009 | 415010 | Room RH Source | Unsigned Scale 1 | 0 = None 1 = RoomRH | 2 = Network | W | None |
| 15010 | 415011 | Room RH Setpoint Source | Unsigned Scale 1 | 0 = None 1 = Internal | 2 = ControlInput | W | None |
| 15011 | 415012 | Supply High Limit Reading Source | Unsigned Scale 1 | 0 = None 1 = SuppyHLRH | 2 = Network | W | None |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
| 15012 | 415013 | Supply High Limit Setpoint Source | Unsigned Scale 1 | 0 = None 1 = Internal | 2 = ControlInput | W | None |
| 15013 | 415014 | Humidity Control Demand Source | Unsigned Scale 1 | 0 = None 1 = ControlInput | 2 = RoomDemand 3 = Network | W | ControlInput |
| 15014 | 415015 | Humidity Control High Limit Source | Unsigned Scale 1 | 0 = None 1 = ControlInput | 2 = SupplyHLDemand 3 = Network | W | None |
| 15015 | 415016 | Humidity Control Cutout State | Unsigned Scale 1 | 0 = Off 1 = Normal 2 = LowLimit | 3 = HighLimit 4 = NoAirFlow 5 = Interlock | RO | Off |
| 15016 | 415017 | Boiler Request | Unsigned Scale 1 | 0 = None 1 = Reset Alarms 2 = Drain | 3 = Reset Counters 4 = Filling 5 = WaterCalib | W | None |
|
15017 |
415018 |
Boiler State | Unsigned Scale 1 | 0 = Off 1 = Idle 2 = LineRinse 3 = TankRinse 4 = Filling | 5 = Draining 6 = Heating 7 = Boiling 8 = Alarm |
RO |
Off |
| 15018 | 415019 | Boiler Fill Mode | Unsigned Scale 1 | 0 = OneShot 1 = Pulsed | W | Pulsed | |
|
15019 |
415020 |
Boiler Alarm |
Unsigned Scale 1 | 0 = Normal 1 = FailedPump 2 = FillTimeout 3 = BlockedPiping 4 = HeatTimeout 5 = Overheat | 6 = WaterLeak 7 = Service 8 is Reserved 9 = TankBlocked 10 = RefillDelay |
RO |
Normal |
| 15020 | 415021 | Boiler Idle Tank Rinse On | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
| 15021 | 415022 | Boiler Idle Tank Rinse Off | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
| 15022 | 415023 | Water Probe Auto Calib | Unsigned Scale 1 | 0 = None 1 = Once | 2 = Always | W | Always |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
| 15023 | 415024 | Boiler Startup Tank Rinse | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
| 15024 | 415025 | Water Level Probe Warning | Unsigned Scale 1 | 0 = Ok 1 = Replace | RO | OK | |
| 15025 | 415026 | Water Level Probe Failure | Unsigned Scale 1 | 0 = None 1 = Capacitive | 2 = Resistive 3 = Both | RO | None |
| 15026 | 415027 | Water Level Probe Alarm | Unsigned Scale 1 | 0 = OK 1 = Defect | 2 = NoCalib | RO | Ok |
Notes………………..
400 Lebeau blvd, Montreal, Qc, H4N 1R6, Canada
www.neptronic.com
Toll free in North America: 1-800-361-2308
Tel.: (514) 333-1433
Fax: (514) 333-3163
Customer service fax: (514) 333-1091
Monday to Friday: 8:00am to 5:00pm (Eastern time)
Neptronic | Home - Humidifier Distributor & HVAC Products
