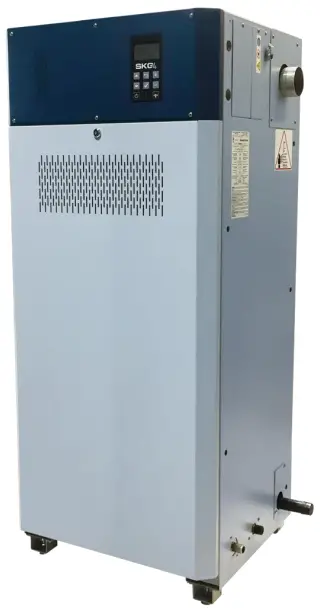

neptronic SKG4 Gas Fired Humidifier
Introduction
The SKG4 Modbus Communication Module User Guide provides information for using Neptronic® communication feature. The controller uses Modbus communication protocol over serial line in the RTU mode and provides a Modbus network interface between client devices and Neptronic SKG4 devices.
The SKG4 Modbus Guide assumes that you are familiar with Modbus terminology.
The following are the requirements for Modbus:
- Data Model. The SKG4 Gas Fired Humidifier Modbus server data model uses only the Modbus Registers table.
- Register Address:
- As per protocol base (base 0); for PLC add 1 to protocol base.
- As per holding register (base 400001).
Note: Ensure that the Modbus communication software used does not have a limit on the range of the register addresses that can be viewed and supports 6-digit holding registers.
- Function Codes. The SKG4 Gas Fired Humidifier Modbus server supports a limited function codes subset comprising:
- Read Holding Registers (0x03)
- Write Single Register (0x06)
- Write Multiple Registers (0x10)
- Exception Responses. The SKG4 Gas Fired Humidifier Modbus server supports the following exception codes:
- Illegal data address
- Illegal data value
- Slave device busy
- Serial Line. The SKG4 Gas Fired Humidifier Modbus over serial line uses RTU transmission mode over a two-wire configuration RS485 (EIA/TIA-485 standard) physical layer.
- The physical layer can use fixed baud rate selection or automatic baud rate detection (default) as per the Modbus Auto Baud Rate device menu item or holding register index 1.
- The supported baud rates are 9600, 19200, 38400, and 57600.
- The physical layer also supports variable parity control and stop bit configuration as per the Modbus Comport Config device menu item or holding register index 2.
- In auto baud rate configuration, if the device detects only consecutive bad frames (2 or more) for one second with any given baud rate, it will reinitialize itself to the next baud rate.
- Addressing. The SKG4 Gas Fired Humidifier device only answers at the following address:
- The device’s unique address (1 to 246) that can be set through the device menu or through holding register index 0.
Modbus Registers
Table Glossary
| Name | Description | Name | Description |
| W | Writable Register | ASCII | For registers containing ASCII (8-bit) characters |
| RO | Read Only Register | MSB | Most Significant Byte |
| Unsigned | For range of values from 0 to 65,535, unless otherwise specified | LSB | Least Significant Byte |
| Signed | For range of values from -32,768 to 32,767, unless otherwise specified | MSW | Most Significant Word |
| Bit String | For registers with multiple values using bit mask (example, flags) | LSW | Least Significant Word |
Modbus Registers Table
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 0 | 400001 | Modbus Address and Product Type | Unsigned | MSB = Product type, not writable LSB = Modbus Address (1 to 247), writable | W | |
| 1 | 400002 | Device Baud Rate | Unsigned Scale 100 | 0, 9600, 19200, 38400, and 57600, 0 = Auto Baud Rate Detection Value/100 (e.g. 38400 baud = 384) | W | 19200 |
| 2 | 400003 | Modbus Slave Communication Port Configuration | Unsigned | 0 = No parity, 2 Stop bits 1 = Even parity, 1 Stop bit 2 = Odd parity, 1 Stop bit | W | No parity, 2 Stops bits |
| 3 | 400004 | Product Name (characters 8 & 7) | ASCII | MSB = char 6, LSB = char 7 | W | |
| 4 | 400005 | Product Name (characters 6 & 5) | ASCII | MSB = char 4, LSB = char 5 | W | |
| 5 | 400006 | Product Name (characters 4 & 3) | ASCII | MSB = char 2, LSB = char 3 | W | |
| 6 | 400007 | Product Name (characters 2 & 1) | ASCII | MSB = char 0, LSB = char 1 | W |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 7 | 400008 | Product Actual Firmware Version (in Integer x100) | Unsigned Scale 100 | 1 to 65535 (e.g. 100) | RO | |
| 8 | 400009 | Product Actual EEPROM Version (in Integer x100) | Unsigned Scale 100 | 1 to 65535 (e.g. 100) | RO | |
| 2000 | 402001 | Supply RH Signal (0) | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 15V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2001 | 402002 | Supply RH Signal (1) | Units: Volt (V), Range: 0V to 15V | |||
| 2002 | 402003 | Room RH Signal (0) | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 15V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2003 | 402004 | Room RH Signal (1) | Units: Volt (V), Range: 0V to 15V | |||
| 2004 | 402005 | Control Signal (0) | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 15V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2005 | 402006 | Control Signal (1) | Units: Volt (V), Range: 0V to 15V | |||
| 2006 | 402007 | Cabinet Temperature Signal | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 2007 | 402008 | Main Power Supply (0) | Unsigned Scale 10 | Unit: Volt (V), Range: 0V to 40V Value x 10 (e.g. 1V = 10) | RO | 0V |
| 2008 | 402009 | Main Power Supply (1) | Unit: Volt (V), Range: 0V to 40V | |||
| 4000 | 404001 | Power Output Feedback Signal | Unsigned Scale 1000 | Unit: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | RO | 0V |
| 6000 | 406001 | Supply High Limit RH | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6001 | 406002 | Supply High Limit RH Min | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6002 | 406003 | Supply High Limit RH Max | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 100% RH |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6003 | 406004 | Supply High Limit RH Bias | Signed Scale 100 | Unit: % RH, Range: -10% RH to 10% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6004 | 406005 | Room RH | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6005 | 406006 | Room RH Min | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 100% RH |
| 6006 | 406007 | Room RH Max | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 100% RH |
| 6007 | 406008 | Room RH Bias | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 100% RH |
| 6008 | 406009 | Control Input | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | RO | 0% |
| 6009 | 406010 | Control Min | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6010 | 406011 | Control Max | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 0% |
| 6011 | 406012 | Control Bias | Signed Scale 100 | Unit: % RH, Range: -10% RH to 10% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6012 | 406013 | Board Temperature | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 100°C or 32°F to 212°F Value x 100 (e.g. 5°C = 500 or 32ºF = 3200) | RO | 0°C or 32°F |
| 6013 | 406014 | Power Output Feedback Bias | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | W | 0V |
| 6014 | 406015 | Power Output Feedback Min | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | W | 0V |
| 6015 | 406016 | Power Output Feedback Max | Unsigned Scale 1000 | Units: Volt (V), Range: 0V to 10V Value x 1000 (e.g. 1V = 1000) | W | 10V |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6016 | 406017 | Power Output Feedback | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | RO | 0% |
| 6017 | 406018 | Module 1 Water Level | Unsigned Scale 10 | Unit: %, Range: 0% to 120% Value x 100 (e.g. 10% = 1000) | RO | 78% |
| 6018 | 406019 | Module 1 Water Probe Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6019 | 406020 | Module 1 Water Probe High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6020 | 406021 | Module 1 Water Probe Abs Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6021 | 406022 | Module 1 Water Probe Abs High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6022 | 406023 | Module 2 Water Level | Unsigned Scale 10 | Unit: %, Range: 0% to 120% Value x 100 (e.g. 10% = 1000) | RO | 78% |
| 6023 | 406024 | Module 2 Water Probe Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6024 | 406025 | Module 2 Water Probe High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6025 | 406026 | Module 2 Water Probe Abs Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6026 | 406027 | Module 2 Water Probe Abs High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6027 | 406028 | Module 3 Water Level | Unsigned Scale 10 | Unit: %, Range: 0% to 120% Value x 100 (e.g. 10% = 1000) | RO | 78% |
| 6028 | 406029 | Module 3 Water Probe Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6029 | 406030 | Module 3 Water Probe High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6030 | 406031 | Module 3 Water Probe Abs Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6031 | 406032 | Module 3 Water Probe Abs High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6032 | 406033 | Module 4 Water Level | Unsigned Scale 10 | Unit: %, Range: 0% to 120% Value x 100 (e.g. 10% = 1000) | RO | 78% |
| 6033 | 406034 | Module 4 Water Probe Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6034 | 406035 | Module 4 Water Probe High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6035 | 406036 | Module 4 Water Probe Abs Low Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000Hz |
| 6036 | 406037 | Module 4 Water Probe Abs High Pos Reading | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 30000HZ |
| 6037 | 406038 | Room RH Network Reading | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6038 | 406039 | Room RH Setpoint | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 40% RH |
| 6039 | 406040 | Room RH Unoccupied Setpoint | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 30% RH |
| 6040 | 406041 | Room RH Vacant Setpoint | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 20% RH |
| 6041 | 406042 | Room Demand Proportional Gain | Unsigned Scale 10 | No Unit, Range: 1 to 200 Value x 10 (e.g. 1 = 10) | W | 20 |
| 6042 | 406043 | Room Demand Integral Time | Unsigned Scale 10 | Unit: Seconds (sec), Range: 0 to 900 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| 6043 | 406044 | Room Demand Derivative Time | Unsigned Scale 10 | Unit: Seconds (sec), Range: 0 to 60 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6044 | 406045 | Room Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6045 | 406046 | Room Demand Proportional Band | Unsigned Scale 10 | Unit: %, Range: 0% to 100% Value x 10 (e.g. 10% = 100) | W | 5% |
| 6046 | 406047 | Supply High Limit Network Reading | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6047 | 406048 | Supply High Limit Setpoint | Unsigned Scale 100 | Unit: %, RH Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 80% RH |
| 6048 | 406049 | Supply High Limit Proportional Gain | Unsigned Scale 10 | No Unit, Range: 1 to 200 Value x 10 (e.g. 10 = 100) | W | 10 |
| 6049 | 406050 | Supply High Limit Integral Time | Unsigned Scale 10 | Unit: Seconds (sec), Range: 0 to 900 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| 6050 | 406051 | Supply High Limit Derivative Time | Unsigned Scale 10 | Unit: Seconds (sec), Range: 0 to 60 sec Value x 10 (e.g. 10sec = 100) | W | 0 sec |
| 6051 | 406052 | Supply High Limit Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | RO | 0% RH |
| 6052 | 406053 | Humidity Control Network Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 0% RH |
| 6053 | 406054 | Humidity Control Network High Limit | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 10% RH = 1000) | W | 100% RH |
| 6054 | 406055 | Humidity Demand | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 1% RH = 100) | RO | 0% RH |
| 6055 | 406056 | Network Timeout (0) | Unsigned Scale 1 | Unit: Seconds (sec), Range: 1 to 900 sec Value x 1 (e.g. 10sec = 10) | W | 900 sec |
| 6056 | 406057 | Network Timeout (1) | Unit: Seconds (sec), Range: 1 to 900 sec | |||
| 6057 | 406058 | Humidity Demand Low Dead Band (0) | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | W | 1% |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6058 | 406059 | Humidity Demand Low Dead Band (1) | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | |||
| 6059 | 406060 | System Power Output | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 10% = 1000) | RO | 0% |
| 6060 | 406061 | System Steam Capacity | Unsigned Scale 10 | Unit: kg/hr or lb/hr, Range: 0 to 3000 kg/hr or 0 to 6614 lb/hr Value x 10 (e.g. 10 kg/hr = 100 or 10 lb/hr = 100) | RO | 0 kg/hr or 0 lb/hr |
| 6061 | 406062 | Module 1 Manual Calibration Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6062 | 406063 | Module 1 Manual Calibration Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | RO | 0h | |
| 6063 | 406064 | Module 1 Manual Calibration Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | RO | 0h | |
| 6064 | 406065 | Module 1 Manual Calibration Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | RO | 0h | |
| 6065 | 406066 | Module 1 Chimney Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6066 | 406067 | Module 1 Chimney Temp (1) | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F | |||
| 6067 | 406068 | Module 1 Water Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6068 | 406069 | Module 1 Water Temp (1) | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F | |||
| 6069 | 406070 | Module 1 Water Frequency (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| 6070 | 406071 | Module 1 Water Frequency (1) | Unit: Hz, Range: 0 to 30000 Hz | |||
| 6071 | 406072 | Module 1 Ambient Temp (0) | Signed Scale 100 | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6072 | 406073 | Module 1 Ambient Temp (1) | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F | |||
| 6073 | 406074 | Module 1 Fan Feedback (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 2000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6074 | 406075 | Module 1 Fan Feedback (1) | Unit: Hz, Range: 0 to 2000 Hz | |||
| 6075 | 406076 | Module 1 Fan PWM (0) | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | RO | 0% |
| 6076 | 406077 | Module 1 Fan PWM (1) | Unit: %, Range: 0% to 100% | |||
| 6077 | 406078 | Module 1 Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6078 | 406079 | Module 1 Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6079 | 406080 | Module 1 Run Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6080 | 406081 | Module 1 Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6081 | 406082 | Module 1 Service On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6082 | 406083 | Module 1 Service On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6083 | 406084 | Module 1 Service On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6084 | 406085 | Module 1 Service On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6085 | 406086 | Module 1 Service Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6086 | 406087 | Module 1 Service Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6087 | 406088 | Module 1 Service Run Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6088 | 406089 | Module 1 Service Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6089 | 406090 | Module 1 On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6090 | 406091 | Module 1 On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6091 | 406092 | Module 1 On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6092 | 406093 | Module 1 On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6093 | 406094 | Module 1 Demand | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 0% |
| 6094 | 406095 | Module 1 Max Steam Output | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 100% |
| 6095 | 406096 | Module 1 Ignition Count (0) | Unsigned Scale 1 | No unit, 0 to 214748364 Value x 1 (e.g. 1 = 1) | RO | 0 |
| 6096 | 406097 | Module 1 Ignition Count (1) | No unit, 0 to 214748364 | |||
| 6097 | 406098 | Module 1 Ignition Count (2) | No unit, 0 to 214748364 | |||
| 6098 | 406099 | Module 1 Ignition Count (3) | No unit, 0 to 214748364 | |||
| 6099 | 406100 | Module 2 Chimney Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6100 | 406101 | Module 2 Chimney Temp (1) | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F | |||
| 6101 | 406102 | Module 2 Water Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6102 | 406103 | Module 2 Water Temp (1) | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F | |||
| 6103 | 406104 | Module 2 Water Frequency (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| 6104 | 406105 | Module 2 Water Frequency (1) | Unit: Hz, Range: 0 to 30000 Hz | |||
| 6105 | 406106 | Module 2 Ambient Temp (0) | Signed Scale 100 | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6106 | 406107 | Module 2 Ambient Temp (1) | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F | |||
| 6107 | 406108 | Module 2 Fan Feedback (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 2000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| 6108 | 406109 | Module 2 Fan Feedback (1) | Unit: Hz, Range: 0 to 2000 Hz | |||
| 6109 | 406110 | Module 2 Fan PWM (0) | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | RO | 0% |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6110 | 406111 | Module 2 Fan PWM (1) | Unit: %, Range: 0% to 100% | |||
| 6111 | 406112 | Module 2 Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6112 | 406113 | Module 2 Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6113 | 406114 | Module 2 Run Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6114 | 406115 | Module 2 Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6115 | 406116 | Module 2 Service On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6116 | 406117 | Module 2 Service On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6117 | 406118 | Module 2 Service On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6118 | 406119 | Module 2 Service On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6119 | 406120 | Module 2 Service Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6120 | 406121 | Module 2 Service Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6121 | 406122 | Module 2 Service Run Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6122 | 406123 | Module 2 Service Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6123 | 406124 | Module 2 On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6124 | 406125 | Module 2 On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6125 | 406126 | Module 2 On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6126 | 406127 | Module 2 On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6127 | 406128 | Module 2 Demand | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 0% |
| 6128 | 406129 | Module 2 Max Steam Output | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 100% |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6129 | 406130 | Module 2 Ignition Count (0) | Unsigned Scale 1 | No unit, 0 to 214748364 Value x 1 (e.g. 1 = 1) | RO | 0 |
| 6130 | 406131 | Module 2 Ignition Count (1) | No unit, 0 to 214748364 | |||
| 6131 | 406132 | Module 2 Ignition Count (2) | No unit, 0 to 214748364 | |||
| 6132 | 406133 | Module 2 Ignition Count (3) | No unit, 0 to 214748364 | |||
| 6133 | 406134 | Module 2 Manual Calibration Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | W | 0h |
| 6134 | 406135 | Module 2 Manual Calibration Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6135 | 406136 | Module 2 Manual Calibration Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6136 | 406137 | Module 2 Manual Calibration Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6137 | 406138 | Module 3 Chimney Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6138 | 406139 | Module 3 Chimney Temp (1) | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | |||
| 6139 | 406140 | Module 3 Water Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6140 | 406141 | Module 3 Water Temp (1) | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F | |||
| 6141 | 406142 | Module 3 Water Frequency (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| 6142 | 406143 | Module 3 Water Frequency (1) | Unit: Hz, Range: 0 to 30000 Hz | |||
| 6143 | 406144 | Module 3 Ambient Temp (0) | Signed Scale 100 | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6144 | 406145 | Module 3 Ambient Temp (1) | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F | |||
| 6145 | 406146 | Module 3 Fan Feedback (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 2000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| 6146 | 406147 | 6Module 3 Fan Feedback (1) | Unit: Hz, Range: 0 to 2000 Hz |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6147 | 406148 | Module 3 Fan PWM (0) | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | RO | 0% |
| 6148 | 406149 | Module 3 Fan PWM (1) | Unit: %, Range: 0% to 100% | |||
| 6149 | 406150 | Module 3 Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6150 | 406151 | Module 3 Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6151 | 406152 | Module 3 Run Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6152 | 406153 | Module 3 Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6153 | 406154 | Module 3 Service On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6154 | 406155 | Module 3 Service On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6155 | 406156 | Module 3 Service On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6156 | 406157 | Module 3 Service On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6157 | 406158 | Module 3 Service Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6158 | 406159 | Module 3 Service Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6159 | 406160 | Module 3 Service Run Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6160 | 406161 | Module 3 Service Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6161 | 406162 | Module 3 On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6162 | 406163 | Module 3 On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6163 | 406164 | Module 3 On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6164 | 406165 | Module 3 On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6165 | 406166 | Module 3 Demand | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 0% |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6166 | 406167 | Module 3 Max Steam Output | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 100% |
| 6167 | 406168 | Module 3 Ignition Count (0) | Unsigned Scale 1 | No unit, 0 to 214748364 Value x 1 (e.g. 1 = 1) | RO | 0 |
| 6168 | 406169 | Module 3 Ignition Count (1) | No unit, 0 to 214748364 | |||
| 6169 | 406170 | Module 3 Ignition Count (2) | No unit, 0 to 214748364 | |||
| 6170 | 406171 | Module 3 Ignition Count (3) | No unit, 0 to 214748364 | |||
| 6171 | 406172 | Module 3 Manual Calibration Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | W | 0h |
| 6172 | 406173 | Module 3 Manual Calibration Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6173 | 406174 | Module 3 Manual Calibration Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6174 | 406175 | Module 3 Manual Calibration Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6175 | 406176 | Module 4 Chimney Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6176 | 406177 | Module 4 Chimney Temp (1) | Unit: ºC/ºF, Range: 0°C to 260°C or 32°F to 500°F | |||
| 6177 | 406178 | Module 4 Water Temp (0) | Unsigned Scale 100 | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6178 | 406179 | Module 4 Water Temp (1) | Unit: ºC/ºF, Range: 0°C to 125°C or 32°F to 257°F | |||
| 6179 | 406180 | Module 4 Water Frequency (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 30000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| 6180 | 406181 | Module 4 Water Frequency (1) | Unit: Hz, Range: 0 to 30000 Hz | |||
| 6181 | 406182 | Module 4 Ambient Temp (0) | Signed Scale 100 | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6182 | 406183 | Module 4 Ambient Temp (1) | Unit: ºC/ºF, Range: -40°C to 100°C or -40°F to 212°F | |||
| 6183 | 406184 | Module 4 Fan Feedback (0) | Unsigned Scale 1 | Unit: Hz, Range: 0 to 2000 Hz Value x 1 (e.g. 1 Hz = 1) | RO | 0Hz |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6184 | 406185 | Module 4 Fan Feedback (1) | Unit: Hz, Range: 0 to 2000 Hz | |||
| 6185 | 406186 | Module 4 Fan PWM (0) | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | RO | 0% |
| 6186 | 406187 | Module 4 Fan PWM (1) | Unit: %, Range: 0% to 100% | |||
| 6187 | 406188 | Module 4 Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6188 | 406189 | Module 4 Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6189 | 406190 | Module 4 Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6190 | 406191 | Module 4 Run Time (4) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6191 | 406192 | Module 4 Service On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6192 | 406193 | Module 4 Service On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6193 | 406194 | Module 4 Service On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6194 | 406195 | Module 4 Service On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6195 | 406196 | Module 4 Service Run Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6196 | 406197 | Module 4 Service Run Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6197 | 406198 | Module 4 Service Run Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6198 | 406199 | Module 4 Service Run Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6199 | 406200 | Module 4 On Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | RO | 0h |
| 6200 | 406201 | Module 4 On Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6201 | 406202 | Module 4 On Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6202 | 406203 | Module 4 On Time (3) | Units: Hours (h), Range: 0 to 2147483647 h |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6203 | 406204 | Module 4 Demand | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 0% |
| 6204 | 406205 | Module 4 Max Steam Output | Unsigned Scale 100 | Unit: %, Range: 0% to 100% Value x 100 (e.g. 1% = 100) | W | 100% |
| 6205 | 406206 | Module 4 Ignition Count (0) | Unsigned Scale 1 | No unit, 0 to 214748364 Value x 1 (e.g. 1 = 1) | RO | 0 |
| 6206 | 406207 | Module 4 Ignition Count (1) | No unit, 0 to 214748364 | |||
| 6207 | 406208 | Module 4 Ignition Count (2) | No unit, 0 to 214748364 | |||
| 6208 | 406209 | Module 4 Ignition Count (3) | No unit, 0 to 214748364 | |||
| 6209 | 406210 | Module 4 Manual Calibration Time (0) | Unsigned Scale 100 | Units: Hours (h), Range: 0 to 2147483647 h Value x 100 (e.g. 1h = 100) | W | 0h |
| 6210 | 406211 | Module 4 Manual Calibration Time (1) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6211 | 406212 | Module 4 Manual Calibration Time (2) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6212 | 406213 | Module 4 Manual Calibration Time (3) | Units: Hours (h), Range: 0 to 2147483647 h | |||
| 6213 | 406214 | Water Level Replace Interval (0) | Unsigned Scale 1 | Unit: Days, Range: 0 day to 7 days Value x 1 (e.g. 1 day = 1) | W | 7 days |
| 6214 | 406215 | Water Level Replace Interval (1) | Unit: Days, Range: 0 day to 7 days | |||
| 6215 | 406216 | Boiler Blowdown Rate | Unsigned Scale 1 | Unit: %, Range: 0% to 100% Value x 1 (e.g.1% = 1) | W | 0% |
| 6216 | 406217 | Boiler Drain Interval | Unsigned Scale 1 | Units: Hours (h), Range: 0 to 24 h Value x 1 (e.g. 1 h = 1) | W | 6h |
| 6217 | 406218 | Boiler Idle Temperature Setpoint (0) | Unsigned Scale 1 | Unit: ºC/ºF, Range: 0°C to 60°C or 32°F or 140°F Value x 1 (e.g. 5°C = 500 or 32ºF = 3200) | W | 0°C or 32°F |
| 6218 | 406219 | Boiler Idle Temperature Setpoint (1) | Unit: ºC/ºF, Range: 0°C to 60°C or 32°F or 140°F | |||
| 6219 | 406220 | Boiler Idle Time Drain | Unsigned Scale 1 | Unit: Hours (h), Range: 0 to 72 h Value x 1 (e.g. 1 h = 1) | W | 24h |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 6220 | 406221 | Boiler Service Interval | Unsigned Scale 1 | Unit: Hours (h), Range: 1000 to 3000 h Value x 1 (e.g. 1500 h = 1500) | W | 1000h |
| 6221 | 406222 | Boiler Idle Tank Rinse Interval | Unsigned Scale 1 | Unit: Days, Range: 1 to 7 days Value x 1 (e.g. 1 day = 1) | W | 3 day |
| 6222 | 406223 | Boiler Minimum Steam Output | Unsigned Scale 1 | Unit: %, Range: 0 to 25% Value x 1 (e.g. 1% = 1) | W | 0% |
| 6223 | 406224 | Boiler Drain Volume | Unsigned Scale 1 | Unit: %, Range: 25 to 100% Value x 1 (e.g. 30% = 30) | W | 100% |
| 6224 | 406225 | HRL Temperature | Signed Scale 100 | Unit: ºC/ºF, Range: -40°C to 260°C or -40°F to 500°F Value x 100 (e.g. 5°C = 500 or 40ºF = 4000) | RO | 0°C or 32°F |
| 6225 | 406226 | HRL Humidity | Unsigned Scale 100 | Unit: % RH, Range: 0% RH to 100% RH Value x 100 (e.g. 1% RH = 100) | RO | 0% RH |
| 6226 | 406227 | Modbus TCP IP Keep Alive Time Out (0) | Unsigned Scale 1 | Unit: Minutes (min), Range: 1 to 1440 mins Value x 1 (e.g. 5 mins = 5) | W | 5 min |
| 6227 | 406228 | Modbus TCP IP Keep Alive Time Out (1) | Unit: Minutes (min), Range: 1 to 1440 mins | |||
| 10000 | 410001 | Water Leak Detection | Unsigned Scale 1 | 0 = Ok 1 = Leak | RO | Ok |
| 10001 | 410002 | Binary External Demand | Unsigned Scale 1 | 0 = 0% 1 = 100% | RO | 0% |
| 10002 | 410003 | Interlock | Unsigned Scale 1 | 0 = Closed 1 = Open | RO | Closed |
| 10003 | 410004 | Supply High Limit | Unsigned Scale 1 | 0 = Closed 1 = Open | RO | Closed |
| 10004 | 410005 | Air Flow | Unsigned Scale 1 | 0 = Closed 1 = Open | RO | Closed |
| 10005 | 410006 | RS485 Interface | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 10006 | 410007 | Ethernet Interface | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| 11000 | 411001 | Service Warning Relay | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11001 | 411002 | Alarm Warning Relay | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11002 | 411003 | Alarm LED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11003 | 411004 | Power LED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 11004 | 411005 | Buzzer | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12000 | 412001 | Network Control State | Unsigned Scale 1 | 0 = Normal 1 = Fault | W | Normal |
| 12001 | 412002 | Inhibit Resistive Probe | Unsigned Scale 1 | 0 = No 1 = Yes | W | No |
| 12002 | 412003 | Inhibit Resistive Probe | Unsigned Scale 1 | 0 = No 1 = Yes | W | No |
| 12003 | 412004 | Inhibit Resistive Probe | Unsigned Scale 1 | 0 = No 1 = Yes | W | No |
| 12004 | 412005 | Inhibit Resistive Probe | Unsigned Scale 1 | 0 = No 1 = Yes | W | No |
| 12005 | 412006 | Module 1 Burner Inlet Pressure | Unsigned Scale 1 | 0 = Normal 1 = Blocked | RO | Normal |
| 12006 | 412007 | Module 1 Water Level Low | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 12007 | 412008 | Module 1 Water Level High | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12008 | 412009 | Module 1 Foam Sensor | Unsigned Scale 1 | 0 = NoFoam 1 = Foam | RO | NoFoam |
| 12009 | 412010 | Module 1 Gas Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12010 | 412011 | Module 1 Tank Water Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12011 | 412012 | Module 1 Water Level Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12012 | 412013 | Module 1 Drain Cooler Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12013 | 412014 | Module 1 Drain Pump | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12014 | 412015 | Module 1 Ignition Control | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12015 | 412016 | Module 1 AlarmLED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12016 | 412017 | Module 1 Foam State | Unsigned Scale 1 | 0 = Ok 1 = Detected | RO | Ok |
| 12017 | 412018 | Module 1 Service Due | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| 12018 | 412019 | Module 1 Drain Valve | Unsigned Scale 1 | 0 = On 1 = Off | RO | On |
| 12019 | 412020 | Module 1 Water Level Probe Alarm | Unsigned Scale 1 | 0= Ok 1= Defect | RO | Ok |
| 12020 | 412021 | Module 2 Burner Inlet Pressure | Unsigned Scale 1 | 0 = Normal 1 = Blocked | RO | Normal |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 12021 | 412022 | Module 2 Water Level Low | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12022 | 412023 | Module 2 Water Level High | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12023 | 412024 | Module 2 Foam Sensor | Unsigned Scale 1 | 0 = NoFoam 1 = Foam | RO | NoFoam |
| 12024 | 412025 | Module 2 Gas Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12025 | 412026 | Module 2 Tank Water Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12026 | 412027 | Module 2 Water Level Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12027 | 412028 | Module 2 Drain Cooler Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12028 | 412029 | Module 2 Drain Pump | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12029 | 412030 | Module 2 Ignition Control | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12030 | 412031 | Module 2 AlarmLED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12031 | 412032 | Module 2 Service Due | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| 12032 | 412033 | Module 2 Foam State | Unsigned Scale 1 | 0 = Ok 1 = Detected | RO | Ok |
| 12033 | 412034 | Module 2 Drain Valve | Unsigned Scale 1 | 0 = On 1 = Off | RO | On |
| 12034 | 412035 | Module 2 Water Level Probe Alarm | Unsigned Scale 1 | 0= Ok 1= Defect | RO | Ok |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 12035 | 412036 | Module 3 Burner Inlet Pressure | Unsigned Scale 1 | 0 = Normal 1 = Blocked | RO | Normal |
| 12036 | 412037 | Module 3 Water Level Low | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12037 | 412038 | Module 3 Water Level High | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12038 | 412039 | Module 3 Foam Sensor | Unsigned Scale 1 | 0 = NoFoam 1 = Foam | RO | NoFoam |
| 12039 | 412040 | Module 3 Gas Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12040 | 412041 | Module 3 Tank Water Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12041 | 412042 | Module 3 Water Level Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12042 | 412043 | Module 3 Drain Cooler Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12043 | 412044 | Module 3 Drain Pump | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12044 | 412045 | Module 3 Ignition Control | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12045 | 412046 | Module 3 AlarmLED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12046 | 412047 | Module 3 Service Due | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| 12047 | 412048 | Module 3 Foam State | Unsigned Scale 1 | 0 = Ok 1 = Detected | RO | Ok |
| 12048 | 412049 | Module 3 Drain Valve | Unsigned Scale 1 | 0 = On 1 = Off | RO | On |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value |
| 12049 | 412050 | Module 3 Water Level Probe Alarm | Unsigned Scale 1 | 0= Ok 1= Defect | RO | Ok |
| 12050 | 412051 | Module 4 Burner Inlet Pressure | Unsigned Scale 1 | 0 = Normal 1 = Blocked | RO | Normal |
| 12051 | 412052 | Module 4 Water Level Low | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12052 | 412053 | Module 4 Water Level High | Unsigned Scale 1 | 0 = Inactive 1 = Active | RO | Inactive |
| 12053 | 412054 | Module 4 Foam Sensor | Unsigned Scale 1 | 0 = NoFoam 1 = Foam | RO | NoFoam |
| 12054 | 412055 | Module 4 Gas Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12055 | 412056 | Module 4 Tank Water Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12056 | 412057 | Module 4 Water Level Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12057 | 412058 | Module 4 Drain Cooler Valve | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12058 | 412059 | Module 4 Drain Pump | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12059 | 412060 | Module 4 Ignition Control | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12060 | 412061 | Module 4 AlarmLED | Unsigned Scale 1 | 0 = Off 1 = On | RO | Off |
| 12061 | 412062 | Module 4 Service Due | Unsigned Scale 1 | 0 = No 1 = Yes | RO | No |
| 12062 | 412063 | Module 4 Foam State | Unsigned Scale 1 | 0 = Ok 1 = Detected | RO | Ok |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
| 12063 | 412064 | Module 4 Drain Valve | Unsigned Scale 1 | 0 = On 1 = Off | RO | On | |
| 12064 | 412065 | Module 4 Water Level Probe Alarm | Unsigned Scale 1 | 0= Ok 1= Defect | RO | Ok | |
| 12065 | 412066 | Boiler Line Rinse | Unsigned Scale 1 | 0 = Off 1 = On | W | On | |
| 12066 | 412067 | Boiler Service Operation | Unsigned Scale 1 | 0 = NotAllowed 1 = Allowed | W | Allowed | |
| 12067 | 412068 | HRL Lock Setpoint | Unsigned Scale 1 | 0 = Unlock 1 = Lock | W | Unlock | |
| 12068 | 412069 | Notify Alarm | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
| 12069 | 412070 | Notify Warning | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
| 12070 | 412071 | Notify App Msg | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
| 15000 | 415001 | System Power State | Unsigned Scale 1 | 0 = Off 1 = On | W | Off | |
| 15001 | 415002 | Modbus Server Units | Unsigned Scale 1 | 0 = Metric | 1 = Imperial | W | Metric |
| 15002 | 415003 | Supply RH Signal Type | Unsigned Scale 1 | 0 = 0-10Vdc 1 = 2-10Vdc | 2 = 4-20mA 3 = 0-20mA | W | 0-10Vdc |
| 15003 | 415004 | Room RH Signal Type | Unsigned Scale 1 | 0 = 0-10Vdc 1 = 2-10Vdc | 2 = 4-20mA 3 = 0-20mA | W | 0-10Vdc |
| 15004 | 415005 | Control Signal Type | Unsigned Scale 1 | 0 = 0-10Vdc 1 = 2-10Vdc | 2 = 4-20mA 3 = 0-20mA | W | 0-10Vdc |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
| 15005 | 415006 | Control Profile | Unsigned Scale 1 | 0 = ExternAnalog 1 = ExternNetwork 2 = InternAnalog | 3 = InternNetwork 4 = HRL 5 = Custom | W | ExternAnalog |
| 15006 | 415007 | Modulating High Limit Profile | Unsigned Scale 1 | 0 = Disabled 1 = ExternAnalog 2 = ExternNetwork | 3 = InternAnalog 4 = InternNetwork 5 = Custom | W | Disabled |
| 15007 | 415008 | Occupancy State | Unsigned Scale 1 | 0 = Occupied 1 = Unoccupied | 2 = Vacant 3 = Off | RO | Occupied |
| 15008 | 415009 | Room RH Source | Unsigned Scale 1 | 0 = None 1 = RoomRH | 2 = Network 3 = HRL | W | None |
| 15009 | 415010 | Room RH Setpoint Source | Unsigned Scale 1 | 0 = None 1 = Internal | 2 = ControlInput | W | None |
| 15010 | 415011 | Supply High Limit Reading Source | Unsigned Scale 1 | 0 = None 1 = Supply HLRH | 2 = Network | W | None |
| 15011 | 415012 | Supply High Limit Setpoint Source | Unsigned Scale 1 | 0 = None 1 = Internal | 2 = ControlInput | W | None |
| 15012 | 415013 | Humidity Control Demand Source | Unsigned Scale 1 | 0 = None 1 = ControlInput | 2 = RoomDemand 3 = Network | W | ControlInput |
| 15013 | 415014 | Humidity Control High Limit Source | Unsigned Scale 1 | 0 = None 1 = ControlInput | 2 = SupplyHLDemand 3 = Network | W | None |
| 15014 | 415015 | Humidity Control Cutout State | Unsigned Scale 1 | 0 = Off 1 = Normal 2 = LowLimit | 3 = HighLimit 4 = AirFlow 5 = Interlock | RO | Off |
|
15015 |
415016 |
Module 1 State | Unsigned Scale 1 | 0 = Off 1 = Idle 2 = LineRinse 3 = TankRinse 4 = Filling | 5 = Draining 6 = Heating 7 = Boiling 8 = Alarm 9 = PurgeAir |
RO |
Off |
| 15016 | 415017 | Module 1 Request | Unsigned Scale 1 | 0 = None 1 = Reset Alarms 2 = Drain | 3 = Reset Counters 4 = Filling 5 = WaterCalib 6 = PurgeAir | W | None |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
|
15017 |
415018 |
Module 1 Alarm |
Unsigned Scale 1 | 0 = Normal 1 = FailedPump 2 = FillTimeout 3 = BlockedPiping 4 = HeatTimeout 5 = OverHeat 6 = WaterLeak 7 = Service 8 is Reserved | 9 = BurnerLocked 10 = FanDefect 11= FailedComm 12 = ChimTempHi 13 = RefillTimeout 14 = FanBlocked 15 = SystBlck 16 = TankBlocked 17 = RefillDelay |
RO |
Normal |
| 15018 | 415019 | Water Probe 1 Auto Calib | Unsigned Scale 1 | 0 = Off | 1 = On | W | On |
| 15019 | 415020 | Module 1 Water Level Probe Warning | Unsigned Scale 1 | 0= Ok 1= Replace | RO | Ok | |
| 15020 | 415021 | Water Level 1 Probe Failure | Unsigned Scale 1 | 0 = None 1 = Capacitive | 2 = Resistive 3 = Both | RO | None |
| 15021 | 415022 | Module 1 Water Level Probe Alarm | Unsigned Scale 1 | 0 = Ok 1 = Defect | 2 = NoCalib | RO | Ok |
|
15022 |
415023 |
Module 2 State | Unsigned Scale 1 | 0 = Off 1 = Idle 2 = LineRinse 3 = TankRinse 4 = Filling | 5 = Draining 6 = Heating 7 = Boiling 8 = Alarm 9 = PurgeAir |
RO |
Off |
| 15023 | 415024 | Module 2 Request | Unsigned Scale 1 | 0 = None 1 = Reset Alarms 2 = Drain | 3 = Reset Counters 4 = Filling 5 = WaterCalib 6 = PurgeAir | W | None |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
|
15024 |
415025 |
Module 2 Alarm |
Unsigned Scale 1 | 0 = Normal 1 = FailedPump 2 = FillTimeout 3 = BlockedPiping 4 = HeatTimeout 5 = OverHeat 6 = WaterLeak 7 = Service 8 is Reserved | 9 = BurnerLocked 10 = FanDefect 11= FailedComm 12 = ChimTempHi 13 = RefillTimeout 14 = FanBlocked 15 = SystBlck 16 = TankBlocked 17 = RefillDelay |
RO |
Normal |
| 15025 | 415026 | Water Probe 2 Auto Calib | Unsigned Scale 1 | 0 = Off | 1 = On | W | On |
| 15026 | 415027 | Module 2 Water Level Probe Warning | Unsigned Scale 1 | 0= Ok 1= Replace | RO | Ok | |
| 15027 | 415028 | Water Level 2 Probe Failure | Unsigned Scale 1 | 0 = None 1 = Capacitive | 2 = Resistive 3 = Both | RO | None |
| 15028 | 415029 | Module 2 Water Level Probe Alarm | Unsigned Scale 1 | 0 = Ok 1 = Defect | 2 = NoCalib | RO | Ok |
|
15029 |
415030 |
Module 3 State | Unsigned Scale 1 | 0 = Off 1 = Idle 2 = LineRinse 3 = TankRinse 4 = Filling | 5 = Draining 6 = Heating 7 = Boiling 8 = Alarm 9 = PurgeAir |
RO |
Off |
| 15030 | 415031 | Module 3 Request | Unsigned Scale 1 | 0 = None 1 = Reset Alarms 2 = Drain | 3 = Reset Counters 4 = Filling 5 = WaterCalib 6 = PurgeAir | W | None |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
|
15031 |
415032 |
Module 3 Alarm |
Unsigned Scale 1 | 0 = Normal 1 = FailedPump 2 = FillTimeout 3 = BlockedPiping 4 = HeatTimeout 5 = OverHeat 6 = WaterLeak 7 = Service 8 is Reserved | 9 = BurnerLocked 10 = FanDefect 11= FailedComm 12 = ChimTempHi 13 = RefillTimeout 14 = FanBlocked 15 = SystBlck 16 = TankBlocked 17 = RefillDelay |
RO |
Normal |
| 15032 | 415033 | Water Probe 3 Auto Calib | Unsigned Scale 1 | 0 = Off | 1 = On | W | On |
| 15033 | 415034 | Module 3 Water Level Probe Warning | Unsigned Scale 1 | 0= Ok 1= Replace | RO | Ok | |
| 15034 | 415035 | Water Level 3 Probe Failure | Unsigned Scale 1 | 0 = None 1 = Capacitive | 2 = Resistive 3 = Both | RO | None |
| 15035 | 415036 | Module 3 Water Level Probe Alarm | Unsigned Scale 1 | 0 = Ok 1 = Defect | 2 = NoCalib | RO | Ok |
|
15036 |
415037 |
Module 4 State | Unsigned Scale 1 | 0 = Off 1 = Idle 2 = LineRinse 3 = TankRinse 4 = Filling | 5 = Draining 6 = Heating 7 = Boiling 8 = Alarm 9 = PurgeAir |
RO |
Off |
| 15037 | 415038 | Module 4 Request | Unsigned Scale 1 | 0 = None 1 = Reset Alarms 2 = Drain | 3 = Reset Counters 4 = Filling 5 = WaterCalib 6 = PurgeAir | W | None |
| Protocol Base | Holding Register | Description | Data Type | Units, Limits, State Texts | Writable | Default Value | |
|
15038 |
415039 |
Module 4 Alarm |
Unsigned Scale 1 | 0 = Normal 1 = FailedPump 2 = FillTimeout 3 = BlockedPiping 4 = HeatTimeout 5 = OverHeat 6 = WaterLeak 7 = Service 8 is Reserved | 9 = BurnerLocked 10 = FanDefect 11= FailedComm 12 = ChimTempHi 13 = RefillTimeout 14 = FanBlocked 15 = SystBlck 16 = TankBlocked 17 = RefillDelay |
RO |
Normal |
| 15039 | 415040 | Water Probe 4 Auto Calib | Unsigned Scale 1 | 0 = Off | 1 = On | W | On |
| 15040 | 415041 | Module 4 Water Level Probe Warning | Unsigned Scale 1 | 0= Ok 1= Replace | RO | Ok | |
| 15041 | 415042 | Water Level 4 Probe Failure | Unsigned Scale 1 | 0 = None 1 = Capacitive | 2 = Resistive 3 = Both | RO | None |
| 15042 | 415043 | Module 4 Water Level Probe Alarm | Unsigned Scale 1 | 0 = Ok 1 = Defect | 2 = NoCalib | RO | Ok |
| 15043 | 415044 | Boiler Fill Mode | Unsigned Scale 1 | 0 = OneShot | 1 = Pulsed | W | Pulsed |
| 15044 | 415045 | Boiler Idle Tank Rinse Off | Unsigned Scale 1 | 0 = Off | 1 = On | W | Off |
| 15045 | 415046 | Boiler Idle Tank Rinse On | Unsigned Scale 1 | 0 = Off | 1 = On | W | Off |
| 15046 | 415047 | System Mode | Unsigned Scale 1 | 0 = Parallel 1 = Sequential | 2 = Hybrid | W | Sequential |
| 15047 | 415048 | Boiler Startup Tank Rinse | Unsigned Scale 1 | 0 = Off | 1 = On | W | Off |
ABOUT COMPANY
- 400 Lebeau blvd, Montreal, Qc, H4N 1R6,
- Canada: www.neptronic.com
- Toll free in North America: 1-800-361-2308
- Tel.: (514) 333-1433
- Fax: (514) 333-3163
- Customer service fax: (514) 333-1091
- Monday to Friday: 8:00am to 5:00pm (Eastern time)
Neptronic | Home - Humidifier Distributor & HVAC Products
