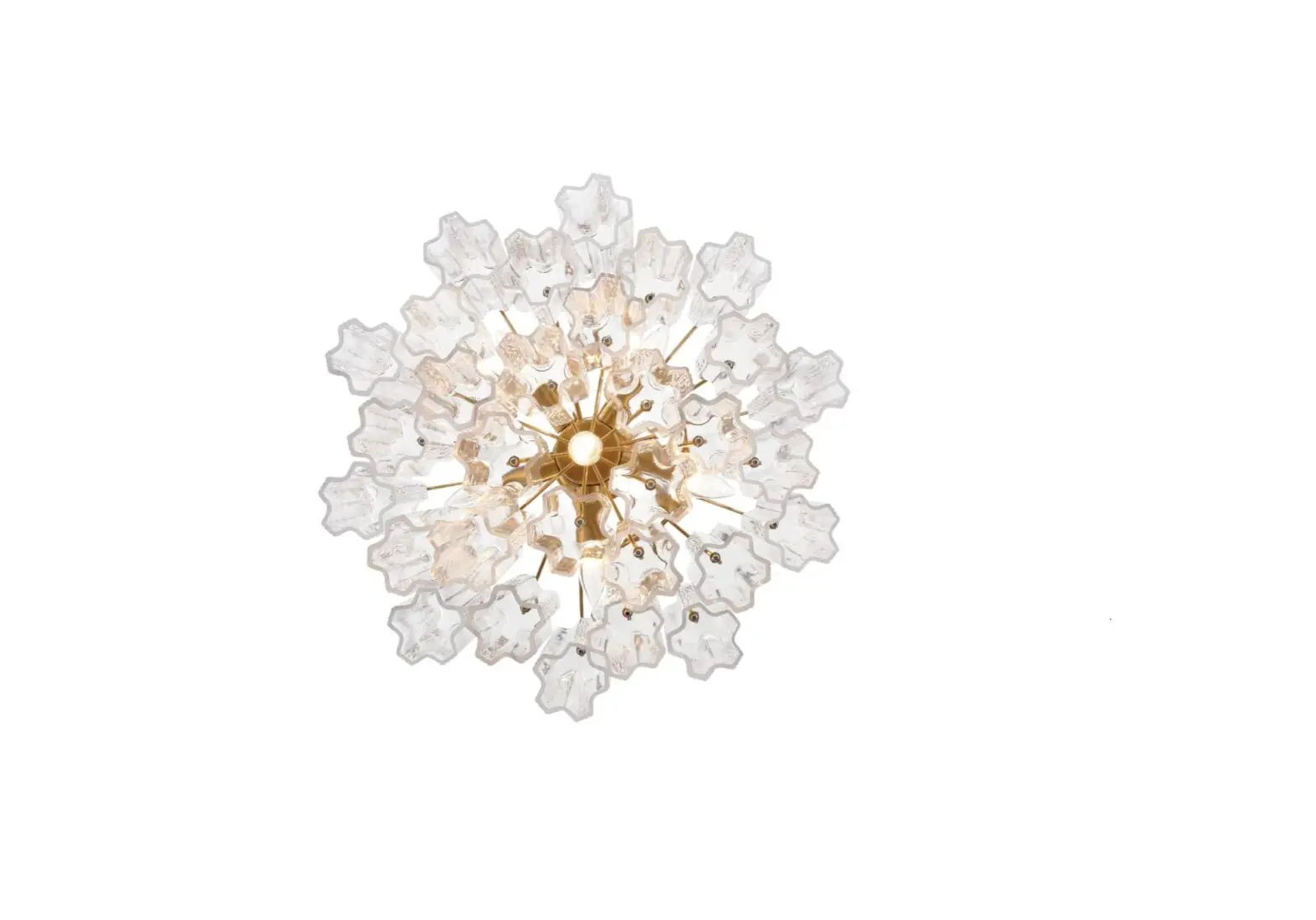

ADD-300-CH-AU Addis 4 Light Chandelier
Product Information:
Product Name: ADD-300-CH-AU
Manufacturer: Crystorama.com
Product Type: Pendant/Ceiling Fixture
Fixture Rating: Dry Rated
Glass Sets: 24 pcs Various colored glass (2 3/4×7 3/4)
Product Usage Instructions:
For Pendant Installation:
- Decide the preferred hanging height and choose the correct
number of rods needed. - Feed the wires through the rods, screw collar ring, and canopy
(with a bigger center hole). - Screw the rods together.
- Screw one end of the rod assembly onto the top of the frame and
the other end onto the swivel on the mounting strap. - Attach the mounting strap onto the outlet box.
- Raise the fixture up to the ceiling and do the wire
connections. - Slip the canopy up along the rods and over the mounting strap.
Secure with the screw collar ring. - Install the bulb into the socket.
- Dress the glass as illustrated.
For Ceiling Installation:
- Screw the canopy kit (with a smaller center hole) onto the
frame. - Attach the mounting strap onto the outlet box.
- Raise the fixture up to the ceiling and over the mounting
strap. When the wire connection is made, secure the canopy with two
ball nuts. - Install the bulb into the socket.
- Dress the glass as illustrated.
ADD-300-CH-AU
Crystorama.com
For Pendant
3 2
Ø130 [581″] 25 [1″]
4
Ø13 [21″]
STEMS (3-12″)
1
STEMS (1-6″)
6
349 [1334″]
5
Ø446 [Ø1785″]
24PCS
Tier#4
Tier#3 Tier#2 Tier#1
Dress the glass from tier #4.
4
This Fixture is Dry Rated
How to Install 1. Decide the preferred hanging height and
choose the correct number of of rods needed. 2. Feed the wires through the rods,screw collar
ring and canopy (with a bigger center hole). Screw the rods together. Screw one end of the rod assembly onto the top of frame and the other end onto the swivel on the mounting strap 3. Attach the mounting strap onto the outlet box. 4. Raise the fixture up to the ceiling and do the wire connections. Slip the canopy up along the rods and over the mounting strap. Secure with the screw collar ring. 5. Install the bulb into the socket. 6. Dress the glass as illustrated.
Glass Sets 1. 24 pcs Various colored glass 2 3/4×7 3/4″
For Ceiling
3
2 1
Ø130 [581″] 25 [1″] 4 6
ADD-300-CH-AU
4
Crystorama.com
349 [1334″]
5
Ø446 [Ø1758″]
24PCS
How to Install 1. Screw the canopy kit (with a smaller center
hole) onto the frame.
2. Attach the mounting strap onto the outlet box.
3. Raise the fixture up to the ceiling and over the mounting strap. When the wire connection is made, secure the canopy with two ball nuts.
4. Install the bulb into the socket.
5. Dress the glass as illustrated.
Glass Sets 1. 24 pcs Clear glass 2 3/4×7 3/4″
ADD-300-CH-AU
Crystorama.com
A
A
A
B
B
C B
C
D
C D
GD
E
G
F
GG
A. (1)-Canopy,D 5 1/8XH1″ XBN300CHCAN5.125IN
B. (1)-Collar ring C. (1)-Swivel D. (1) – 6″ Rod – XBN300CHROD6IN E. (3) – 12″ Rods – XBN300CHROD12IN F. (1)-Frame
G. (24)-Glass,D2 3/4xH7 3/4″ XBN300CHCLGLA7.75IN
F
E
H
E
H
J
F
K
I
