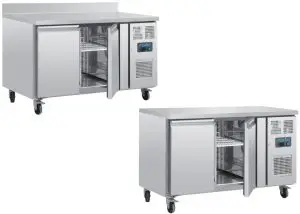

Polar Gl182 Stainless Steel Counter Refrigerators/freezers Instruction Manual

POLAR GL182 Stainless Steel Counter Refrigerators/Freezers Instruction Manual

Safety Tips

• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required. Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following:
  • Health and Safety at Work Legislation
  • BS EN Codes of Practice
  • Fire Precautions
  • IEE Wiring Regulations
  • Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT stand or support yourself on the base, drawers or doors.
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean immediately if contact occurs.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified technician in order to avoid a hazard.
• POLAR recommend that this product is connected to a circuit protected by an appropriate RCD (Residual Current Device).
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.
• POLAR recommends that this appliance should be periodically tested (at least annually) by a Competent Person. Testing should include, but not be limited to: Visual Inspection, Polarity Test, Earth Continuity, Insulation Continuity and Functional Testing.

Caution Risk of Fire

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
  Warning: Keep all ventilation openings clear of obstruction. Unit should not be boxed in without adequate ventilation.
• Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are the type recommended by the manufacturer.

Product Description

• G377 – POLAR 228 litre 2 Door Counter Refrigerator
• G378 – POLAR 339 litre 3 Door Counter Refrigerator
• G379 – POLAR 449 litre 4 Door Counter Refrigerator
• G596 – POLAR 282 litre 2 Door Counter Refrigerator
• G597 – POLAR 417 litre 3 Door Counter Refrigerator
• G598 – POLAR 553 litre 4 Door Counter Refrigerator
• GD873 – POLAR 282 litre 1 Door 2 Drawer Counter Refrigerator
• GD874 – POLAR 417 litre 2 Door 2 Drawer Counter Refrigerator
• DL914 – POLAR 282 litre 2 Door Counter Refrigerator with upstand
• DL915 – POLAR 417 litre 3 Door Counter Refrigerator with upstand
• GL182 – POLAR 3 door bakery counter fridge with marble worktop
• GL183 – POLAR 2 door bakery counter refrigerator
• GL184 – POLAR 3 door bakery counter refrigerator
• G599 – POLAR 282 litre 2 Door Counter Freezer
• G600 – POLAR 417 litre 3 Door Counter Freezer
• DL916 – POLAR 282 litre 2 Door Counter Freezer with upstand
• DL917 – POLAR 417 litre 3 Door Counter Freezer with upstand

Introduction

Please take a few moments to carefully read through this manual. Correct maintenance and operation of this machine will provide the best possible performance from your POLAR product.

Pack Contents

The following is included:

• POLAR Refrigerator or Freezer
• Shelf guide (2 per door) except GL182 (14 per door)
• Shelf (1 per door) except GL182, GL183 and GL184 (No shelves included)
• Instruction manual
• Spacer (x2)

POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied fully functional and free of damage. Should you find any damage as a result of transit, please contact your POLAR dealer immediately.

Installation

Note: If the unit has not been stored or moved in an upright position, let it stand upright for approximately 12 hours before operation. If in doubt allow to stand.

1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation. NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.
   To avoid being pushed tight against the wall accidentally and ensure good ventilation, 2 spaces are supplied for mounting on the rear.
3. Set the brakes on the castors to keep the appliance in position OR Level the appliance by adjusting the screw feet.
   Note: Before using the appliance for the first time, clean the shelves and interior with soapy water.

Fitting the Shelves

1. Place one set of shelf guides on either side of the cabinet at the desired height.
2. Slide the shelf into place.
3. Repeat for the remaining shelves.

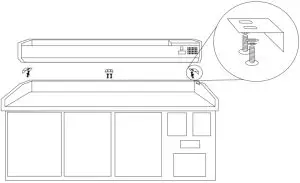

Attach Refrigerated Counter Top G611 (for GL182 Only) (This is optional)

1. Remove the appliance from the packaging.
2. Tip the appliance back and loosely attach the three brackets to the underside of the counter top, using suitable screws. Do not fully tighten at this stage.
   Note: Ensure the two ‘L’ shape brackets are fitted to the outside edges.
3. Lower the Counter Top unit onto the marble sides. Ensure the side brackets are postponed on the inside of the marble rim.
4. Push the side brackets flush with the marble and tighten the bracket screws.

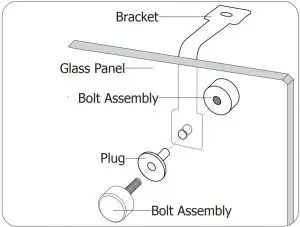

Fit Glass Panels G611 (for GL182 Only)

1. Screw the collars to the rim of the appliance.
   Note: Ensure the hole in the collar for the grub screw faces inwards.
2. Slot the two side panels into the collars, with the holes in the glass at the top.
   Note: Ensure the screw hole furthest from the edge of the panel goes to the back of the appliance.
3. Screw a grub screw into each collar to secure the panels.
   Note: Ensure the soft end of the grub screw is the end making contact with the glass.
   Do not over-tighten the grub screw as it will result in the glass breaking.
4. Slot the rear panel into the collars, with the holes in the glass at the top.
5. Screw a grub screw into each collar to secure the panel.
6. Slot the plastic plugs into each of the holes.
7. Screw the brackets to the inside of each panel using the bolt assemblies.
   Note: Ensure the short end of the bolt assembly is on the outside of the panels.
8. Place the top panel onto the brackets, ensuring all holes line up.
9. Insert the plugs and attach the top panel to the brackets with the bolt assembly.


Operation

Storing Food

To get the best results from your POLAR appliance, follow these instructions:

• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Do not place uncovered hot food or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods of time.

Turn On

1. Ensure the power switch is set to [O] and turn on at the socket.
2. Switch on the Power [I]. The current temperature within the appliance is displayed.

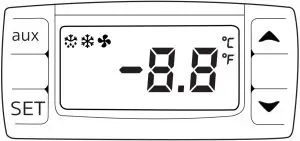

Control Panel

Set the Operating Temperature

1. Hold the SET button for 3 seconds. The value of the current set point will be displayed.
2. Press the or buttons to display the required temperature.
3. Press the SET button to store the temperature.

Manual Defrost

• The appliance will automatically run a defrost cycle every six hours.
• To manually defrost the appliance: Press  and  hold the defrost button “aux” for 2 seconds to begin a manual defrost. The defrost light illuminates.

Cleaning, Care & Maintenance

Defrost appliance at least every 3 months, more often if required.
Switch off and disconnect from the power supply before cleaning.

• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• Take care when cleaning the rear of the appliance. Sharp edges can cut.
• A POLAR agent or qualified technician must carry out repairs if required.

Stainless Steel Care

To maintain the stainless steel exterior of your Polar item, please consider the following information:

• Never:
  • Use abrasive Scourers or scrubbing pads, etc.
  • Use Chlorinated or acidic detergents.
  • Allow anything e.g. food, dirt, cleaning chemicals to remain on the surface for longer than necessary, clean them off right away.
  • Allow the surface to remain wet.
• Do:
  • Clean often.
  • Use soft Cloths or plastic Scourers.
  • Rub with the grain of the metal, rather than across it.
  • Use detergents and polish designed for cleaning Stainless Steel.
  • Ensure that the cleaning products are washed off fully and that the steel is left dry.

Routine Maintenance

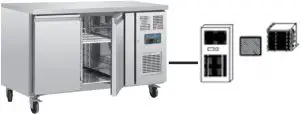

Condenser Cleaning

• The condenser is part of the refrigeration system. The condenser requires monthly cleaning.
• Always disconnect power supply before carrying out Routine Maintenance.
• Failure to clean the condenser will reduce the performance and life of your Polar unit and may invalidate your warranty
• The condenser is located behind the service door on the right-hand side of the refrigeration cabinet.
• These models have a removable filter which can be cleaned with a vacuum cleaner.

Troubleshooting

If your POLAR appliance develops a fault, please check the following table before making a call to the Helpline or your POLAR dealer.

Technical Specifications

Electrical Wiring

POLAR appliances are supplied with a 3 pin BS1363 plug and lead.

The plug is to be connected to a suitable mains socket.

POLAR appliances are wired as follows:

• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E

This appliance must be earthed.

If in doubt consult a qualified electrician.

Electrical isolation points must be kept clear of any obstructions. In the event of any emergency disconnection being required they must be readily accessible.

Disposal

EU regulations require refrigeration product to be disposed of by specialist companies who remove or recycle all gasses, metal and plastic components.

Consult your local waste collection authority regarding disposal of your appliance. Local authorities are not obliged to dispose of commercial refrigeration equipment but may be able to offer advice on how to dispose of the equipment locally.

Alternatively call the POLAR helpline for details of national disposal companies within the EU.

Compliance

The WEEE logo on this product or its documentation indicates that the product must not be disposed of as household waste. To help prevent possible harm to human health and/or the environment, the product must be disposed of in an approved and environmentally safe recycling process. For further information on how to dispose of this product correctly, contact the product supplier, or the local authority responsible for waste disposal in your area.

POLAR parts have undergone strict product testing in order to comply with regulatory standards and specifications set by international, independent, and federal authorities.

POLAR products have been approved to carry the following symbol:

All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to change specifications without notice.

DECLARATION OF CONFORMITY

I, the undersigned, hereby declare that the equipment specified above conforms to the above Territory Legislation, Directive(s) and Standard(s).

Date	18th November 2020
Signature	DocuSigned by: B39382C9FD9C478…	DocuSigned by: D352874F7FAB460…	DocuSigned by: 3582E210C4054DA…
Full Name	Ashley Hooper	Eoghan Donnellan	Josie Holt
Position	Technical & Quality Manager	Commercial Manager/ Importer	Commercial Manager/ Responsible Supplier
Producer Address	Fourth Way, Avonmouth, Bristol, BS11 8TB United Kingdom	42 North Point Business Park New Mallow Road Cork Ireland	15 Bagdally Road, Campbelltow NSW 2560
